SPECIFICATIONS
Description

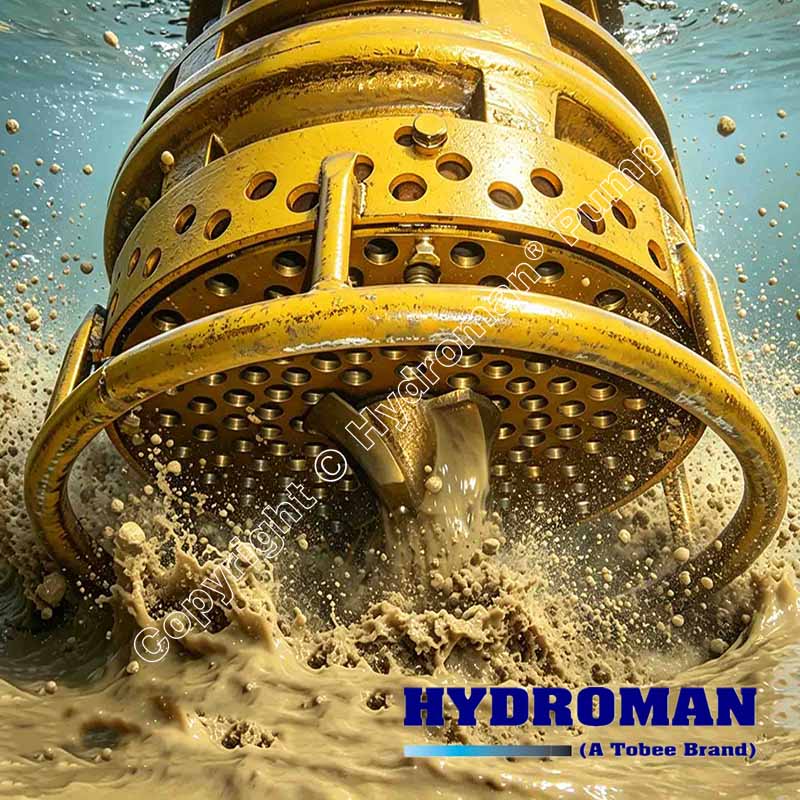

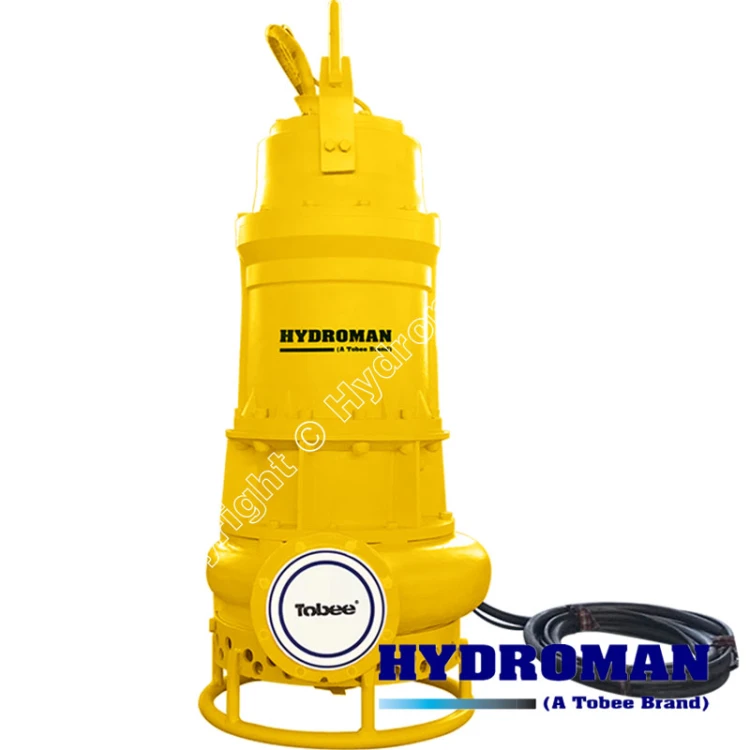

Hydroman® 400TJQ315-50H6A Elecrtic Submersible Sand Agitator Pump for Gold Ore Slurry combines a robust electric motor, a wear-resistant impeller and casing, and a critical additional component: agitator (also called a stirrer or mixer) mounted at the bottom of the high solids submersible slurry pump, directly below the suction inlet.

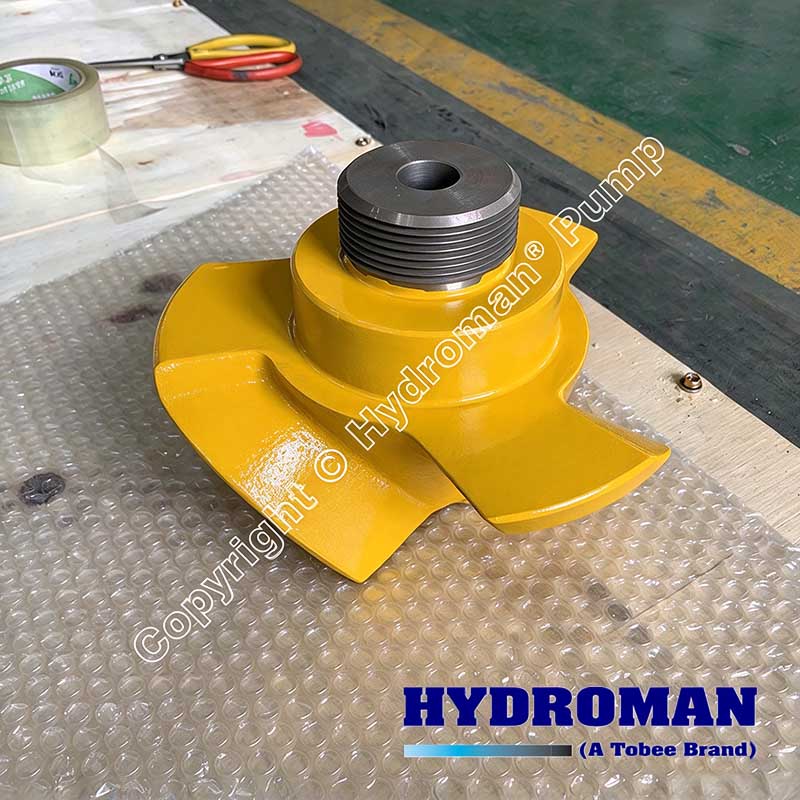

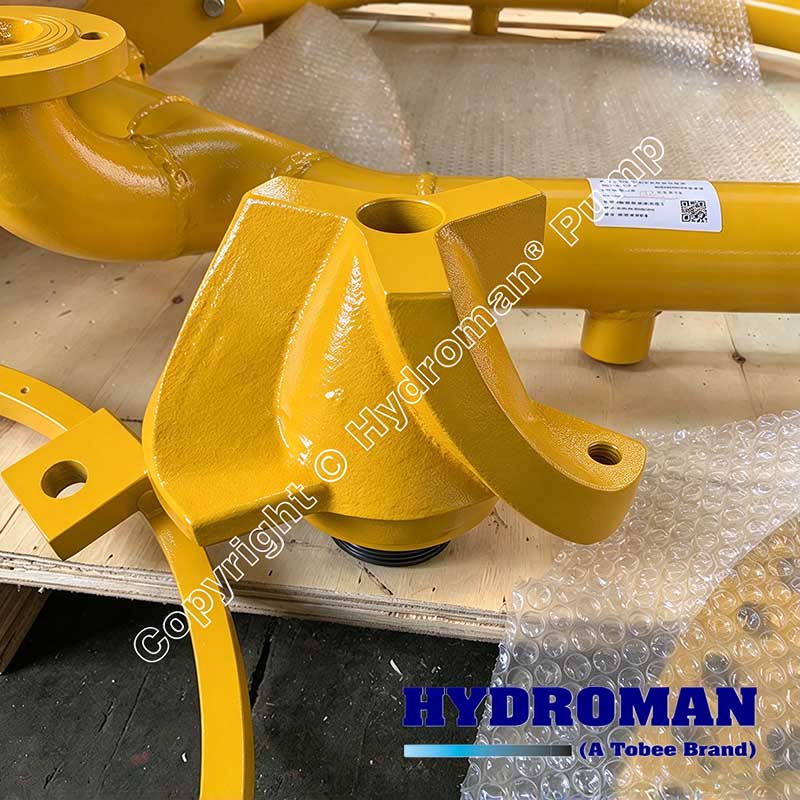

The agitator for submersible sand pump for gold ore slurry usually a hardened high-chrome alloy blade or propeller—rotates with the main shaft. Submersible gold ore slurry pump built-in agitator generates strong downward and radial currents that break up compacted sand, gravel, ore particles, and settled tailings. This action fluidizes the material into a homogeneous, pumpable slurry with solids concentrations that can reach 50–70% by weight (or higher in optimized setups). Without the agitator, a standard submersible slurry pump would primarily draw water, leaving solids behind to eventually block the intake.
 |
 |
 |

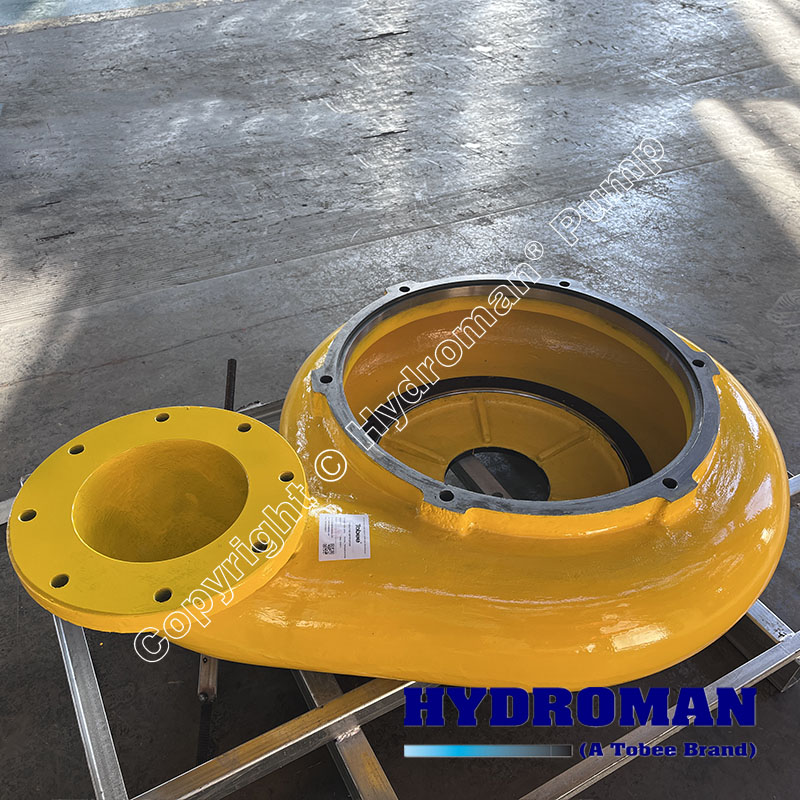

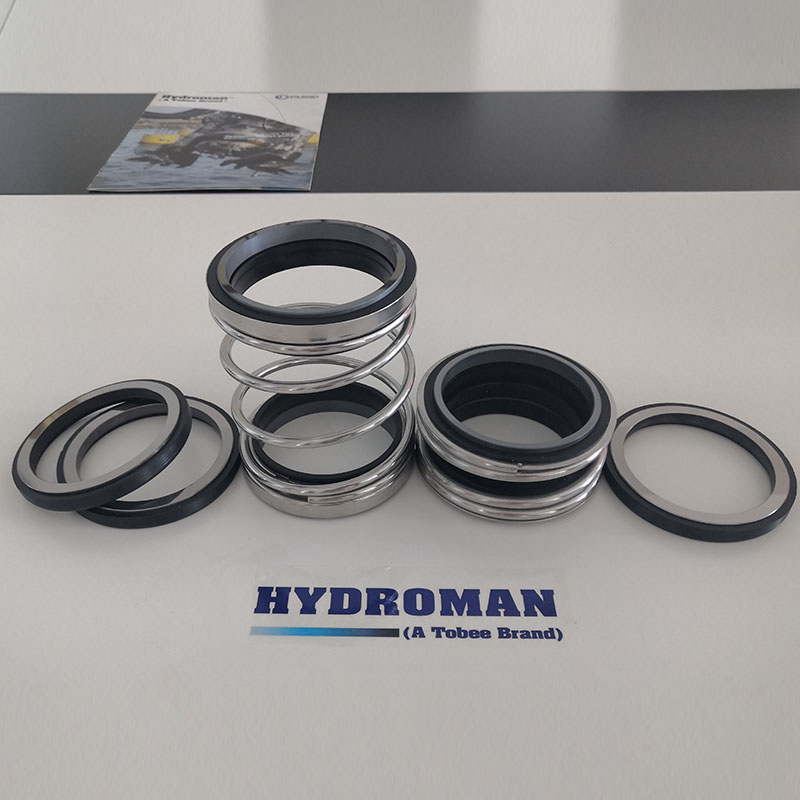

Hydroman low maintenance submersible slurry pumps for 24H operation are typically constructed with high-chromium alloy (such as Cr27 or A05) wet-end parts for exceptional abrasion resistance, dual mechanical seals for motor protection, and IP68-rated enclosures. Power ranges commonly span from a few kilowatts for smaller units to several hundred kW for large mining applications.
 |
 |
 |
Hydroman® 400TJQ315-50H6A Elecrtic Submersible Sand Agitator Pump Design Features That Matter
Modern units often include:
▪ Bottom or side agitators (sometimes multiple side cutters for harder-packed material).

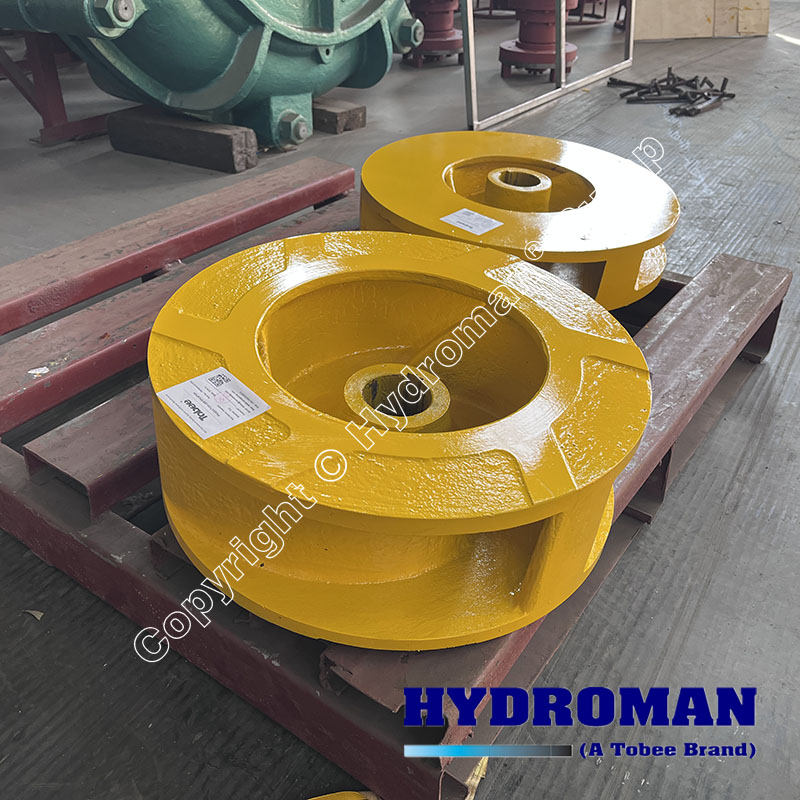

▪ Large internal clearances or recessed impeller designs to pass larger particles (typically up to 50–120 mm depending on model).
▪ Modular wear parts for easier replacement.

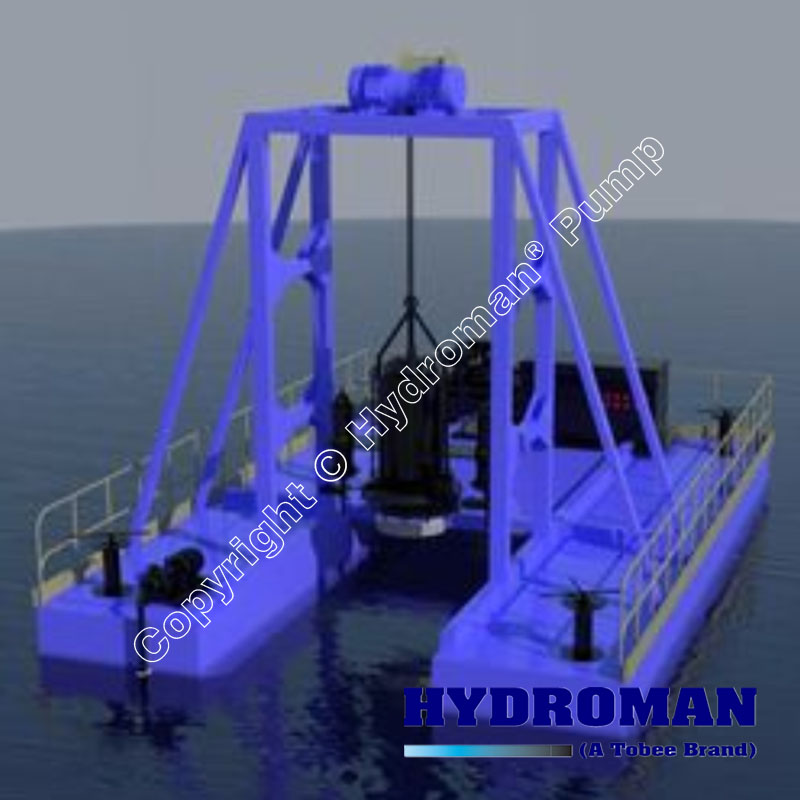

▪ Options for flotation platforms, electric hoists, or winches for mobile or pontoon-mounted use.
▪ Temperature and leakage sensors for motor protection.

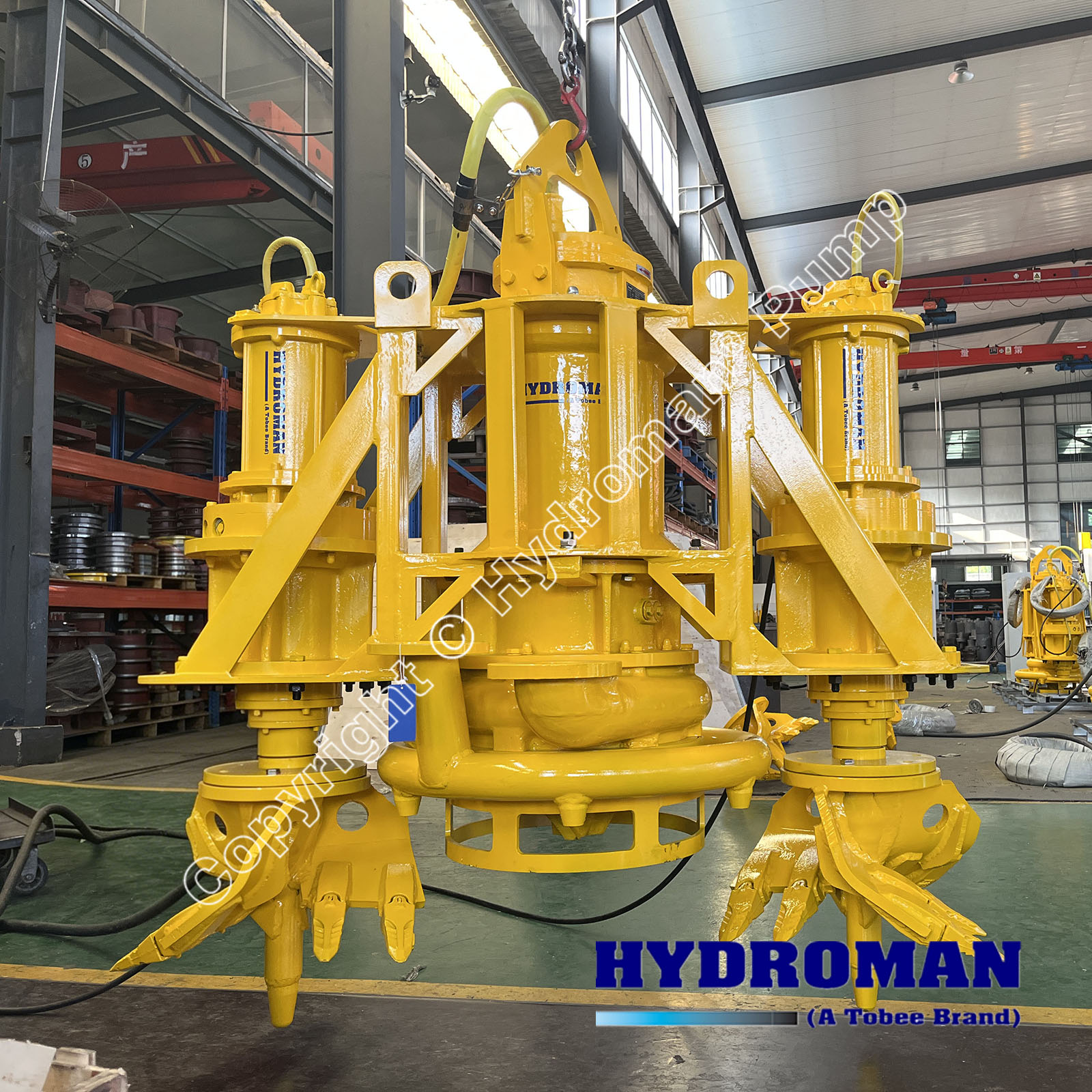

Some advanced configurations pair the main submersible slurry pump with additional side agitator or water jetring for deeper or more compacted deposits.
 |
 |
 |

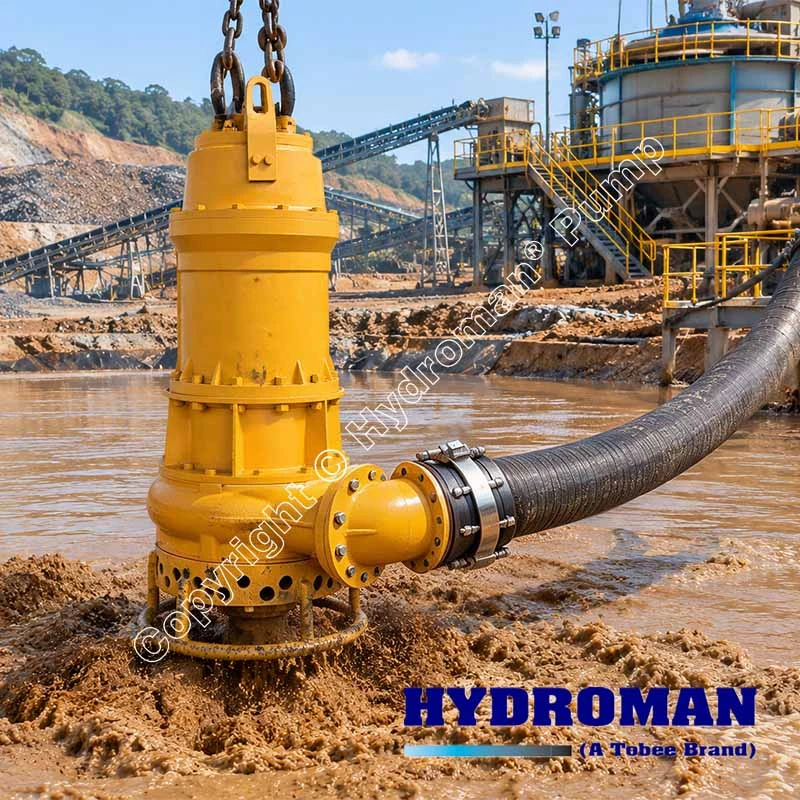

Hydroman® 400TJQ315-50H6A Elecrtic Submersible Sand Agitator Pump Applications in Gold Ore Processing
▪ Gold sand dredging. Pumping gold-bearing sand directly from riverbeds, alluvial deposits, and ponds, where the agitator helps lift settled material and the pump transfers it to processing equipment.
▪ Ore slurry transfer. Moving slurry between stages of a processing plant, such as from grinding circuits and sumps to downstream treatment, where steady, clog-resistant flow of dense abrasive material is needed.
▪ Tailings and slag handling. Transferring concentrator tailings and slag slurry to storage or disposal, one of the heaviest abrasive duties in any mining operation.
▪ Sump and settling pond cleaning. Clearing settled sand and slime from plant sumps, settling ponds, and similar collection points where material accumulates over time.
▪ Mineral beneficiation more broadly. The same Hydroman submersible slurry pump system for mine tailings class is used for iron sand, rare earth minerals, and other sand-based mineral processing, so a single submersible dewatering slurry pumps for mining project platform often serves several material streams on a mining site.
