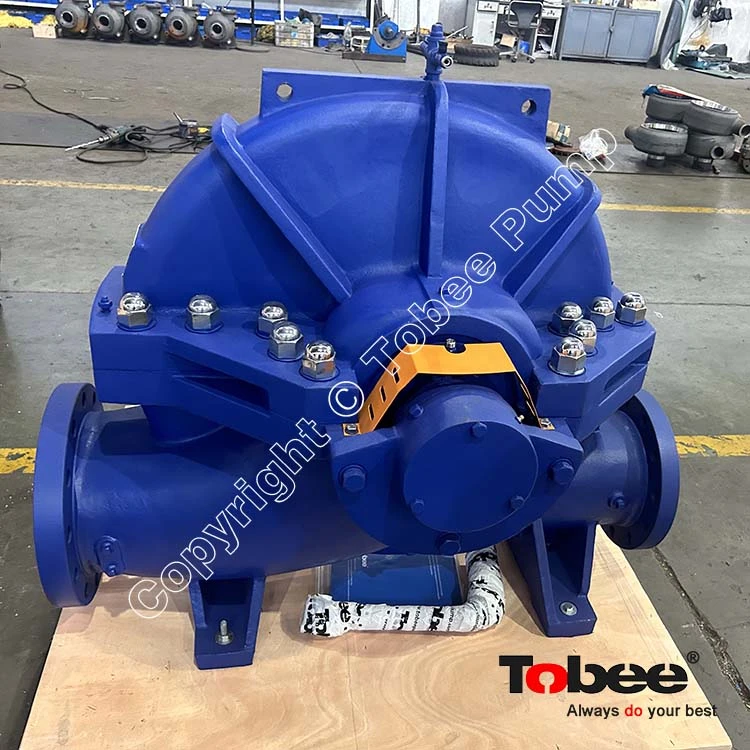

Magflow® TOW Split Case Pump Product Description

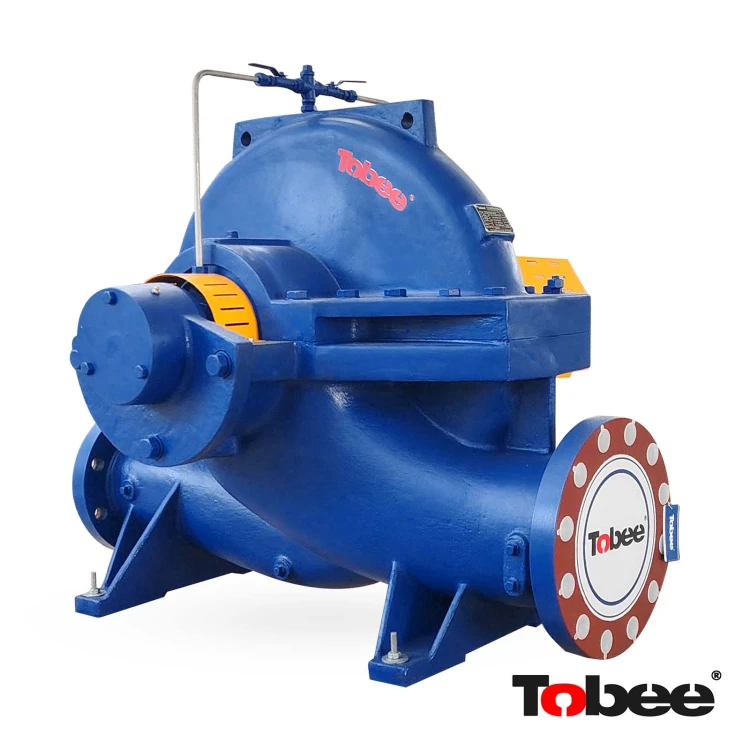

Magflow® TO and TOW(II) series pumps are heavy-duty, single-stage, double-suction, axially split volute centrifugal pumps engineered for high-efficiency fluid transfer and reliable long-term operation. Featuring an axially split casing design, the upper and lower halves can be separated for easy inspection and maintenance of the rotor assembly without disturbing the suction and discharge pipe connections or the motor driver.
| 1 |
Pump Casing |

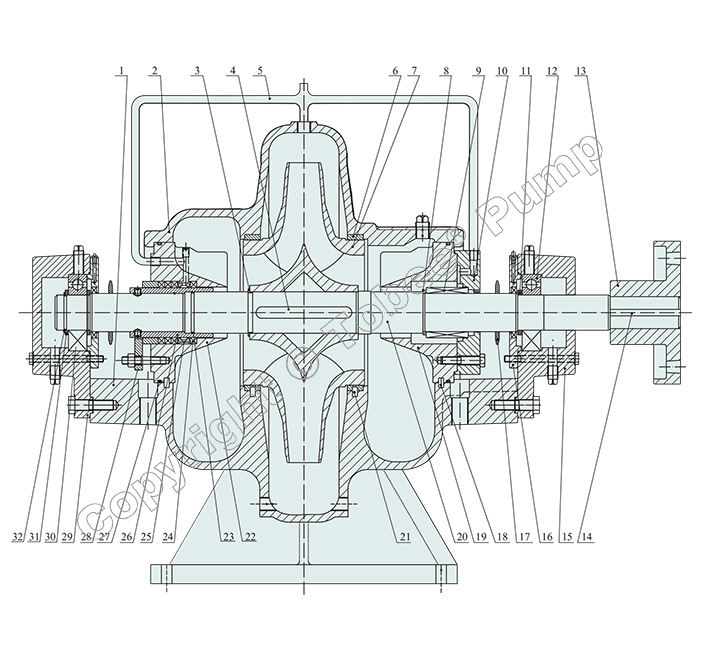

8 | Seal Ring | 15 | Bearing Assembly A | 22 | Seal Body | 29 | Bearing Assembly B |
| 2 |
Pump Cover |
9 | Mechanical Seal | 16 | Seal Gland | 23 | O-ring | 30 | Bearing |
| 3 |
Grease Retainer |
10 | Mechani Seal Gland | 17 | Water Baffel | 24 | Stuffing | 31 | Bearing Baffel |
|
4 |
Key | 11 | External Circlip | 18 | Column Pin | 25 | Stuffing Ring | 32 | External Circlip |
| 5 |
Flushing |
12 | Bearing | 19 | Seal Body | 26 | Stuff Muff | ||
| 6 |
Seal Ring |
13 | Pump Linkage | 20 | Shaft | 27 | O-ring | ||
| 7 |
Impeller |
14 | Key | 21 | Column Pin | 28 | Packing Gland |

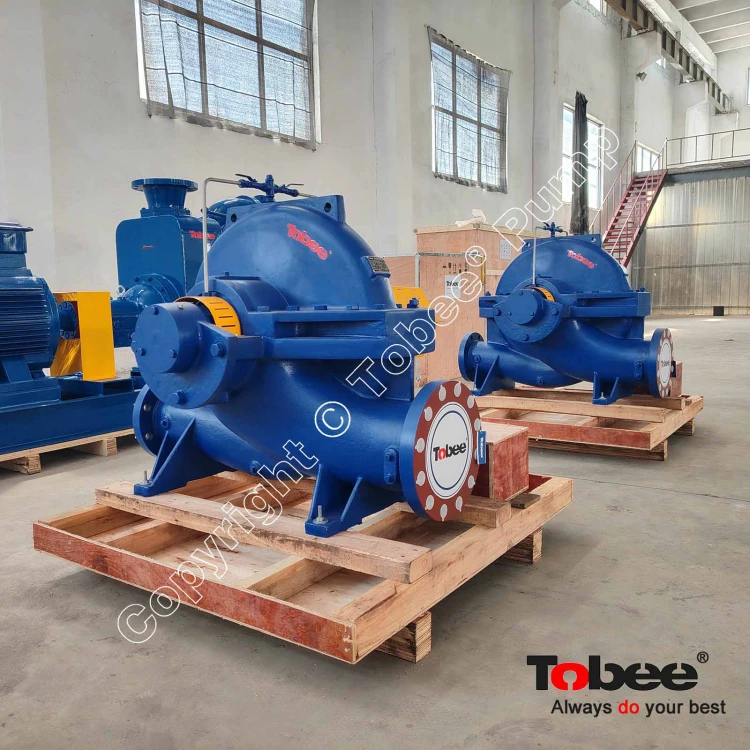

Magflow® TOW Split Case Pump Design Features
Double-Suction Impeller: The dual-inlet hydraulic design balances axial thrust, minimizes bearing loads, and ensures stable operation even at high flow rates and low net positive suction head (NPSH) conditions.

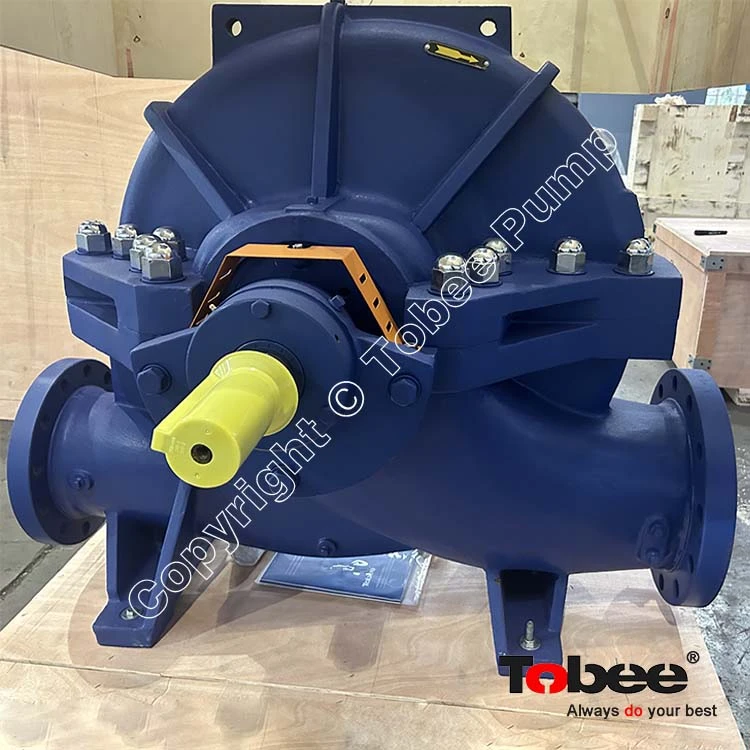

Axially Split Casing: Simplifies routine maintenance and overhauls, allowing direct access to internal components (impeller, wear rings, and shaft) without dismantling the pipeline infrastructure.
High Hydraulic Efficiency: Optimized volute and impeller geometry reduce turbulence and energy losses, delivering superior efficiency across a wide operating range.
Flexible Configuration: Available with various mechanical seal or packing seal arrangements, alongside flexible flange standards and customizable rotation directions to suit specific plant layouts.

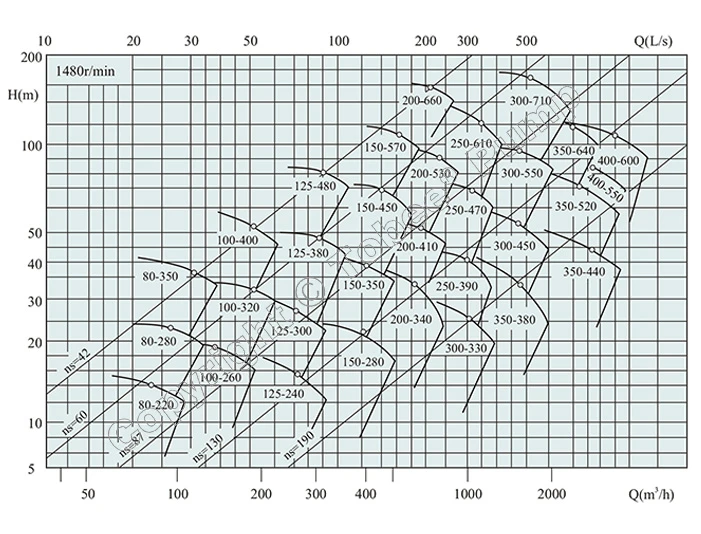

Magflow® TOW Split Case Pump Quick Selection Chart
Magflow® TOW Split Case Pump List of Main Parts Materials
| Pump Part | Material | GB |
| Pump casing | Casting pig | HT250 |
| Ductalloy | QT400-18 | |
| Cast steel | ZG230-450 | |
| Stainless steel | According to confirmation of contract | |
| Impeller | Bronze | ZCuSn10Pb1 |
| Casting pig | HT250 | |
| Silicon brass | ZCuZn16Si4 | |
| Stainless steel | According to confirmation of contract | |
| Shaft | Stainless steel | 2Cr13 |
| Carbon steel | 40Cr | |
| Seal-ring on pump casing | Bronze | ZCuSn10Pb1 |
| Casting pig | HT250 | |
| Silicon brass | ZCuZn16Si4 | |
| Stainless steel | According to confirmation of contract |

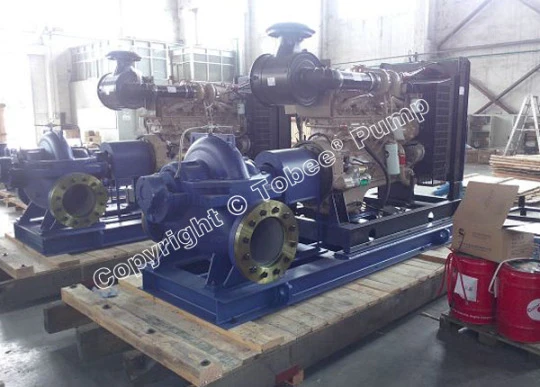

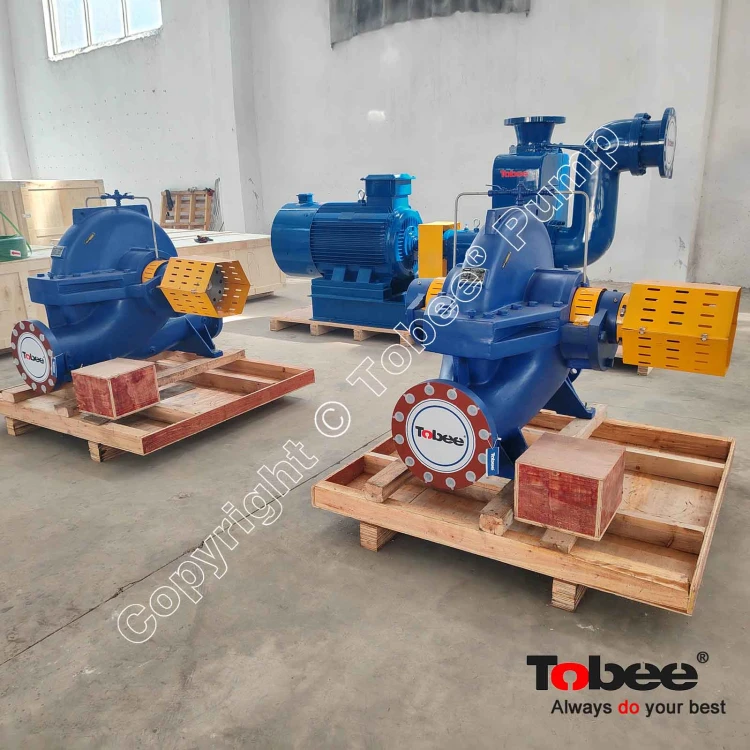

Magflow® TOW Split Case Pump Typical Application
Engineered for versatile liquid transfer and high-capacity circulation, these pumps are widely specified for:
Water Supply & Treatment: Municipal water treatment plants, booster stations, and commercial building water supply networks.
HVAC & Utilities: Chilled water and condenser water loops for HVAC circulating systems, plus district cooling plants.
Industrial & Power: Industrial water supply systems, cooling water circuits in power plants, and factory process water.
Civil & Infrastructure: Agricultural irrigation, municipal drainage pumping stations, and fire protection systems.
Marine & Offshore: Bilge, ballast, and general service fluid handling within the marine industry.
