Magflow® TSH Double-Suction Split Case Pump Specifications
Magflow® TSH Horizontal Split-Case Double-Suction Centrifugal Pump Product Description
Magflow® TSH Horizontal Split-Case Pump features a single-stage, double-suction impeller design that delivers exceptional hydraulic balance and operational stability. It is optimized for clean water and non-corrosive liquids, handling medium temperatures up to 80°C under standard conditions, and up to 130°C when fitted with water-cooled bearings.
With its high flow efficiency and robust design, the TSH series serves as a reliable core pumping unit for municipal water utilities, mining drainage, power stations, agricultural irrigation, and extensive water conservancy systems.
Magflow® TSH Horizontal Split-Case Double-Suction Centrifugal Pump Design Features
Balanced Design for Stable, Reliable Operation
The double-suction impeller effectively balancing the axial hydraulic forces generated during operation. This significantly reduces axial thrust on the shaft and bearings, helping minimize vibration, mechanical stress, and component wear.
As a result, the TSH series delivers smooth, stable, and reliable performance even under continuous-duty operating conditions, making it well suited for applications requiring high flow rates and dependable long-term service.
High Flow Capacity and Efficient Hydraulic Performance
Designed for high-volume fluid transfer, the TSH series provides high flow rates with efficient hydraulic performance. Its robust construction and optimized hydraulic design enable reliable operation across a wide range of demanding applications.
Easy Maintenance with Reduced Downtime
The horizontally split casing allows the pump to be inspected and serviced efficiently. The upper casing can be removed to provide convenient access to the impeller, shaft, bearings, wear components, and other internal parts, while the pipeline connections can generally remain undisturbed.
This maintenance-friendly configuration helps reduce service time, simplify routine inspections, and minimize equipment downtime, contributing to lower lifecycle maintenance costs.

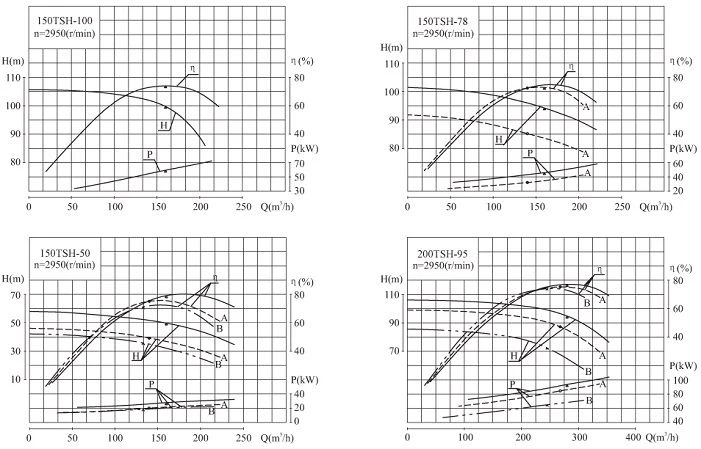

Magflow® TSH Split Case Pumps Performance Curve
Magflow® TSH Split Case Water Pumps Performance Parameters
| Model |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Power P (kW) |
Eff. η (%) |
| TSH150 | 112-220 | 35-84 | 2900 | 30-55 | 80 |
| TSH200 | 160-351 | 31-100 | 2900 | 37-110 | 85 |
| TSH250 | 324-612 | 8.6-65.1 | 1450 | 22-132 | 86 |
| TSH300 | 504-1663 | 8.7-140 | 1450-1470 | 22-680 | 87 |
| TSH350 | 745-1570 | 10-125 | 1450-1470 | 55-630 | 88 |
| TSH400 | 900-1620 | 32-85.5 | 980-1480 | 440-500 | 84 |
| TSH500 | 1150-3800 | 10.6-108 | 740-970 | 110-800 | 88 |
| TSH600 | 2300-4000 | 13-80 | 730-970 | 145-730 | 91 |
| TSH700 | 2111-4896 | 39.5-99.5 | 742-980 | 397-1252 | 92 |
| TSHS800 | 3960-6878 | 23-84 | 600-750 | 450-1600 | 92 |
| TSH1000 | 6600-9900 | 32-52 | 600 | 1250 | 88 |
| TSH1200 | 5832-14400 | 6-95.7 | 500-745 | 710-3450 | 87 |
Magflow® TSH Split Casing Pump Wide Range of Applications
Magflow® TSH Horizontal Split-Case Pump is widely used as a reliable core pumping unit in municipal water supply, mining drainage, power generation, agricultural irrigation, industrial water transfer, and large-scale water conservancy projects.
Magflow® TSH Horizontal Split-Case Pump Typical applications include:
A Reliable Solution for High-Volume Water Transfer
Combining a double-suction hydraulic design, horizontally split casing, high flow capacity, excellent hydraulic balance, and maintenance-friendly construction, the TSH series provides a dependable solution for demanding pumping applications.
Whether used in municipal infrastructure, mining operations, power plants, agricultural irrigation, or major water conservancy projects, the TSH Horizontal Split-Case Double-Suction Centrifugal Pump delivers the performance, stability, and serviceability required for long-term, heavy-duty operation.
