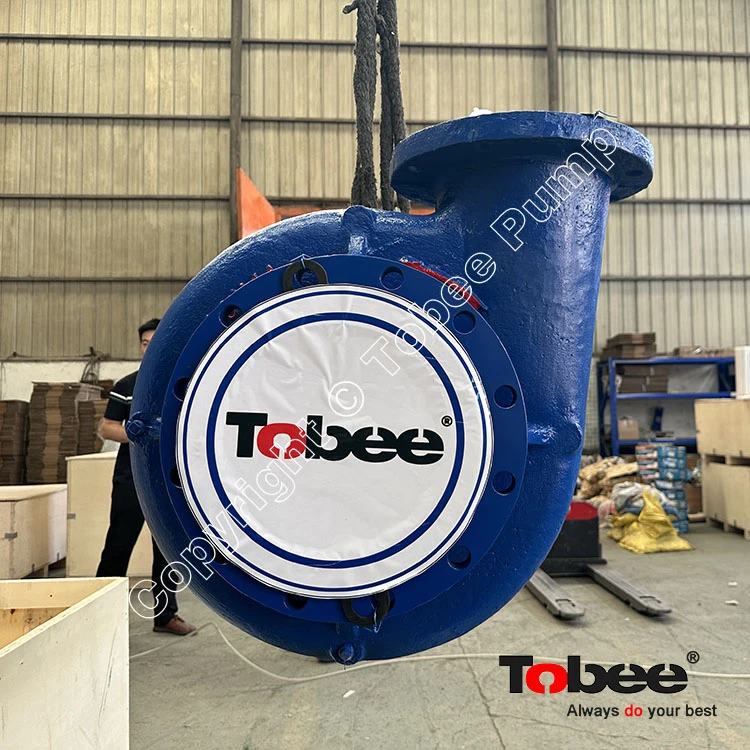

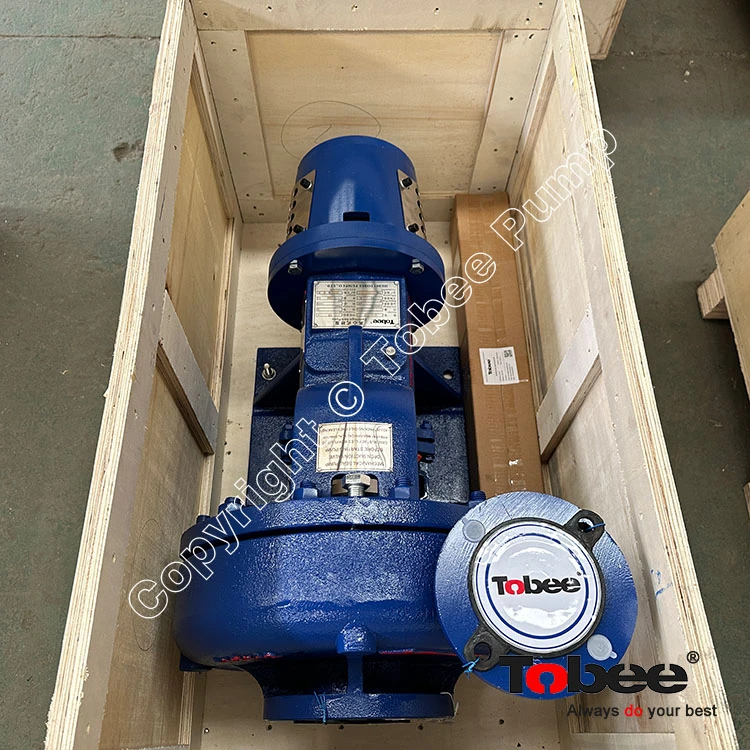

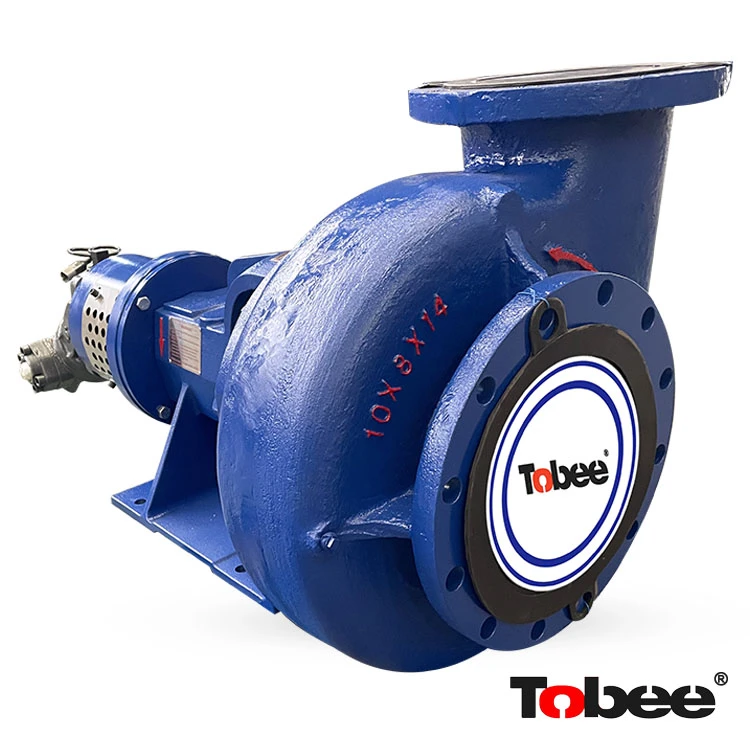

Sandmaster 10x8x14 Centrifugal Pump
Sandman® Mission Sandmaster 10x8x14 centrifugal sand pump, compact design for oilfield solids‑control. Wet ends fully interchangeable with Mission Magnum I 10x8x14. Supports both electric motor and hydraulic motor drive. Widely used as desander & desilter feed pump for drilling mud handling.

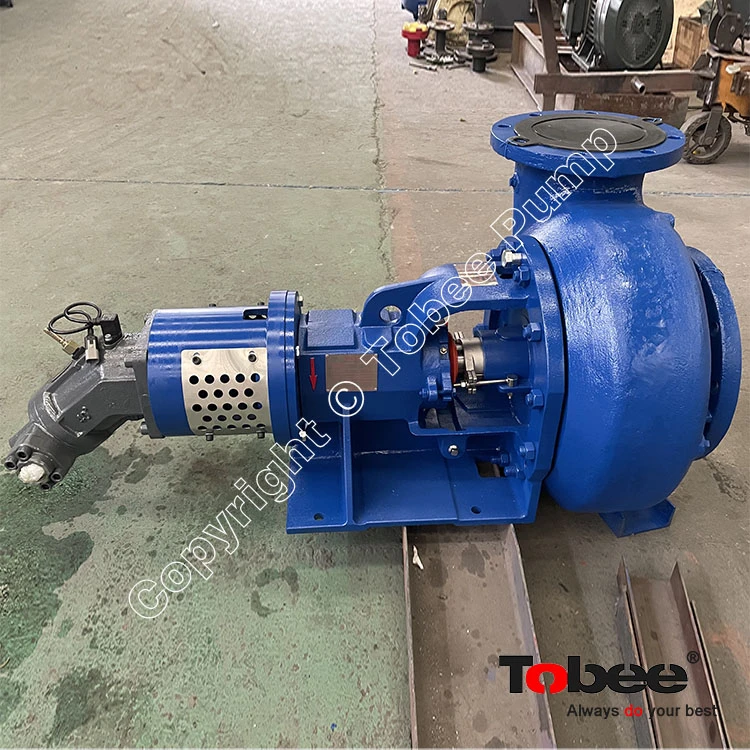

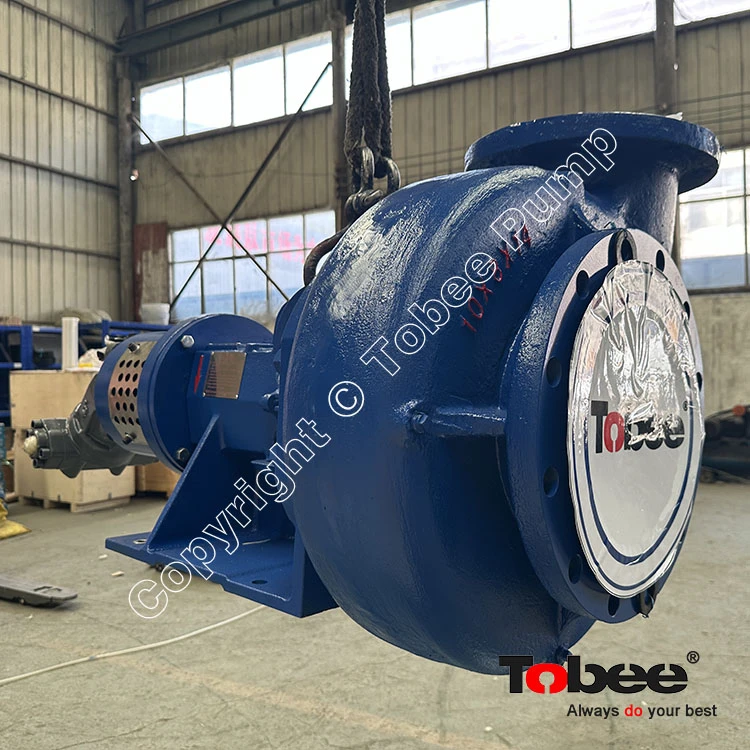

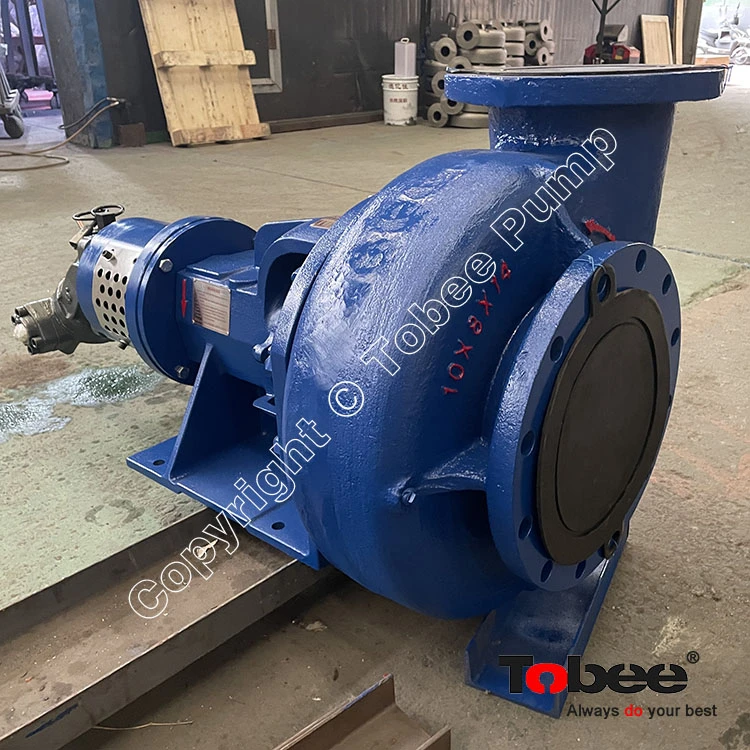

Sandman Mission Hydraulic Driven Sandmaster pump is a compact, heavy-duty pumping solution that can serve multiple roles in oilfield and mobile pumping equipment. Its compact design and hydraulic-drive capability make it especially suitable where space is limited and flexible drive options are required.
| Pump Name | Specific Application |
| Charge Pump | Used as a charge / boost pump to supply fluid to high-pressure pumps and maintain stable suction conditions. |
| Blender Pump | Used as a blender suction or transfer pump for fluid mixing and circulation in fracturing operations. |
| Cementing Pump | Used for cement slurry mixing, transfer and circulation in oilfield cementing equipment. |
| Fluid Transfer Pump | Used for high-volume transfer of drilling, completion and other oilfield fluids. |
| Water Well Drilling Pump | With variable-speed hydraulic drive, the Sandmaster can be used for water well drilling fluid circulation and transfer. |
| Frac Truck Pump | Its compact footprint and flexible drive options make it suitable as a centrifugal pump on mobile frac trucks. |
| Mixing & Circulation Pump | Suitable for mixing, circulating and transferring fluids where continuous flow and solids-handling capability are required. |
| Mobile Pumping Unit | Can be integrated into mobile pumping, blending and well-service equipment where installation space and prime-mover options are limited. |
From charging to blending, cementing to fluid transfer — one compact Sandmaster pump can perform multiple critical pumping roles.
Design Features
Compact Design
The Sandmaster features a shortened frame and shaft, making the pump more compact than the Magnum I. This design is ideal for equipment where installation space is limited.
Heavy-Duty Power Frame
A heavy-duty bearing power frame is designed for reliable continuous operation in demanding oilfield service.
Abrasion-Resistant Liquid End
The pump uses a hard-iron liquid end designed for handling abrasive fluids containing sand and suspended solids.
Replaceable Shaft Sleeve
A replaceable shaft sleeve protects the shaft from wear and helps simplify maintenance.
Mechanical Seal System
The replaceable stuffing box and mechanical seal arrangement provides reliable sealing and helps reduce leakage during operation.
Replaceable Suction Stand
The replaceable hard-iron suction stand allows worn components to be replaced without replacing the complete pump assembly.
Renewable Wear Rings
Renewable wear rings are installed at the suction stand and impeller eye to help manage wear and maintain hydraulic performance.
Flexible Drive Options
The Sandmaster can be configured for electric motor, engine or hydraulic motor drive. An optional outboard bearing arrangement can accommodate SAE B, C and D hydraulic motor adapters.
Adjustable Discharge Orientation
The discharge nozzle can be positioned in different orientations, providing greater flexibility when integrating the pump into compact equipment packages.
Open Impeller Design
The Sandmaster inherits key abrasive-fluid handling features from the Mission Magnum line, including an open impeller design intended to reduce axial thrust and support solids handling.
10×8×14 Pump Parts & Maintenance
Sandman can supply individual replacement parts or complete maintenance kits for scheduled servicing and emergency repairs.
|
No. |
Part Number |
Stock # |
Description |
Materials |
|
1 |
20937-01-30A |
641102322 |
Casing, 10x8x14 |
Hard iron |
|
2 |
641221007 |
Impeller, open, 10x8x14 |
Hard iron |
|
|
3 |
20938-02-01 |
644302622 |
Frame, Sandmaster |
Hard iron |
|
4 |
641116157 |
Stuffing box, Mech. Seal |
Hard iron |
|
|
5 (option) |
20614-01-30 |
643365042 |
Stuffing Box, Packed |
Hard iron |
|
6 |
22451-1 |
648414308 |
Tungsten carbide |
|
|
7 |
661007005 |
Packing, Shaft |
Teflon |
|
|
8 |
20939-02-33 |
646492454 |
Shaft, Sandmaster |
AISI 4140 |
|
9 |
641103437 |
Shaft Sleeve (M.S. Pump) |
416SS |
|
|
10 |
641102181 |
Shaft Sleeve (Pack Pump) |
Ceramic |
|
|
11 |
661009010A |
Inboard Bearing, with spacer |
Customized |
|
|
12 |
648408201S |
Outboard Bearing |
Customized |
|
|
13 |
10399-46-1A |
641101076 |
Fluid End Gasket Kit |
Vellumoid/Viton |
|
14 |
20625A |
641103353 |
Power End Gasket Kit |
Vegetable fiber/Buna-n |
|
15 |
20619A |
641103312 |
Grease Seal Kit |
Buna-n |
Sandmaster Pump Key Application
• Frac Trucks
High-flow pumping for hydraulic fracturing equipment.
• Blending
Reliable fluid mixing and transfer for frac operations.
• Pump Charging
Efficient suction-side fluid supply for high-pressure pumps.
• Cementing
Transfer and circulation of cement slurries.
• Drilling Fluids
High-volume transfer of drilling and completion fluids.
• Well Servicing
Reliable pumping for demanding well-service applications.
• Sand & Solids
Designed for abrasive, solids-laden fluids.
Varies Materials for Sandmaster Pump
To meet various application requirements, Sandman offers multiple material solutions for Mission drilling pumps, allowing customers to select the most suitable configuration according to fluid characteristics, solids content, abrasion level, and corrosion conditions.
Tell us your fluid composition, solids content and operating conditions, and we can recommend the appropriate material configuration for your Mission Sandmaster pump.
Frequently Asked Questions
What is the Mission Sandmaster 10×8×14 Pump used for?
It is primarily used for high-volume transfer of sand-laden fluids, slurries and abrasive fluids, particularly in oilfield and well-service applications.
What do 10×8×14 mean?
The numbers generally identify the pump's 10-inch suction, 8-inch discharge and 14-inch impeller diameter.
Can the Sandmaster handle sand?
Yes. The pump is designed for applications involving sand, proppant and other suspended solids, subject to the specific fluid and operating conditions.
What's the drive method of sandmaster pump ?
Sandmaster pump can be driven by a hydraulic motor, it also can be connect with electric motor or diesel engine, just need to change the bearing housing.
Can you supply Sandmaster spare parts?
Yes. Replacement components and maintenance parts can be supplied according to the pump model, part number or drawing.
