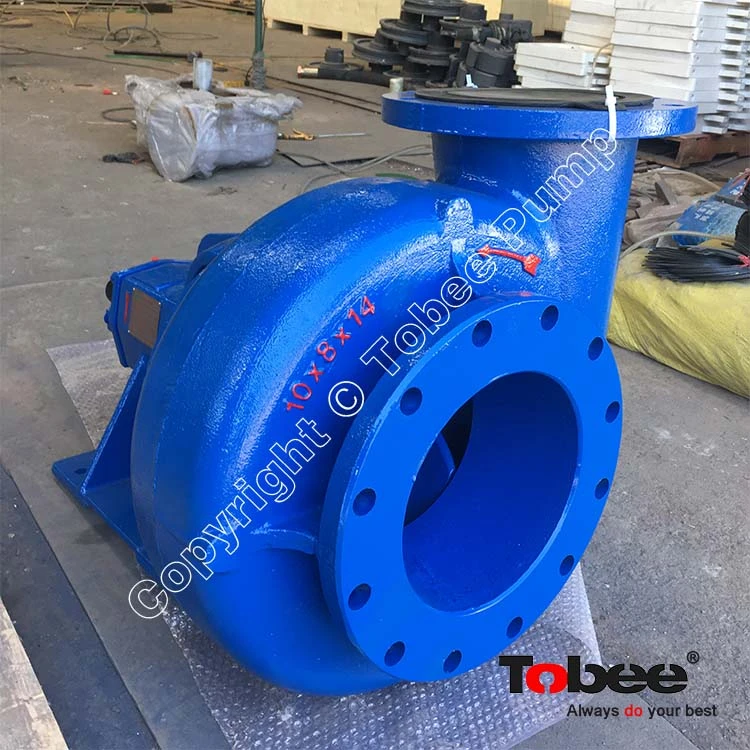

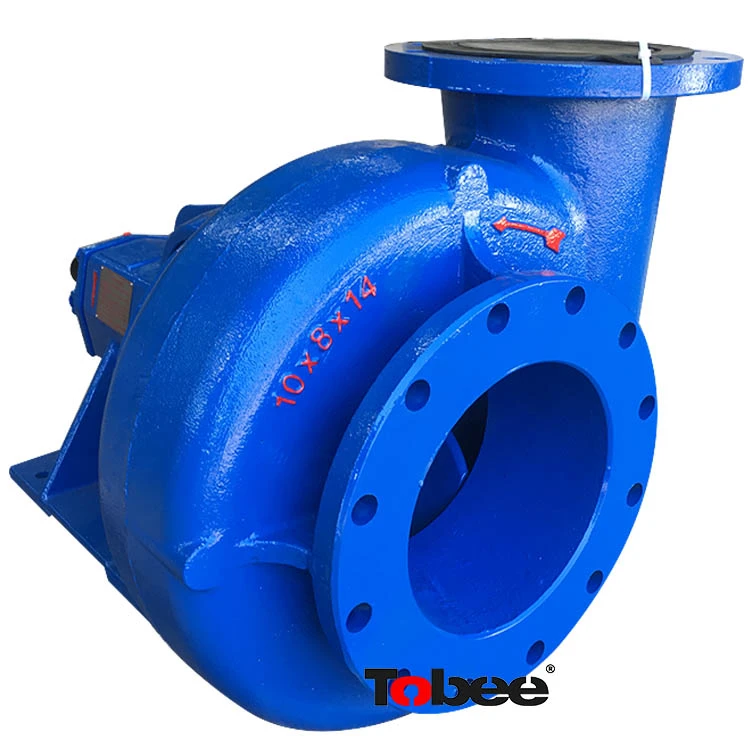

Sandman^® Mission 10x8x14 Centrifugal Pump

SPECIFICATIONS

Size

10" x 8" x 14"

Capacity

250-280 m³/h

Head

28-33 m

Speed

800-2100 rpm

Power

Max. 90 kW

Impeller dia.

6-14 inch

Materials

Hard iron, Stainless Steel, High chrome, Bronze, Tungsten carbide, etc

Inquire Now Next Product

Mission 10x8x14 Heavy-Duty Centrifugal Pump

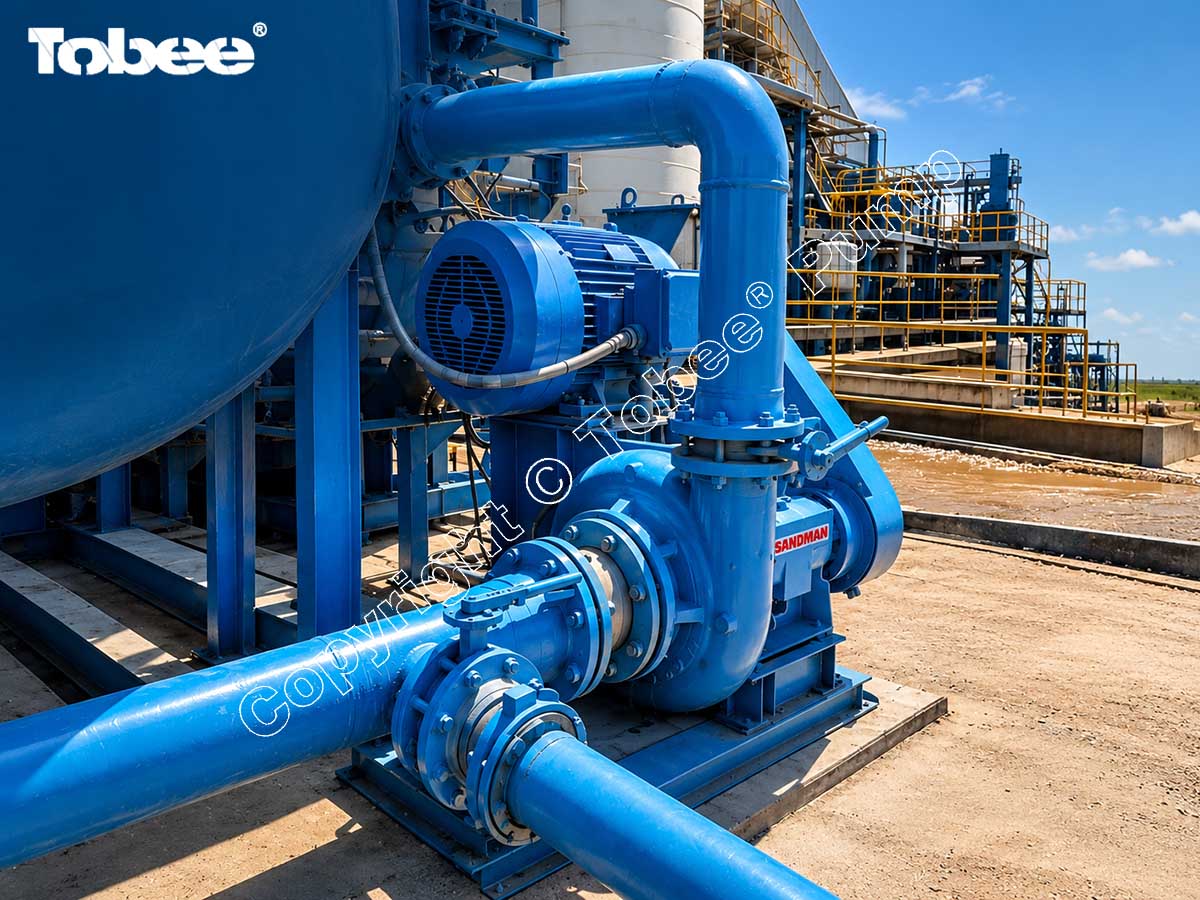

Sandman^®Mission 10x8x14 centrifugal pump is designed for demanding applications where high flow capacity, durability, and reliable performance are essential. It is widely used in drilling mud systems, oilfield services, HDD operations, and industrial fluid transfer applications.

Featuring a heavy-duty construction and wear-resistant design, the 10x8x14 pump is engineered to handle abrasive fluids containing solids, sand, and drilling cuttings while maintaining stable performance under continuous-duty operation.

Mission Centrifugal Pump Design Features

Heavy-Duty Construction-Designed for harsh working environments, the pump features a robust casing, heavy-duty bearing assembly, and durable components to ensure long service life under demanding conditions.

Excellent Solids Handling Capability-The open impeller design provides efficient handling of drilling fluids, slurry, and solids-containing liquids, reducing the risk of clogging and improving operational reliability.

High Efficiency & Reliable Performance-Optimized hydraulic design provides high flow capacity and stable pressure performance, making it suitable for continuous operation in critical pumping systems.

Maintenance Friendly-The pump structure allows quick access to wear parts, reducing downtime and simplifying maintenance in field operations.

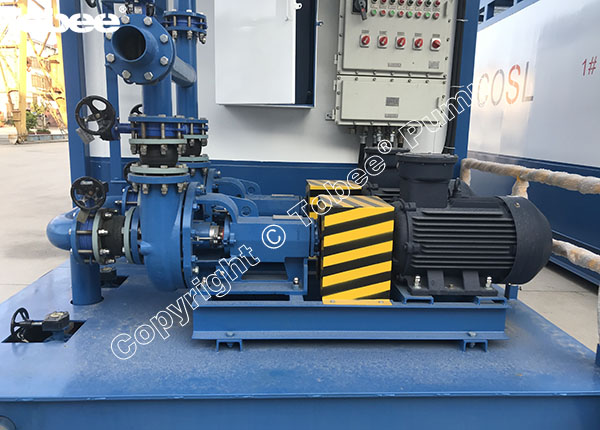

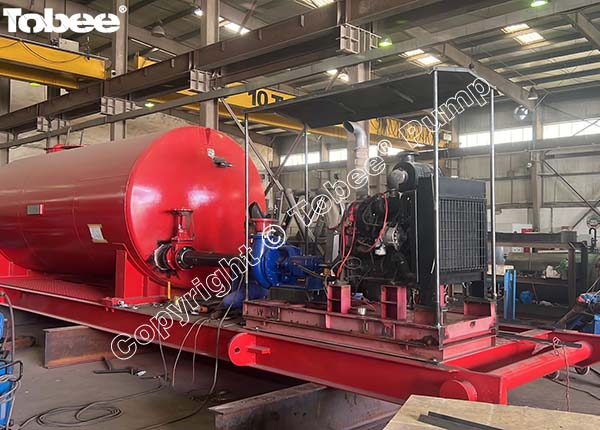

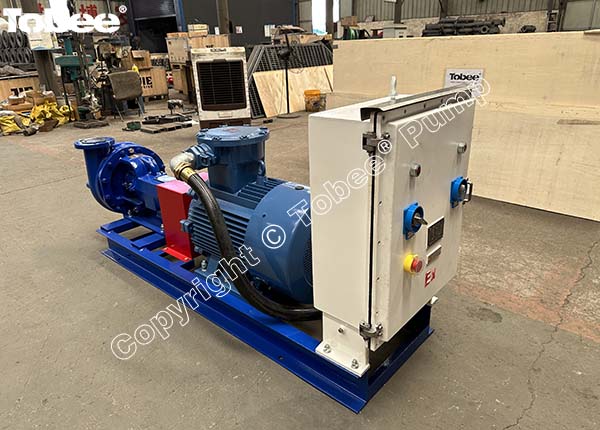

Flexible Drive Options-The pump can be configured with various drive systems according to customer requirements: Electric motordrive; Diesel engine drive; Hydraulic motor drive; VFD / Soft starter control options.

Mission Heavy duty10x8x14 Pump Parameters

Mission Pump Parameters

Model

Inlet

(inch)

Outlet

(inch)

Capacity (m³/h)

Head (m)

Power (KW)

Impeller diameter

Seal arrangement

Material

Magnum 10x8x14

132

6-14inch

Mechanicalseal

/Packing Seal

Hard iron, Stainless Steel, High chrome, Bronze, Tungsten carbide, etc

Mission Magnum I series Pump List

No.	Part Number	Stock #	Description	Materials
1	20937-01-30A	641102322	Casing, 10x8x14	Hard iron, SS, High Chrome, Bronze etc...
2	21967-XX-30	641221007	Impeller, open, 10x8x14	Hard iron, SS, High Chrome, Bronze etc...
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron, SS, High Chrome, Bronze etc...
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron, SS, High Chrome, Bronze etc...
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon, Lantern
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

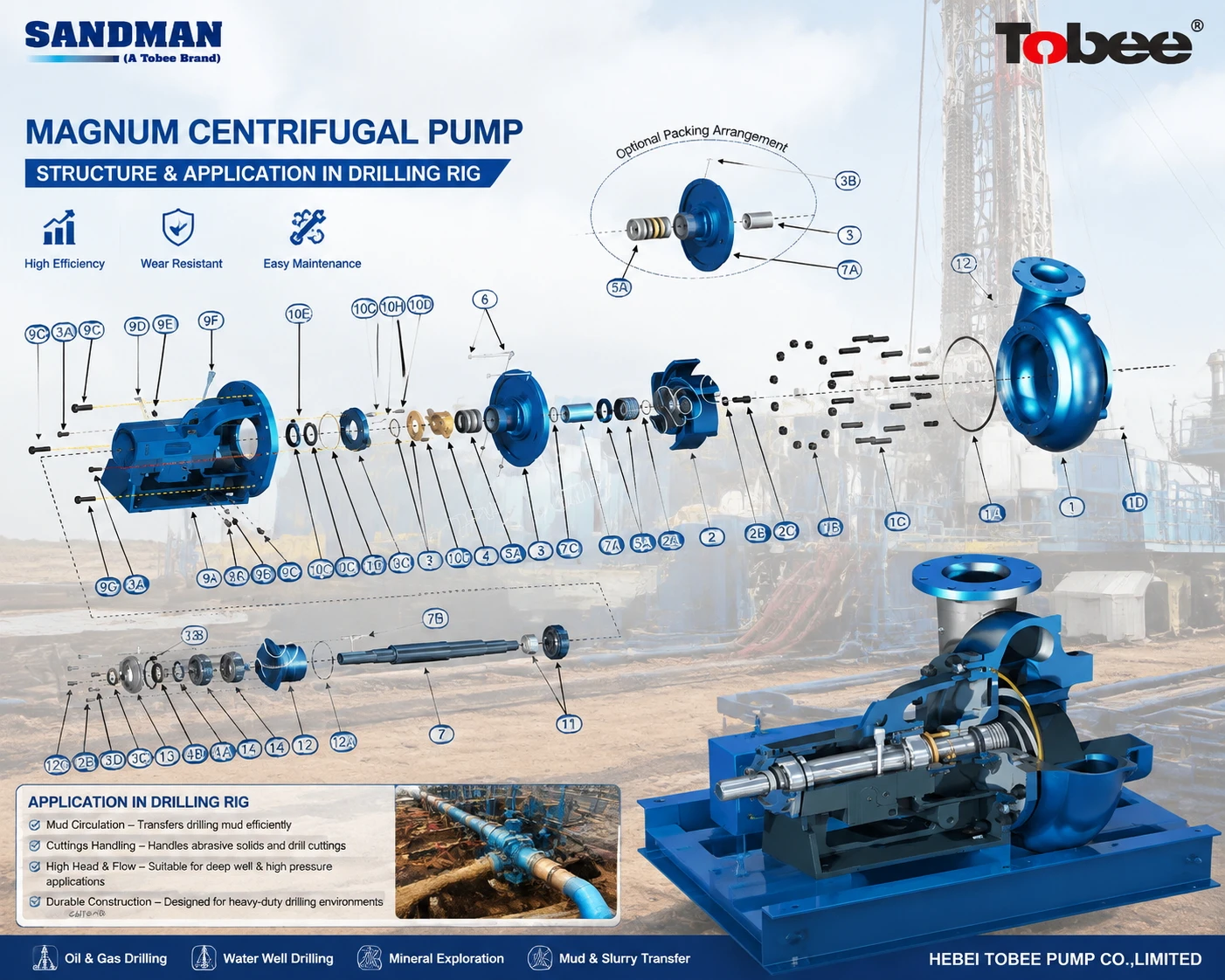

Mission Magnum I series Pump Structure Drawing

The Mission Magnum I Pump features a rugged centrifugal design with optimized hydraulic performance, heavy-duty components, and service-friendly construction. Every internal component is engineered to deliver dependable operation, extended wear life, and reduced maintenance in demanding applications.

Thicker Casing — Extended wear & corrosion resistance
New Impeller — Reduced loads, longer bearing life
Heavy-Duty Shaft — Reduced deflection
Replaceable Shaft Sleeve — Protects against packing wear
Larger Bearings — Extended service life
Replaceable Stuffing Box Cover — Faster, easier maintenance
