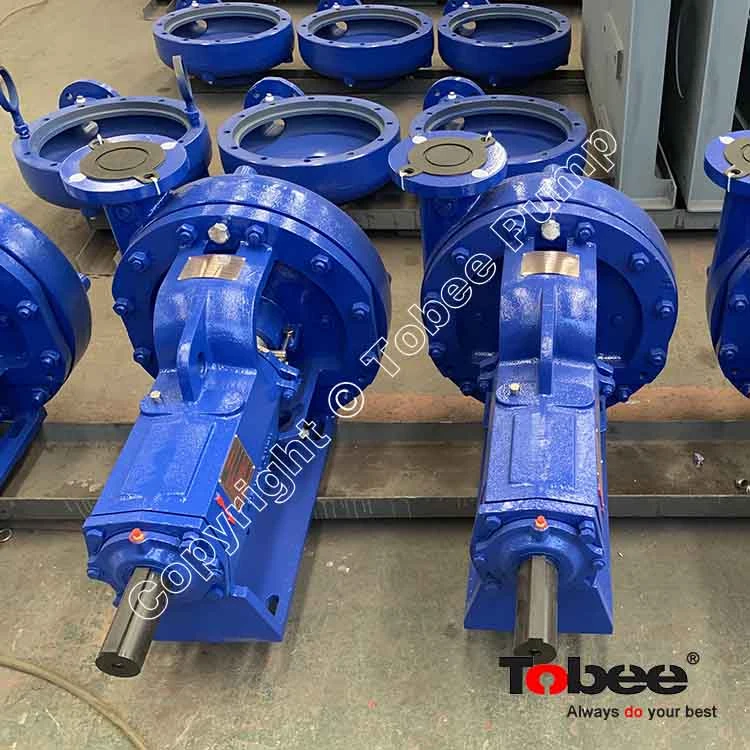

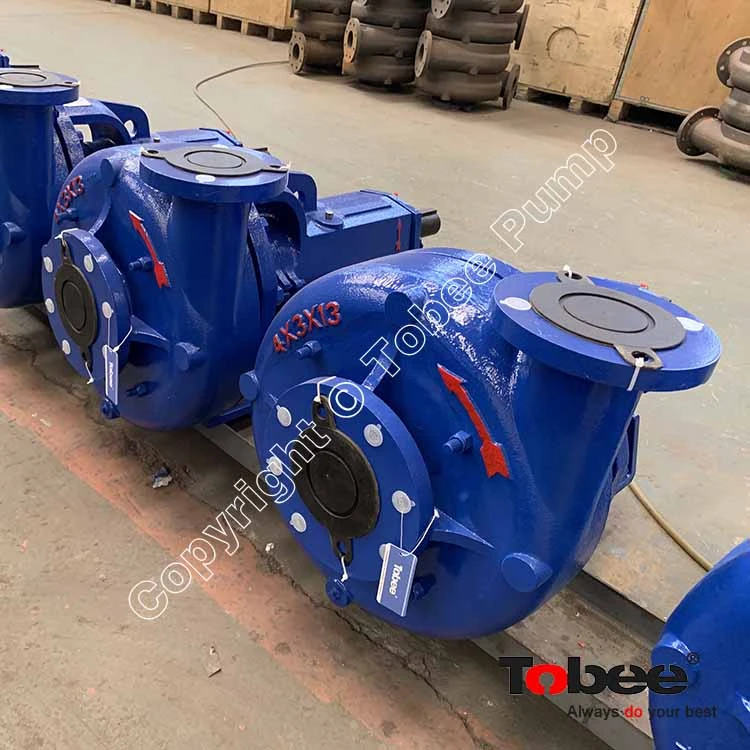

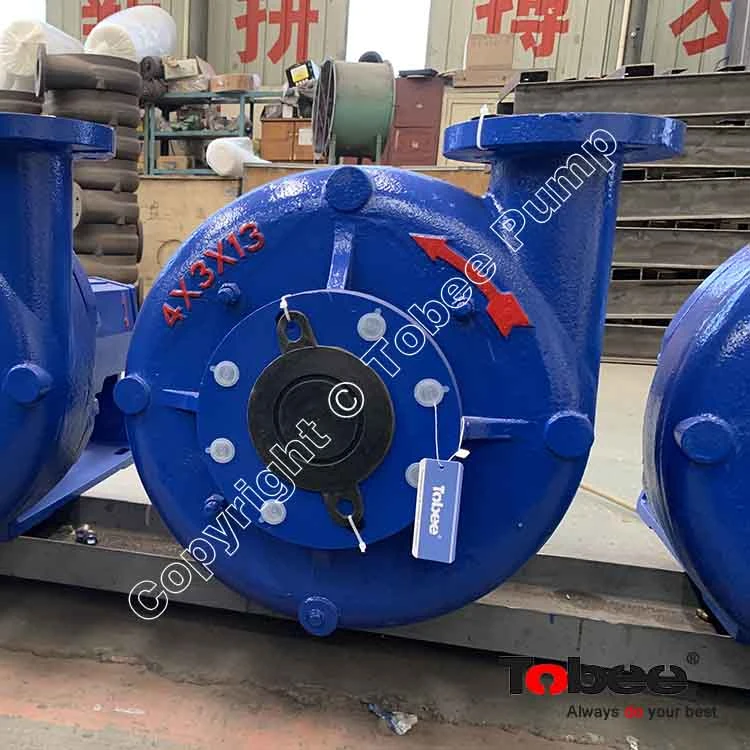

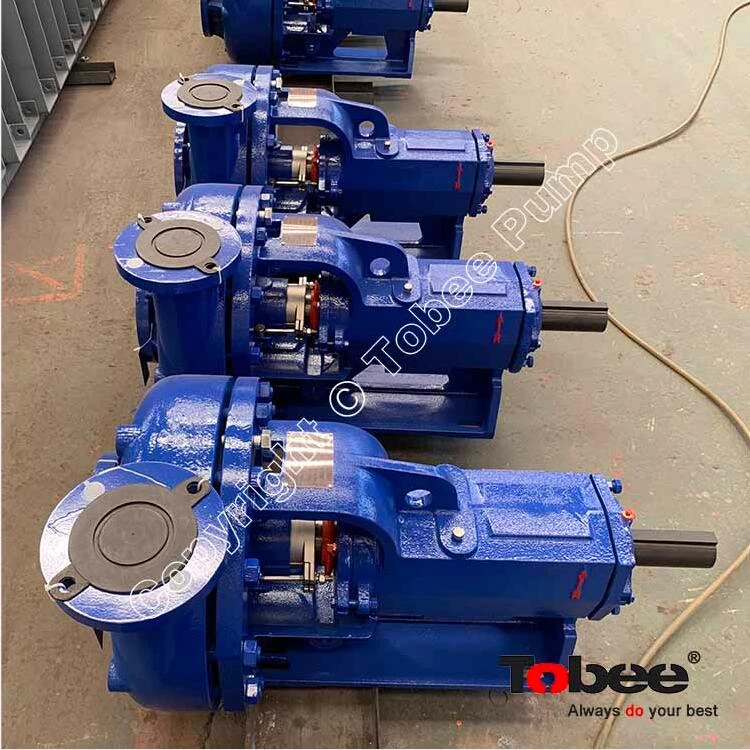

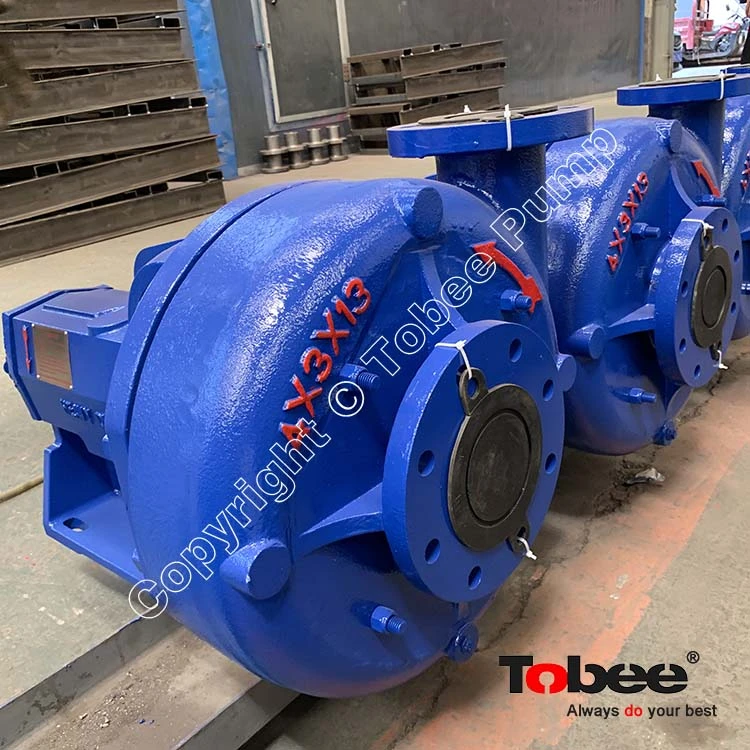

Sandman 2500 4x3x13 Oilfield Drilling Pump
Sandman® 2500 4×3×13 Centrifugal Pump is a heavy‑duty horizontal single‑suction sand pump fully interchangeable with Mission 2500 Supreme series, widely deployed for oil & gas solids‑control systems on drilling rigs.
Sandman offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22b. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.
Core Features
Heavy-Duty Construction Built with hard iron or high-chrome alloy fluid ends to resist severe erosion and wear caused by abrasive solids.
Open Impeller Design Features a semi-open impeller (except 3x2x13 and 4x3x13) that minimizes clogging and ensures efficient handling of viscous fluids and high-solids mixtures.
Concentric Casing Reduces radial loads on bearings and shafts, significantly extending the service life of internal components under continuous high-pressure operations.
Robust Seal Options Equipped with premium mechanical seals or adjustable packing to prevent leaks and handle harsh chemical exposures.
Interchangeable Design Built to standard industrial dimensions, making spare parts and replacements readily compatible with common industry footprints (e.g., Mission/MCM style pumps).
Keep Your Existing Mission Equipment Running
Extend the service life of your existing Mission Supreme 2500 equipment with high-quality replacement parts from Tobee. We supply key hydraulic and wear components for the 4x3x13 centrifugal mud pump, helping you reduce downtime, simplify maintenance, and keep your pumping system operating reliably.
|
No. |
Part Number |
Stock # |
Description |
Materials |
|
1 |
19205AH |
Casing, 4x3x13 |
Hard iron |
|
|
2 |
641209903 |
Impeller, open, 4x3x13 |
Hard iron |
|
|
3 |
2501-37AH |
Wear Pad, 4x3x13 |
Hard iron |
|
|
4 |
22223H |
Stuffing box, Mech. Seal |
Hard iron |
|
|
5 (option) |
H20614-01-30 |
20614H |
Stuffing Box, Packed |
Hard iron |
|
6 |
H22451-1 |
648414308 |
Tungsten carbide |
|
|
7 |
648402600 |
Packing, Shaft |
Teflon |
|
|
8 |
646490557 |
Shaft |
AISI 4140 |
|
|
9 |
H20613-21A |
646492505 |
Shaft Sleeve (M.S. Pump) |
416SS |
|
10 |
646490656 |
Shaft Sleeve (Pack Pump) |
Ceramic |
|
|
11 |
661009010A |
Inboard Bearing, with spacer |
Customized |
|
|
12 |
648408201S |
Outboard Bearing |
Customized |
|
|
13 |
10399-46-1A |
641101076 |
Fluid End Gasket Kit |
Vellumoid/Viton |
|
14 |
20625A |
641103353 |
Power End Gasket Kit |
Vegetable fiber/Buna-n |
|
15 |
20619A |
641103312 |
Grease Seal Kit |
Buna-n |
Designed to match existing Mission pump configurations.
• Wear-Resistant Materials
Available in hard iron and other material options for demanding fluid-handling conditions.
• Reduced Downtime
Fast access to commonly required replacement and maintenance components.
• Complete Support
From individual spare parts to complete pump assemblies, Sandman can support your maintenance requirements.

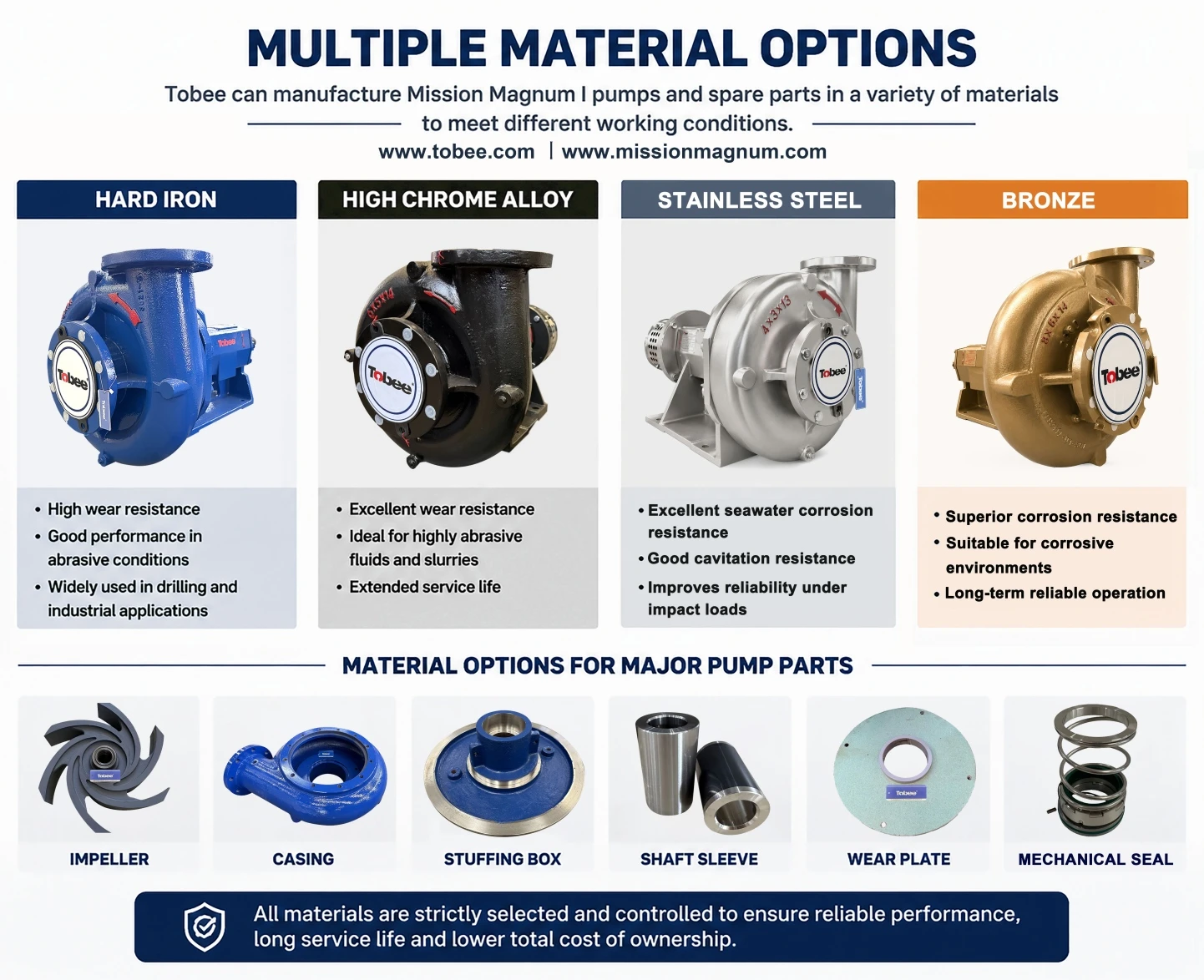

Varies Materials for 2500 Supreme Pump
To meet various application requirements, Sandman offers multiple material solutions for Mission drilling pumps, allowing customers to select the most suitable configuration according to fluid characteristics, solids content, abrasion level, and corrosion conditions.
Tell us your fluid composition, solids content and operating conditions, and we can recommend the appropriate material configuration for your 2500 Supreme pump.
Key Applications of 2500 series Pump
Sandman® Mission 2500 Supreme 4x3x13 is best positioned as a compact centrifugal pump for drilling-fluid transfer, replenishment, measurement, and abrasive-fluid handling. The 2500 series pump concentric casing, semi-open impeller, and replaceable casing wear pad for reducing wear when handling abrasive fluids.
Successful Case
Request a Quote
Looking for a Mission type 2500 Supreme series sand pump, replacement parts, or a complete pumping package?
Send us your pump model, part number, performance requirements or application details. Our team will help you identify the right configuration and provide a competitive quotation.
