2500 Supreme Series

The 2500 Supreme is a heavy-duty centrifugal pump purpose-built for oilfield drilling mud systems. With a semi-open impeller design and robust fluid-end construction, it's engineered to reliably move abrasive, solids-laden fluids in demanding rig-site conditions.

Key Selling Points

Semi-Open Impeller Design — Wide-tipped vanes promote smooth, efficient flow even with abrasive, high-solids fluids
Durable Fluid-End Materials — Available in hard iron, supreme hard iron, or aluminum bronze construction to match the abrasiveness and corrosivity of the application
Labyrinth Bearing Seals — Advanced sealing system keeps contaminants out of internal bearings, extending pump life and reducing maintenance frequency
Wide Size Range — Configurations include 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x14, and 10x8x14 to fit a variety of flow and pressure requirements
Field-Proven Reliability — Trusted design widely used across mud systems, desanders, and desilters in oilfield operations

Applications

Rig-site mud mixing systems
Desander and desilter units
Industrial transfer of corrosive or abrasive slurries
General fluid handling with suspended solids

View More Show Less

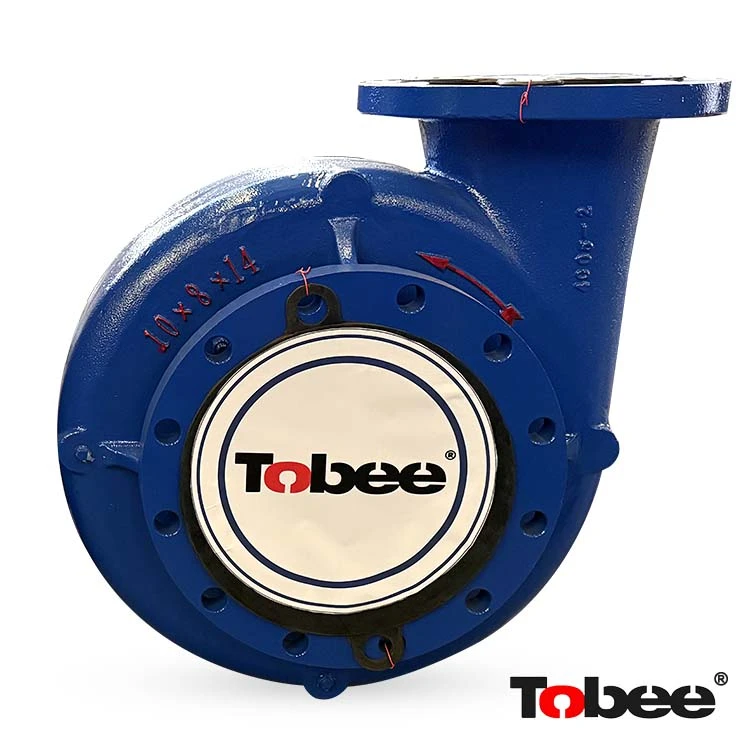

Sandman Mission 2500 Supreme 10x8x14 Centrifugal Pump

Capacity

110-910 m³/h

Head

15-53 m

Speed

800-1800 rpm

Max Power

160 kW

Efficiency

65%

Sandman^® Mission 10x8x14 2500 Supreme Pump features a semi-open impeller, concentric casing, replaceable casing wear pad, and heavy-duty shaft, the pump provides reliable fluid transfer, improved wear resistance, and extended service life in demanding operating conditions.

Inquire Now

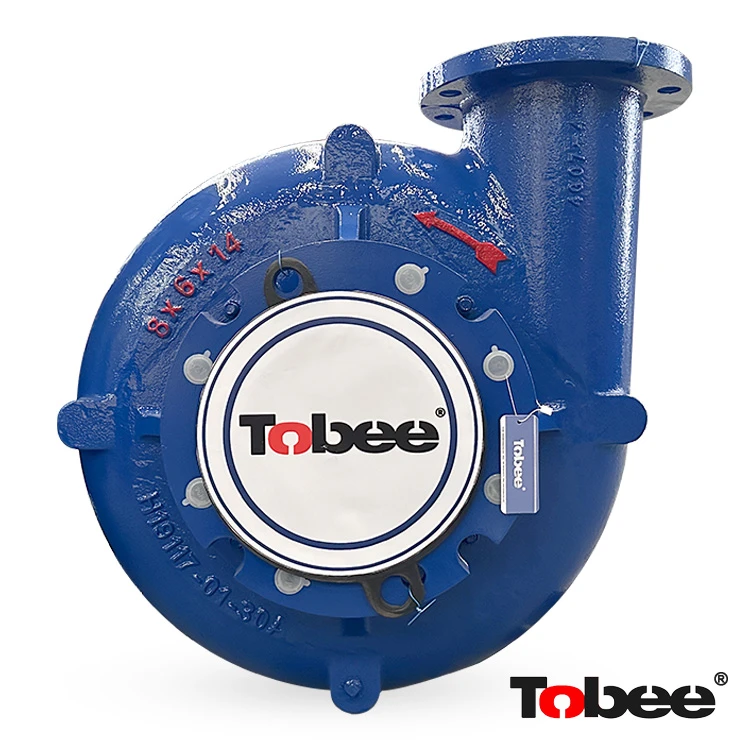

Sandman^® 2500 Supreme 8x6x14 Pump for Mud Circulation

Capacity

55-560 m³/h

Head

8-67 m

Speed

800-1750 rpm

Max. Power

110 kW

Efficiency

65%

Sandman^® 2500 8x6x14 Pump are suitable for drilling mud circulation systems, desander and desilter feed systems.

Inquire Now

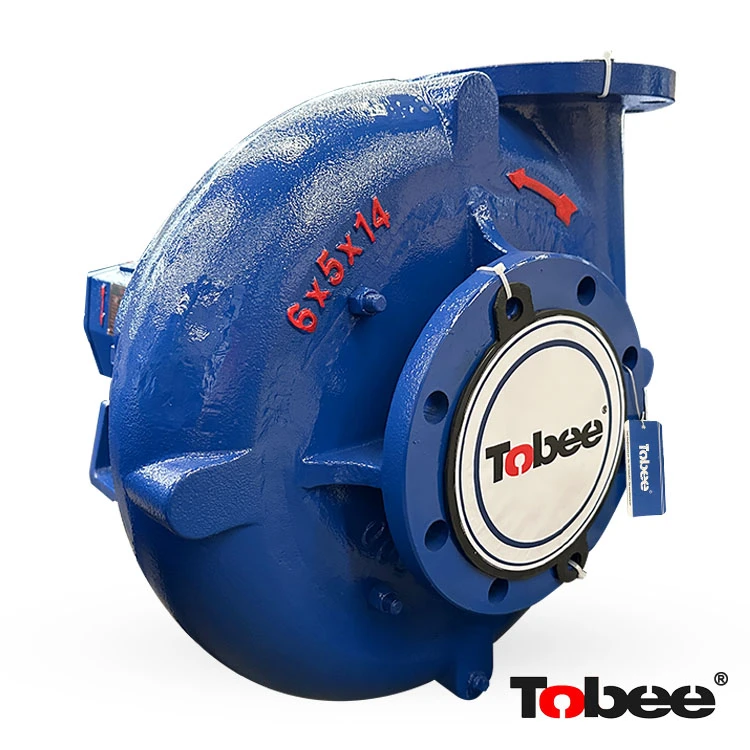

Sandman^® 2500 Supreme 6x5x14 Centrifugal Pump

Capacity

22-410 m³/h

Head

9-48 m

Speed

800-2600 rpm

Max. Power

45 kW

Efficiency

65%

Sandman^® 2500 Supreme 6x5x14 Centrifugal used for Mud mixing systems applications.

Inquire Now

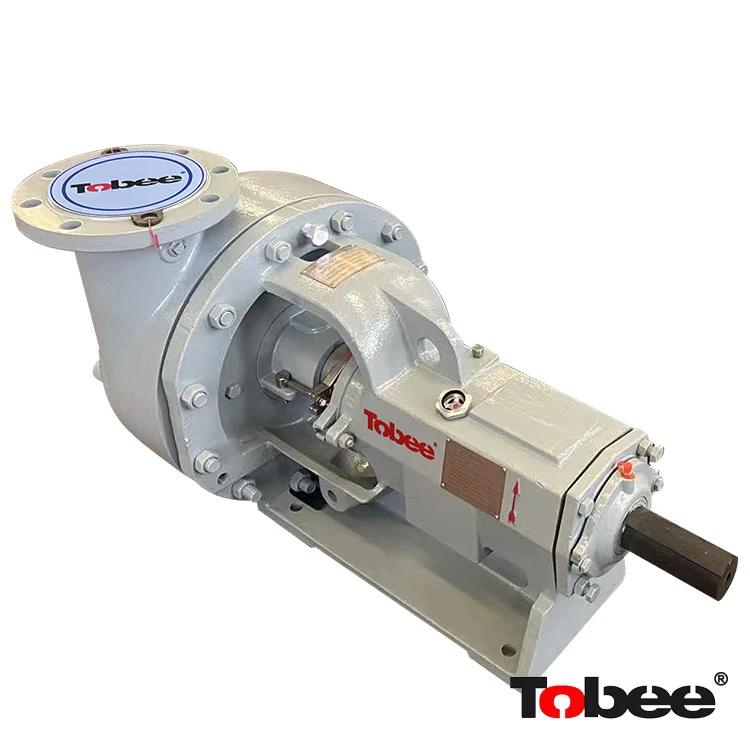

Sandman^® 2500 series 6x5x11 Pump

Capacity

23-410 m³/h

Head

8-48 m

Speed

800-1900 rpm

Max. Power

45 kW

Efficiency

65%

Sandman^® Mission 2500 Supreme 6×5×11 centrifugal pump is suitable for truck-mounted drilling rigs and compact drilling equipment.

Inquire Now

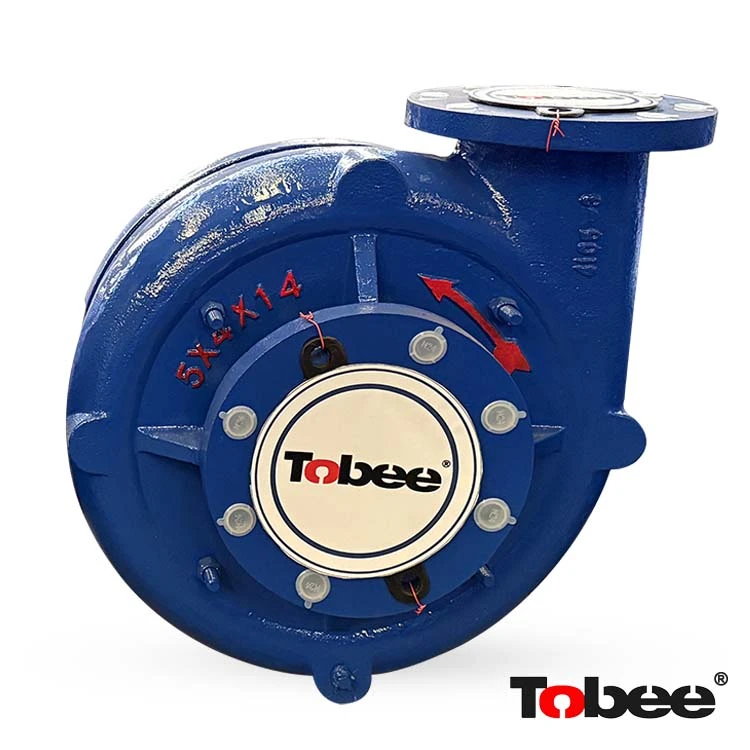

Sandman^® 2500 Supreme 5x4x14 Centrifugal Pump

Capacity

20-250 m³/h

Head

5-100 m

Speed

800-2100 rpm

Max. Power

45 kW

Efficiency

65%

Sandman® 5x4x14 Centrifugal Pump with Semi-open impeller used for drilling fluid transfer and mixing hopper supply.

Inquire Now

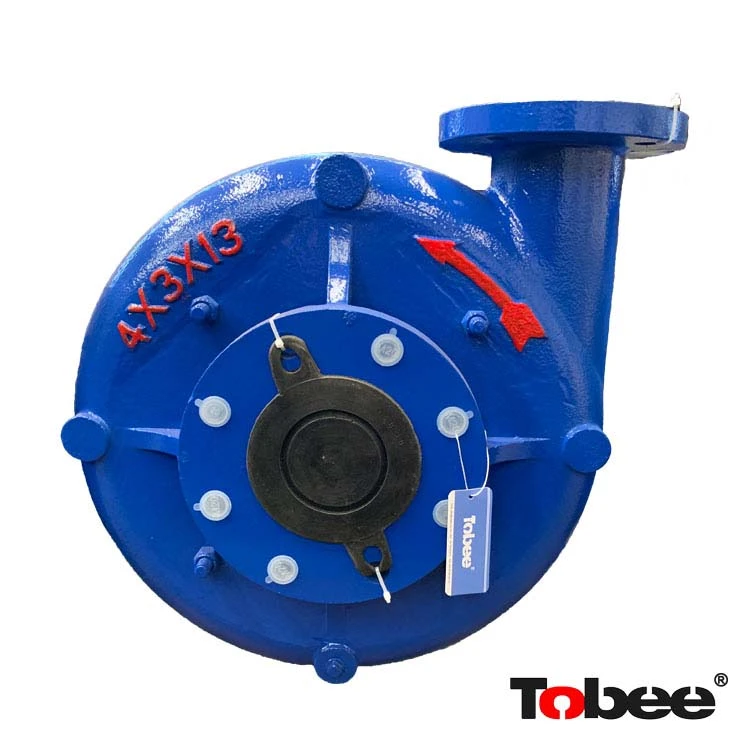

Sandman Mission 2500 Supreme 4x3x13 Pump

Capacity

22-180 m³/h

Head

8-70 m

Speed

1000-3500 rpm

Max. Power

132 kW

Efficiency

65%

Sandman^® Mission Supreme 2500 model 4x3x13 pump is a compact, high-performance oilfield centrifugal pump for demanding fluid transfer and solids-handling duties.

Inquire Now

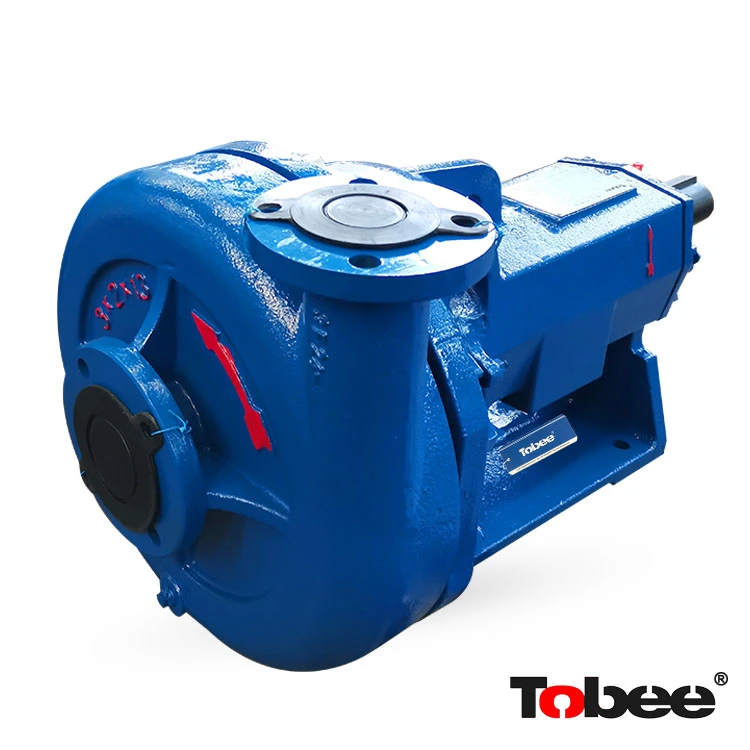

2500 Supreme 3x2x13 Centrifugal Pump

Capacity

260-280m³/h

Head

28-33 m

Speed

800-2100 rpm

Max. Power

90 kW

Efficiency

65%

Sandman^® 3x2x13 Pump Typically used as a measuring pump, replenishment pump, or auxiliary circulation pump.

Inquire Now
