In this guide
If you work near water — whether you manage a port, run a mine, operate an environmental cleanup project, or maintain irrigation ponds — dredging is probably part of your world. But even for experienced operators, questions keep coming up: What dredge type actually works for your sediment conditions? What does a submersible pump add to a dredging operation? How do you measure productivity on a cutter suction project?
This guide is written for the people doing the actual work — or making the purchasing decisions that affect it. We'll walk through everything from basic definitions to equipment selection, with real industry data folded in throughout.
Dredging means excavating material — sediment, silt, sand, gravel, rock fragments, or debris — from the bed of a body of water and relocating it elsewhere. You might be deepening a shipping lane, cleaning pollutants out of a lake, mining for gold or minerals, or building up a shoreline through land reclamation. The word itself traces back to the Dutch dreggen — to drag or scoop — which gives you a good mental image of the earliest methods.
What separates dredging from standard excavation is the medium: you're working below a water surface, usually under conditions where visibility is limited, sediment behavior is unpredictable, and equipment must either float or operate through a water column. That's what makes the choice of dredge — and the pump technology behind it — such a critical decision.
"Dredging is not just digging underwater. It's managing the behavior of water, sediment, and slurry simultaneously — and the pump is at the heart of every hydraulic system."
|
~450M cubic meters dredged annually in the US alone |
25–30% of dredged material reused beneficially (beach nourishment, reclamation) |
$14.5B global dredging market value, 2023 |
50+ years since modern hydraulic dredging methods were standardized |
A dredge is the machine that performs dredging. Think of it as an excavator adapted for underwater work — it loosens material from a submerged surface, collects it, and moves it somewhere else. In practice, a "dredge" can mean anything from a floating platform with a mechanical bucket arm to a sophisticated self-propelled vessel carrying thousands of cubic meters of material in its hull.
A dredge boat (or dredging vessel) is simply the floating platform that positions and powers the dredging equipment. Some dredges are purpose-built vessels; others are assemblies of modular equipment mounted on pontoons or barges.
The common thread is the need to handle slurry — the mixture of water and excavated material that results from any hydraulic dredging operation. Managing slurry efficiently is where pump selection becomes decisive, and it's where submersible slurry pumps, like those Hydroman manufactures, play their most important role.
People dredge for a surprisingly wide range of reasons. Navigation maintenance is the most visible: the U.S. Army Corps of Engineers alone maintains over 25,000 miles of navigation channels, dredging roughly 200–300 million cubic yards of material per year to keep ports and waterways open for commercial vessels. A channel that was 45 feet deep when constructed can accumulate several feet of sediment within a single decade without maintenance.
But shipping lanes are only the start. Dredging also serves:
• Port and harbor construction — Creating new berths or deepening existing ones to accommodate larger container ships. Modern ultra-large container vessels (ULCVs) require channel depths of 50 feet or more, driving significant capital dredging investment in ports worldwide.
• Environmental remediation — Contaminated sediments contain heavy metals, PCBs, petroleum byproducts, and other pollutants that accumulate in riverbeds and lake bottoms over decades. Environmental dredging specifically targets these zones, with the goal of removing contaminated material before it migrates or harms aquatic life. Projects like the Hudson River PCB Superfund remediation removed approximately 2.65 million cubic yards of contaminated sediment over several years.
• Sand and aggregate mining — Marine sand is a critical construction resource. Global demand for sand and gravel exceeds 40–50 billion tonnes per year, with dredging supplying a meaningful share of that from offshore and riverine sources.
• Land reclamation — Countries like the Netherlands, Singapore, and the UAE have used dredging to create entirely new land. Dubai's Palm Jumeirah required moving over 94 million cubic meters of sand. Singapore has expanded its land area by roughly 25% since the 1960s through reclamation.
• Flood control — Rivers clogged with sediment have reduced capacity and are more prone to overflowing their banks. Regular maintenance dredging restores flow capacity and reduces flood risk for downstream communities.
• Pond and lake restoration — If you manage a retention pond, a golf course lake, or an irrigation reservoir, you've likely encountered the slow creep of sedimentation. Dredging a pond restores its designed water volume, prevents weed proliferation (which thrives in shallow, silt-rich water), and improves water quality. Many municipalities schedule pond dredging every 10–20 years depending on sediment loading rates.
Regardless of which type of dredge you're working with, most systems share the same functional building blocks. Understanding each one helps you troubleshoot problems and select the right supporting equipment.
The excavation mechanism is what actually disturbs the sediment: a rotating cutterhead on a cutter suction dredge, a trailing drag head on a hopper dredge, or a bucket on a mechanical dredge. The cutterhead on a large CSD can spin at 15–30 RPM and generate enormous torque to break up compacted or cohesive material.
The pump and suction system is what moves the loosened material. In hydraulic dredges, a centrifugal pump creates a pressure differential that draws slurry up the suction pipe. Pump sizing is one of the most consequential engineering decisions in a dredge design — underpowered pumps mean poor production; oversized pumps waste energy and can cause pipe wear from excessively high velocities.
The pipeline and discharge system carries slurry from the pump to the placement area. Slurry velocities in dredge pipelines typically range from 3 to 6 meters per second. Below that range, solids settle and block the pipe; above it, abrasion accelerates pipe wear dramatically.
Positioning equipment — spuds (steel poles driven into the seabed), anchors, or GPS-guided dynamic positioning systems — keeps the dredge on its intended cut. Modern large dredgers use integrated GNSS and sonar systems for millimeter-accurate positioning.
The dredging industry broadly divides equipment into two families — hydraulic and mechanical — with several specialized variants within each. The right choice depends heavily on the sediment you're dealing with, the volume you need to move, and the project geometry.
Submersible Pump Dredge
| Dredge Type | Operating Principle | Best For | Typical Production Range |
| Cutter Suction Dredge (CSD) | Rotating cutterhead + centrifugal pump discharging through pipeline | Hard to medium sediments, compact operations, continuous pipeline discharge | 500–15,000 m³/hr (varies widely by size) |
| Trailing Suction Hopper Dredge (TSHD) | Self-propelled vessel drags suction pipes while moving; stores material in onboard hopper | Open water, loose sands, large-scale channel maintenance | 3,000–25,000+ m³/hr for large vessels |
| Backhoe Dredge | Mechanical bucket arm mounted on a pontoon | Confined areas, rock, debris removal, precise excavation | 100–1,500 m³/hr |
| Clamshell (Grab) Dredge | Grab bucket deployed from a crane | Deep-water harbor work, heterogeneous material | 50–800 m³/hr |
| Submersible Pump Dredge | Electric or hydraulic submersible slurry pump placed directly on the bed; minimal surface equipment | Pond dredging, confined spaces, sites without access for large vessels | Varies by pump model; Hydroman units: up to 1,200 m³/hr flow |
| Auger Dredge | Rotating auger breaks up sediment, pump draws slurry through central column | Narrow waterways, canals, shallow lakes | 50–400 m³/hr |
The cutter suction dredge is probably the most versatile category in the industry. You'll find CSDs in everything from small portable units weighing a few tonnes (used for pond and canal work) to giants exceeding 10,000 kW in installed power. The cutterhead disaggregates compacted sediment or rock into smaller particles, and a centrifugal dredge pump — either mounted on the ladder near the cutterhead or in the hull — draws the resulting slurry through the pipeline.
Modern CSDs are often equipped with GPS-guided positioning systems and real-time production monitoring. The largest CSDs in operation, like the DEME Spartacus, produce over 10,000 kW of total installed power and can cut rock with a UCS of up to 80 MPa.
Trailing suction hopper dredges (TSHDs) are self-propelled vessels that drag suction pipes along the seabed as they move. Sediment is pumped into the ship's hold (the "hopper"), carried to a disposal site, and either dumped through doors in the hull or pumped ashore. The largest hopper dredgers, like the TSHD Cristóbal Colón, carry over 46,000 m³ of material per load. They're ideal for large-scale maintenance work in open water but aren't suited to confined areas.
A sand dredger is simply any dredge configured for sand extraction — most commonly a trailing suction hopper or a stationary suction dredge. The sand dredging industry is enormous: globally, marine sand extraction runs into billions of tonnes per year, with the Asia-Pacific region accounting for the majority of activity driven by construction demand in China, Singapore, Indonesia, and the UAE.
Gold dredging uses suction or bucket-ladder equipment to process large volumes of alluvial material — gravels and sands containing placer gold deposits. The material is sluiced and classified onboard. Historic gold dredges in Alaska and the Yukon processed entire river valleys during the early 20th century. Modern gold dredging operations still operate in Alaska, Montana, New Zealand, and parts of South America and Southeast Asia.
From mobilization to final placement, dredging follows a consistent sequence — even if the specifics vary by project type.
First comes the survey and planning phase. Bathymetric surveys map the current bottom contours using sonar or single-beam echo sounders, and soil sampling determines sediment classification. This data drives the equipment selection and production estimate. A project specifying removal of sandy material at 10-meter depth requires completely different equipment than one targeting stiff clay at 5 meters.
Once the dredge is mobilized and positioned, the excavation cycle begins. On a CSD, the dredge swings left and right on its spuds (the "swing dredging" method), advancing forward by walking its rear spud at intervals. Each swing removes a defined layer of material — typically 0.3 to 1.5 meters per pass depending on sediment type and pump capacity.
The slurry mixture in a typical hydraulic dredging operation runs at a solid concentration of 10–25% by volume. At higher concentrations, pump wear accelerates dramatically and pipeline pressure losses increase. Achieving the right mixture ratio is an ongoing operational balance.
Material travels through the discharge pipeline — which can extend several kilometers in large projects using booster pump stations — to the placement area. On reclamation projects, the discharged slurry is contained by bunding, with water draining from the placement area back to the waterway through weir structures. On maintenance dredging projects, material might be deposited in a confined disposal facility (CDF) or, where regulations permit, at a designated offshore disposal site.
When most people think of dredging, they picture large vessels in shipping lanes. But environmental dredging — targeted removal of contaminated or excess sediments to restore ecosystem health — is one of the fastest-growing segments of the industry.
The challenge with contaminated sediment is that it acts as a long-term reservoir for pollutants. PCBs (polychlorinated biphenyls) and heavy metals like mercury, lead, and cadmium bind to fine-grained sediment particles and persist for decades. As bottom-feeding organisms ingest these particles, contaminants bioaccumulate up the food chain — reaching levels in fish tissue that make them unsafe for human consumption.
Environmental dredging typically requires a more precise, controlled approach than production dredging. Turbidity and resuspension are tightly regulated: disturbing contaminated sediment can temporarily increase contaminant concentrations in the overlying water column, so environmental projects often use enclosed clamshell buckets, silt curtains, and real-time turbidity monitoring to stay within permit limits.
In pond and lake environments, dredging is often the most practical solution for reversing eutrophication — the process by which excess nutrients (primarily nitrogen and phosphorus in the sediment) fuel algae and aquatic plant growth until the water body becomes shallow, oxygen-depleted, and essentially dead. A dredged pond can see water depth restored by 2–4 feet and a meaningful reduction in internal nutrient loading within the first year after work is complete.
Dredging underpins a surprising share of industrial infrastructure. You encounter it whenever a large structure crosses or enters a body of water — the foundations of bridges, offshore wind turbines, oil platforms, and marine pipelines all require seabed preparation or excavation.
In the offshore energy sector, dredging is critical for cable burial (protecting subsea power cables from anchor damage) and for creating the level seabed footprints needed for gravity-base foundations on offshore wind farms. The offshore wind industry's rapid expansion — global installed capacity is expected to reach 380 GW by 2032 according to GWEC projections — is creating significant new demand for specialized dredging capacity.
Construction dredging for inland waterways, canals, and reservoirs remains substantial. In developing economies, investments in inland waterway infrastructure (particularly in India, Bangladesh, and parts of Southeast Asia) are driving demand for smaller, portable dredging systems that can operate in shallow rivers far from major ports.
Mining applications include dredging for diamonds (off the coast of Namibia), tin (historically in Malaysia and Indonesia), titanium-bearing sands, and phosphate. These operations combine dredging with onboard mineral processing and can operate continuously for extended periods at sea.
Where does everything go once you've dredged it up? That question drives a significant portion of project cost and regulatory complexity.
Uncontaminated dredged material is increasingly treated as a resource rather than a waste. Beach nourishment projects along the U.S. coastline use millions of cubic yards of offshore sand each year to restore eroding beaches. The U.S. Army Corps of Engineers places approximately 5–6 million cubic yards of dredged material on beaches annually — a figure that's expected to grow as sea level rise accelerates coastal erosion. Dredged sand and gravel also go directly into construction aggregate supply chains in many markets.
Contaminated material is a different story. It requires containment in engineered disposal facilities, with monitoring of leachate and groundwater for years or decades after closure. Treatment options are improving — thermal treatment, stabilization/solidification, and bioremediation of dredged material are all advancing — but most projects still rely on contained placement as the primary management strategy.
International frameworks, including the London Protocol, govern ocean disposal of dredged material. Assessment processes determine whether material meets chemical and biological criteria for open-water placement. In practice, disposal options are becoming more constrained and more expensive over time, which is strengthening the case for beneficial reuse wherever material quality permits.
The clearest benefit is economic: keeping navigation channels open generates enormous value. The American Association of Port Authorities estimates that U.S. ports support approximately 31 million jobs and $5.4 trillion in economic activity. Without maintenance dredging, a large fraction of that commerce would simply not be possible — container ships drafting 50 feet cannot enter ports with 40-foot channels.
For pond and lake managers, the economic calculus is more direct. A sedimented pond may have lost 30–50% of its design storage capacity within 20 years, reducing its ability to manage stormwater or supply irrigation. Dredging restores that capacity and avoids the cost of building replacement infrastructure.
In flood-prone river systems, the relationship between channel depth and flood frequency is well established. Studies from the Rhine, the Mississippi, and the Mekong Delta all document how sedimentation raises flood stages at given discharge levels. Maintenance dredging is part of integrated flood management in most major river systems worldwide.
Environmental benefits compound over time. Lakes and estuaries that receive environmental dredging projects often show sustained improvements in water transparency, dissolved oxygen levels, and biological diversity 3–5 years post-dredging as the ecosystem gradually recovers from the disturbance.
No honest guide would skip the difficulties. Dredging is technically demanding, environmentally sensitive, and frequently expensive — and projects encounter problems that weren't visible during planning.
Sediment variability is a constant challenge. A project scoped for soft silt can encounter unexpected layers of cemented material or debris — old foundations, cable remnants, boulders — that slow production and wear out equipment faster than budgeted. Soil investigation programs reduce this risk but rarely eliminate it entirely.
Pump wear is a major operational cost in hydraulic dredging. Impellers handling abrasive sand or gravel can show measurable wear after just a few hundred operating hours. Selecting pumps with the right impeller geometry, material (high-chrome alloys are standard for abrasive service), and design head for the specific application reduces total lifecycle cost significantly.
Regulatory requirements have intensified over the past two decades. Environmental permits now routinely require turbidity monitoring, noise assessment, vibration measurement near structures, and sometimes continuous biological surveys. The permitting process for major dredging projects in the U.S. can take 2–4 years before a single cubic meter of material is moved.
Pipeline wear and blockage are recurring operational headaches. Gravel, shells, and debris can jam pumps or pack into bends. Proper pipeline sizing, adequate water velocity, and strategic placement of cleanout access points are essential to minimize downtime.
Autonomy is the biggest trend reshaping the industry. Semi-autonomous and fully autonomous dredges are moving from prototype to operational deployment. Companies like IHC, DEME, and Van Oord have invested heavily in remote-controlled and autonomy-capable vessels that reduce crew requirements and enable continuous 24-hour operation without fatigue-related efficiency losses.
Electric and hybrid propulsion is entering the dredging sector, driven by both fuel cost economics and increasingly strict emissions regulations in ports and coastal areas. DEME's Bonny River is one of the industry's first dual-fuel hopper dredges capable of running on liquefied natural gas, cutting emissions substantially versus conventional diesel.
Real-time production monitoring — integrating GPS, flow measurement, density sensing, and power consumption into a single dashboard — is now standard on larger dredges and increasingly available even on smaller portable equipment. Operators can optimize pump settings on the fly to maximize solids throughput while staying within equipment limits.
For submersible pump systems, the trend is toward integrated agitator designs that combine high-velocity water jets or mechanical agitators with the pump inlet, significantly extending the reach and production rate of a single pump unit without requiring a separate mechanical excavation device. Hydroman's submersible slurry pumps with agitators reflect exactly this direction.
The single most important variable is sediment type. A trailing suction hopper dredge that efficiently processes loose marine sand in open water will be nearly useless against stiff overconsolidated clay. Ask yourself: Is the material unconsolidated or compacted? Fine-grained or coarse? Does it contain cobbles, debris, or contamination? Your answers narrow the field quickly.
Project scale and geometry come next. Large open-water maintenance dredging favors TSHDs for their mobility and production rate. Confined rivers, ponds, and canals favor CSDs or submersible pump systems for their smaller footprint and ability to discharge directly through a pipeline. Projects in areas with limited access by water — landlocked ponds, mine tailings ponds, remote reservoir sites — often require portable submersible dredge pump systems that can be transported by road and assembled on site.
Water depth matters more than people sometimes expect. Standard submersible slurry pumps can operate effectively from very shallow depths (as little as 0.5–1 m) down to 30–50 meters depending on motor configuration. Hydraulic-motor-driven submersible pumps extend the practical depth range further for deep mine or offshore applications.
| Project Type | Recommended Equipment | Key Selection Factors |
| Navigation channel maintenance (large) | TSHD or large CSD | Volume, sediment type, disposal distance |
| Harbor deepening | CSD, backhoe dredge | Hardness, confined geometry, debris |
| Environmental remediation | Enclosed clamshell, specialty environmental dredge | Turbidity control, contamination containment |
| Pond / lake restoration | Submersible slurry pump, small CSD, auger dredge | Access, depth, sediment consistency, discharge distance |
| Mine tailings / industrial ponds | Submersible slurry pump with agitator | High solids content, abrasion resistance, remote operation |
| Sand mining | Stationary suction dredge, TSHD | Grain size, water depth, transport logistics |
| Gold / alluvial mining | Suction dredge with sluice, bucket-ladder dredge | Gravel handling, gold recovery system, mobility |
If your project involves pond dredging, lake remediation, mine tailings management, industrial wastewater pits, or any application where you need to move high-solids slurry in a space that doesn't accommodate a full dredge vessel, a submersible slurry pump is likely the most practical solution you can put in the water.
Hydroman's submersible slurry pump range was engineered around the realities of these environments: high abrasive content, irregular sediment, remote locations, and the need for reliable continuous operation without constant human supervision.
A standard submersible pump is designed to move clean water or mildly turbid water. Put it in a slurry environment — say, a pond with 20–30% solids by weight — and you'll destroy the impeller and volute within hours. A submersible slurry pump is built from the ground up for abrasive, high-density service:
One of the limitations of a plain suction pump is that it depends on gravity and natural disturbance to bring sediment into suspension before it can be drawn into the inlet. In consolidated or sticky sediments — compacted silt, clay-rich pond bottoms, mine tailings that have been sitting for years — a passive inlet simply won't create enough suction to draw solids efficiently.

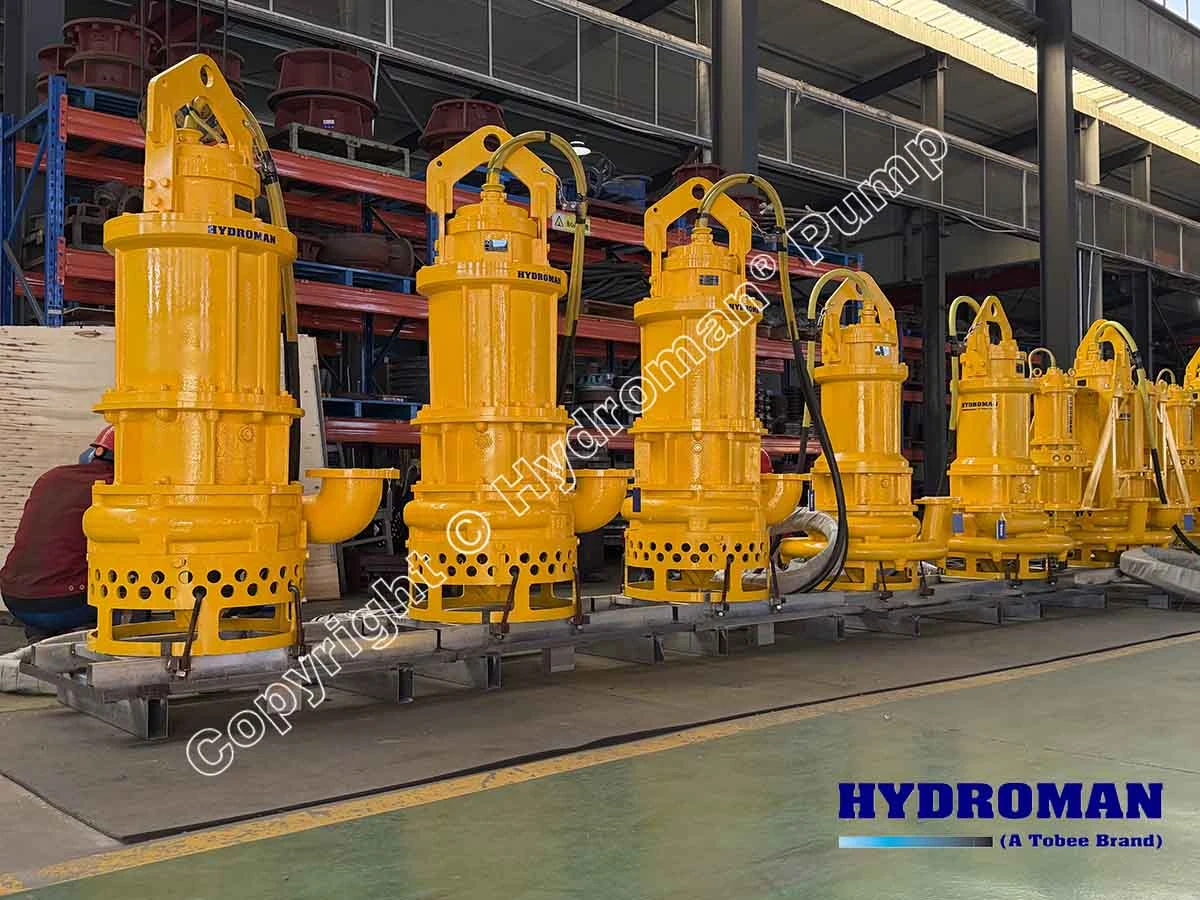

An agitator changes that equation. Hydroman's submersible slurry pumps with agitators use a high-velocity water jet or rotating agitator vane around the pump inlet to actively fluidize the surrounding sediment. This extends the effective suction radius by 1.5–3 meters compared to a non-agitated unit, meaning you can process a larger area before repositioning — which translates directly into higher production rates and lower labor costs.
| Specification | Typical Range (Hydroman Series) |
| Motor power | 4 kW – 280 kW |
| Flow rate | 15 – 1,200 m³/hr |
| Discharge head | Up to 80 m (high-head models) |
| Max solids concentration | Up to 70% by weight (slurry service) |
| Max particle size | Up to 76 mm (depending on model) |
| Submersion depth | Up to 50 m (standard); deeper with hydraulic drive option |

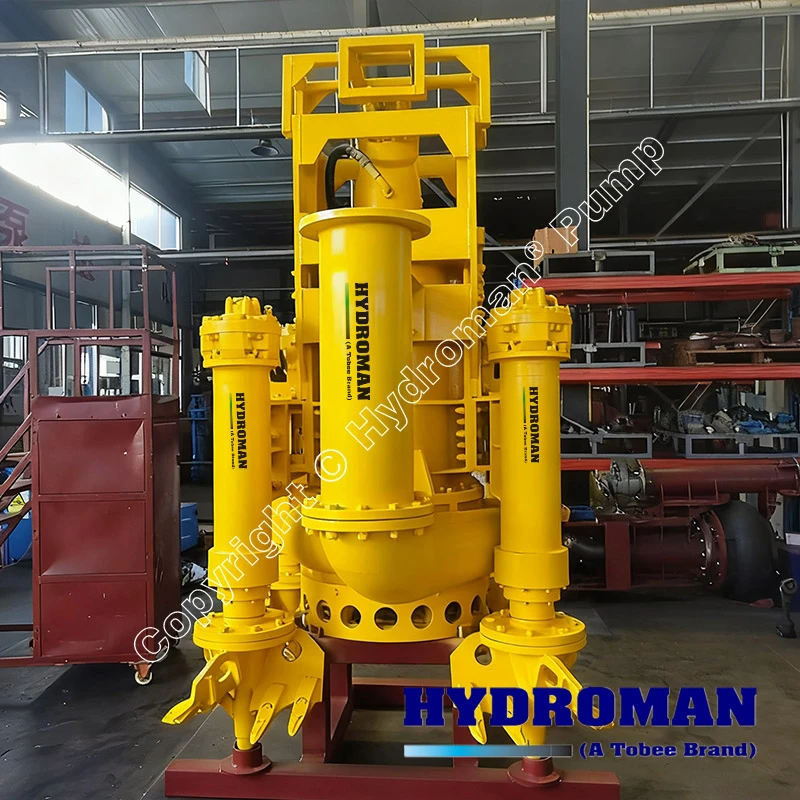

| Drive options | Electric motor, hydraulic motor, diesel engine + hydraulic |
| Wear parts material | High-chrome alloy (Cr27), rubber-lined options for fine abrasives |
| Agitator options | Jet agitator, mechanical agitator (standard and heavy-duty) |
| Voltage options | 380V / 415V / 460V / 660V / 1140V (custom available) |
In dredging contexts, you'll find Hydroman pumps most often in:
Every dredging application has its own sediment characteristics, depth, discharge distance, and access constraints. Our engineering team can help you select the right submersible slurry pump model, specify the correct agitator type, and size the discharge pipeline for your required production rate.
Get a free consultation →
Dredging is one of those industries that operates largely out of public sight but underpins an enormous share of global commerce, infrastructure, and environmental management. Whether you're a port engineer maintaining a navigation channel, an environmental consultant overseeing a remediation project, a mine operator managing tailings, or a pond manager trying to restore a sedimented water body — the fundamentals covered in this guide apply to your work.
The choice of equipment is always project-specific, and the details matter: sediment type, water depth, discharge distance, and site access collectively determine what will actually work and what will be a costly mistake. For the majority of smaller-scale and medium-scale dredging applications, a well-selected submersible slurry pump — equipped with the right agitator, built from the right materials, and sized correctly for the hydraulic conditions — offers a combination of simplicity, portability, and performance that larger dredge systems can't match.
If you're working through the selection process for your project, the team at Hydroman is ready to help. We've supplied submersible dredge pumps and slurry pump systems to projects across mining, construction, environmental, and industrial sectors worldwide — and we're happy to bring that experience to your specific challenge.
Browse our full range of submersible slurry pumps, submersible sludge pumps, agitator pumps, and sand dredging pumps — or reach out directly to discuss your project requirements.
