Sandman Mission Magnum 5x4x14 Skid Mounted Centrifugal Pump

SPECIFICATIONS

Size	5" x 4" x 14"
Capacity	20-230 m³/h
Head	10-67 m
Speed	1450/1750 rpm
Eff.	65%
Power	Max. 45 kW
Impeller dia.	7-14 inch
Motor cert.	CNEx, IECEx, ATEX

Inquire Now

Magnum 5x4x14 Centrifugal Mud Pump

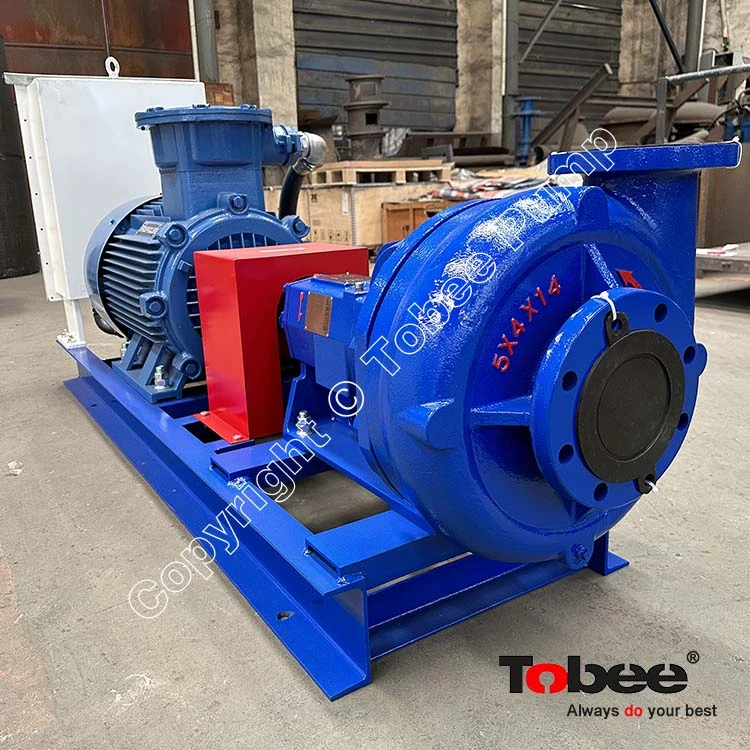

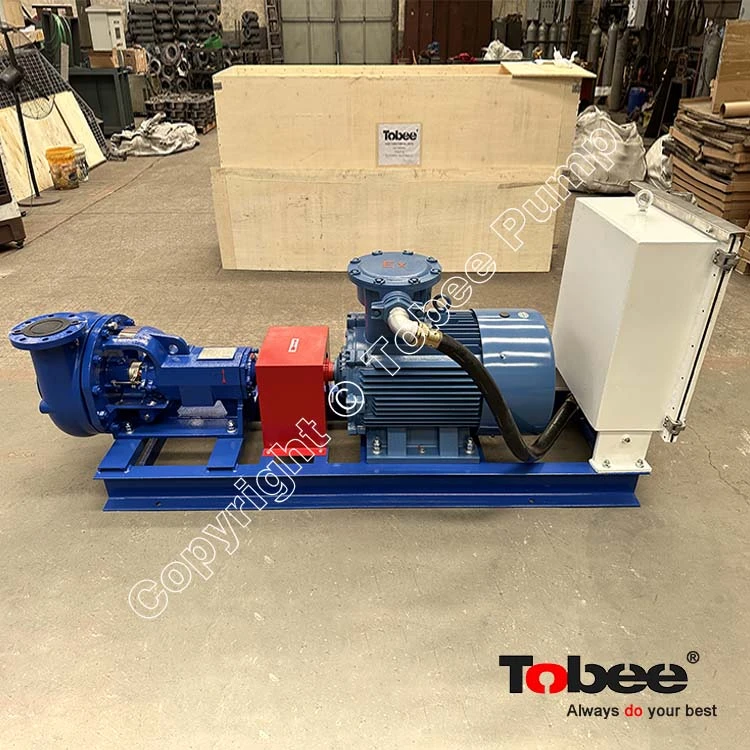

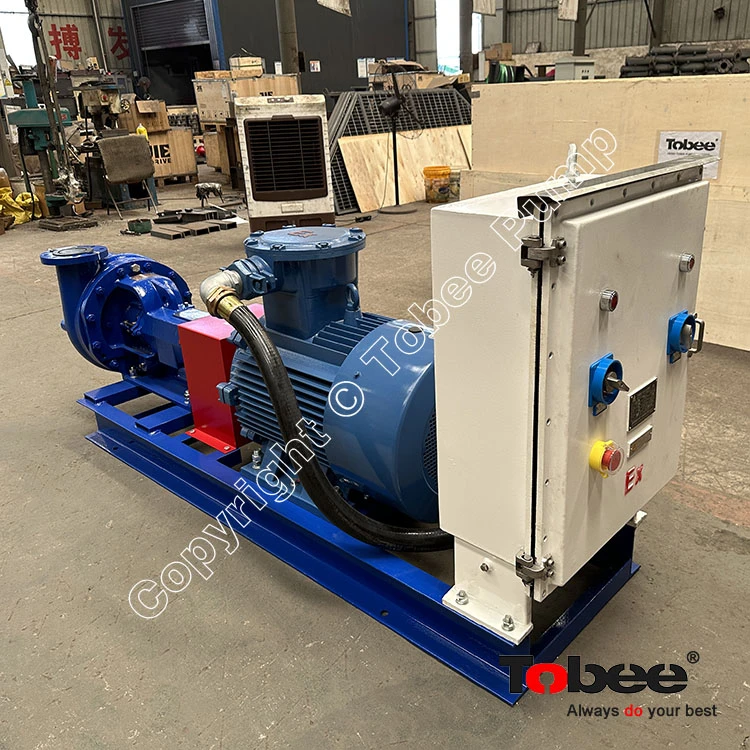

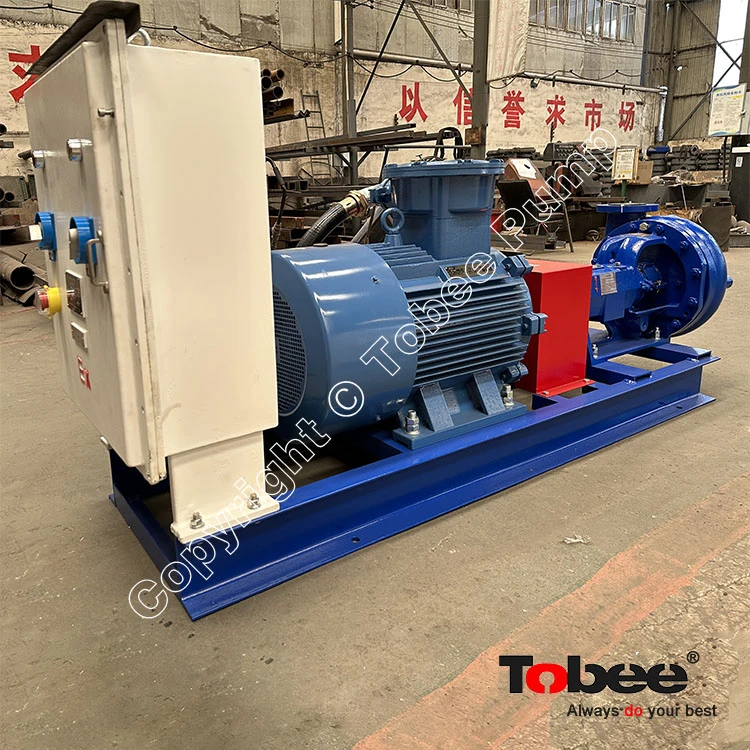

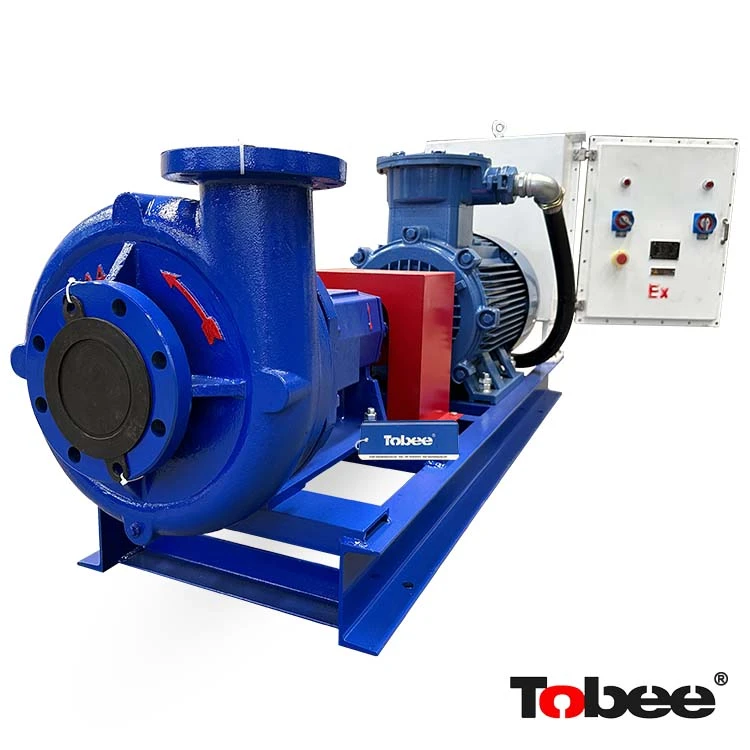

Sandman^® 5x4x14 Mission Magnum Centrifugal Mud Pump is built primarily for truck-mounted drilling rigs and pocket drilling rigs, and also serves as a general transfer pump for slurries. In mud systems, it's commonly used to transfer mud, slurries, or water, and works well as a feed pump for a desander or desilter, or as the mixing pump for a jet mud mixer. Skid-mounted configurations pair the pump with an explosion-proof electric motor for use in hazardous drilling environments, making the unit self-contained and ready to bolt onto a mixing skid or trailer.

Design Features

Complete Skid-Mounted Package

Complete skid-mounted pump package for easy installation
Rigid steel skid base for improved stability and alignment

Heavy-Duty Pump Construction

Single stage 5x4x14 Magnum centrifugal pump
14-inch open impeller for handling abrasive fluids
External impeller clearance adjustment
Heavy-duty shaft and long-life bearings
Replaceable shaft sleeve and stuffing box components
Mechanical seal or packing seal configuration available

Flexible Drive & Control Options

Available with electric motor, diesel engine, or hydraulic drive
Optional control panel, VFD, and explosion-proof motor package

Mission 5x4x14 Pump Material Options

The key Mission pump components are manufactured with carefully selected materials to provide excellent mechanical strength, impact resistance, wear resistance, and long-term durability under continuous-duty operation.

Material	Key Advantages	Typical Applications
Hard Iron	Improved wear resistance and durability	Drilling mud, slurry transfer
High Chrome Alloy	Excellent abrasion resistance, extended service life	Mining slurry, sand handling, abrasive fluids
Stainless Steel	Excellent corrosion resistance	Chemical fluids, marine applications
Aluminum Bronze	Thermal stability and cavitation resistance	Offshore and special applications
Tungsten Carbide Coating	Hard, wear-resistant surface improves the impeller's shear/mixing	High-velocity slurry, abrasive drilling fluids, sand-laden fluids

With flexible material selection and customized solutions, Sandman Mission 5x4x14 Centrifugal Transfer Pump can be configured to meet different operating environments, helping customers achieve longer service life, reduced maintenance frequency, and lower total operating costs.

Recommended Maintenance Kit for Magnum 5x4x14 C-Pump

No.	Part Number	Stock #	Description	Materials
1	19222-01-30A	641102058	Casing, 5x4x14	Hard iron
2	19224-XX-30	641217831	Impeller, open, 5x4x14	Hard iron
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

Mission Magnum Pump Drive Options

Mission Magnum centrifugal pumps can be configured with multiple drive systems to suit different installation conditions, power sources, and space requirements. The available options: horizontal electric, vertical electric, horizontal diesel, overhead belt, side belt, and hydraulic-driven configurations.

Electric Motor Drive
A reliable and efficient option for stationary drilling and industrial applications, mounted on a base or skid.
Diesel Engine Drive
Ideal for mobile and remote locations where electrical power is unavailable.
Belt-Driven Configuration
Available in overhead and side-belt arrangements, offering flexible speed adjustment and reduced pump wear.
Hydraulic Motor Drive
Suitable for mobile equipment and applications with an existing hydraulic power system.
Vertical Electric Drive
A space-saving configuration designed for installations with limited floor space.

Typical Applications

Sandman^® 5x4x14 heavy duty centrifugal pump's flow and head characteristics make it a genuine multi-purpose pump across drilling and industrial fluid handling:
Cement slurry mixing: used with an Ex-proof electric motor for cement slurry mixing applications on cementing units.
Solids control feed pump: used as a feed pump for a desander or desilter, or as the mixing pump for a jet mud mixer.
Mud, slurry transfer: transfers mud, slurries, or water throughout the mud system.
Cementing unit supercharging: installed as a centrifugal supercharging pump ahead of the main cementing pump, feeding it a steady, de-aerated supply of slurry.
Truck-mounted and pocket drilling rigs: a standard fit on smaller, mobile drilling rig platforms.
General oilfield transfer duty: frac discharge/suction, oil drilling transfer, trash pumping, grinding, circulating mud, centrifugal sludge handling, HDD circulation, and well-servicing industry.

Mission Pump Lubrication Options

01 Grease Lubrication

A simple and convenient option for standard applications. Grease helps protect the pump bearings and requires minimal maintenance.

02 Oil Lubrication

Provides continuous lubrication and improved heat dissipation, making it suitable for high-speed or continuous-duty applications. An oil bath system also allows easier inspection of the lubricant condition.

Get A Quote

Need a complete pump package or replacement parts?

Contact Sandman for model selection, technical support, pricing, and delivery information.
