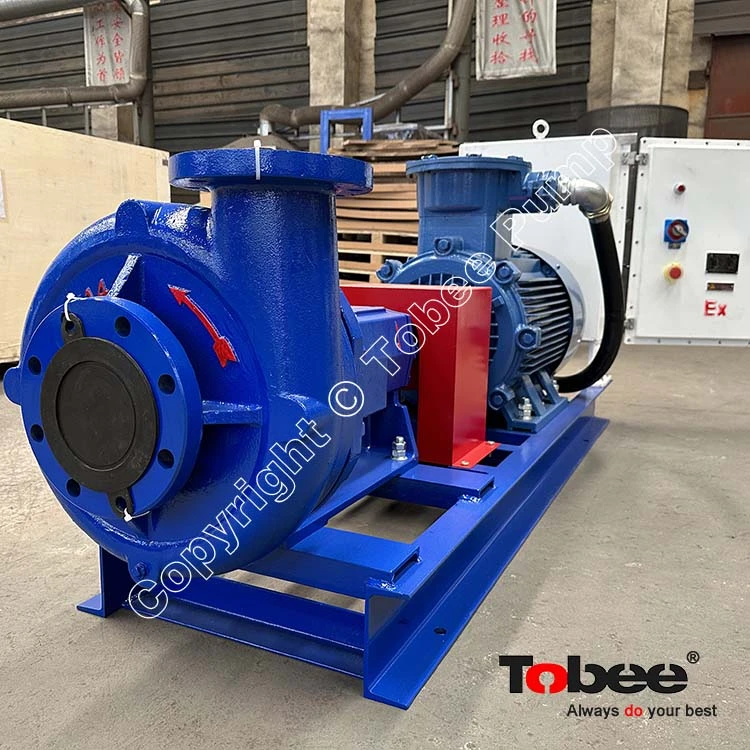

Sandman Mission Magnum I 5x4x14 Pump

SPECIFICATIONS

Size	5" x 4" x 14"
Capacity	20-250 m³/h
Head	5-100 m
Speed	800-2100 rpm
Eff.	65%
Power	Max. 45 kW
Impeller dia.	7-14 inch
Materials	Hard iron, High chrome alloy, SS304, SS316L, Bronze, TC coated, etc

Inquire Now Next Product

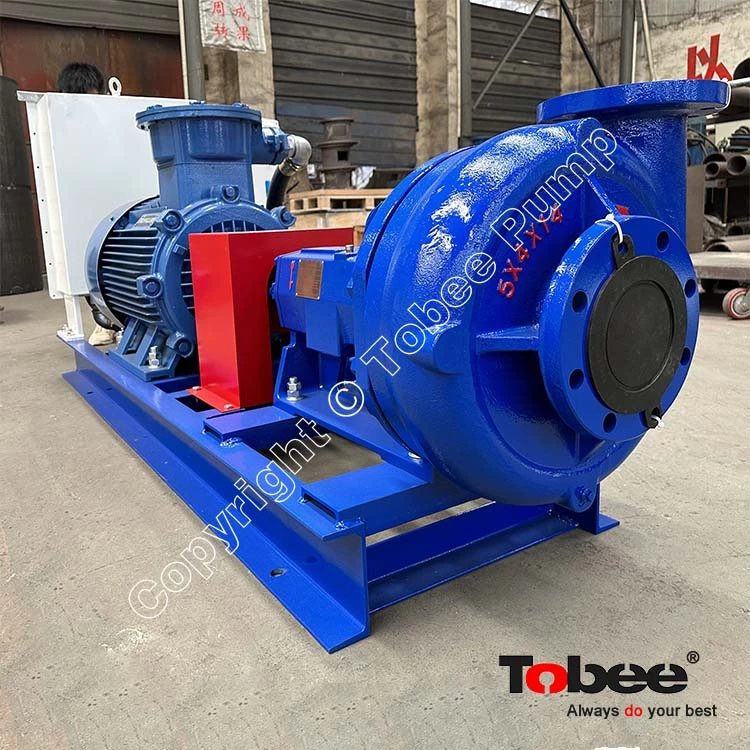

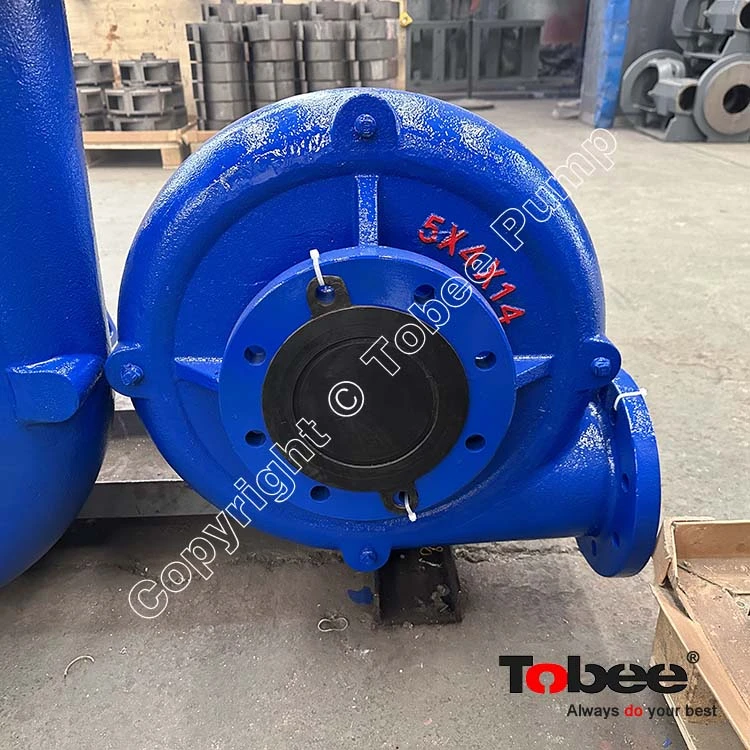

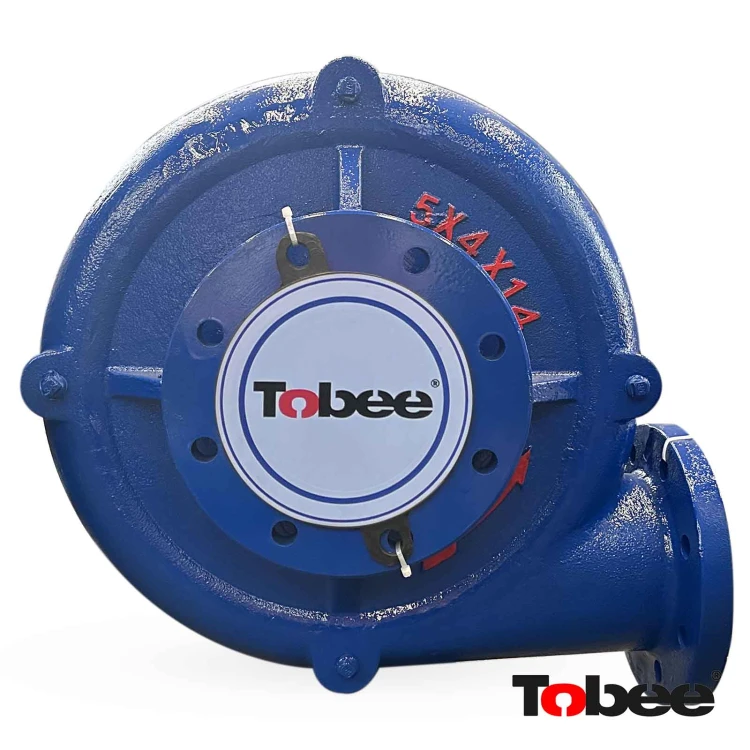

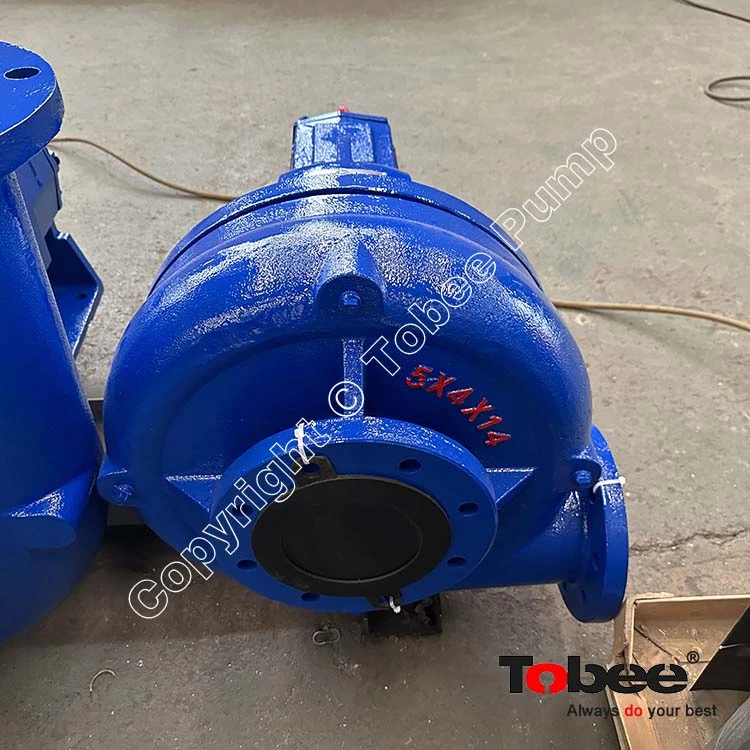

Sandman^® Mission Magnum I 5x4x14 Pump

Sandman^® Mission type Magnum I 5x4x14 pump is a robust, industrially proven centrifugal slurry pump engineered for continuous heavy-duty operation in demanding fluid handling environments. As a flagship model of the renowned Mission Magnum I C-pump series, this 5-inch suction, 4-inch discharge, 14-inch impeller pump delivers exceptional performance in transferring abrasive, viscous, and corrosive slurries, drilling muds, and solid-laden liquids. The 5×4×14 pump balances high flow capacity, reliable pressure output, and outstanding wear resistance to minimize operational downtime and long-term maintenance costs.

Built on a standardized universal power end platform shared across the entire Magnum I series pump lineup (3×2×13 to 10×8×14 models), the 5×4×14 configuration ensures superior part compatibility, simplified inventory management, and consistent operational reliability for fleet users. It is widely recognized as a cost-effective, high-efficiency charging and circulation pump for mud systems, solid control feeding, and industrial slurry transport, serving as a core equipment component for onshore and offshore drilling rigs, construction engineering, and mineral processing operations worldwide.

The heavy-duty power end incorporates a strong shaft, durable bearings, and replaceable wear components, providing excellent reliability for field operations where minimum downtime is critical.

The pump can be configured with:

Electric motor drive
Diesel engine drive
Hydraulic motor drive
Horizontal, vertical, or close-coupled configurations

Design Features

Higher Capacity Performance: Provides up to 50% greater capacity compared with the 8x6 pump configuration.

Optimized Hydraulic Performance: Smooth, non-turbulent flow path through the casing reduces hydraulic losses and improves efficiency.

Heavy-Duty Casing Design: Thicker casing construction provides enhanced resistance against abrasive wear and corrosion.

Advanced Impeller Design: Optimized for efficient handling of drilling fluids, slurry, and abrasive mixtures.

Reinforced Shaft & Bearing System: Larger, stronger shaft design reduces shaft deflection under heavy-duty operation.

Easy Maintenance & Serviceability: Replaceable shaft sleeve, stuffing box cover that simplifies maintenance and reduces downtime.

Multiple Material Options for Mission Pump

The key pump components are manufactured with carefully selected materials to provide excellent mechanical strength, impact resistance, wear resistance, and long-term durability under continuous-duty operation.

Material	Key Advantages	Typical Applications
Hard Iron	Improved wear resistance and durability	Drilling mud, slurry transfer
High Chrome Alloy	Excellent abrasion resistance, extended service life	Mining slurry, sand handling, abrasive fluids
Stainless Steel	Excellent corrosion resistance	Chemical fluids, marine applications
Aluminum Bronze	Thermal stability and cavitation resistance	Offshore and special applications
Tungsten Carbide Coating	Hard, wear-resistant surface improves the impeller's shear/mixing	High-velocity slurry, abrasive drilling fluids, sand-laden fluids

With flexible material selection and customized solutions, Sandman Magnum Centrifugal Pump 5x4x14 can be configured to meet different operating environments, helping customers achieve longer service life, reduced maintenance frequency, and lower total operating costs.

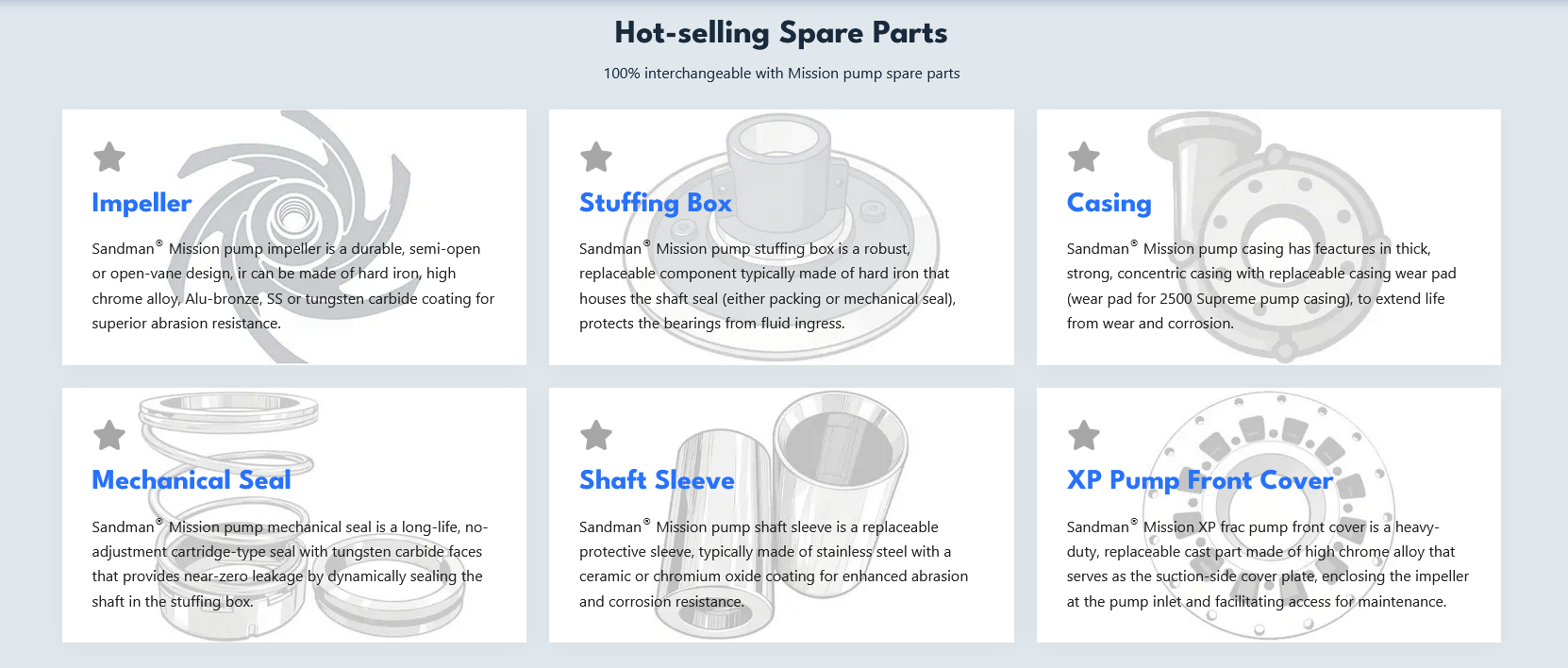

Recommended Maintenance Kit for Mission Magnum 5x4x14 Pump

No.	Part Number	Stock #	Description	Materials
1	19222-01-30A	641102058	Casing, 5x4x14	Hard iron
2	19224-XX-30	641217831	Impeller, open, 5x4x14	Hard iron
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

Sandman Mission Magnum I 5x4x14 Pump

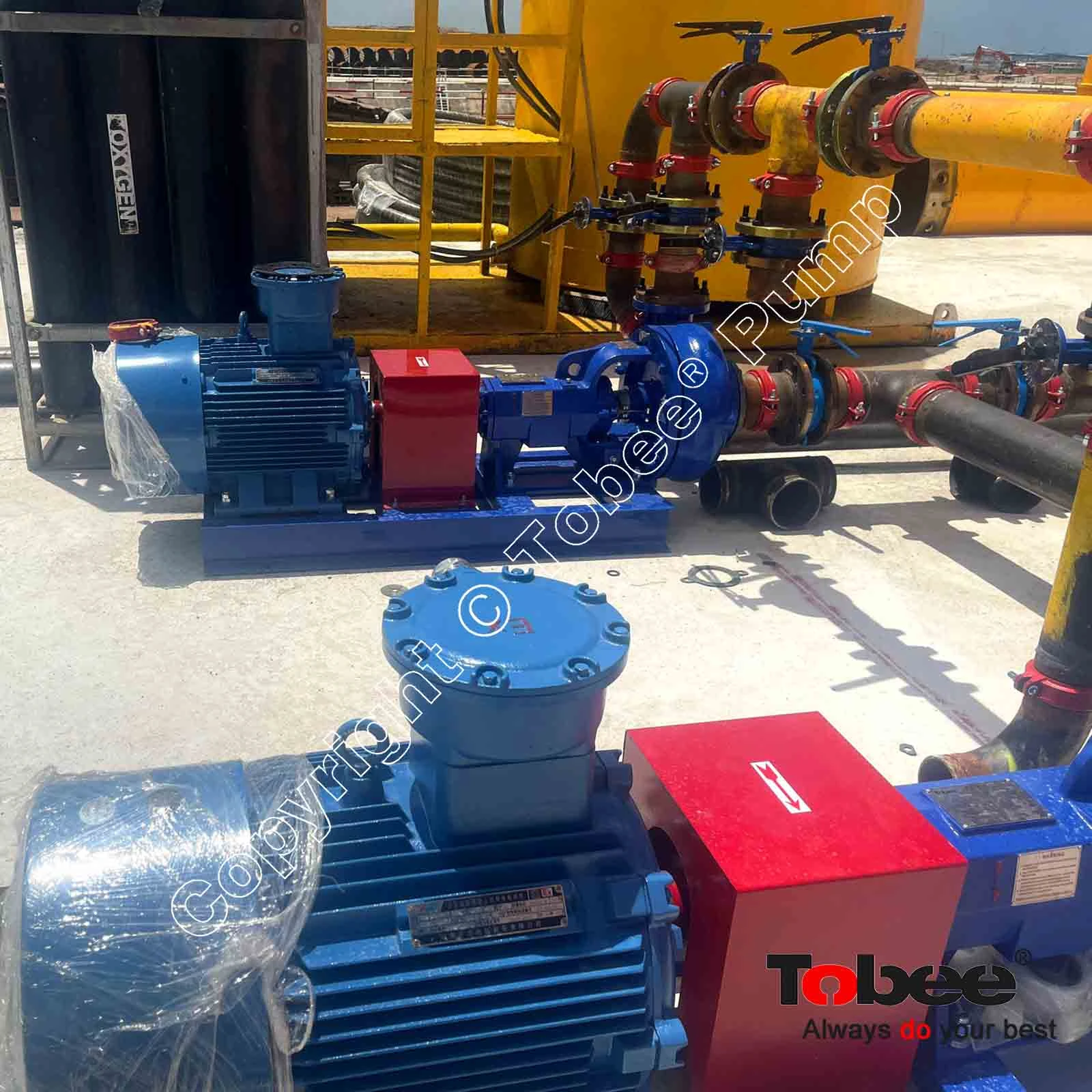

Wide Industrial Applications

With its excellent comprehensive performance and strong adaptability, the Mission 5x4x14 Mud Circulating Pump is widely applied in multiple industrial fields, becoming a trusted core fluid handling equipment:

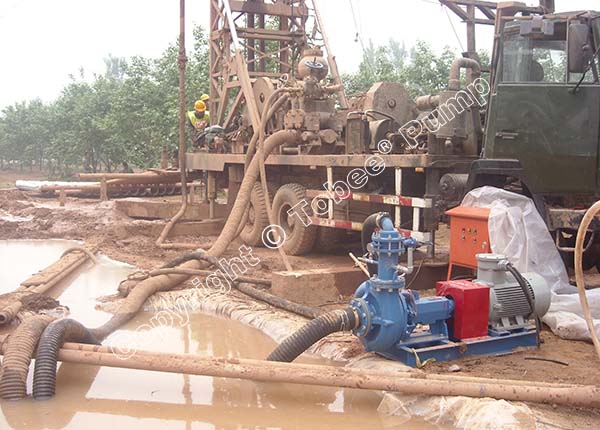

Oil & Gas Drilling: Serves as mud circulation pump and solid control feeding pump for onshore and offshore drilling rigs, ensuring stable mud supply and efficient solid-liquid separation.
Horizontal Directional Drilling (HDD): Handles large-volume drilling mud circulation and slurry transportation for trenchless construction projects.
Mineral Industrial Processing: Transports abrasive mineral slurries, industrial wastewater, and high-viscosity process fluids in mining, metallurgy, and chemical industries.
Construction & Municipal Engineering: Used for foundation slurry treatment, sewage transportation, and tunnel construction fluid circulation.
Offshore & Marine Engineering: Applies to platform fluid transportation and marine slurry handling with corrosion-resistant material configurations.

Request Quote

Looking for a Mission series 5x4x14 Sand Pump, spare parts, or complete pump package?

Contact Sandman for a customized solution based on your:

Application requirements
Flow and head conditions
Drive configuration
Material selection
Spare parts requirements

Request a Quote Today for Mission Magnum I 5x4x14 Pump Solutions.
