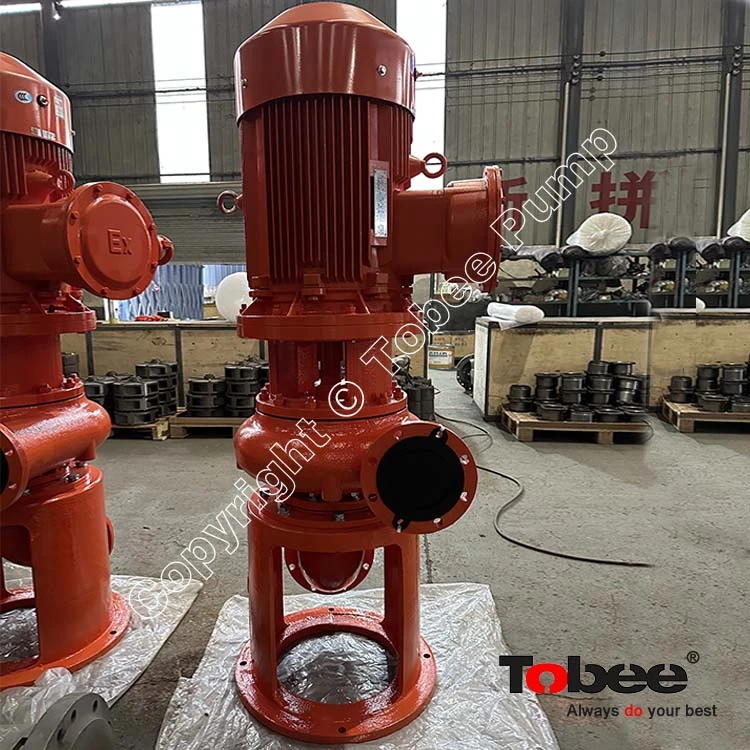

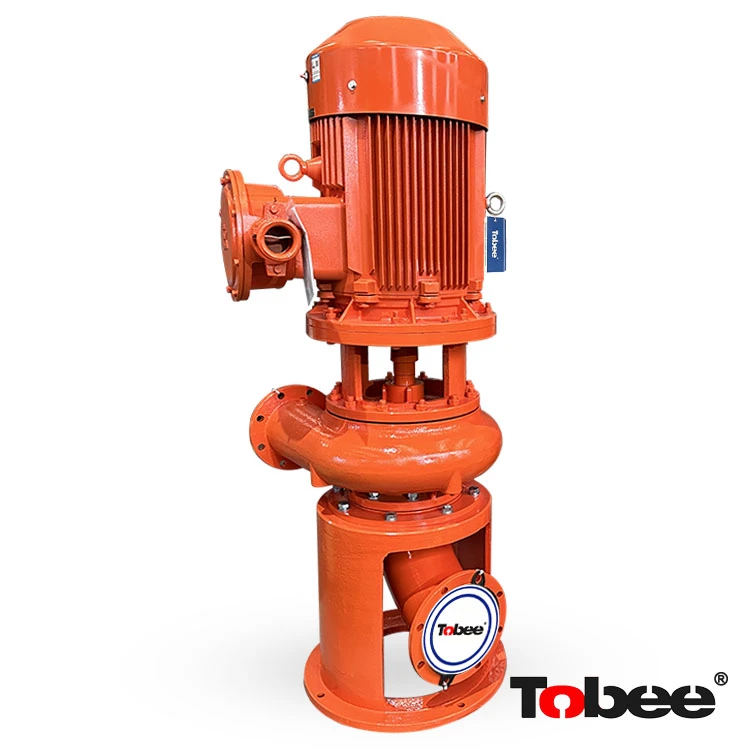

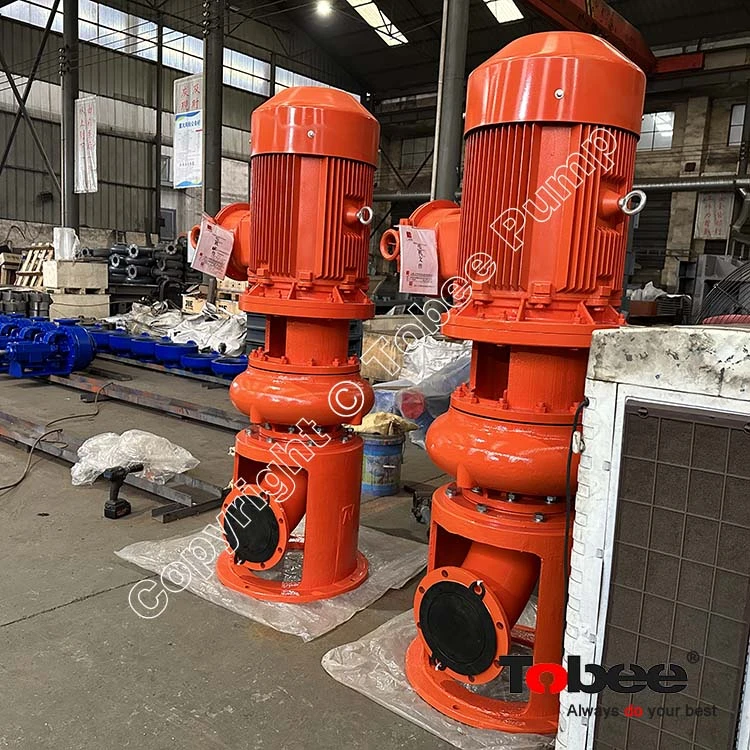

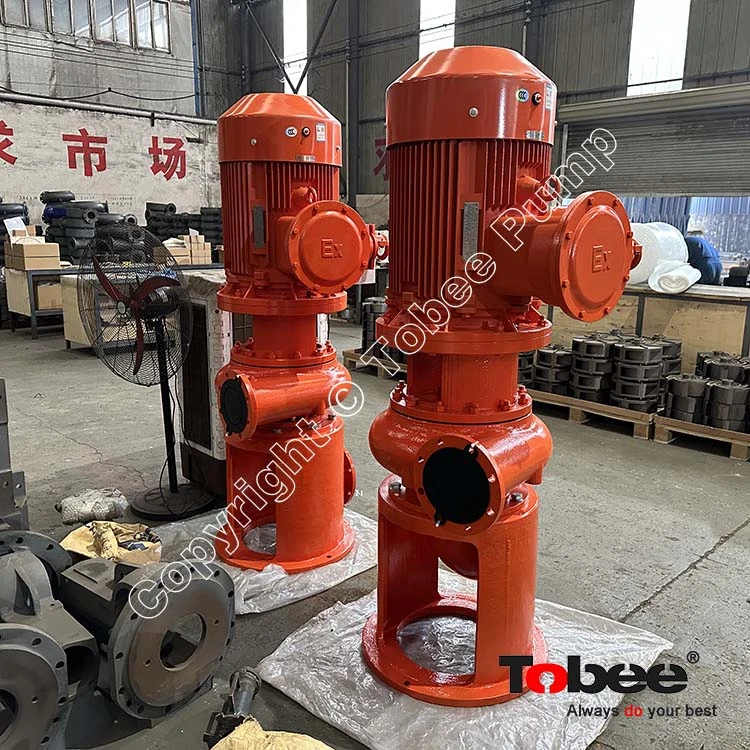

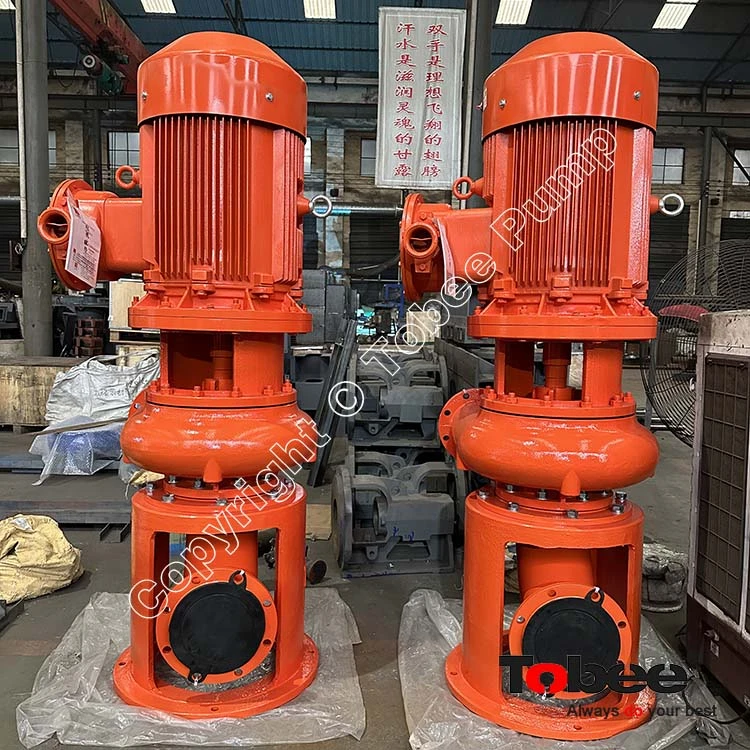

Sandman 8x6x14 Vertical Magnum Pump
Sandman® Vertical Magnum is a single-stage, vertically mounted centrifugal pump purpose-built for handling abrasive slurries, drilling mud, and solids-laden fluids in demanding environments like wet pits and offshore or onshore drilling setups.
The vertical configuration requires the least amount of deck space of any Magnum-style pump arrangement, which is exactly why it's become the standard choice for feeding solids-control equipment on rigs where every square foot of deck matters.
8x6x14 Vertical Magnum's spare parts are fully interchangeable with the horizontal Mission pump's parts, and the design does not require separate bearings or a mechanical seal, since the vertical units feature interchangeable parts with their horizontal counterparts, allowing for cost-effective spares management across a mixed fleet of vertical and horizontal pumps.
Design Features
Sandman® Vertical Magnum series share its wet-end parts with the rest of the Magnum I series pumps, which means it inherits the same wear-resistant, low-turbulence engineering that has made the horizontal Magnum a standard on drilling rigs worldwide:
Open impeller with wide-tipped vanes A more tangential suction circumference creates a smoother flow pattern when handling abrasive fluids.
Thicker casing Extends service life against wear and corrosion.
Replaceable shaft sleeve Located in the packing wear area, so the sleeve, not the shaft, takes the wear.
Replaceable stuffing box Keeps repair costs down in the highest-wear zone of the pump.
Smooth, non-turbulent flow path Maintained throughout the casing to reduce cavitation and vibration.
Common power end The Magnum I platform, from 3x2x13 through 8x6x14, shares the same power end architecture, so vertical and horizontal units across a fleet draw from the same spare-parts pool.
Why Go Vertical Type Pump?
Sandman Horizontal Magnum I 8x6x14 is a proven workhorse, but not every installation has the floor space: or the piping arrangement, to accommodate a horizontally mounted pump and its baseplate. The vertical configuration solves that in a few specific ways:
| Why Go Vertical? | Benefit |
| Smaller footprint | Mounting the pump vertically over a wet pit or tank dramatically reduces the deck space required. |
| Installation layout | Ideal for compact and space-limited systems. |
| Simpler mechanical arrangement | With the shaft directly coupled to the motor, there's no separate bearing housing or mechanical seal to maintain. |
| Direct submersion capability | The design is built to be lowered into a wet pit or tank, drawing fluid directly from the source rather than relying on a flooded suction line. |
| Simplified piping | Reduce suction-side piping in selected installations. |
| Easy system integration | Easy to integrate into mud tanks, drilling, solids control and process equipment. |
| Accessibility | Drive and upper components can be positioned above the fluid source. |
Vertical Magnum Pump Wear Parts
• Casing 19117-01-30A
Heavy-duty construction designed to support reliable operation and long-term service.
• Impeller 19116-XX-30
The impeller provides efficient fluid transfer and is available in different material options based on application requirements.
• Mechanical Seal 648414308
Available for near-zero leakage in continuous service.
• Flanged Suction Elbow 665002005
Connects the suction pipeline to the pump inlet and redirects the incoming fluid into the vertical pump, providing a compact and secure flanged suction connection.
• Motor Shaft Sleeve 662013009 / 662013011
Different sleeve part numbers are used to match different motor frame sizes and shaft dimensions, ensuring proper fitment and reliable power transmission.
Typical Applications
• Drilling Rigs
Used for drilling fluid transfer, mud circulation and auxiliary pumping duties in onshore and offshore drilling systems.
• Solids Control Systems
Suitable for transferring drilling fluids between mud tanks, processing equipment and solids control systems.
• Mud Tanks and Mixing Systems
Can be integrated with mud tanks and mud mixing systems where a compact vertical pump arrangement is required.
• Slurry Transfer
Designed for selected slurry and solids-containing fluid transfer applications with appropriate material configuration.
• Marine and Offshore Systems
Suitable for selected marine and offshore pumping systems requiring compact installation and reliable fluid handling.
• Industrial Fluid Handling
Used for process water, wastewater, slurry and general industrial fluid transfer.
Quick Contact
Looking for a Mission Style 8x6x14 Vertical Magnum Pump, replacement parts, or a customized vertical pumping solution? Our engineering and sales team is ready to help.
