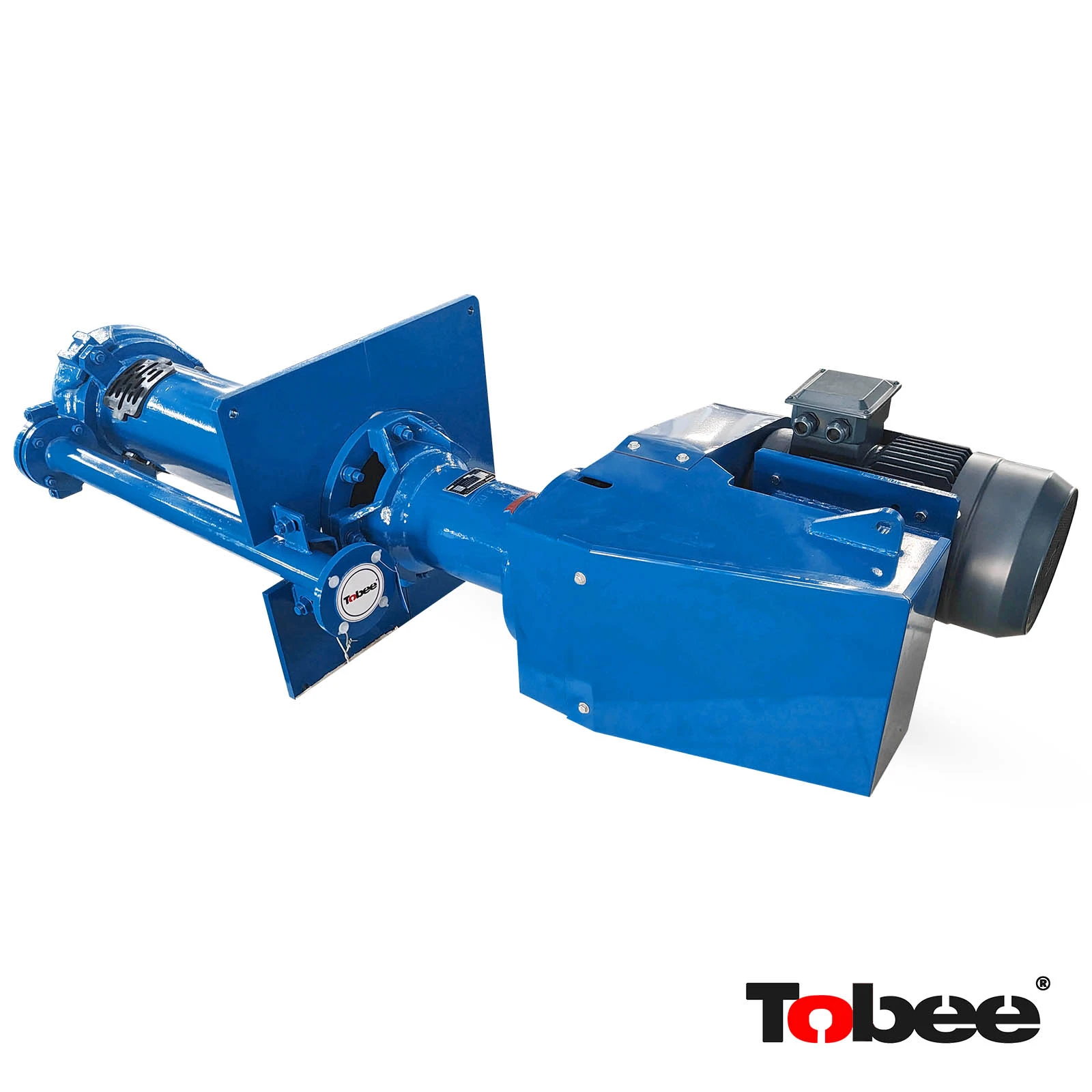

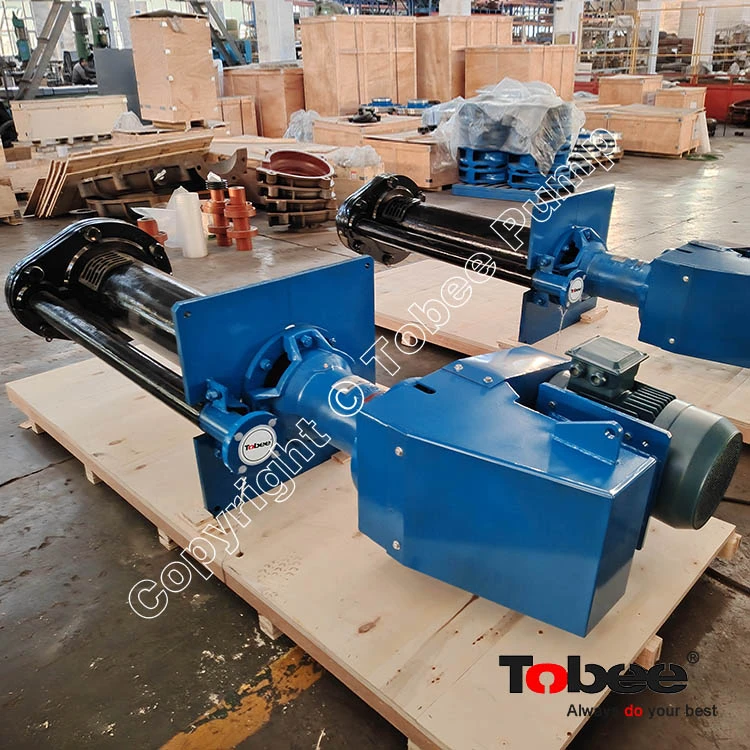

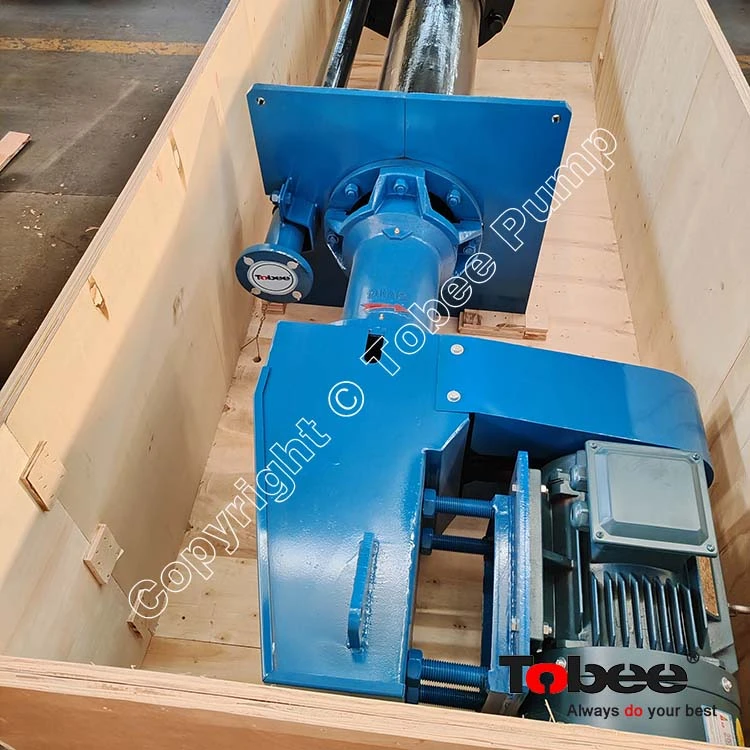

TPR65QV Overview
The Tobee® TPR65QV Vertical Rubber Lined Centrifugal Pump is a heavy-duty slurry pump designed for handling abrasive and corrosive slurry in mining, mineral processing, flotation, and tailings applications. Its vertical cantilever design eliminates the need for shaft seals and allows reliable operation in slurry sumps and tanks. The high-quality natural rubber lining provides excellent wear and corrosion resistance, helping extend service life and reduce maintenance requirements. With robust construction and stable performance, the TPR65QV offers an efficient and dependable solution for demanding slurry pumping applications.
Features & Advantages
Vertical Cantilever Design Ideal for slurry sumps and tanks, saving installation space.
Rubber Lined Wet Parts Provides excellent resistance to abrasion and corrosion.
No Shaft Seal Required Simplifies the structure and reduces maintenance requirements. Submersion ensures the pump is always primed and ready to operate. Crucially, the vertical cantilever shaft design means there are no submerged bearings and no dynamic shaft seals below the liquid level. This removes the single most common point of failure in slurry pumps – the seal – and the associated cost and complexity of seal water systems. It truly is a Shaft Seal Free Pump for Slurry Applications.
High Wear Resistance Suitable for continuous handling of abrasive slurry and fine particles.
Reliable Performance Robust construction ensures stable operation under demanding conditions.
Easy Maintenance Replaceable wear components help reduce downtime and maintenance costs.
Wide Applications Suitable for mining, mineral processing, flotation, tailings, and slurry handling.
Customizable Lengths Available in various standard column lengths to match specific sump depths. Suction extension pipes can be added for exceptionally deep sumps, providing installation flexibility.
Technical Specifications
| Item | Specification |
|---|---|
| Pump Model | TPR65QV |
| Pump Type | Vertical Rubber Lined Centrifugal Slurry Pump |
| Pump Structure | Vertical Cantilever |
| Discharge Size | 65 mm |
| Lining Material | Natural Rubber |
| Impeller Type | Open Impeller |
| Shaft Seal | No Shaft Seal Required |
| Drive Type | Direct Drive / Belt Drive |
| Maximum Capacity | 22.5-105 m³/h |
| Head | 5.5-30.5 m |
| Speed | 700-1500 r/min |
| Particle Size | 280 mm |
| Application | Mining, Mineral Processing, Flotation, Tailings |
| Installation | Sump / Tank Installation |

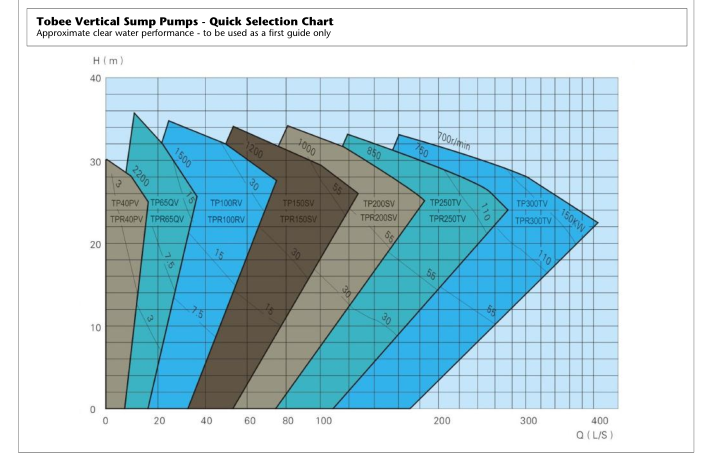

Curve

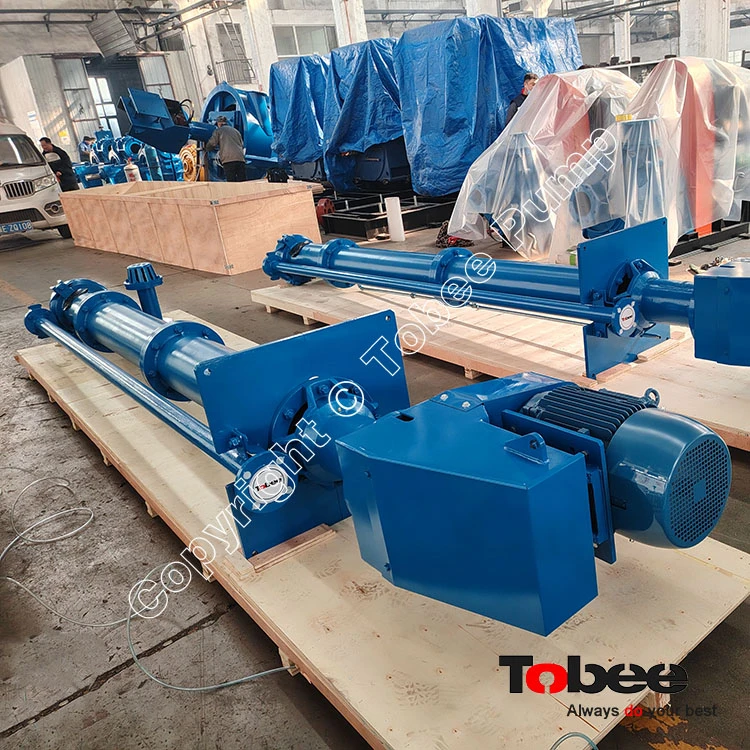

Customizable submersion depth
The TPR65QV Vertical Rubber Lined Centrifugal Pump features a customizable submerged depth to meet different sump and tank requirements. The pump length can be adjusted according to the actual installation depth, providing greater flexibility for various slurry handling applications.

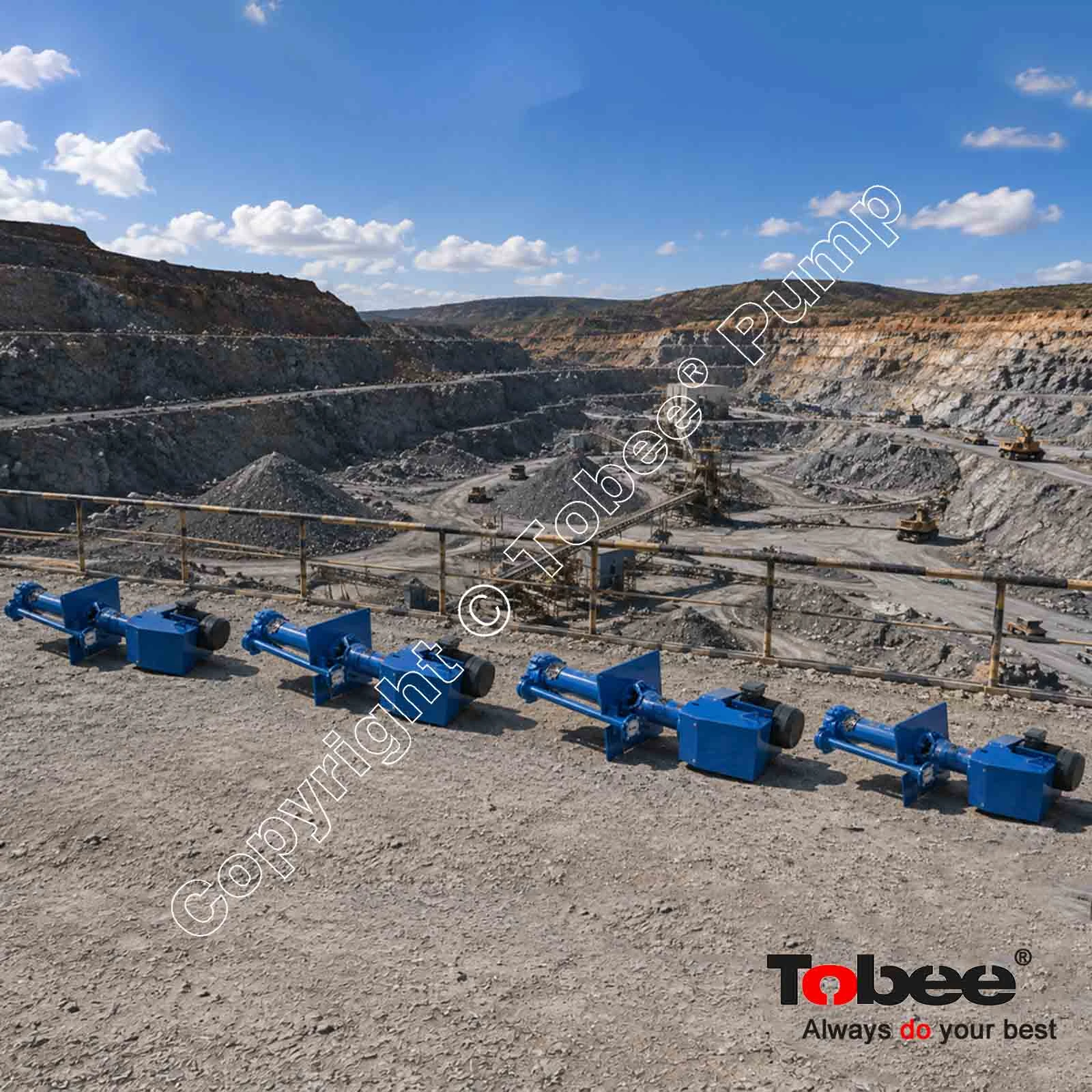

Application
Ideal for mining, mineral processing, flotation, tailings, coal preparation, metallurgy, and other abrasive or corrosive slurry handling applications.

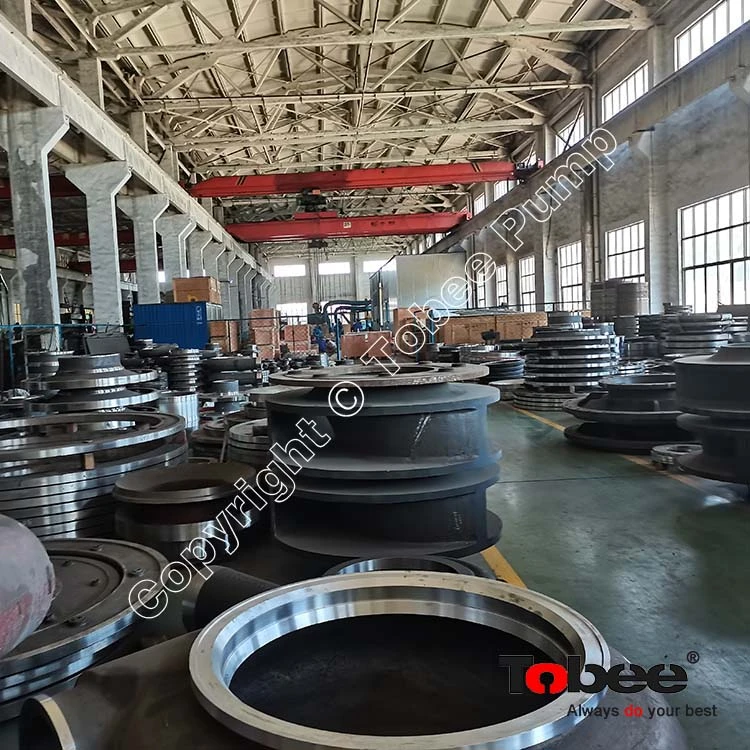

Spare Parts
Tobee® TPR65QV spare parts are designed for easy replacement and long service life, including impellers, casings, liners, bearings, shafts, and other wear components. High-quality materials and precise manufacturing ensure reliable performance and excellent interchangeability, helping reduce maintenance downtime and operating costs.
TPR65QV FAQ
1. What is the TPR65QV pump used for?
The TPR65QV is designed for handling abrasive and corrosive slurry in mining, mineral processing, flotation, tailings, and other industrial applications.
2. What is the advantage of the rubber lining?
The natural rubber lining provides excellent abrasion and corrosion resistance, helping extend the service life of wetted parts when handling slurry.
3. Can the submerged depth of the TPR65QV be customized?
Yes. The submerged depth and pump length can be customized according to the customer's sump or tank depth and specific installation requirements.
4. Does the TPR65QV require a shaft seal?
No. Its vertical cantilever design operates without a conventional shaft seal, which simplifies maintenance and reduces the risk of seal-related problems.
Why choose Tobee?
Tobee® Pump has a wealth of experience in the manufacturing and service of pumps and accessories; in fact Tobee® Pump has machinery manufacturing experience of over 45 years having achieved great success with R&D and manufacturing of Pumps for more than 30 years. The annual production capacity of pumps in our factory surpasses 10,000 easily. Tobee® Pump has a tremendous market share that covers more than 120 cities in China including many provinces and autonomous regions and more than 80 countries.
1.Chinese Top 10 Slurry Pump Manufacturer
2.National Level II Measurement Unit
3.Advanced Enterprise of the Hebei Province
4.Trustful Enterprise on Contract Implementation of the Hebei Province
5.Manufacturing unit with the maximum Customer Satisfaction on both Quality and service in the Hebei Province
6.Production Quality Inspection-free Enterprise
7.Most Consumer Trusted Unit of the Hebei Province
8.Good Quality and Efficiency Enterprise of the Hebei Province
9.Top Super Credit Enterprise of Shijiazhuang City
10.Famous Brand Enterprise of Hebei Province
Looking for a reliable Centrifugal Slurry Pump for your application? Contact us today for more information, technical support, spare parts, and a customized quotation.
