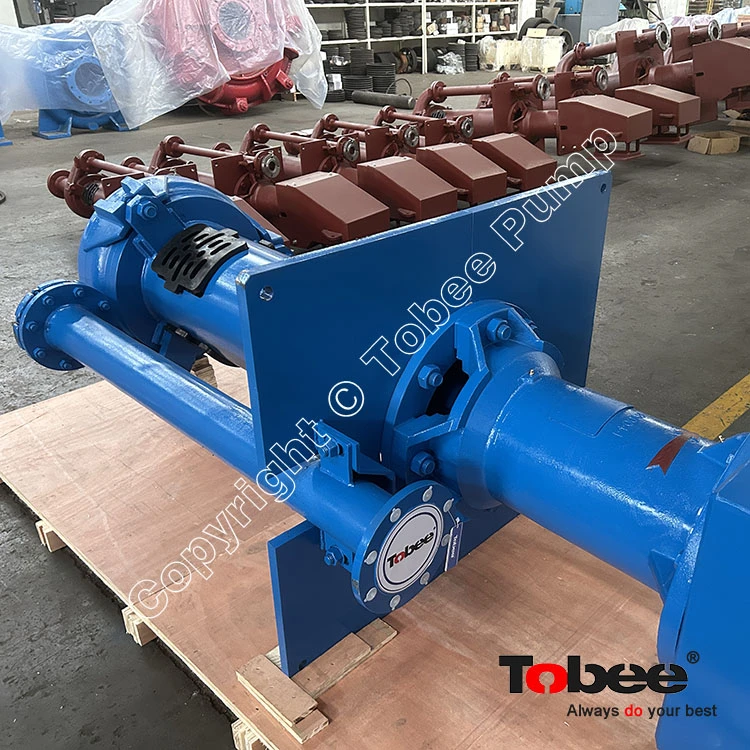

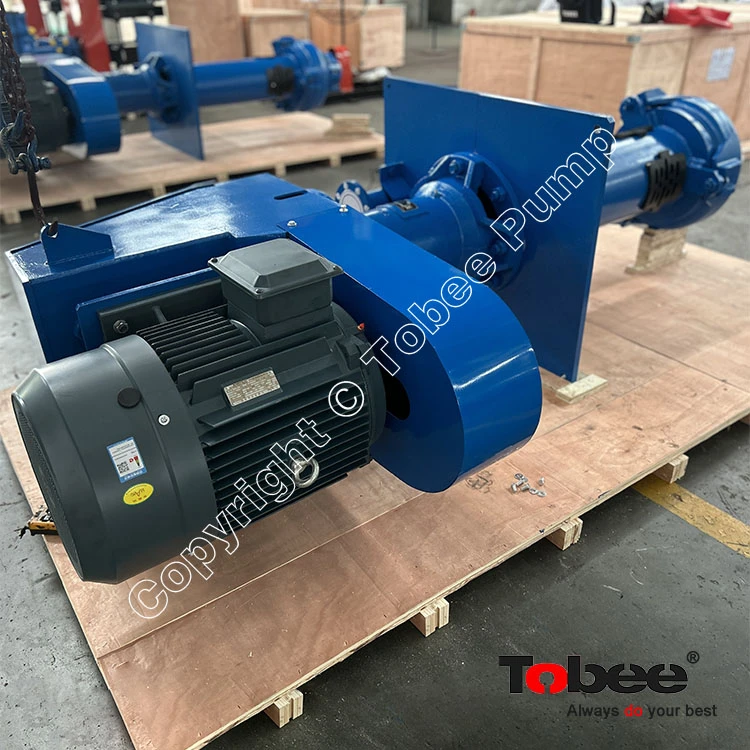

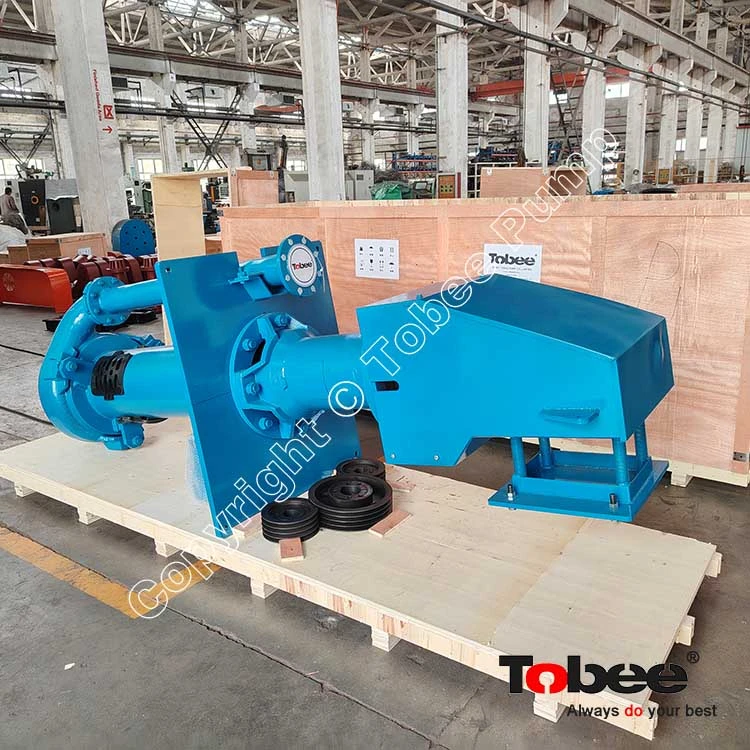

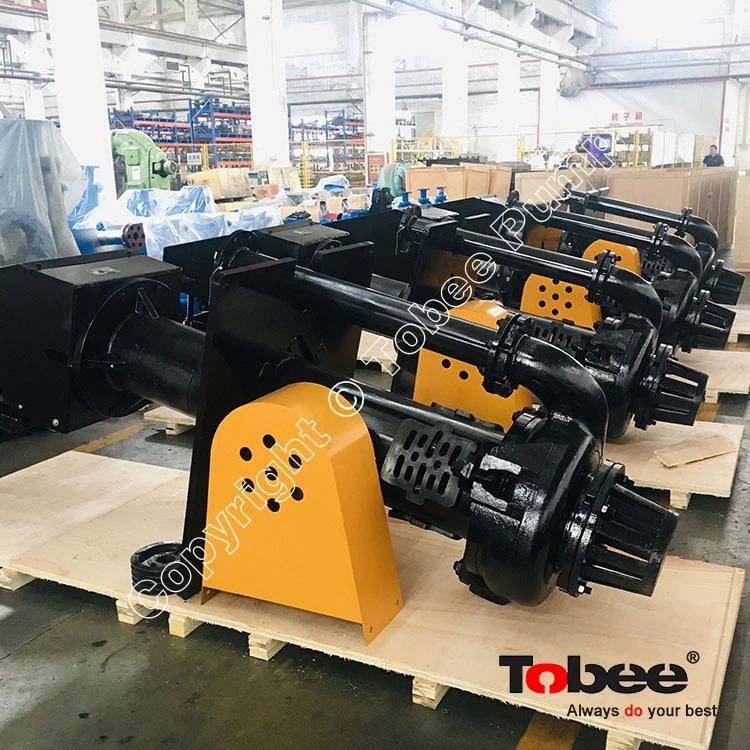

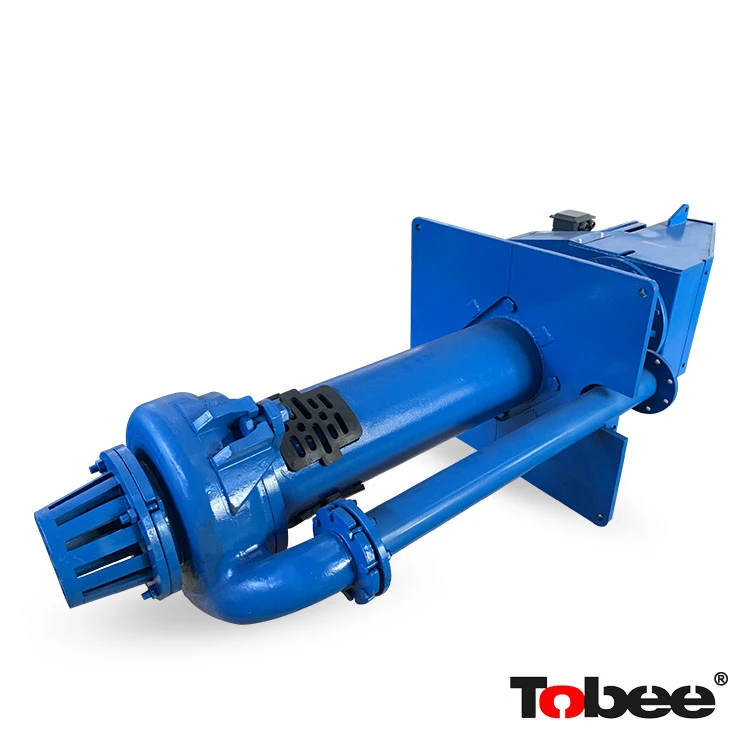

Tobee^® TP100RV Vertical Cantilever Pump

Tobee^® TP100RV Vertical Cantilever Pump Specifications

Size	100 mm
Capacity	40-289 m³/h
Head	5-36 m
Speed	500-1200 rpm
Power	Max. 75 kW
Handling solids	32 mm
Materials	High Chrome Alloy, Rubber, Stainless steel, etc.

Inquire Now Next Product

Tobee^® TP100RV Vertical Slurry Pump Product Description

Tobee^® TP (and rubber-lined TPR) vertical cantilever slurry pump is a heavy-duty, vertical centrifugal pump designed for sump service where continuous operation in abrasive, high-density slurries is required. Unlike submersible slurry pumps, the drive motor above the sump mounting plate in the dry, while the lower casing and impeller are suspended down into the wet sump. Primary Applications: Mineral Processing & Metallurgy, Coal Preparation & Processing, etc.

Free Quote

Tobee^® TP100RV Vertical Sump Pump Product Description

Bearing Assembly with Heavy-Duty Cantilever Design, The shaft, bearings, and housing are generously proportioned to prevent resonance and vibration when operating within the shaft's first critical speed zone.
Column Assembly Constructed from heavy-gauge fabricated mild steel. The rubber model features a full elastomeric cover to protect the steel superstructure against corrosive and abrasive slurry splash.

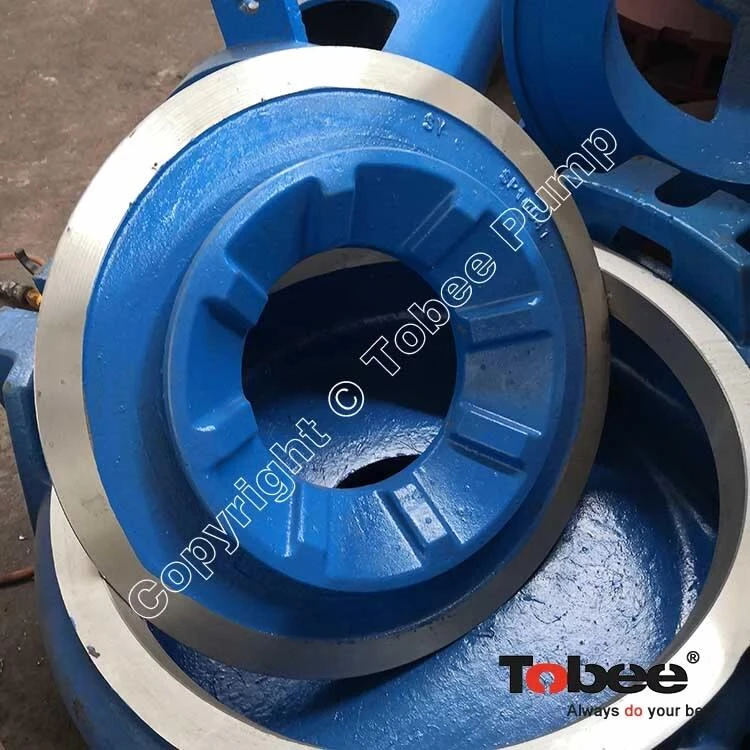

Casing / Volute Features a simple bolt-on attachment secured to the base of the column. Manufactured from high-chrome wear-resistant white iron or molded natural rubber/elastomer liners.
Impeller Material Interchangeability & Adjustment: High-chrome alloy and molded elastomer impellers are fully interchangeable.
Discharge Pipe Metallic discharge pipework for the SP series and elastomer-covered pipework for the SPR series. All wetted metallic components undergo rigorous anti-corrosion and rust-proofing treatment.
Zero Submerged Bearings Contains no mechanical seals, eliminating the main point of mechanical failure common to conventional sump pumps.

Tobee^® TP100RV Vertical Pump Performance Parameters

Model	Matching power P (kW)	Capacity Q (m³/h)	Head H (m)	Speed n (r/min)	Eff.η (%)	Impeller dia. (mm)	Max.particles (mm)	Weight (kg)
TP100RV	5.5-75	40-289	5-36	500-1200	62	370	32	920

Tobee® TP100RV Vertical Drainage Pump Typical Applications

Tobee^® TP100RV Vertical Drainage Pump Typical Applications

Mineral Processing & Metallurgy

SAG / Ball Mill Floor Sumps: Handling heavy spillage, tramp steel fines, and high-density coarse slurries surrounding grinding circuits.
Cyclone Feed & Overflow Pits: Pumping overflow and underflow spillage back into the process circuit.
Flotation House Sumps: Transporting froth, reagents, and mineral concentrates (copper, gold, iron ore, lithium, zinc).
Thickener Spillage & Underflow Pits: Clearing thickener overflow and emergency dump sumps.
Concentrate Dewatering & Filter Feed: Recirculating wash water and fine tailings sediment.

Coal Preparation & Processing

Coal Washery Floor Dewatering: Pumping heavy coal slurry, magnetics, and fine refuse from floor sumps.
Desliming & Dewatering Screen Sumps: Handling fine coal particles and slurry washdown water.
Tailings & Refuse Pits: Transferring coarse coal reject fines and dense medium separation (DMS) mixtures.

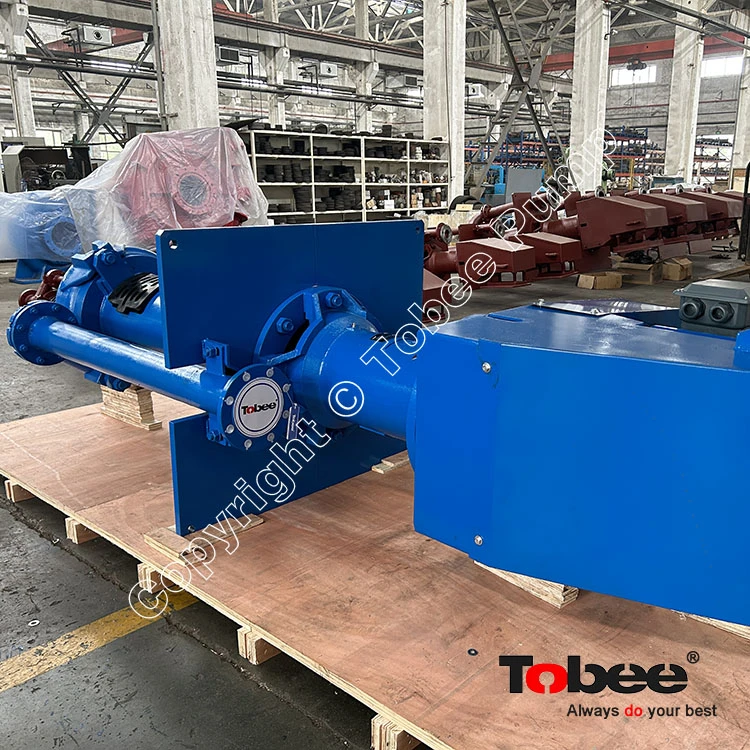

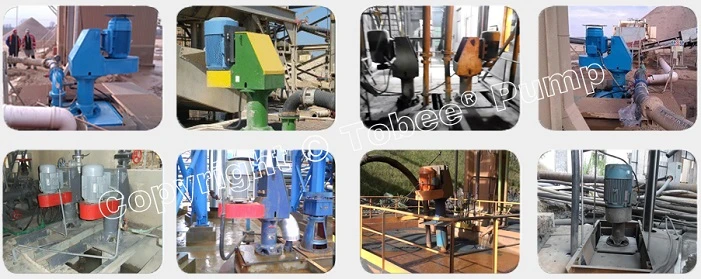

Tobee® TP100RV Column Pump on-site Applications

Tobee^® TP100RV Column Pump on-site Applications

Sand, Gravel & Aggregate Quarries

Sand Washing Plant Sumps: Recirculating silt-laden wash water and fine aggregate slurry.
Crusher Spillage Pits: Dewatering collection sumps directly under primary and secondary jaw/cone crushers.
Settling Pond Recirculation: Clearing fine clay and silica sand buildup from recovery pits.

Thermal Power Plants & Heavy Industry

Bottom Ash & Fly Ash Sumps: Dewatering coal ash handling pits and boiler washdown sumps under harsh thermal and abrasive conditions.
Steel Mill Scale Pits: Pumping cooling water containing heavy, sharp iron scale and slag particles under rolling mills.
Foundry Sumps: Cleaning out spent molding sand sludge and metal washing pits.

Chemical Processing & Acid Plants (TPR Series)

Phosphoric Acid & Fertilizer Plants: Pumping acidic phosphogypsum slurry using natural rubber or synthetic elastomer liners (SPR).
Chemical Process Drain Sumps: Handling corrosive chemical spills containing suspended particulates.
Titanium Dioxide & Zinc Refinery Pits: Acidic slurry transfer where metal pumps corrode rapidly.
