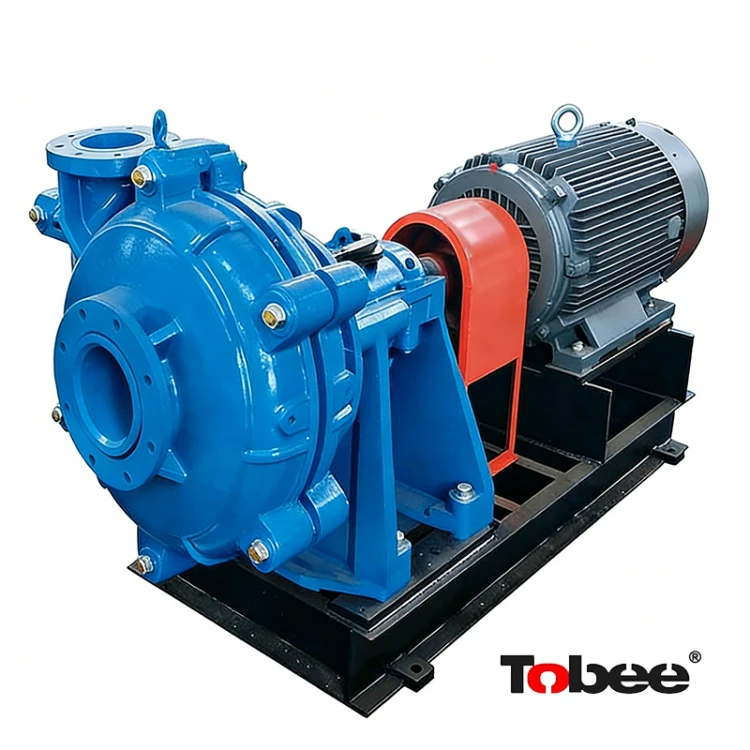

Tobee® 8x6E TH Slurry Pump for Mining

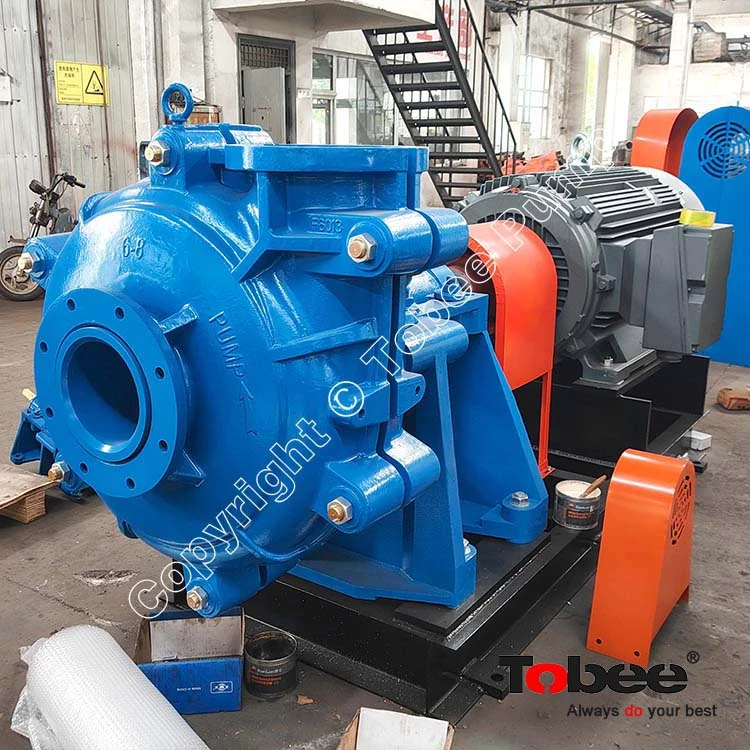

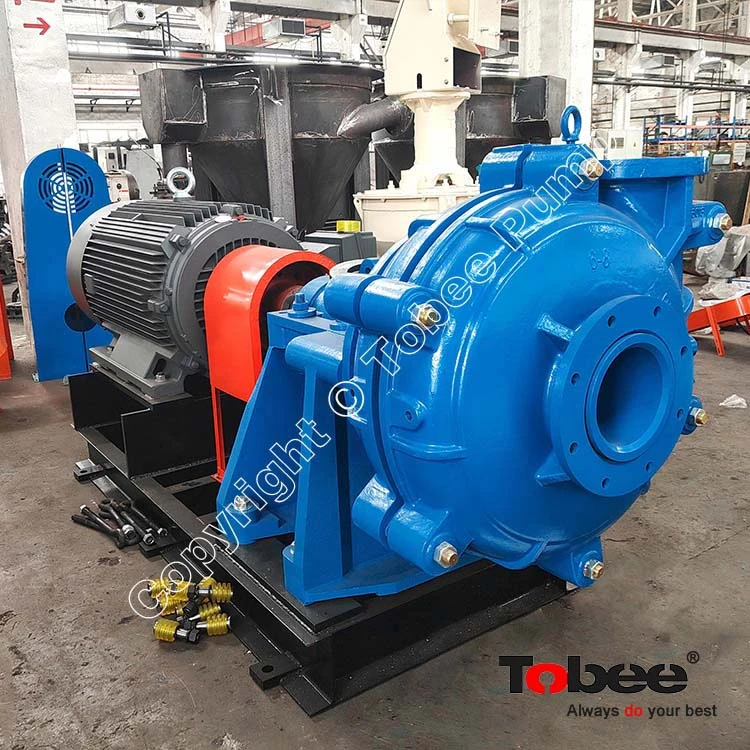

When industrial operations demand a pumping solution that can withstand the relentless punishment of sharp solids and high-density slurries, equipment reliability is non-negotiable. The Tobee® 8x6E TH Slurry Pump for Mining stands as a benchmark in fluid handling technology. Designed as a Heavy Duty Horizontal Slurry Pump for Abrasive applications, this unit is built to transfer the toughest materials without compromising operational continuity. It functions as a High Efficiency Centrifugal Slurry Pump with Liners, ensuring that wear parts can be replaced quickly to restore the unit to peak condition. Recognized as a Wear Resistant Slurry Pump for Mineral Processing, it consistently delivers high throughput in demanding environments. Furthermore, as an Industrial Slurry Pump for Power Plant Ash Handling, it provides the necessary resilience to manage bottom ash and fly ash mixtures that would quickly degrade standard pumps.
The core strength of the Tobee® 8x6E TH Slurry Pump lies in its robust architecture. Unlike general-purpose pumps, this model is specifically configured for the heavy demands of mineral extraction and industrial waste management. The design philosophy centers on longevity through heavy-duty construction and strategic material selection.
Key Design Features:
Heavy-Duty Casing: Constructed from ductile iron with a fully lined structure, providing superior impact resistance and structural integrity under high pressure.
Cantilevered Horizontal Design: The horizontal, cantilevered configuration isolates the bearing assembly from the pumped fluid, ensuring long-term reliability even if the seal fails.
High-Chrome Alloy Wet Parts: For handling highly abrasive slurries, the pump utilizes thick-section high-chrome iron components that offer exceptional hardness and wear life.
Rubber-Lined Options: When the slurry contains fine, corrosive particles, rubber liners provide a flexible yet durable barrier against chemical attack and erosion.
“E” Frame Interchangeability: The “E” frame design allows for standardized power ranges and facilitates easy integration into existing systems, simplifying replacement and parts sourcing.
Cartridge-Type Bearing Assembly: This self-contained unit simplifies maintenance. The bearing cartridge can be serviced or replaced without disturbing the pump casing or piping, drastically reducing downtime.
Multiple Seal Arrangements: Operators can select from gland packing, centrifugal expeller seals, or mechanical seals to tailor the pump to specific operating pressures and environmental requirements.
Bolt-In Liners: The liners are secured with bolts rather than being cast in place, allowing for swift field replacement and eliminating the need for specialized tools or factory service.
Tobee® 8x6E TH Slurry Pump Performance Parameters
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
8/6E TH |
120 |
M |
M |
360-828 |
10-61 |
500-1140 |
72 |
2-9 |
5 |

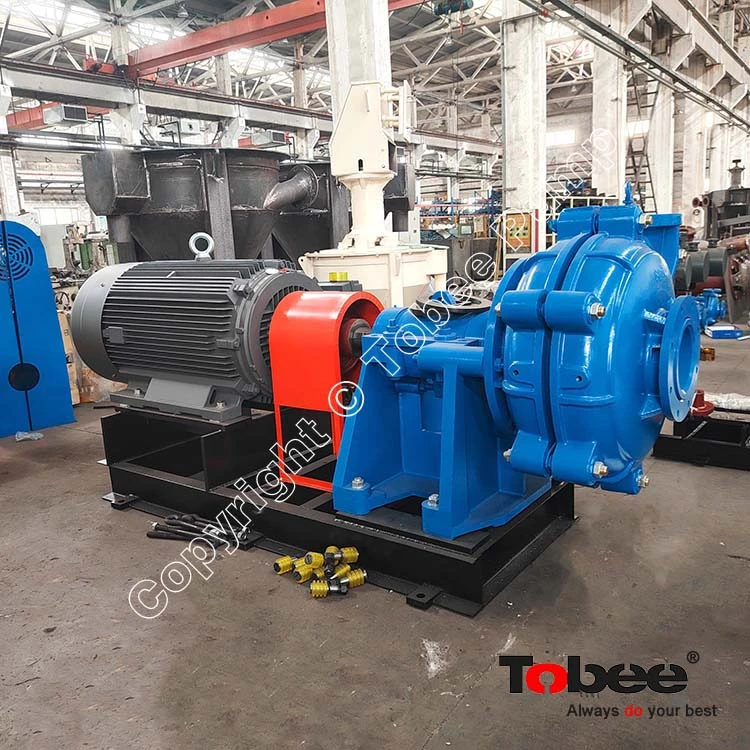

Wear Resistant Slurry Pump for Mineral Processing
In mineral processing plants, the cycle of crushing, grinding, and separating generates highly abrasive slurries that rapidly erode standard equipment. The Tobee® 8x6E TH Slurry Pump excels in this environment. It is engineered to handle mill discharge, where particles are sharp and heavy; cyclone feed, requiring consistent pressure and flow; and tailings disposal, where the pump must operate continuously over long distances. The combination of slow rotational speeds and thick, wear-resistant components ensures that the hydraulic efficiency remains high throughout the lifecycle of the wet parts. This directly translates to lower specific energy consumption per ton of ore processed, reducing the total cost of ownership for mining operators.

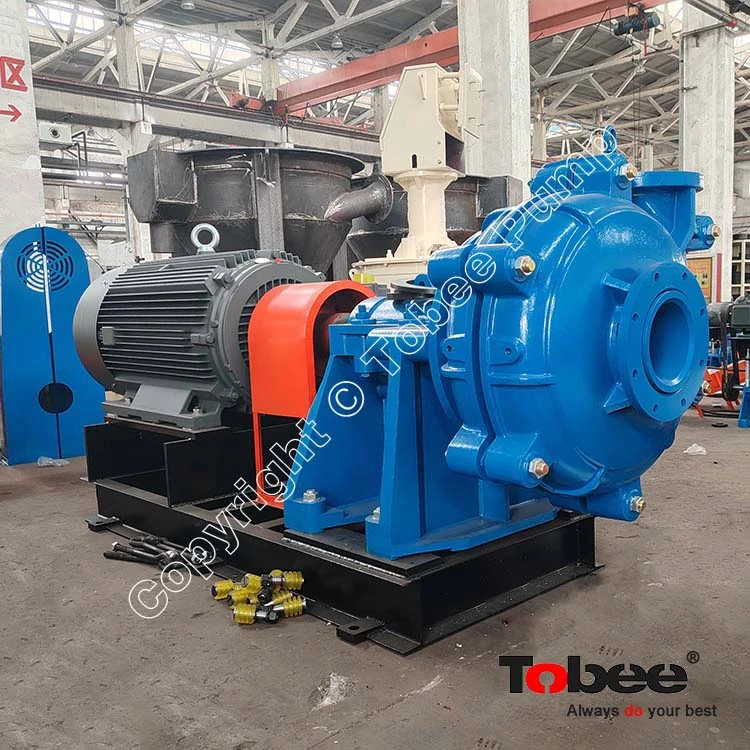

Industrial Slurry Pump for Power Plant Ash Handling

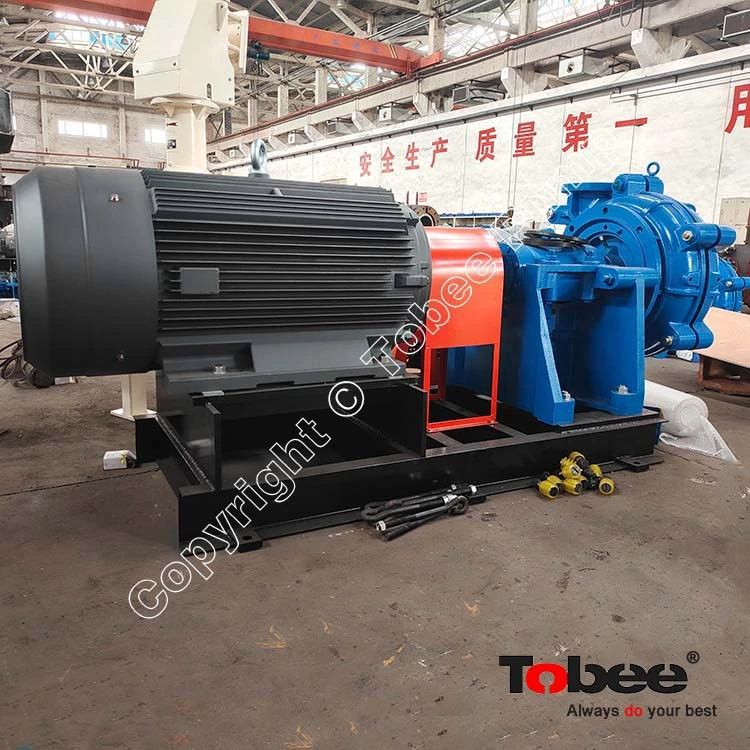

Power generation facilities face the constant challenge of managing coal combustion residuals. The Tobee® 8x6E TH Slurry Pump provides a reliable solution for ash handling systems. Whether dealing with bottom ash (coarse, heavy, and highly abrasive) or fly ash (fine but erosive when mixed with water), this pump maintains consistent performance. Its Replaceable Liner Slurry Pump for Harsh Conditions configuration allows plant operators to quickly restore the pump’s internal geometry after wear, ensuring that the hydraulic pressure required for long-distance transport to ash ponds or dewatering systems is always maintained. The ability to select mechanical seals for zero-leakage operation also makes it suitable for environmental compliance in sensitive areas.
Frequently Asked Questions (FAQ)
Q: What does the "8x6E" designation mean for this pump?
A: The "8x6E" refers to the inlet and outlet sizes. The pump features an 8-inch suction inlet and a 6-inch discharge outlet. The "E" indicates a specific frame size and power range, which typically corresponds to industry standards, ensuring that the Tobee® 8x6E TH Slurry Pump for Mining can fit into existing piping and baseplate arrangements designed for similar duty pumps.
Q: How does the replaceable liner system benefit long-term operations?
A: As a Heavy Duty Horizontal Slurry Pump for Abrasive environments, the internal surfaces experience the most wear. Instead of replacing the entire expensive casing, this pump utilizes bolt-in liners. When the liners wear down, they can be replaced in a fraction of the time it would take to replace a solid casing, significantly reducing maintenance downtime and inventory costs.
Q: Can this pump handle both abrasive and corrosive slurries?
A: Yes. The pump is available with different material options. For abrasive slurries containing sand, rock, or ore, high-chrome alloy wet parts provide maximum hardness. For corrosive slurries or fine particles in a chemical solution, rubber-lined options offer superior resistance to chemical attack and erosion. This makes it a true High Efficiency Centrifugal Slurry Pump with Liners adaptable to various fluid chemistries.
Q: Is this pump suitable for continuous duty applications?
A: Absolutely. The Industrial Slurry Pump for Power Plant Ash Handling and mining applications require 24/7 operation. The heavy-duty shaft, oversized bearings, and cartridge-style bearing assembly are designed for continuous service. The robust design minimizes vibration and ensures that the pump maintains structural integrity even under constant load.
Conclusion

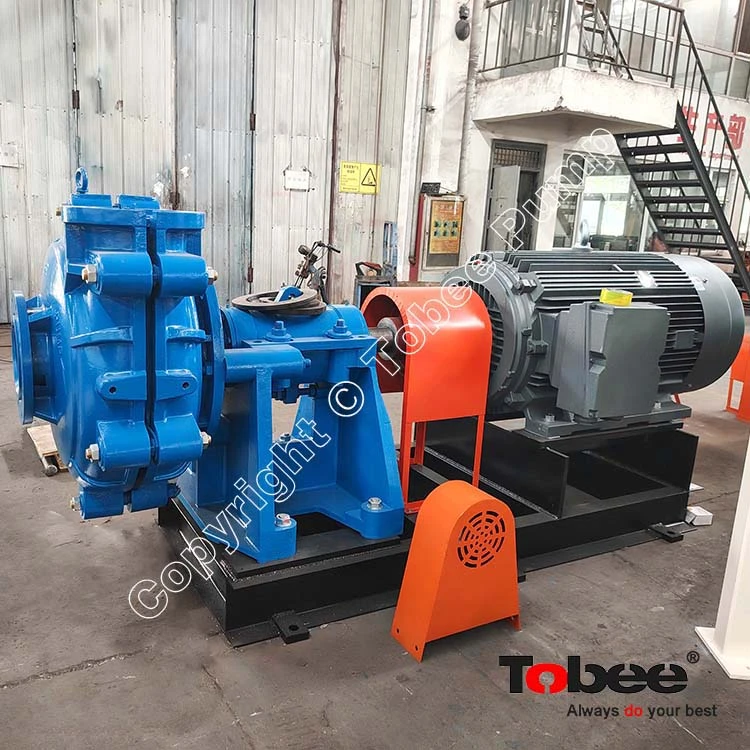

For operations that rely on moving dense, abrasive materials without interruption, equipment selection is critical. The Tobee® 8x6E TH Slurry Pump offers a combination of robust engineering, material science, and maintainability that sets it apart. It functions as a Durable Slurry Pump for Dense Slurry Applications, ensuring that your production targets are met with minimal mechanical interruption.
Tobee® 8x6E TH Slurry Pump for Mining delivers high efficiency and durability. This Heavy Duty Horizontal Slurry Pump for Abrasive handling features wear-resistant parts and replaceable liners. Ideal for mineral processing and ash handling—contact us today!
