6x4E TH Slurry Pump Description

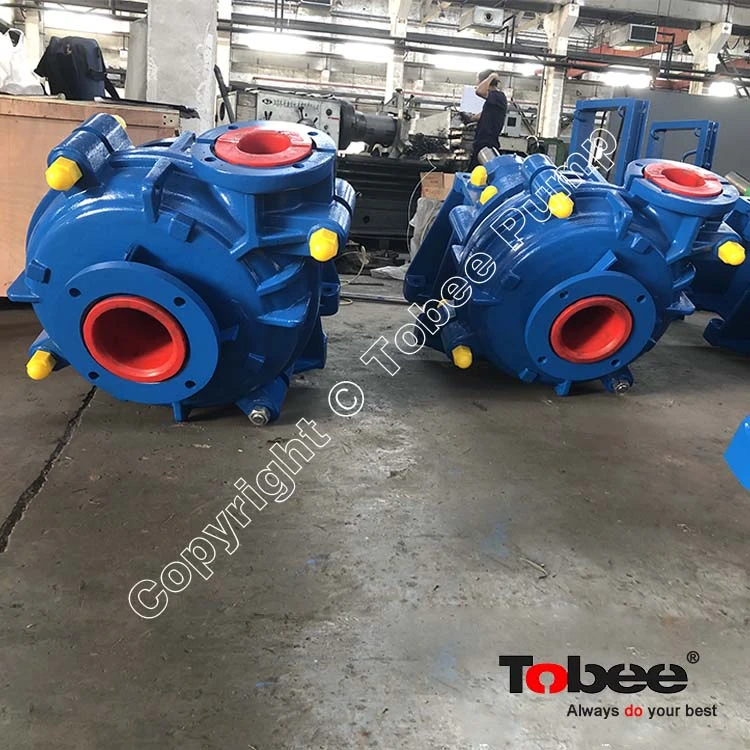

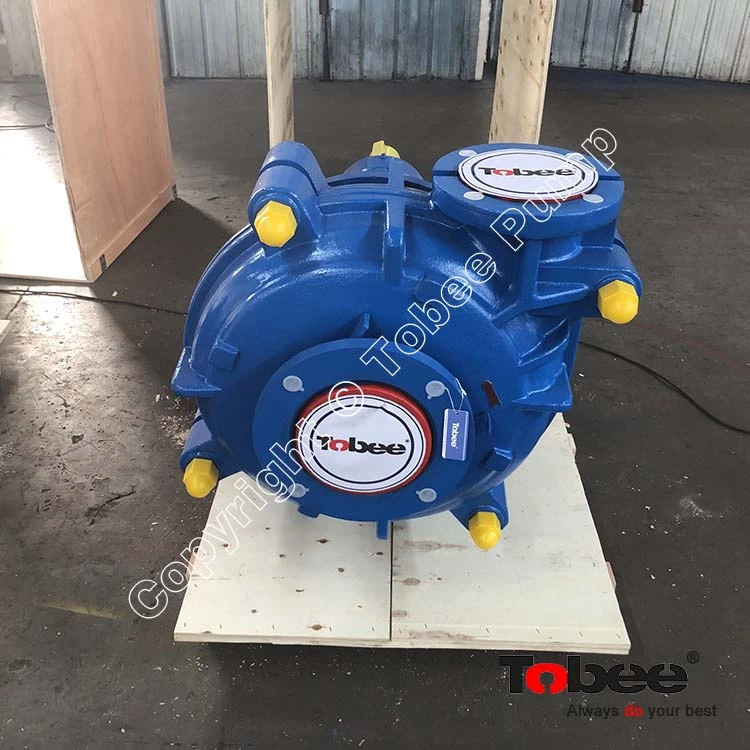

When it comes to moving high-density, abrasive slurries in demanding industrial environments, the Tobee 6x4E TH Slurry Pump for Heavy Duty Mining stands out as a benchmark of reliability. This 6/4E Horizontal Slurry Pump with Cantilevered Design is engineered to withstand the toughest conditions, ensuring minimal downtime and maximum productivity. As a Tobee 6x4E Centrifugal Slurry Pump for Industrial Use, it combines robust construction with exceptional wear life. Specifically built as a 6x4E Single Stage Slurry Pump for Slurry Transport, it handles everything from mill discharge to tailings with ease. Recognized widely as a Tobee 6/4E Slurry Pump for High Abrasion Applications, this model is the preferred choice for professionals seeking long-term value.
The Tobee® 6x4E TH Slurry Pump for Heavy Duty Mining is not just another pump—it is a purpose-built machine designed to conquer the most aggressive slurry applications. Its designation "6x4" refers to the 6-inch suction and 4-inch discharge diameters, while the "E" signifies a large frame size that accommodates heavy-duty operations. The "TH" series represents Tobee®’s commitment to high-performance slurry handling, offering a design that is both durable and highly maintainable.

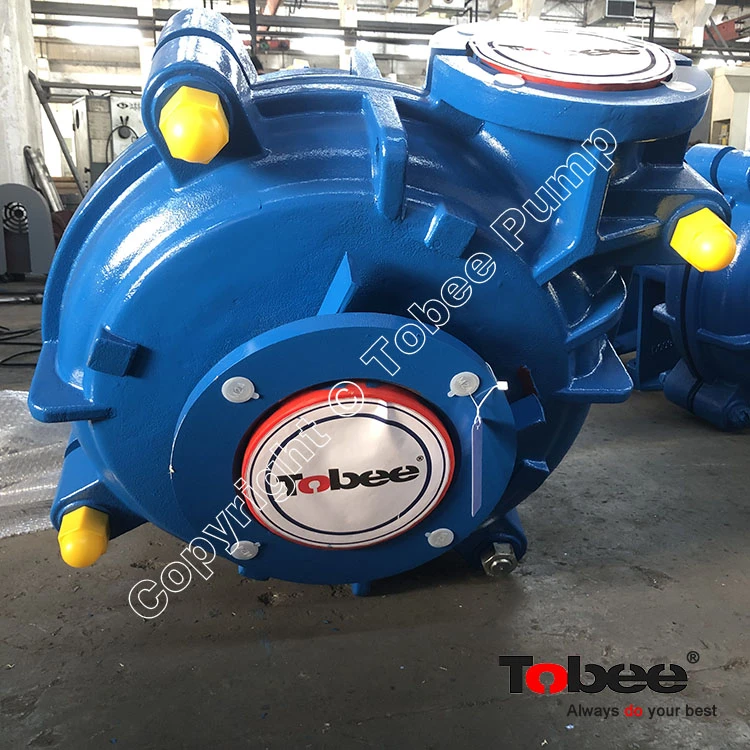

Unlike standard centrifugal pumps, this model features a 6/4E Horizontal Slurry Pump with Cantilevered Design. This cantilevered configuration eliminates the need for submerged bearings, significantly reducing the risk of seal failure and bearing contamination—common issues in traditional pump setups. By keeping critical components out of the slurry path, the pump ensures longer operational life even under continuous, high-pressure conditions.
Design Features: Engineered for Abrasion Resistance and Efficiency

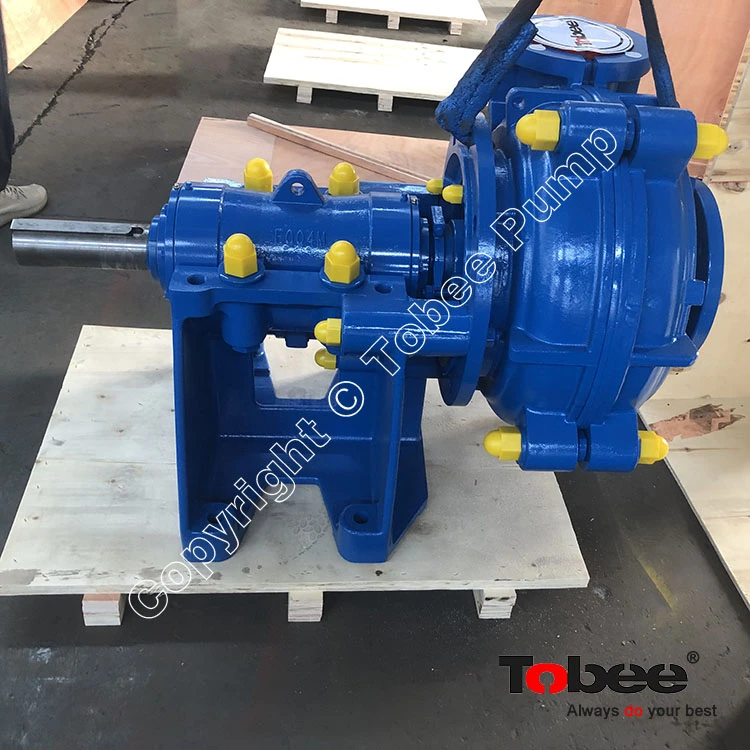

The Tobee 6x4E Centrifugal Slurry Pump for Industrial Use is built with a focus on longevity and ease of service. Below are seven key design features that set it apart:
Interchangeable Wet-End Materials: The pump offers metal (high-chrome alloy), elastomer (rubber), and polyurethane liners and impellers. This flexibility allows operators to select the optimal material for their specific slurry—whether highly abrasive or moderately corrosive.
Heavy-Duty Ductile Iron Casing: The outer casing is constructed from high-strength ductile iron, providing excellent impact resistance and structural integrity. This ensures the pump withstands the rigors of continuous heavy-duty mining operations.
Large Diameter, Slow-Turning Impeller: Designed to operate at lower rotational speeds, the impeller reduces internal wear rates while maintaining high efficiency. This design choice extends the service life of wear parts and lowers overall energy consumption.
Cantilevered Shaft Design: The 6/4E Horizontal Slurry Pump with Cantilevered Design positions the shaft bearings away from the pumped media. This eliminates the need for submerged bearings and simplifies maintenance, reducing downtime significantly.
Multiple Sealing Options: To adapt to various operational requirements, the pump supports mechanical seals, expeller (dynamic) seals, and traditional packing seals. This versatility ensures reliable leakage prevention in both high-pressure and suction-lift applications.
Easy Maintenance Architecture: The pump features a simple, heavy-duty construction with a split casing design that allows quick access to internal components. Routine inspections and liner replacements can be performed without fully disassembling the pump or disconnecting piping.
Optimized Hydraulic Design: The hydraulic passages are engineered to minimize turbulence and maximize solids-handling capability. This allows the pump to transport large particles and high-density slurries without clogging, making it ideal for hydraulic transport systems.
Tobee® 6/4 E AH Slurry Pump Performance Parameters:
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
6/4E TH |
120 |
Metal |
Metal |
162-360 |
12-56 |
800-1550 |
65 |
5-8 |
5 |
Mining & Mineral Processing – Mill Discharge and Cyclone Feed

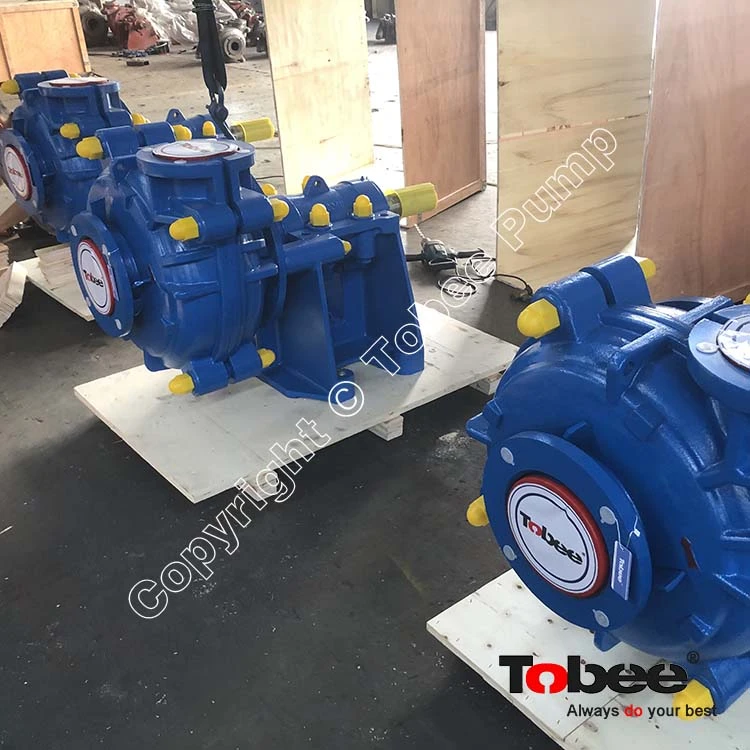

In mineral processing plants, the Tobee 6x4E Slurry Pump for Industrial Processing Plants is frequently deployed for mill discharge and cyclone feed duties. These applications involve slurries with high solids concentration, variable particle sizes, and extreme abrasiveness. The pump’s ability to interchange between metal and rubber liners allows plant operators to tailor wear resistance to the specific ore being processed. Its slow-turning impeller ensures consistent performance over extended wear cycles, reducing the frequency of costly shutdowns. For operations focused on maximizing throughput, this pump delivers unmatched reliability.
Power Plants – Fly Ash and Bottom Ash Handling

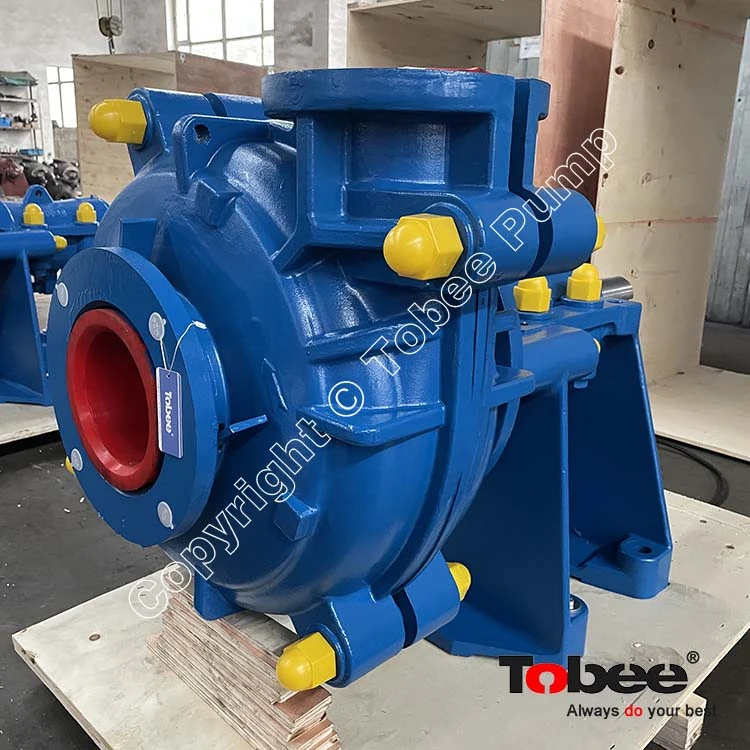

Power generation facilities rely heavily on efficient ash disposal systems. The 6x4E TH Slurry Pump for Hydraulic Transport Systems is ideally suited for conveying fly ash and bottom ash slurries. These mixtures are notoriously abrasive and can rapidly degrade standard pumping equipment. With its heavy-duty construction and robust sealing options, the Tobee® 6x4E TH maintains consistent flow rates while minimizing leakage and wear. The cantilevered design further enhances reliability by keeping bearings away from the abrasive ash mixture, ensuring continuous operation in critical power plant environments.
Frequently Asked Questions (FAQ)
Q1: What does the "6x4E" designation mean?
The "6x4" indicates the pump has a 6-inch suction inlet and a 4-inch discharge outlet. The "E" refers to the large frame size, which provides greater structural strength and accommodates larger impellers for higher flow rates and head capabilities.
Q2: Can I use metal and rubber parts interchangeably in the same pump?
Yes. One of the key advantages of the Tobee 6x4E Centrifugal Slurry Pump for Industrial Use is its interchangeable wet-end design. Operators can mix and match metal and rubber components to optimize performance based on the specific slurry characteristics—such as particle size, shape, and chemical composition.
Q3: Is the Tobee® 6x4E TH suitable for high-temperature slurries?
The pump can handle moderately elevated temperatures, particularly when equipped with high-chrome alloy components. For extreme thermal conditions, consult Tobee®’s engineering team to select the appropriate material and sealing arrangement.
Q4: How does the cantilevered design benefit maintenance?
With the 6/4E Horizontal Slurry Pump with Cantilevered Design, the bearings are located away from the pumped fluid. This means that even if the sealing system experiences wear, the bearings remain protected. Maintenance crews can service the pump without disturbing the piping or motor alignment, drastically reducing repair time.
Q5: What sealing option is best for high-head applications?
For high-head applications where leakage must be minimized, mechanical seals are often the preferred choice. For less critical applications or where dilution is acceptable, expeller seals provide reliable, maintenance-free operation.
Uncompromising Performance for Your Toughest Slurry Challenges
Whether you are managing a mining operation, a mineral processing plant, or a power generation facility, the Tobee® 6x4E TH Slurry Pump for Heavy Duty Mining delivers the durability, efficiency, and reliability you need. Engineered as a 6x4E Single Stage Slurry Pump for Slurry Transport, it combines a robust 6/4E Horizontal Slurry Pump with Cantilevered Design with advanced material options to tackle high abrasion applications with ease. From hydraulic transport systems to demanding industrial processing plants, this pump is built to last.
Tobee® 6x4E TH Slurry Pump is a horizontal single stage cantilevered centrifugal pump for heavy duty mining and hydraulic transport. The 6/4E pump ensures durability and efficiency. Contact Tobee® now!
