4/3D TH Slurry Pump Description

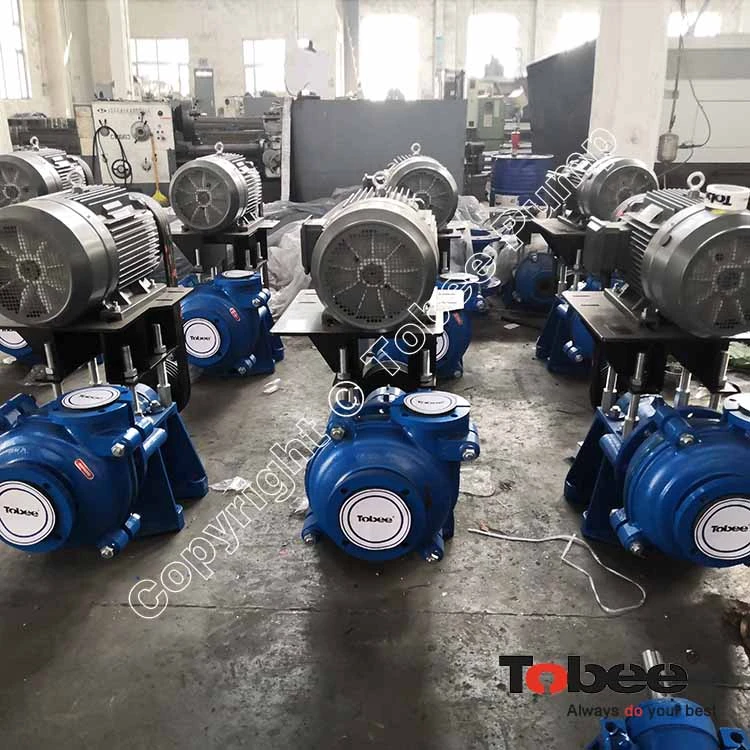

When operations demand a pumping solution that can withstand the relentless punishment of high-density slurries and sharp, abrasive solids, the Tobee 4x3D TH Slurry Pump for Metal Liners stands as the definitive choice. This heavy-duty horizontal centrifugal pump is not merely a piece of equipment; it is a long-term investment in uptime and operational efficiency. Designed specifically to handle the most severe duty applications, this model excels where others fail, particularly when configured with high chrome alloy components. For engineers and procurement specialists seeking a 4/3D TH Slurry Pump with High Chrome Alloy, this unit represents the pinnacle of wear technology, ensuring that critical processes—from mineral processing to ash handling—continue without interruption.

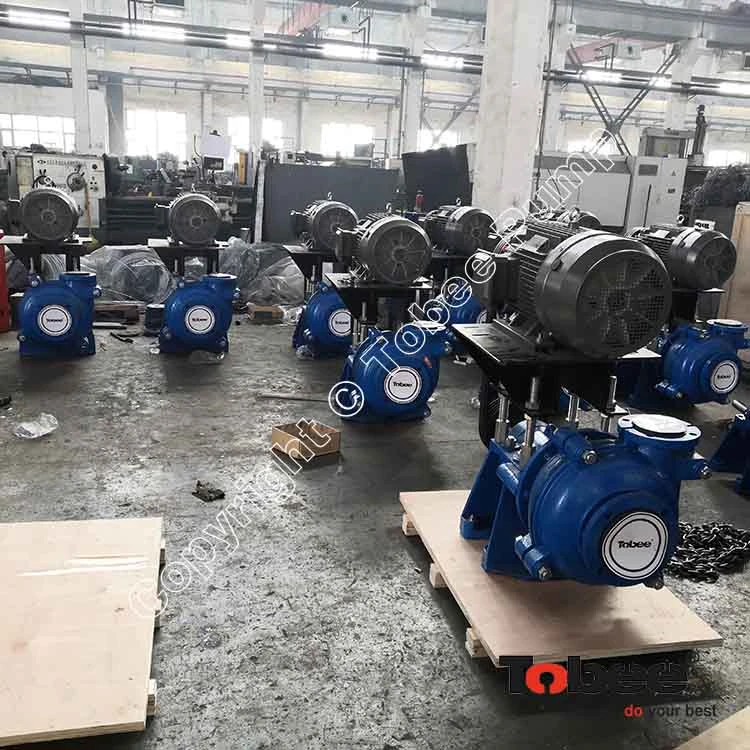

In industries where slurry density fluctuates and particle size varies, pump integrity is paramount. The Tobee 4x3D Slurry Pump for High Density Slurry is engineered with a robust frame and hydraulic design that maintains stable flow rates even under extreme pressure. Unlike standard pumps that lose efficiency when faced with thick, viscous mixtures, this model utilizes a wide-vane impeller specifically contoured to reduce turbulence while maximizing the hydraulic efficiency required to move heavy solids.

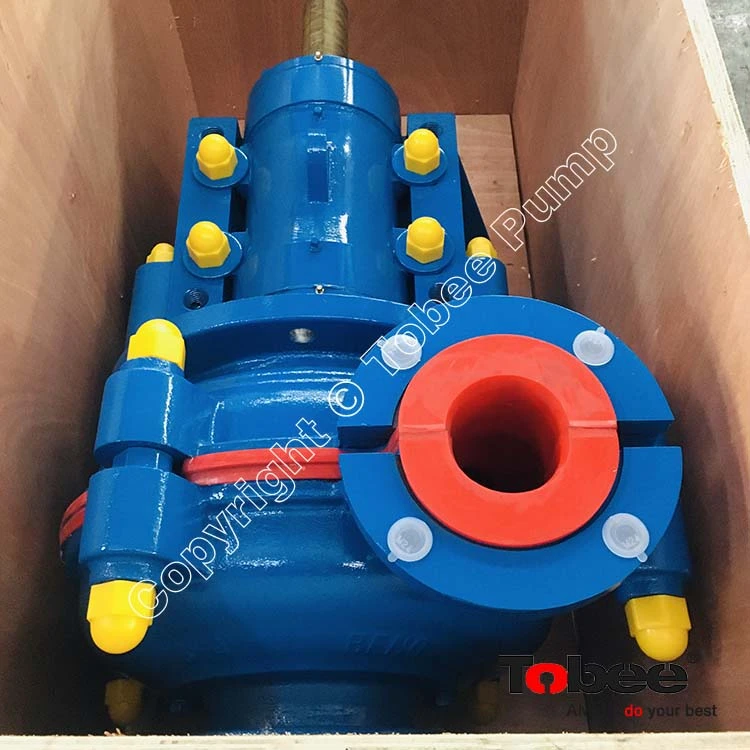

What truly sets this pump apart is its commitment to metallurgical excellence. When we discuss a Tobee 4x3D Slurry Pump with Metal Wetted Parts, we are referring to a system where every component that comes into contact with the slurry is fortified. The wetted parts—including the volute liner, impeller, and frame plate liner—are cast from premium high chrome alloys. This material composition provides a hardness that resists gouging and erosion from sharp silica, iron ore, or bottom ash, effectively extending the mean time between maintenance cycles.
Design Features: The Architecture of Durability

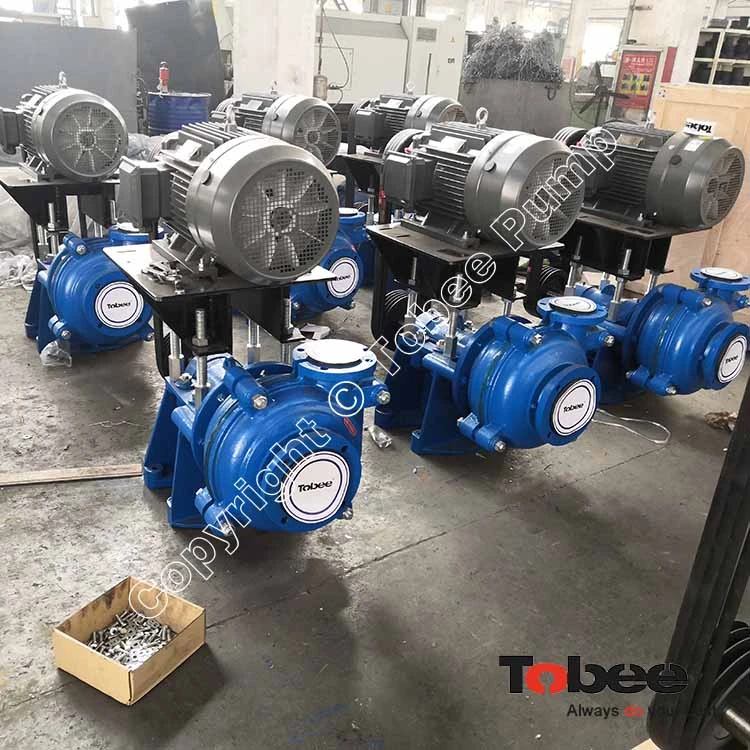

The 4x3D Centrifugal Slurry Pump for Ore Transport is built around a philosophy of modularity and resilience. Below are the critical design features that define its superior construction:
Heavy-Duty Metal Wetted Parts: As a Tobee 4x3D Slurry Pump with Metal Wetted Parts, the unit utilizes high chrome iron for the liners and impeller. This material offers exceptional resistance to erosion and corrosion, making it ideal for high-velocity slurry flows found in mill discharge and cyclone feed applications.
Interchangeable Component Architecture: Designed with global standards in mind, the pump allows for seamless replacement of parts without requiring specialized tooling. This interchangeability significantly lowers inventory holding costs and reduces downtime during scheduled maintenance.
Versatile Discharge Orientation: Operational flexibility is built into the frame. The discharge flange can be oriented in eight distinct positions at 45-degree intervals, allowing the Tobee 4x3D TH Slurry Pump for Metal Liners to adapt to complex piping layouts without the need for additional elbows or adapters, which reduces frictional loss in the system.
Advanced Sealing Options: Recognizing that sealing reliability is critical for environmental compliance and operational safety, the pump offers multiple configurations. Whether utilizing gland packing for cost-effectiveness, expeller seals for dry-running protection, or mechanical seals for zero-leak requirements, the system is adaptable to specific site conditions.
Tobee® 4/3 D AH Slurry Pump Performance Parameters:
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
4/3D-TH |
60 |
Metal |
Metal |
97.2-198 |
9-53 |
1000-2200 |
71 |
4-6 |
5 |
Tobee 4/3D Slurry Pump for Severe Duty Applications in Mineral Processing
In the mining sector, the Tobee 4/3D Slurry Pump for Severe Duty Applications is frequently deployed in the most critical stages of mineral extraction. Specifically, when used as a 4x3D Centrifugal Slurry Pump for Ore Transport, it handles the transfer of copper, gold, and iron ore concentrates. The challenge in these environments is not just abrasion, but also the presence of corrosive reagents used in flotation circuits. The high chrome alloy wetted parts provide a dual defense: the hardness to resist abrasion from coarse particles and the chemical inertness to withstand the corrosive nature of process water and residual chemicals. This results in a pump that maintains its hydraulic performance curve far longer than rubber-lined alternatives in coarse ore applications, ensuring that mill throughput remains consistent.

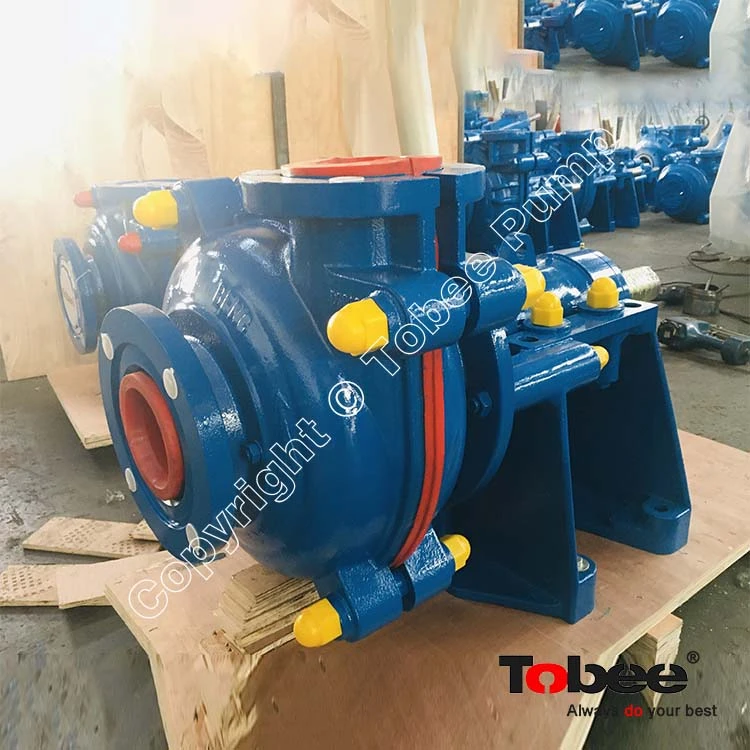

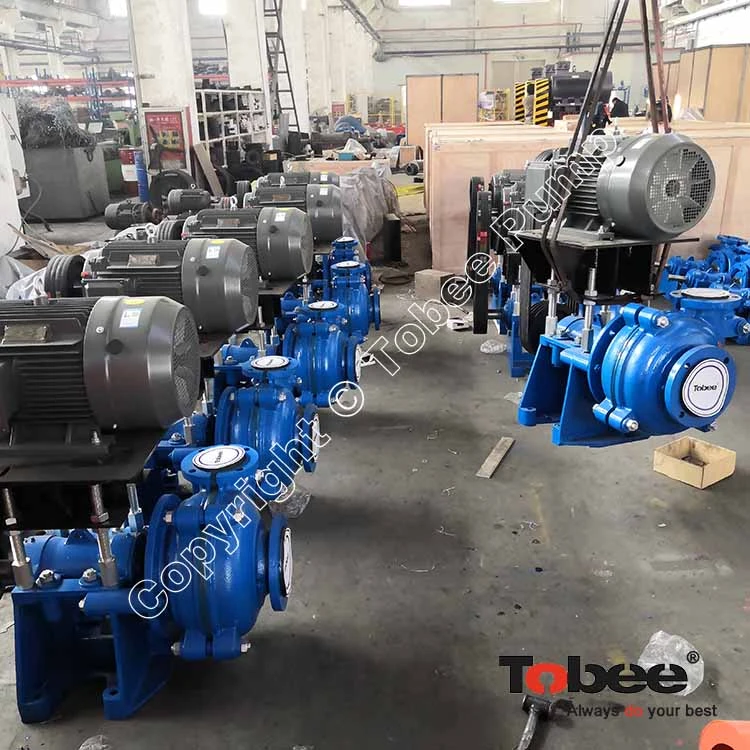

Tobee 4x3D TH Slurry Pump for Ash Handling Systems in Power Generation
p>Coal-fired power plants present a unique set of challenges, particularly in ash handling. The Tobee 4x3D TH Slurry Pump for Ash Handling Systems is engineered to manage the abrasive nature of bottom ash and the fine, erosive qualities of fly ash when mixed with water to form a slurry. In these applications, the pump must resist "cutting" from glassy, sharp ash particles. By utilizing the 4/3D TH Slurry Pump with High Chrome Alloy, power plants achieve longer wear life compared to standard centrifugal pumps. The robust construction ensures that the pump can handle intermittent operation cycles common in ash sluicing systems, providing reliability that prevents unplanned shutdowns which are costly for energy producers.
Frequently Asked Questions (FAQ)
Q: What is the difference between the Tobee® 4x3D TH and standard chemical pumps?
A: The primary distinction lies in the materials and hydraulic design. A standard chemical pump focuses on corrosion resistance, often using stainless steel. In contrast, the Tobee 4x3D Slurry Pump for High Density Slurry utilizes thick-sectioned high chrome alloys specifically formulated to withstand the erosive wear caused by solids. The impeller is designed with wider passages to prevent clogging, whereas a standard pump would likely suffer from rapid impeller wear and blockage when handling slurries with high solids content.
Q: Can the Tobee® 4x3D TH be used if I need metal liners only for specific parts?
A: Yes, the pump is designed as a Tobee 4x3D TH Slurry Pump for Metal Liners. The configuration can be specified to have metal wetted parts (high chrome) for all slurry-contacting components. This is the preferred configuration for coarse, high-velocity, and highly abrasive slurries where rubber or elastomer liners would be cut or torn by sharp particles.
Q: How does the pump maintain efficiency over its wear life?
A: The 4/3D TH Slurry Pump with High Chrome Alloy is engineered with a specific wear-to-efficiency curve. As the impeller and liners wear, the design minimizes the loss of hydraulic efficiency. This contrasts with cheaper pumps where even minor wear leads to significant drops in head and flow. The robust design ensures that the pump continues to meet process requirements until the wear parts reach the end of their service life.
Q: Is maintenance difficult for this severe duty pump?
A: No. The pump features a back pull-out design, meaning the rotating assembly (bearing assembly, shaft, and impeller) can be removed without disturbing the suction or discharge piping. This design is crucial for the Tobee 4/3D Slurry Pump for Severe Duty Applications, as it allows for rapid inspection or replacement of the high chrome wetted parts, significantly reducing mean time to repair (MTTR).
Conclusion: Invest in Longevity with Tobee®
For operations that cannot afford the cost of frequent pump replacements or unplanned downtime, the Tobee® 4x3D TH Slurry Pump features metal wetted parts in high chrome alloys for high density slurry and ash handling. The 4/3D pump delivers strong wear resistance and reliability. By choosing this model, you are selecting a pump that combines the latest in metallurgical technology with a design focused on ease of maintenance and operational flexibility.
Don’t settle for pumps that fail under pressure. Ensure your processing plant, mine, or power facility runs with maximum uptime and minimal maintenance costs. Contact Tobee® today! Let our engineering team help you configure the perfect Tobee 4x3D TH Slurry Pump for Metal Liners solution tailored to your specific flow rates, head requirements, and slurry composition.
