4x3C TH Heavy Duty Pump Description

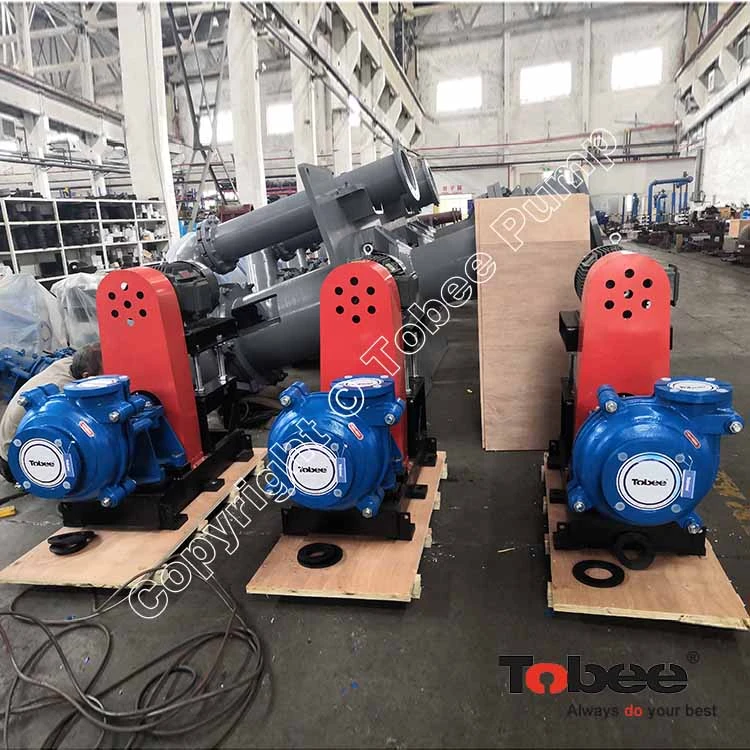

When handling dense, particle-laden fluids, selecting the right equipment is critical. The Tobee® 4x3C TH Slurry Pump for Abrasive Slurry stands out as a robust solution for industries dealing with extreme abrasion. This pump is specifically designed to manage the toughest conditions, from 4/3C TH Slurry Pump with Alloy Materials Options to heavy-duty mill duties. As a Tobee 4x3C Slurry Pump for Aggregate Processing, it delivers exceptional durability. Furthermore, its configuration makes it an ideal 4x3C Heavy Duty Slurry Pump for Cyclone Feeds, ensuring consistent pressure and flow. For operations requiring precision, the Tobee 4/3C Slurry Pump for Fine Grinding Operations maintains efficiency without compromising on wear life.
The Tobee® 4x3C TH Slurry Pump is a horizontal, cantilevered centrifugal pump built for heavy-duty applications. Unlike standard industrial pumps, this model features a “C” frame configuration with a 4-inch suction and 3-inch discharge, optimized for high-density slurry transport. Its design focuses on maximizing Mean Time Between Failures (MTBF), particularly in sectors like mining, sand and gravel, and industrial processing.
The engineering behind this pump prioritizes shaft stability and hydraulic efficiency. By utilizing a large-diameter shaft with a minimized overhang, the Tobee® 4x3C TH significantly reduces vibration and shaft deflection. This precision engineering directly translates to extended bearing life and reliable uptime, which is essential for continuous operations such as cyclone feeds or mill discharge.
Design Features of the Tobee® 4x3C Slurry Pump
To meet the rigorous demands of abrasive slurry handling, the Tobee® 4x3C TH Slurry Pump incorporates several advanced design features:
Heavy-Duty Cantilevered Frame: The one-piece, robust frame provides maximum rigidity, ensuring the pump maintains alignment even under the stress of high-density slurries.
Interchangeable Wetted Parts: The pump is engineered to be fully interchangeable with original equipment, allowing for seamless replacement of liners and impellers without modifying the existing piping or baseplate.

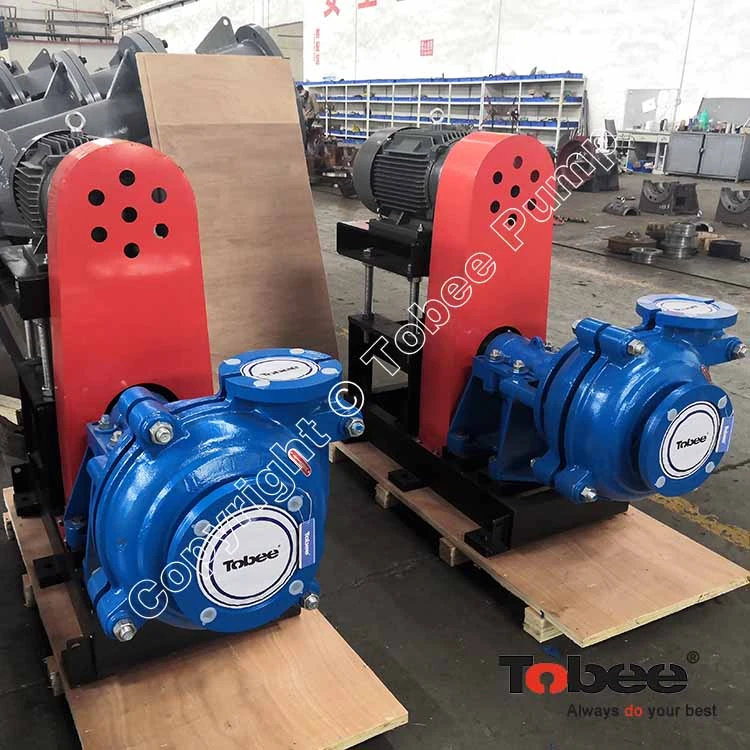

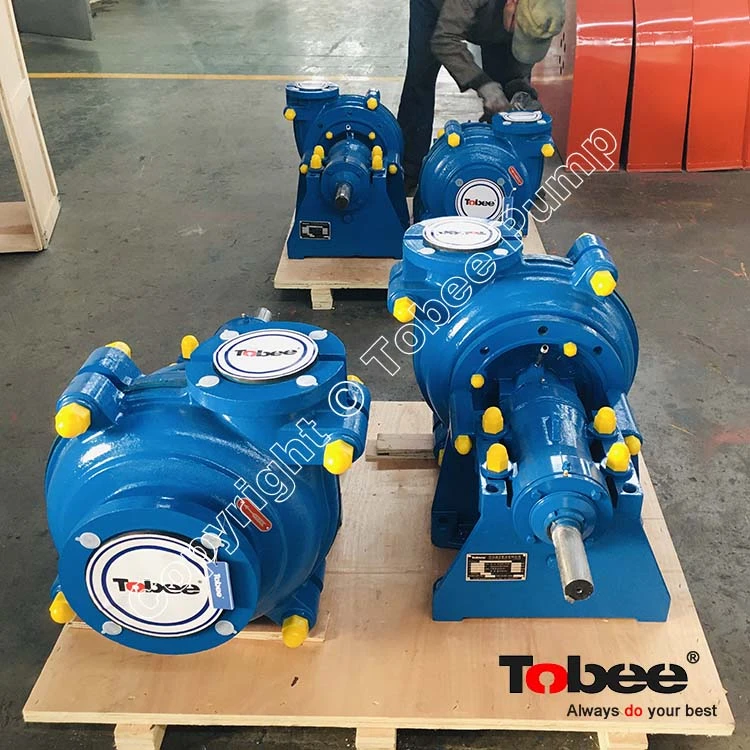

Multiple Material Options: Users can select Tobee 4x3C Slurry Pump with Rubber and Metal Liners. Hard metal options include high-chrome alloys such as A05 and A49 for extreme abrasion, while rubber liners (natural rubber or UEC) offer superior resistance to corrosion and fine particle abrasion.
Cartridge-Type Bearing Assembly: Designed for quick maintenance, the pre-assembled cartridge simplifies field repairs, reducing downtime significantly compared to traditional bearing setups.
Versatile Discharge Orientation: The discharge outlet can be rotated to 8 different positions (in 45-degree increments), providing flexibility to fit complex piping layouts without requiring additional fittings.
Adjustable Impeller Clearance: The pump allows for easy adjustment of the impeller to maintain peak hydraulic efficiency as wear occurs, ensuring consistent performance over the life of the liner.
Tobee 4/3C Slurry Pump Performance Parameters
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
4/3C-TH |
30 |
Metal |
Metal |
86.4-198 |
9-52 |
1000-2200 |
71 |
4-6 |
5 |
4x3C Heavy Duty Slurry Pump for Cyclone Feeds

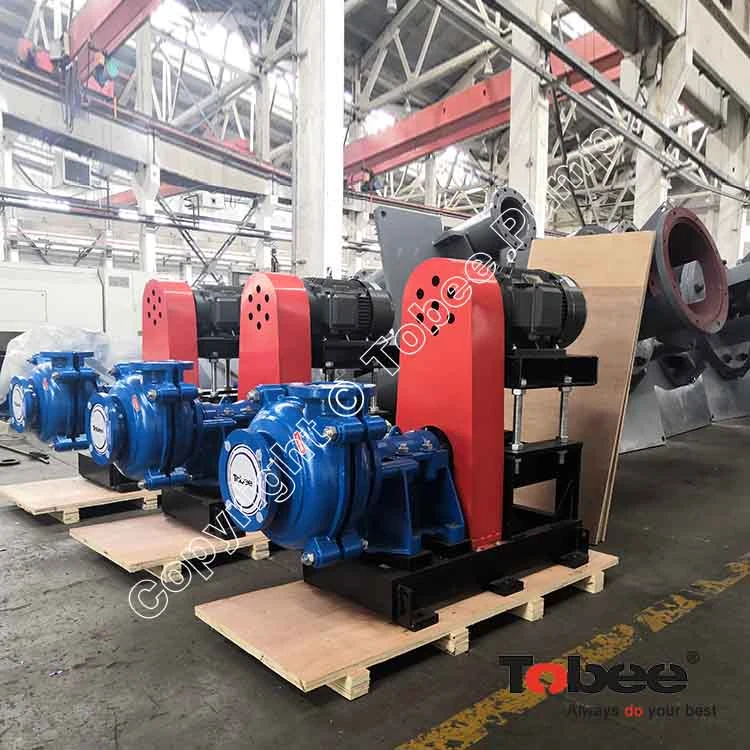

In mineral processing, the efficiency of hydrocyclones is directly linked to consistent feed pressure. The 4x3C Heavy Duty Slurry Pump for Cyclone Feeds excels in this role due to its stable head characteristics and high wear resistance. Fluctuations in feed pressure can lead to inefficient separation and loss of valuable minerals. This pump’s robust hydraulic design ensures a steady, turbulent-free flow to the cyclones, maximizing classification efficiency. Whether processing copper, gold, or iron ore, the pump’s high-chrome liners withstand the erosive forces of sharp particles, maintaining cut-point accuracy over extended periods.
Tobee 4/3C Slurry Pump for Fine Grinding Operations

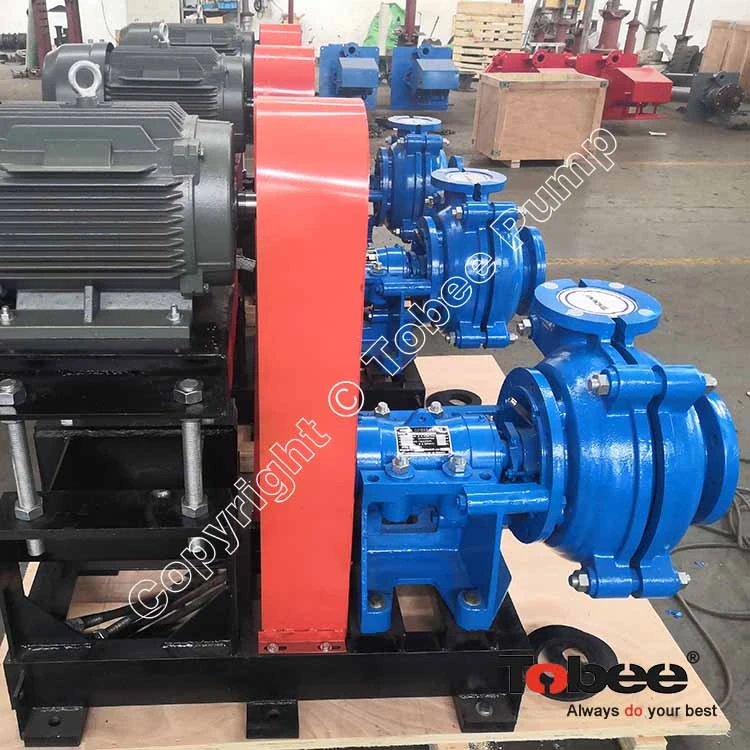

Fine grinding circuits, such as regrind mills or secondary ball mills, produce ultra-fine, highly abrasive slurries that are notoriously difficult to pump. The Tobee 4/3C Slurry Pump for Fine Grinding Operations is specifically designed to manage these conditions. The combination of a short overhang and heavy-duty shaft minimizes deflection caused by the high specific gravity of the slurry. Additionally, when handling corrosive fine slurries, the option of rubber liners within this model provides an effective barrier against both chemical attack and the erosive wear of fine solids, ensuring the integrity of the pumping system in these critical downstream processes.
Frequently Asked Questions (FAQ)
Q: What is the difference between the metal liner and rubber liner options for the Tobee® 4x3C TH?
A: The Tobee 4x3C Slurry Pump with Rubber and Metal Liners caters to different application needs. Metal liners (high-chrome alloys) are ideal for high-velocity, coarse, sharp particle slurries where impact and abrasion are severe. Rubber liners are best suited for fine particle slurries or where chemical corrosion accompanies abrasion, as rubber provides resilience and corrosion resistance that metal may not offer in acidic environments.
Q: Is the Tobee® 4x3C TH pump difficult to maintain on-site?
A: No, maintenance is streamlined. The pump features a cartridge-style bearing assembly that can be removed and replaced as a single unit, eliminating the need for complex bearing fitting on-site. Furthermore, the bolted liner design allows for quick access to the wet end, enabling maintenance crews to replace worn liners or impellers efficiently, reducing costly downtime.
Q: Can the pump handle high-density slurries typical of tailings or mill discharge?
A: Absolutely. The Tobee® 4x3C TH Slurry Pump for Abrasive Slurry is engineered specifically for heavy-duty, high-density applications. Its robust shaft design and wide internal clearances (when configured with metal liners) allow it to handle slurries with high specific gravities and large particle sizes without clogging or excessive wear.
Q: How does the Tobee® 4x3C TH ensure lower operating costs?
A: The pump delivers a lower total cost of ownership through three primary factors: extended wear life due to high-quality alloy materials, reduced energy consumption from efficient hydraulic design, and minimized downtime thanks to the easy-maintenance cartridge bearing assembly and part interchangeability.
Contact Tobee® Today
For operations demanding unwavering reliability in the face of extreme abrasion, the Tobee® 4x3C TH Slurry Pump offers a comprehensive solution. Whether you require a Tobee 4x3C Slurry Pump for Aggregate Processing or a specialized unit for chemical slurries, its combination of robust design, flexible material options, and ease of maintenance ensures optimal performance.
Tobee® 4x3C TH Slurry Pump is engineered for abrasive slurry in Aggregate Processing, Cyclone Feeds, and Fine Grinding. Available in A05 A07 A33 A49 alloys and rubber options, it ensures durability. Contact Tobee® today to discuss your specific slurry application and request a quote!
