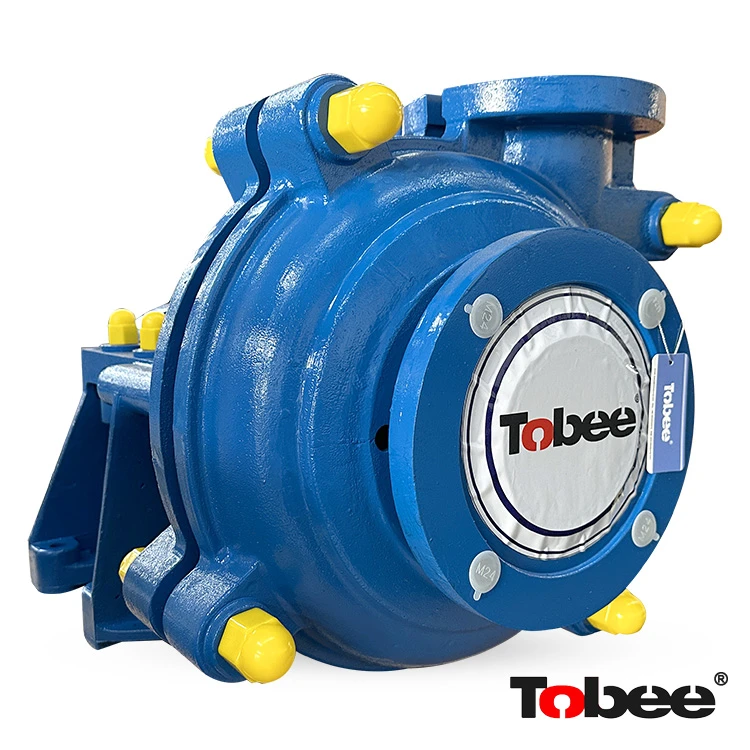

Tobee 3x2C TH Slurry Pump

SPECIFICATIONS

Size	3" x 2"
Capacity	39.6–86.4 m³/h
Head	12–64 m
Speed	1300–2700 rpm
NPSHr	4–6 m
Eff.	55%
Power	Max. 30 kW
Handling solids	25 mm
Seal arrangement	Packing seal, Expeller seal, Mechanical seal

Inquire Now Next Product

3x2C TH Pump Description

Tobee^® 3x2C TH Slurry Pump for Mining: The Heavy-Duty Solution You Can Rely On

When it comes to handling dense, abrasive, and corrosive slurries in demanding environments, few pieces of equipment match the performance of the Tobee 3x2C TH Slurry Pump for Mining. Designed specifically for heavy-duty applications, this 3/2C TH Slurry Pump with Heavy Duty Design delivers exceptional durability and efficiency. Whether you are managing mill discharge or cyclone feeds, the Tobee 3x2C Slurry Pump for Mineral Processing is engineered to reduce downtime while maximizing throughput. As a versatile 3x2C Centrifugal Slurry Pump for Industrial Applications, it stands out for its robust construction and customizable features. Built with Tobee 3/2C Slurry Pump with Wear Resistant Materials, this model ensures long service life even under the most punishing conditions, making it the preferred choice for professionals seeking reliable slurry transport.

Key Design Features of the Tobee^® 3x2C TH Slurry Pump

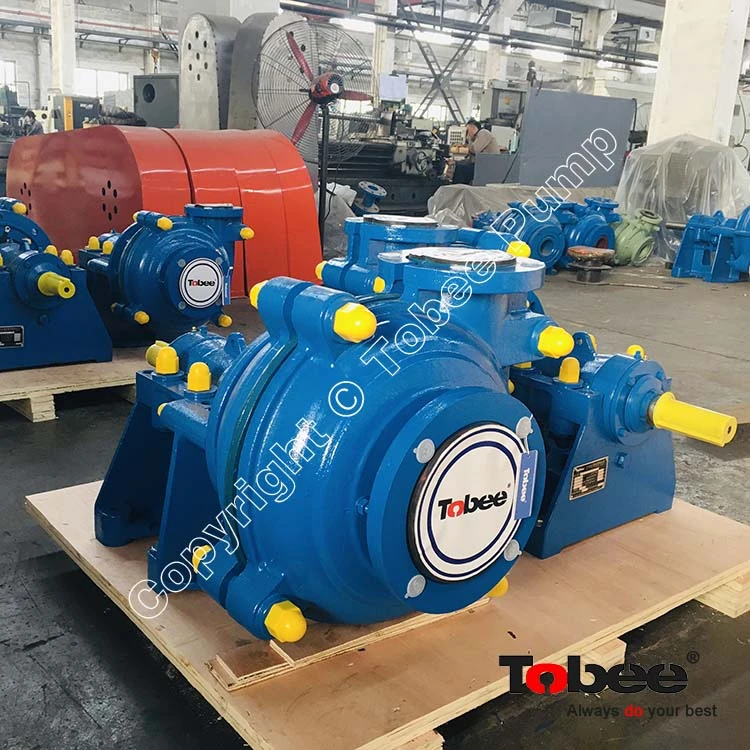

The Tobee^® 3x2C TH Slurry Pump is built around a double-casing construction that prioritizes both strength and serviceability. Unlike standard pumps, this model features a heavy-duty outer casing that protects the internal components from external impact and pressure surges. Inside, replaceable liners and impellers are available in either high-chrome alloy for extreme abrasion resistance or natural rubber for corrosive and fine-particle applications.

Another standout aspect is the adjustable impeller design. As wear occurs over time, operators can easily restore hydraulic efficiency without disassembling the pump. This feature alone significantly extends the operational life of the equipment. Additionally, the large-diameter shaft with a short overhang minimizes deflection and vibration, which are common causes of premature bearing and seal failure in centrifugal pumps.

For ease of maintenance, the pump incorporates a removable bearing cartridge that allows for quick inspection or replacement without disturbing the casing or piping. The bolted liner system—rather than glued—ensures a secure fit and simplifies liner changes during routine overhauls. These design choices make the 3x2C Centrifugal Slurry Pump for Industrial Applications a practical solution for operations where downtime translates directly to lost revenue.

Tobee^® 3/2 C TH Slurry Pumps Performance Parameters:

Model	Max. Power	Materials		Clear Water Performance					Impeller Vane
No.	(kw)	Liner	Impeller	Capacity Q (m³/h)	Head H (m)	Speed n (rpm)	Eff. Η (%)	NPSH (m)	No.
3/2C-TH	30	M	M	39.6-86.4	12-64	1300-2700	55	4-6	5

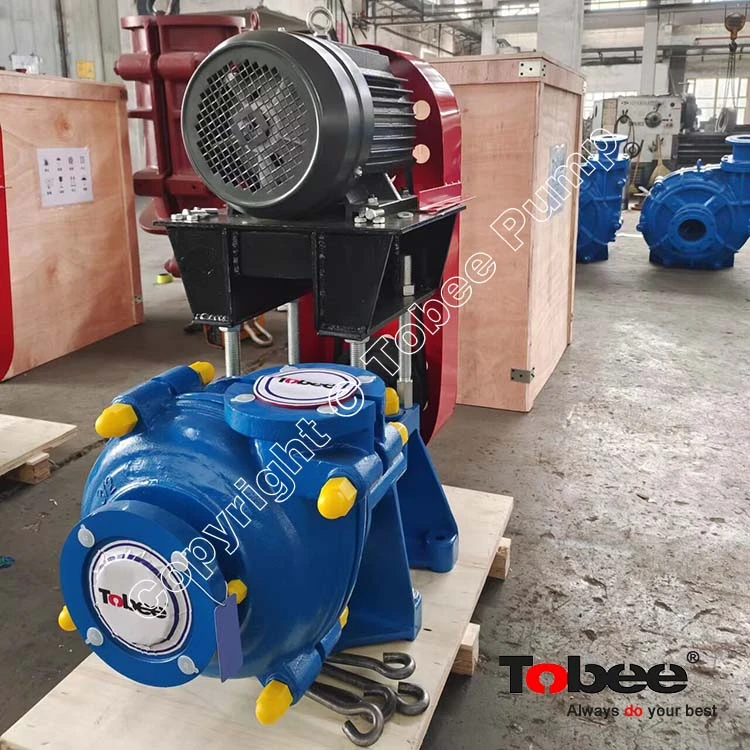

3x2C TH Slurry Pump for Tailings Handling Systems

Mining and Mineral Processing

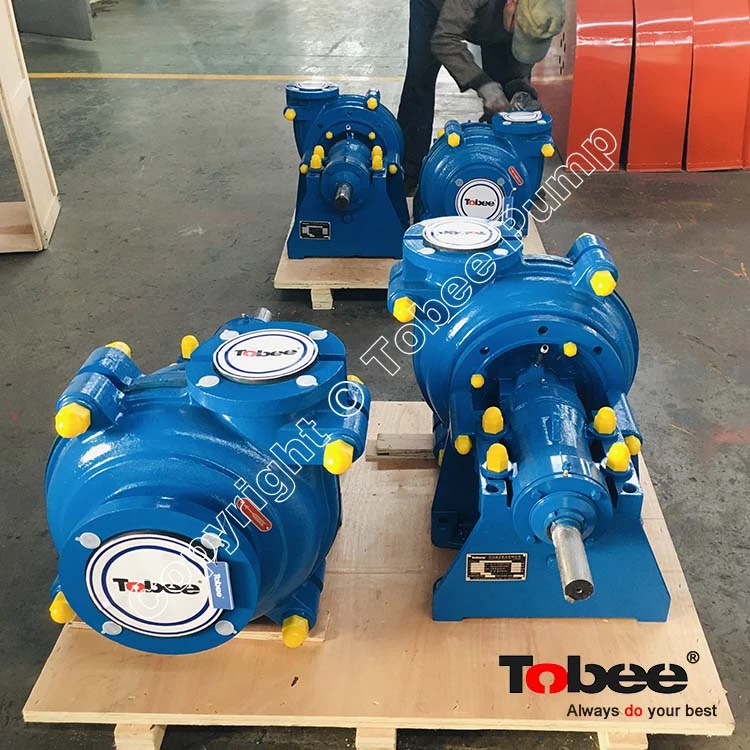

The Tobee 3x2C Slurry Pump for Mineral Processing is a workhorse in grinding circuits, tailings lines, and cyclone feed applications. In hard rock mining, where slurry contains sharp, jagged particles, the high-chrome alloy wetted parts withstand continuous impact and sliding abrasion. The pump’s ability to handle high-density slurries with specific gravities exceeding 1.8 makes it indispensable for concentrator plants. When configured with expeller seals, it operates reliably in suction lift conditions commonly found in mill discharge applications.

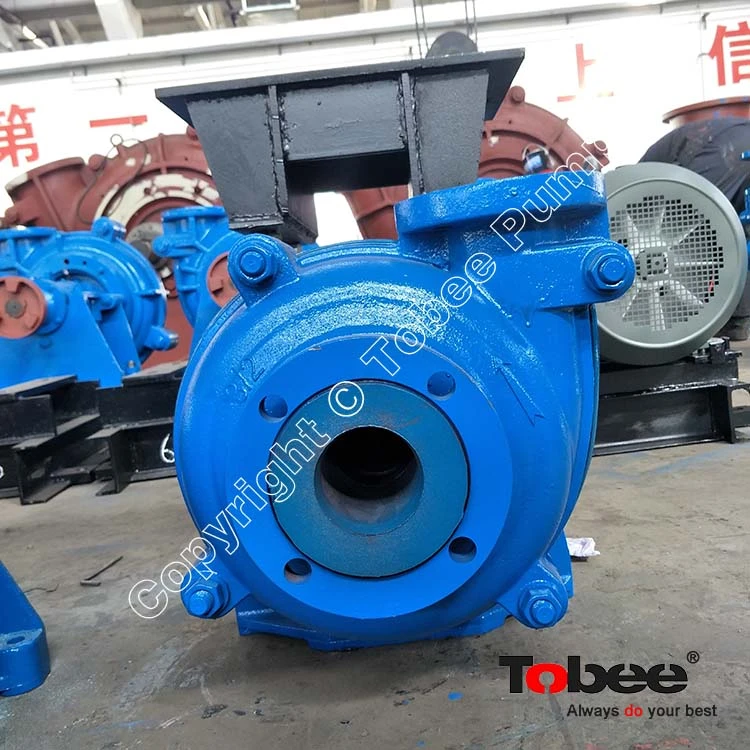

Tobee 3x2C Slurry Pump with Multiple Seal Options

Industrial Slurry Transfer and FGD Systems

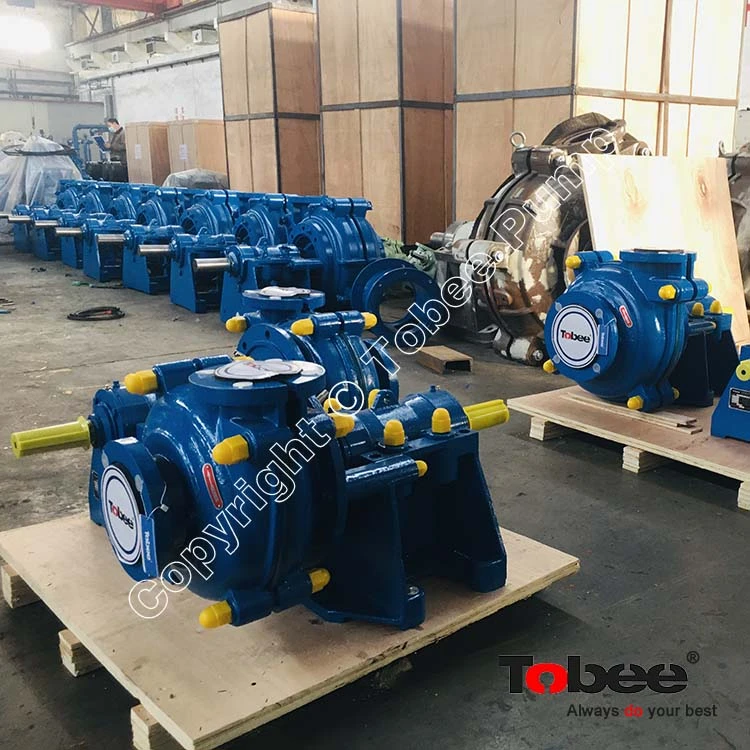

Beyond mining, this pump is widely adopted as a 3x2C Centrifugal Slurry Pump for Industrial Applications in power generation and chemical processing. In flue gas desulfurization (FGD) systems, the pump handles aggressive limestone slurry and gypsum by-products with high chloride content. The rubber-lined version provides exceptional resistance to chemical corrosion while maintaining high volumetric efficiency. Similarly, in industrial wastewater treatment and paper pulp transport, the pump’s multiple seal options—including mechanical seals for zero leakage—ensure compliance with environmental and operational standards.

Frequently Asked Questions (FAQ)

Q: What sealing options are available for the Tobee^® 3x2C TH Slurry Pump?
A: The Tobee 3x2C Slurry Pump with Multiple Seal Options can be equipped with gland packing, expeller (dynamic) seals, or mechanical seals. This flexibility allows operators to match the sealing method to the specific slurry characteristics, pressure requirements, and environmental constraints of their site.

Q: How does the adjustable impeller feature benefit long-term operation?
A: As the pump’s internal components wear, efficiency naturally declines. The adjustable impeller allows you to reposition the impeller closer to the front liner, restoring the original clearance and maintaining hydraulic performance. This reduces the need for early replacement of expensive wear parts.

Q: Can the Tobee^® 3x2C TH handle both abrasive and corrosive slurries?

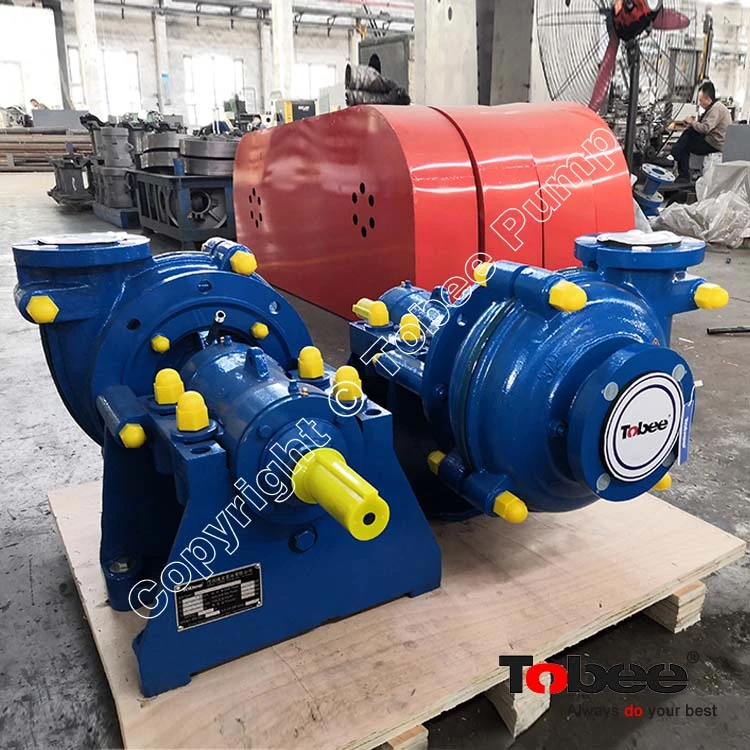

A: Yes. The pump is offered with Tobee 3/2C Slurry Pump with Wear Resistant Materials in two primary material grades. High-chrome alloy is ideal for highly abrasive slurries containing sand, ore, or ash. Rubber liners are recommended for corrosive environments such as chemical plant waste or fine-particle slurries where corrosion resistance is critical.

Q: What makes this pump suitable for tailings handling systems?
A: The 3x2C TH Slurry Pump for Tailings Handling Systems benefits from its double-casing design, which absorbs the high pressures and impact forces common in tailings transport. The heavy-duty shaft and bearing assembly also ensure stable operation over long pipeline distances, even with fluctuating feed conditions.

Q: Is the pump easy to maintain in remote locations?
A: Absolutely. The removable bearing cartridge and bolted liner construction mean that most maintenance tasks can be performed with basic tools and without removing the pump from its base. This is a critical advantage for operations in remote mining camps where access to specialized service equipment may be limited.

Why Tobee^® Remains the Trusted Choice

Choosing the Tobee 3x2C TH Slurry Pump for Mining means investing in a solution that combines field-proven engineering with modern customization. Every unit is designed to meet the specific demands of your application, whether that involves high head, high solids concentration, or corrosive chemical content. With a focus on reducing total cost of ownership through extended wear life and simplified maintenance, Tobee^® has established itself as a reliable partner for operations that cannot afford unplanned downtime.

Tobee^® 3x2C TH Slurry Pump is a heavy duty centrifugal solution for Mining and Mineral Processing. The 3/2C pump supports Packing Seal, Expeller Seal, and Mechanical Seal. Contact Tobee^® now for efficient slurry handling solutions!
