2x1.5B Pump Description
When operational uptime is non-negotiable, selecting the right Heavy Duty Slurry Pump for Mining Applications is critical. The Tobee® 2x1.5B TH is a Centrifugal Slurry Pump with High Wear Resistance, engineered specifically to manage the most aggressive slurries found in mineral processing and pipeline transport. As an Industrial Slurry Pump for Mineral Processing Systems, it balances high efficiency with extreme durability. Designed for continuous operation, this Electric Slurry Pump for Pipeline Transport Solutions ensures that your material handling remains uninterrupted. Furthermore, it functions as a High Efficiency Slurry Pump for Coal Preparation Plants, reducing energy consumption while maximizing throughput.
The Tobee® 2x1.5B TH is a single-stage, cantilevered, centrifugal pump featuring a double-casing design. This construction allows it to withstand the severe stresses of heavy-duty industrial environments. Unlike standard pumps, the "TH" series is built with a focus on the replacement of wear parts without disturbing the suction or discharge piping, thanks to its frame plate liner design.
Key design features include:
Heavy-Duty Materials: The wet end is available in two configurations: high-chrome A05 A07 alloys for handling high-density, coarse particles, or natural rubber liners for superior corrosion resistance and fine particle handling. This makes it a true Abrasion Resistant Slurry Pump for Tailings Handling.
Modular Bearing Assembly: A large diameter, pre-lubricated bearing cartridge assembly provides robust support for the shaft, minimizing deflection and extending the life of the mechanical seals and packing.
Versatile Seal Arrangements: To suit various operational needs, the pump supports packing seals, expeller seals (dynamic), or mechanical seals, ensuring zero leakage in critical applications.
Interchangeable Parts: The wet-end parts are interchangeable with original equipment designs, ensuring that maintenance is straightforward and spare parts management is simplified.
Tobee® 2/1.5 B TH Slurry Pump Performance Parameters:
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
No. |
|
2/1.5B-TH |
15 |
Metal |
Metal |
32.4-72 |
6-58 |
1200-3200 |
45 |
3.5-8 |
5 |

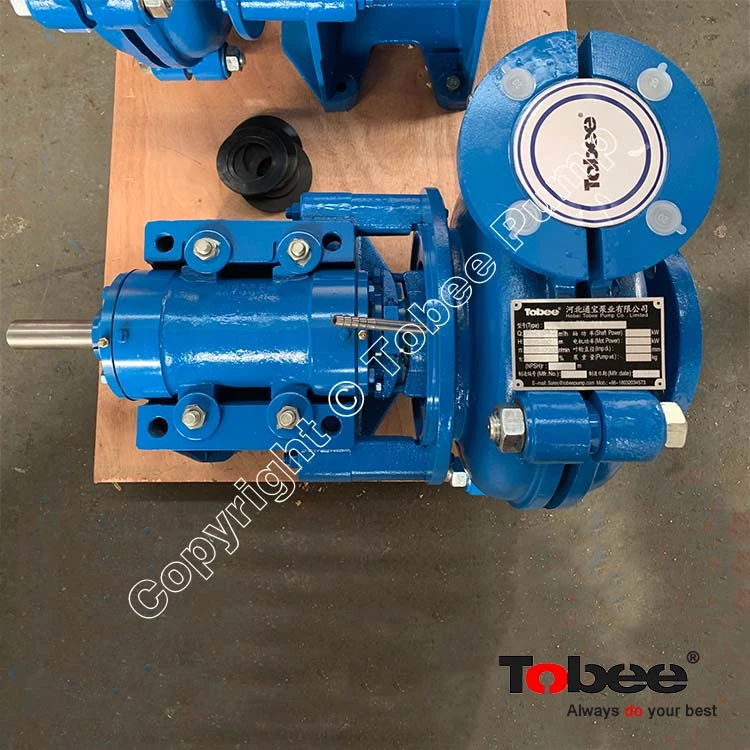

Slurry Pump for Chemical and Industrial Processing
In chemical and industrial processing, the integrity of the pump is constantly challenged by corrosive fluids mixed with abrasive crystalline solids. The Tobee® 2x1.5B TH serves as a premier Slurry Pump for Chemical and Industrial Processing due to its customizable material options. For applications involving acidic slurry mixtures, the rubber-lined configuration provides a protective barrier against chemical attack while remaining resilient against fine abrasion. This ensures that production lines for fertilizers, pigments, and chemical intermediates remain operational without frequent maintenance shutdowns.

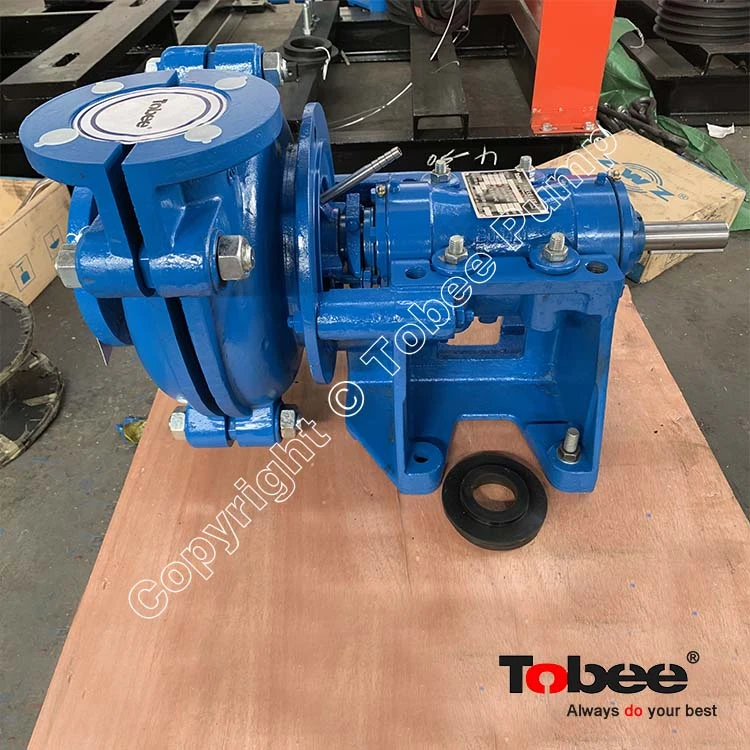

High Efficiency Slurry Pump for Coal Preparation Plants
Coal preparation requires the reliable transport of heavy media slurries (such as magnetite) and cyclone feeds. The High Efficiency Slurry Pump for Coal Preparation Plants must handle high-specific-gravity materials without cavitation or excessive wear. The Tobee® 2x1.5B TH utilizes a specifically designed impeller geometry that maximizes hydraulic efficiency. By reducing the required motor power for specific duty points, this Electric Slurry Pump for Pipeline Transport Solutions lowers operational expenditure (OPEX) while maintaining the high head required for dense medium cyclones. Its ability to handle particles up to 12mm makes it ideal for classifying and washing circuits.
Frequently Asked Questions (FAQ)
Q: Why is the Tobee® 2x1.5B TH considered a Heavy Duty Slurry Pump for Mining Applications?
A: It is considered heavy duty due to its double-casing construction and the use of high-chrome A05 A07 alloys. These materials are specifically formulated to resist the erosion caused by high-velocity slurries containing sharp, hard particles like iron ore, copper concentrate, and sand. The cantilevered design also eliminates submerged bearings, which is a common failure point in lesser pumps.
Q: How does this pump perform as an Industrial Slurry Pump for Mineral Processing Systems compared to standard pumps?
A: Standard pumps often suffer from short liner life when handling the abrasive by-products of mineral processing. The Tobee® 2x1.5B TH excels because of its optimized hydraulic design that reduces turbulence. Lower turbulence means less impact force on the liners and impeller, translating to a longer Mean Time Between Failures (MTBF). Furthermore, the "B" frame size offers a compact footprint without sacrificing the high head required for mill discharge or cyclone feed duties.
Q: Can this pump handle both abrasive tailings and corrosive chemical slurries?
A: Yes. As an Abrasion Resistant Slurry Pump for Tailings Handling, the metal version is ideal for mine tailings disposal. Simultaneously, as a Slurry Pump for Chemical and Industrial Processing, the rubber-lined version offers excellent resistance to mild acids and corrosive chemicals. This dual-purpose capability makes the Tobee® 2x1.5B TH a highly versatile asset for complex industrial sites.
Q: What makes it suitable for pipeline transport?
A: As an Electric Slurry Pump for Pipeline Transport Solutions, it maintains consistent pressure over long distances. The high head capability (up to 68 meters) ensures that slurries do not settle in the pipeline, preventing blockages and ensuring consistent flow rates.
Contact Tobee® today for reliable slurry solutions!
The Tobee® 2x1.5B TH Heavy Duty Slurry Pump delivers high efficiency for Mineral Processing, Pipeline Transport, and Tailings Handling. Built with A05 A07 alloys, it ensures durability and a significantly lower total cost of ownership.
Ready to optimize your slurry handling operations with a pump engineered for the toughest conditions? Tobee® provides tailored solutions backed by decades of engineering expertise. Whether you need a robust Centrifugal Slurry Pump with High Wear Resistance for mining or a specialized unit for industrial processing, our team is ready to assist.
