Tobee 18x16 TU TH Pump Description
When industrial operations demand a pumping solution capable of moving high-density slurries laden with abrasive solids, the equipment selection directly impacts uptime and operational costs. Tobee® 18x16 TU TH Slurry Pump for Large Particles stands out as a purpose-built machine designed to conquer the most punishing applications. This Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry combines robust engineering with field-proven wear technologies. As a High Capacity 18x16 TU Slurry Pump for Mining Operations, it handles substantial flow rates while maintaining structural integrity under continuous stress. The Wear Resistant 18/16 TU TH Pump for Abrasive Slurries utilizes advanced metallurgy and elastomers to extend component life dramatically. Furthermore, this Industrial 18x16 TU TH Slurry Pump for Ash Removal provides reliable service in power generation environments where others fail prematurely.
Tobee® 18x16 TU TH Slurry Pump for Large Particles delivers reliable performance in high-density, abrasive conditions. This Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry features wear-resistant liners and reduced maintenance costs. Contact us today!
Design Features of the Metal Rubber Lined 18/16 TU TH Slurry Pump Design
The engineering philosophy behind this pump centers on longevity in abrasive environments. Every component is scrutinized for wear resistance and serviceability. Below are six critical design features that define its capability:
The Metal Rubber Lined 18/16 TU TH Slurry Pump Design incorporates a rugged, ductile iron casing that is fully lined. Users can select either natural rubber or high-chrome alloy liners. Rubber liners excel in handling fine, abrasive slurries with lower specific gravity, while high-chrome liners provide superior resistance against coarse, sharp particles and high-velocity impact. This interchangeability allows the pump to be reconfigured for changing process conditions without replacing the entire wet end.
Wear in slurry pumps is directly proportional to the velocity of the solids passing through the hydraulic profile. By utilizing a large-diameter impeller that operates at reduced rotational speeds, this pump minimizes the velocity at which abrasive particles impact the liner surfaces. This approach not only extends wear life but also maintains high efficiency across the operational curve.
A robust, oversized shaft is combined with a short bearing span to minimize shaft deflection during operation. Reducing deflection protects mechanical seals and packing from uneven loading and vibration. This design element is critical for maintaining seal integrity over extended periods, particularly in high-head applications where radial loads are substantial.
Time spent on maintenance directly translates to lost production. The casing is engineered with strategically placed bolts that allow rapid access to the internal components. Technicians can replace liners or impellers without disturbing the suction or discharge piping in many configurations, significantly reducing mean time to repair (MTTR).
Instead of relying on a heavy casing wall to resist abrasion, the Wear Resistant 18/16 TU TH Pump for Abrasive Slurries uses thick, sacrificial liners that are designed to be replaced easily. These liners are precision-molded to ensure a perfect fit, eliminating gaps that could lead to accelerated localized wear or turbulence.
To accommodate diverse operational requirements, the pump offers several sealing options. These include gland packing for applications with lower suction pressures, expeller seals for preventing leakage without flush water, and mechanical seals for environments where zero leakage is mandatory. This versatility ensures that the sealing method can be matched precisely to the slurry characteristics and environmental regulations.
Tobee® 18/16 TU TH Slurry Pump Performance Parameters:
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
18/16TU TH |
1200 |
M |
M |
2160~5040 |
8~66 |
200~500 |
80 |
4.5~9 |
5 |
While this pump is adaptable to numerous industries, two application areas best demonstrate its heavy-duty capabilities. These sections highlight how the pump’s design translates into operational advantages in demanding environments.

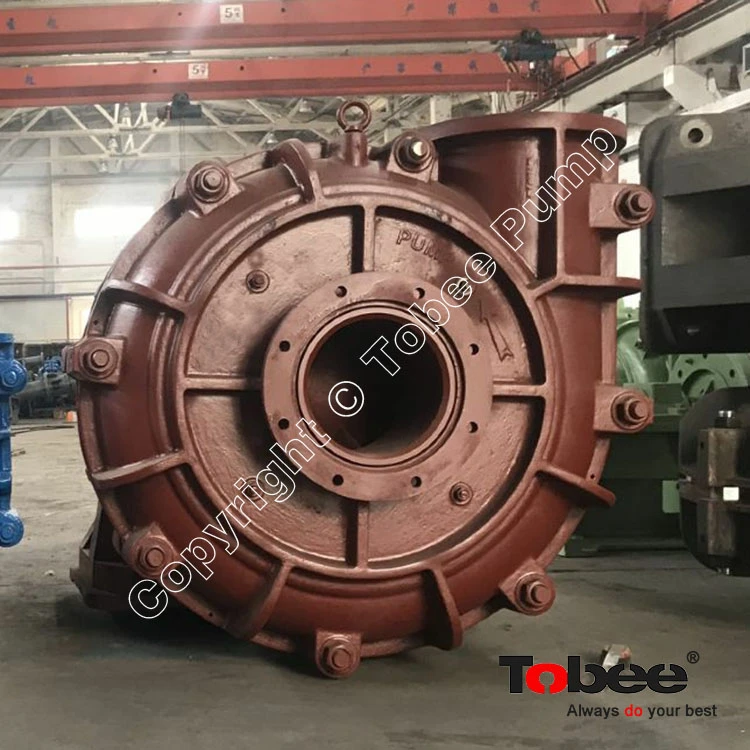

High Capacity 18x16 TU Slurry Pump for Mining Operations
In the mining sector, the transportation of ore, tailings, and process slurries represents a continuous challenge. The High Capacity 18x16 TU Slurry Pump for Mining Operations is specifically engineered to handle the high specific gravity mixtures found in mill discharge circuits and tailings pipelines.
Mining operations often involve long-distance pumping where maintaining a consistent flow rate against high head pressures is essential. The hydraulic design of this pump enables it to operate efficiently in series configurations. When multiple units are staged, they can achieve the high discharge pressures required for transporting slurry over several kilometers. Additionally, the robust construction means the pump can tolerate the presence of oversize solids that frequently occur following mill upsets or screen failures. By providing consistent hydraulic performance even as internal components experience normal wear, the pump ensures that processing plants maintain target throughput without frequent shutdowns for component replacement. This reliability is critical for operations where unplanned downtime can result in significant financial losses.

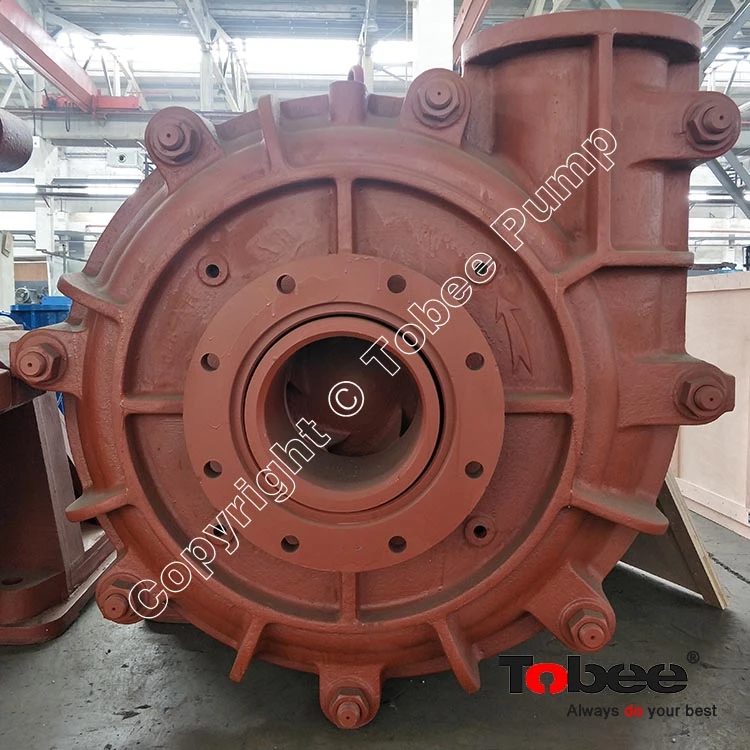

Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry
Dredging operations present a unique set of mechanical challenges. The material being pumped is often a mixture of water, sand, gravel, and occasionally rocks, creating a highly abrasive and unpredictable slurry. The Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry is constructed to withstand the extreme wear and mechanical shock inherent in sand excavation and river maintenance projects.

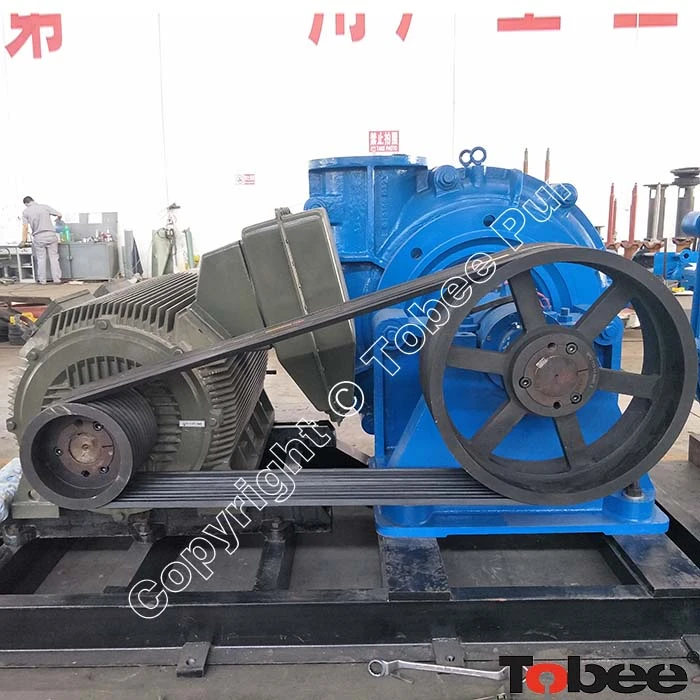

Unlike many industrial pumps that operate in controlled environments, dredging pumps must function reliably while exposed to the elements and variable feed conditions. The ability to pass large particles without clogging is a defining characteristic. The wide clearance between the impeller and the liner, combined with the large spherical passage design, allows solids that would jam other pumps to pass through freely. Furthermore, the use of high-chrome alloy liners in this application provides the necessary hardness to resist gouging and erosion from sharp sand and gravel. Operators benefit from extended campaigns between liner changes, which is particularly valuable in remote dredging locations where maintenance logistics are complex and costly. The Durable 18x16 TU TH Pump for Severe Service Applications thus becomes an indispensable asset for contractors involved in land reclamation, port deepening, and offshore sand mining.
Frequently Asked Questions (FAQ)
Q: What is the difference between the “TU” and “TH” designations?
A: The “TU” typically refers to the pump’s wet end configuration designed for rubber-lined applications, while “TH” indicates a configuration optimized for high-chrome alloy metal liners. Both share the same heavy-duty bearing assembly and frame, allowing for interchangeability depending on the specific abrasive characteristics of the slurry.
Q: How does this pump handle large particles compared to standard slurry pumps?
A: The Tobee® 18x16 TU TH Slurry Pump for Large Particles incorporates a larger spherical passage and optimized impeller vane design. This geometry reduces the risk of blockage when handling coarse materials, making it particularly suitable for primary mill discharge and dredging feed where oversize solids are common.
Q: Can the pump be converted from rubber lining to metal lining?
A: Yes. The casing and bearing assembly are designed to accept both elastomer and high-chrome wet ends. This modularity allows a single power end to serve multiple applications, reducing spare parts inventory and providing flexibility when processing different slurry types.
Q: What maintenance practices extend the life of this pump?
A: Regular monitoring of bearing temperatures and vibration levels is recommended. Additionally, maintaining proper flush water flow to the seal assembly (when using gland packing) and periodically checking liner thickness through inspection ports will help predict wear patterns and schedule maintenance before catastrophic failure occurs.
Conclusion

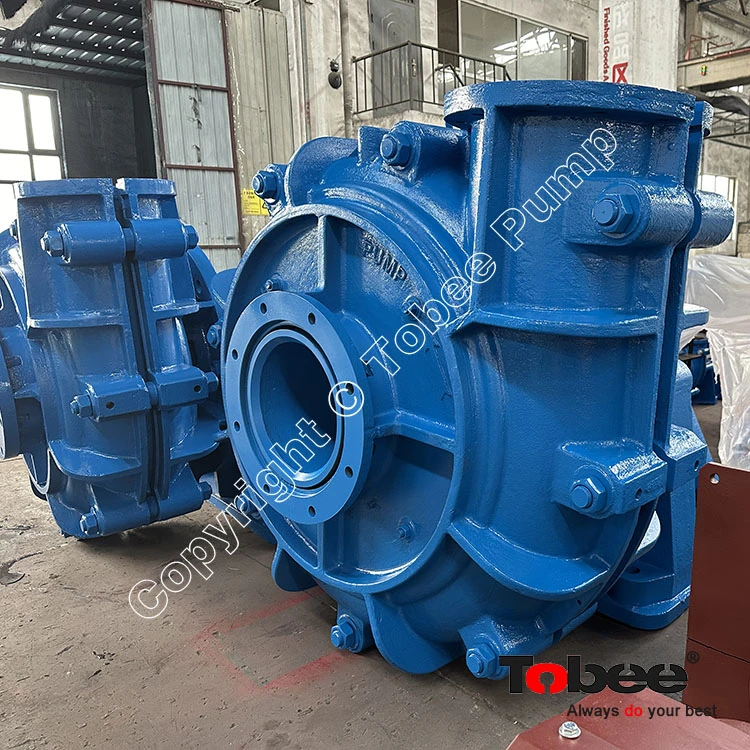

For operations that cannot tolerate downtime due to abrasive wear or solids handling limitations, the Industrial 18x16 TU TH Slurry Pump for Ash Removal and its variants offer a proven solution. Whether the challenge is moving coarse tailings in a mine, excavating sand in a dredging project, or managing corrosive ash slurries in a power plant, this pump delivers the durability and performance required. The combination of a robust power end, interchangeable wear materials, and a hydraulic profile designed for large solids establishes it as a benchmark for severe service applications.
Tobee® 18x16 TU TH Slurry Pump for Large Particles delivers reliable performance in high-density, abrasive conditions. This Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry features wear-resistant liners and reduced maintenance costs. Contact us today to discuss your application requirements and discover how this pump can improve your operational efficiency.
