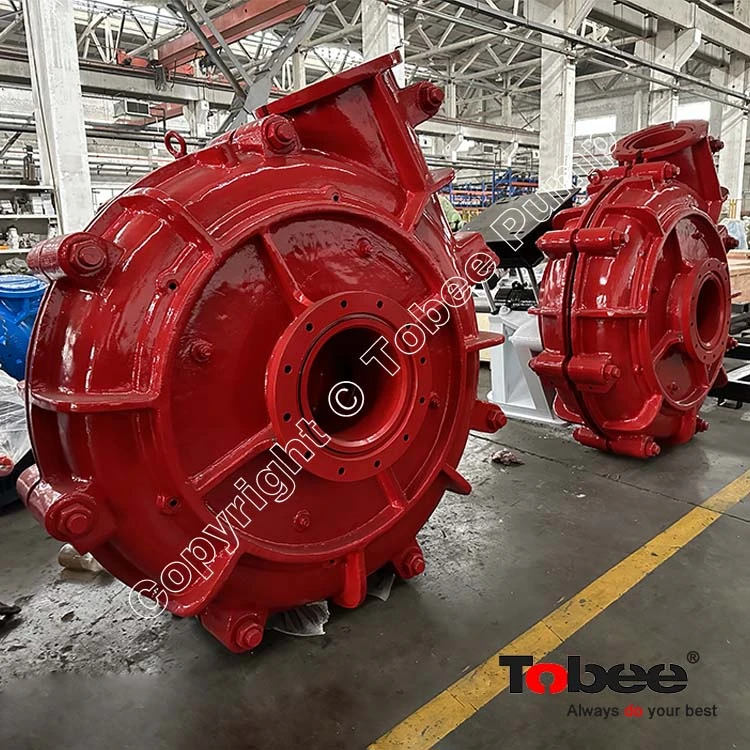

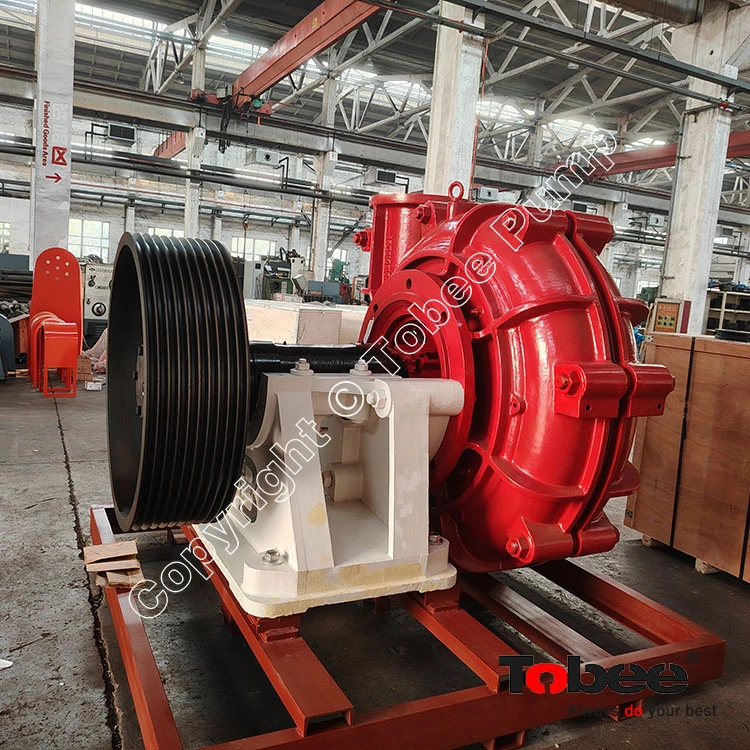

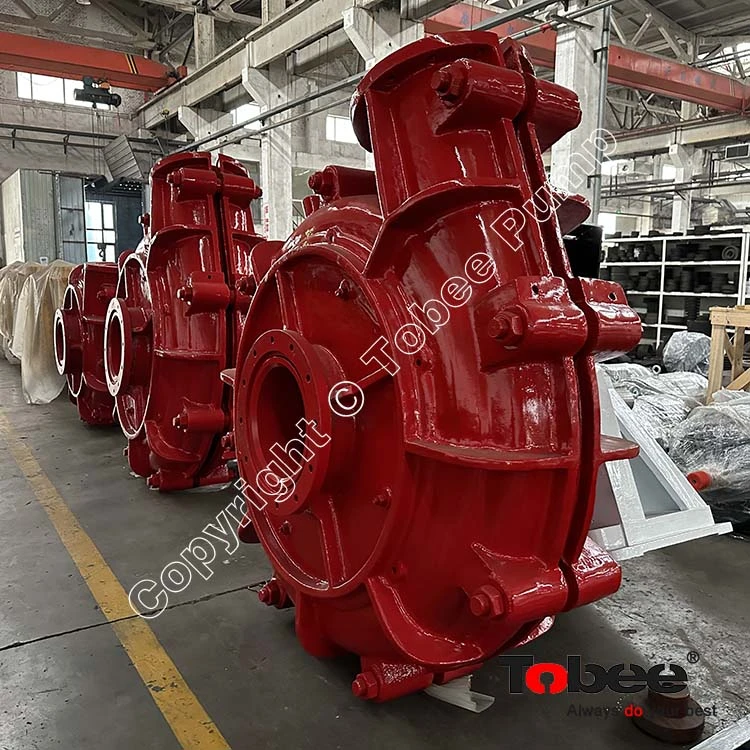

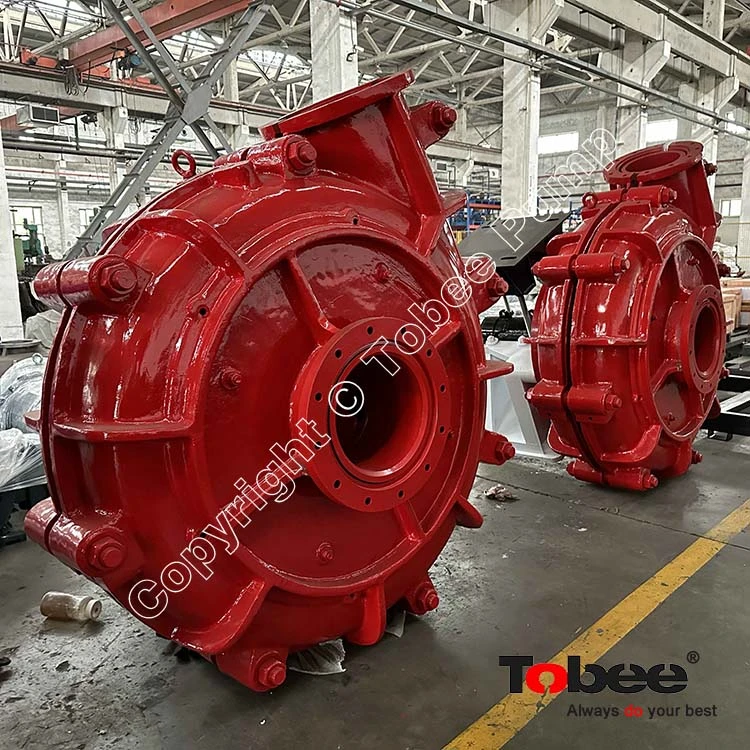

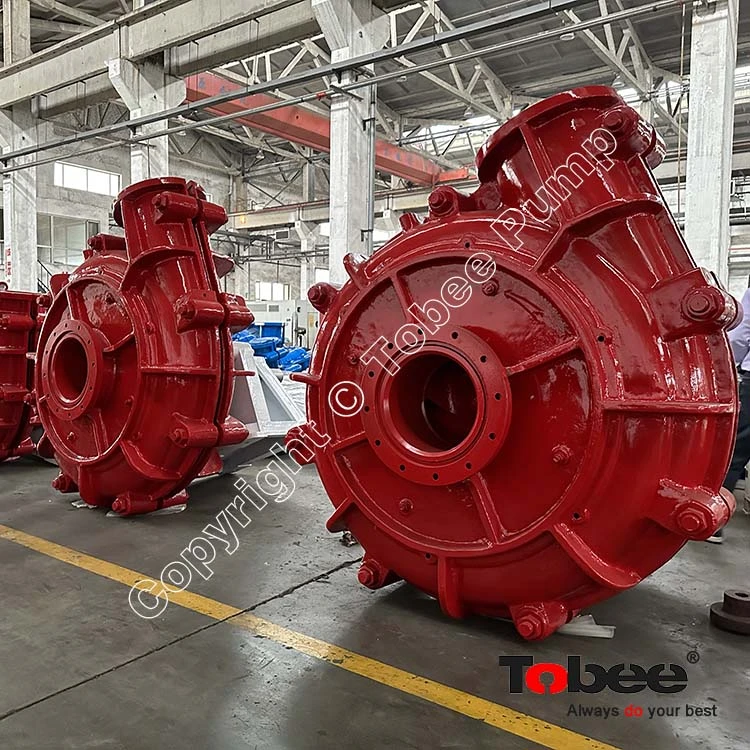

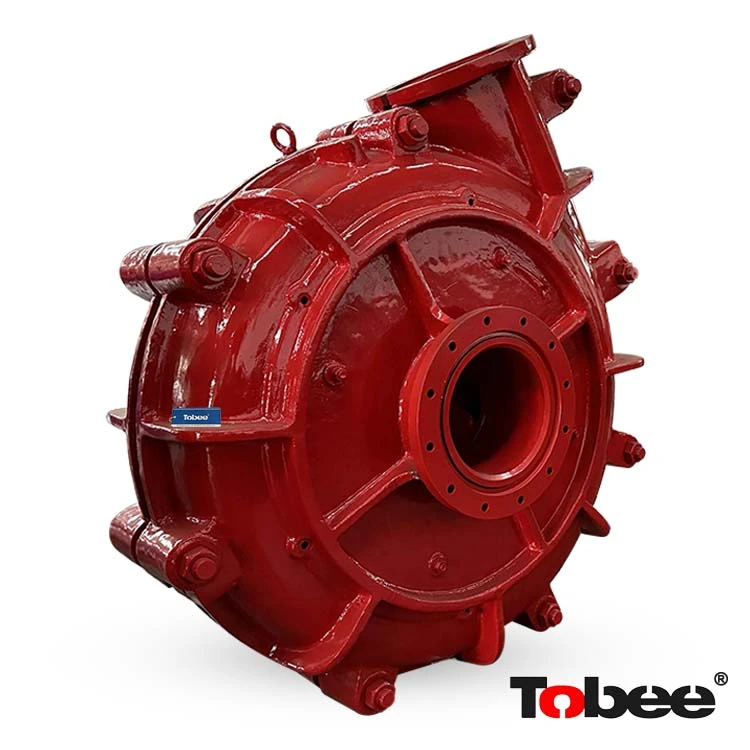

16x14 Slurry Pump Description
What makes the Tobee® 16x14 TU TH Slurry Pump Replacement Solution the preferred choice for plant operators facing extreme slurry transport challenges? As a Heavy Duty 16/14 TU TH Slurry Pump for Mining, it is designed to withstand the toughest conditions. This Large Capacity 16x14 TU Slurry Pump for Mineral Processing delivers exceptional flow rates, while its robust construction ensures reliability. As a High Performance 16x14 TU TH Slurry Pump Alternative, it provides a seamless fit for existing systems, establishing itself as the definitive Industrial 16/14 TU TH Slurry Pump for Tailings Handling.
When original equipment begins to show wear in high-abrasion environments, replacing it with a Cost Effective 16x14 TU TH Pump for Slurry Systems is critical for maintaining operational budgets. The Tobee® 16x14 TU TH Slurry Pump Replacement Solution is engineered to deliver superior longevity without compromising on hydraulic efficiency. It is designed to be a direct, dimensionally interchangeable alternative, allowing maintenance teams to retrofit existing piping and baseplates without costly modifications. This focus on interchangeability minimizes downtime while providing a significant upgrade in wear life, ensuring that your processing plant maintains continuous throughput.
Design Features: Built for the Toughest Slurries
The engineering behind this Heavy Duty 16/14 TU TH Slurry Pump for Mining focuses on maximizing mean time between failures (MTBF). Here are five key design features that set this High Performance 16x14 TU TH Slurry Pump Alternative apart:
Double-Shell Casing Construction: The pump utilizes a robust double-shell design. The outer casing absorbs system pressure, while the inner casing (liner) provides high resistance to abrasive wear. This allows for easy replacement of wet parts without disturbing the piping, significantly reducing maintenance time.
Heavy-Duty "TU" Bearing Assembly: The designation "TU" signifies a heavy-duty, cartridge-style bearing assembly. This unit is designed to handle high power demands and allows for precise, external adjustment of the impeller-to-front liner clearance. Maintaining this optimal clearance ensures high efficiency throughout the life of the wear components.
Versatile Wet-End Materials: To handle varying slurry chemistries, the Large Capacity 16x14 TU Slurry Pump for Mineral Processing offers replaceable wet parts in two primary materials. High-chrome alloy is available for extreme abrasion from sharp, hard particles, while natural rubber or elastomer liners provide superior resistance to corrosion and fine particle abrasion.
Optimized Hydraulic Design: The impeller and casing volute are engineered to handle large, high-density solids with minimal turbulence. This design reduces recirculation and energy loss, ensuring that the pump maintains stable performance even when handling slurries with high specific gravities.
Versatile Sealing Arrangements: To prevent leakage and protect the environment, the pump supports multiple sealing configurations. Depending on the application, it can utilize packing seals for cost-effectiveness, expeller (centrifugal) seals for applications with suction head, or mechanical seals for zero leakage requirements.
Tobee 16/14 TU TH Slurry Pump Performance Parameters:
|
Model |
Max. Power |
Materials |
Clear Water Performance |
Impeller Vane |
|||||
|
No. |
(kw) |
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. Η (%) |
NPSH (m) |
No. |
|
16/14TU TH |
1200 |
M |
M |
1368~3060 |
11~63 |
250~550 |
79 |
4~10 |
5 |
Mining & Mineral Processing: Mill Discharge and Cyclone Feed
In the demanding environment of a concentrator plant, the Tobee® 16x14 TU TH Slurry Pump Replacement Solution proves indispensable. Specifically, as a Heavy Duty 16/14 TU TH Slurry Pump for Mining, it is ideally suited for mill discharge and cyclone feed duties. These applications involve high head pressures and slurries containing sharp, coarse particles.
The pump’s thick high-chrome liners withstand the continuous impact of these solids, while its large passageways prevent clogging. By maintaining a consistent feed pressure to hydrocyclones, this pump ensures optimal classification efficiency, directly impacting the recovery rates of valuable minerals.
Tailings Disposal and Long-Distance Transport
For Industrial 16/14 TU TH Slurry Pump for Tailings Handling, reliability is non-negotiable. Tailings slurries are often highly abrasive, chemically aggressive, and must be transported over long distances to storage facilities. The robust construction of the Tobee® pump allows for staging in series to achieve the high pressures required for long-distance pipelines.
Its Large Capacity 16x14 TU Slurry Pump for Mineral Processing capability (handling up to 3060 m3/h) ensures that the high volumes of waste material generated by processing plants are moved efficiently, reducing the total cost of ownership for waste management systems.
Frequently Asked Questions (FAQ)
Q: Is the Tobee® 16x14 TU TH Slurry Pump fully interchangeable with existing installations?
A: Yes. The Tobee® 16x14 TU TH Slurry Pump Replacement Solution is designed to be fully interchangeable with original equipment. This includes critical dimensions such as the baseplate mounting feet, suction and discharge flange locations, and shaft diameter. This ensures a straightforward retrofit, allowing you to replace existing pumps with minimal piping or foundation modifications.
Q: How does the cartridge bearing assembly simplify maintenance?
A: This High Performance 16x14 TU TH Slurry Pump Alternative features a cartridge-style bearing assembly that is pre-assembled and pre-lubricated. It allows for quick removal and replacement as a single unit. Additionally, the external clearance adjustment mechanism allows operators to compensate for wear in the front liner without disassembling the pump, ensuring the Cost Effective 16x14 TU TH Pump for Slurry Systems maintains peak efficiency over a longer period.
Q: What type of seal is best for high-density slurry applications?
A: The choice depends on the specific system conditions. For applications where a slight water leak is acceptable and the suction head is low, the expeller (centrifugal) seal is often preferred for Large Capacity 16x14 TU Slurry Pump for Mineral Processing duties, as it prevents slurry entry without the need for complex sealing water systems. For zero-emission requirements or high suction head conditions, a mechanical seal is recommended.
Q: Can this pump handle large solid particles?
A: Absolutely. Engineered as a Heavy Duty 16/14 TU TH Slurry Pump for Mining, it is designed to pass large spherical solids. Depending on the liner material and configuration, the pump can handle solids up to approximately 135mm in size, making it suitable for primary mill discharge and coarse slurry transport.
Optimize Your Slurry Operations Today
Don’t let abrasive wear dictate your maintenance schedule. The Tobee® 16x14 TU TH Slurry Pump Replacement Solution offers high performance and durability. This Heavy Duty 16/14 TU TH Slurry Pump for Mining ensures efficient handling of abrasive, high-density slurries. Ideal for mineral processing—contact us today!
