TH/THR Series

Tobee^® TH/THR series is a range of heavy-duty, horizontal centrifugal slurry pumps designed for handling highly abrasive and high-density slurries in mining, mineral processing, and industrial applications. TH models feature hard metal liners, while THR models use rubber liners, providing excellent wear resistance for demanding tasks like mill discharge and tailings.Tobee TH/THR series slurry pumps include many modesl as 1.5/1B slurry pumps, 2x1.5B sand pumps, 3x2C centrifugal pumps, 4X3 electric pumps, 6x4 sludge pumps, 8/6 mud pumps, 10x8 sewage pump, 12/10 mining pump, 14x12 waste water pump, 16x14 ash pump, 18x16 rubber slurry pump, 20x18 dredging pumps etc.

Model	Max. Power	Materials		Clear Water Performance					Impeller Vane
No.	(kW)	Liner	Impeller	Capacity Q (m³/h)	Head H (m)	Speed n (rpm)	Eff. Η (%)	NPSH (m)	No.
1.5/1B TH	15	Metal	Metal	12.6~28.8	6~68	1200~3800	40	2~4	5
2/1.5B TH	15	Metal	Metal	32.4~72	6~58	1200~3200	45	3.5~8	5
3/2C TH	30	Metal	Metal	39.6~86.4	12~64	1300~2700	55	4~6	5
4/3C TH	30	Metal	Metal	86.4~198	9~52	1000~2200	71	4~6	5
4/3D TH	60	Metal	Metal	97.2~198	9~53	1000~2200	71	4~6	5
6/4D TH	60	Metal	Metal	162~360	12~56	800~1550	65	5~8	5
6/4E TH	120	Metal	Metal	162~360	12~56	800~1550	65	5~8	5
8/6E TH	120	Metal	Metal	360~828	10~61	500~1140	72	2~9	5
T8/6R TH	300	Metal	Metal	360~828	10~61	500~1140	72	2~9	5
10/8ST TH	560	Metal	Metal	612~1368	11~61	400~850	71	4~10	5
12/10ST TH	560	Metal	Metal	936~1980	7~68	300~800	82	6	5
14/12ST TH	560	Metal	Metal	1260~2772	13~63	300~600	77	3~10	5
16/14ST TH	560	Metal	Metal	1368~3060	11~63	250~550	79	4~10	5
16/14TU TH	1200	Metal	Metal	1368~3060	11~63	250~550	79	4~10	5
18/16ST TH	560	Metal	Metal	2160~5040	8~66	200~500	80	4.5~9	5
18/16TU TH	1200	Metal	Metal	2160~5040	8~66	200~500	80	4.5~9	5
20/18TU TH	1200	Metal	Metal	2520~5400	13~57	200~400	85	5~10	5

View More Show Less

Tobee 4/3D-THR Rubber Slurry Pump

Capacity

79.2-180 m³/h

Head

5-34.5 m

Speed

800-1800 rpm

Max. Power

60 kW

Handling Solids

28 mm

Tobee 4/3D-THR rubber slurry pump features a rubber lined design, high wear resistance and reliable performance for mining, mineral processing and slurry handling applications.

Inquire Now

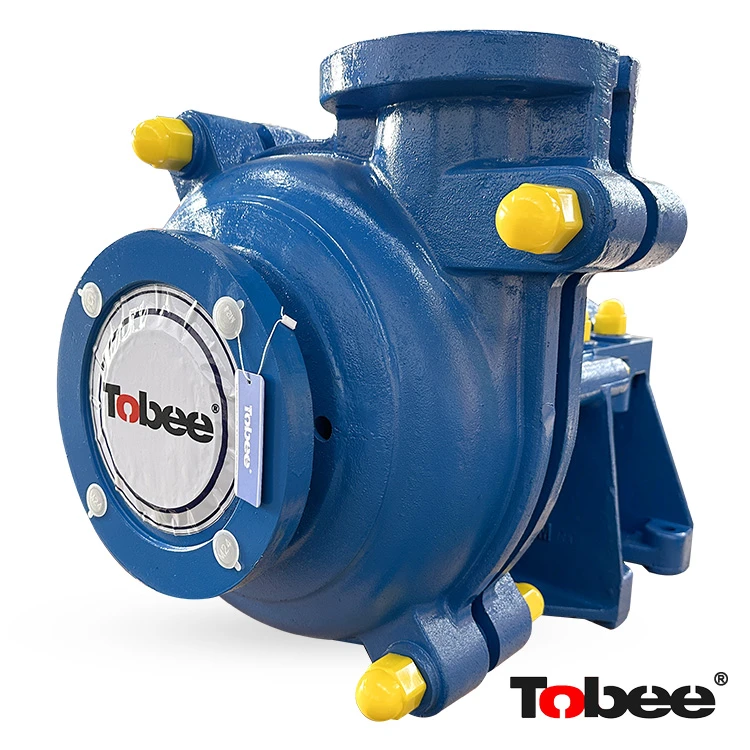

Tobee 4/3C-THR Rubber Sludge Pump

Capacity

79.2-180 m³/h

Head

5-34.5 m

Speed

800-1800 rpm

Max. Power

30 kW

Handling Solids

28 mm

Tobee^® 4/3C-THR Rubber Sludge Pump is a centrifugal slurry pump with rubber impeller, designed for abrasive and corrosive slurry. Featuring 4 inch inlet and 3 inch outlet, it ensures durability and efficiency. Contact us today!

Inquire Now

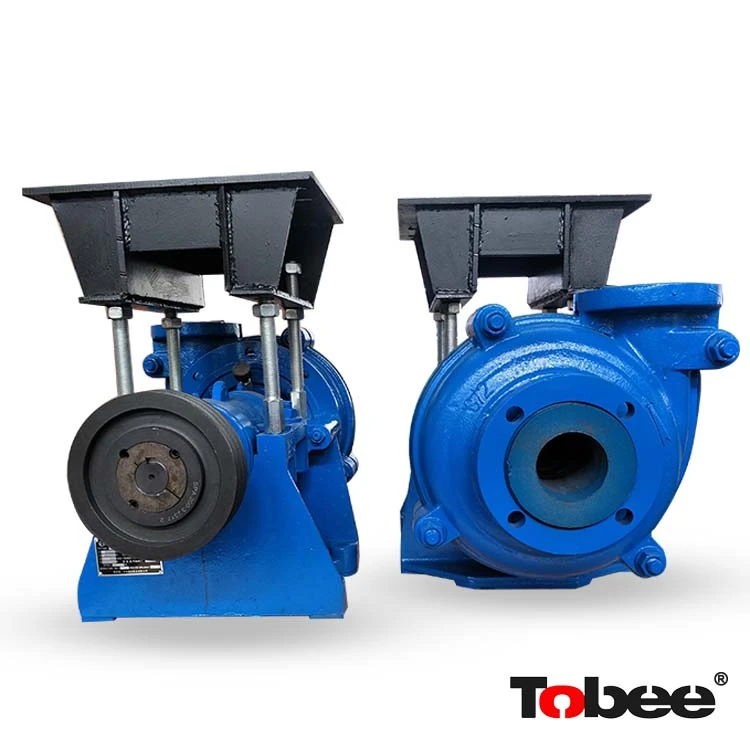

Tobee 3/2C THR Rubber Centrifugal Pump

Capacity

36-75.6 m³/h

Head

13-46 m

Speed

1300-2300 rpm

Max. Power

30 kW

Handling Solids

21 mm

Tobee^® 3/2C THR Rubber Centrifugal Pump features a rubber impeller for handling abrasive and corrosive slurry. With 3 inch inlet and 2 inch outlet, this centrifugal slurry pump ensures durability and efficiency. Contact us today!

Inquire Now

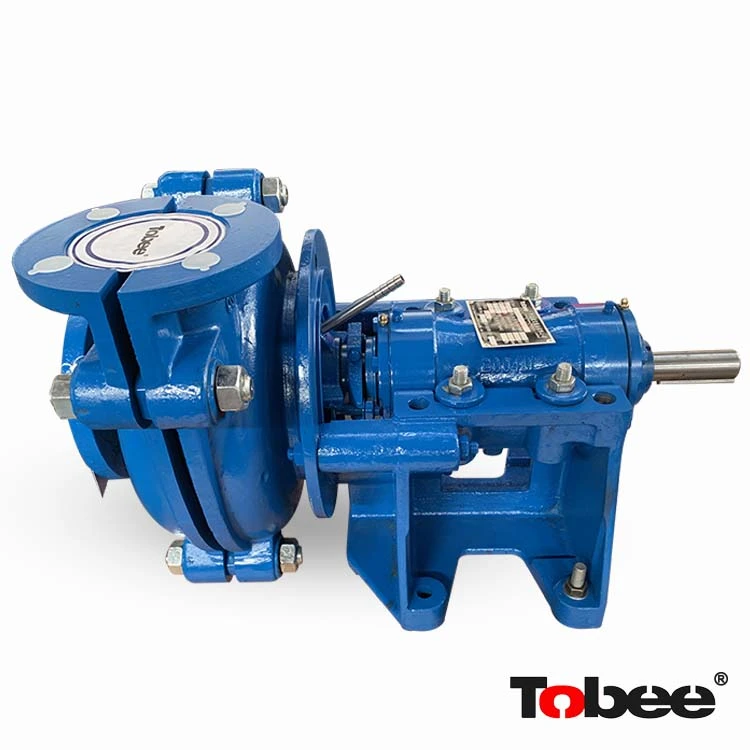

Tobee 2/1.5B THR Rubber Sand Pump

Capacity

25.2-54 m³/h

Head

5.5-41 m

Speed

1000-2600 rpm

Max. Power

15 kW

Handling Solids

19 mm

Tobee^® Rubber Sand Pump with 2 Inch Inlet and Slurry Pump with 1.5 Inch Outlet ensures efficient transfer. Featuring a rubber impeller, it excels as a Compact Sand Pump with Rubber Lined Casing. Contact Tobee^® today!

Inquire Now

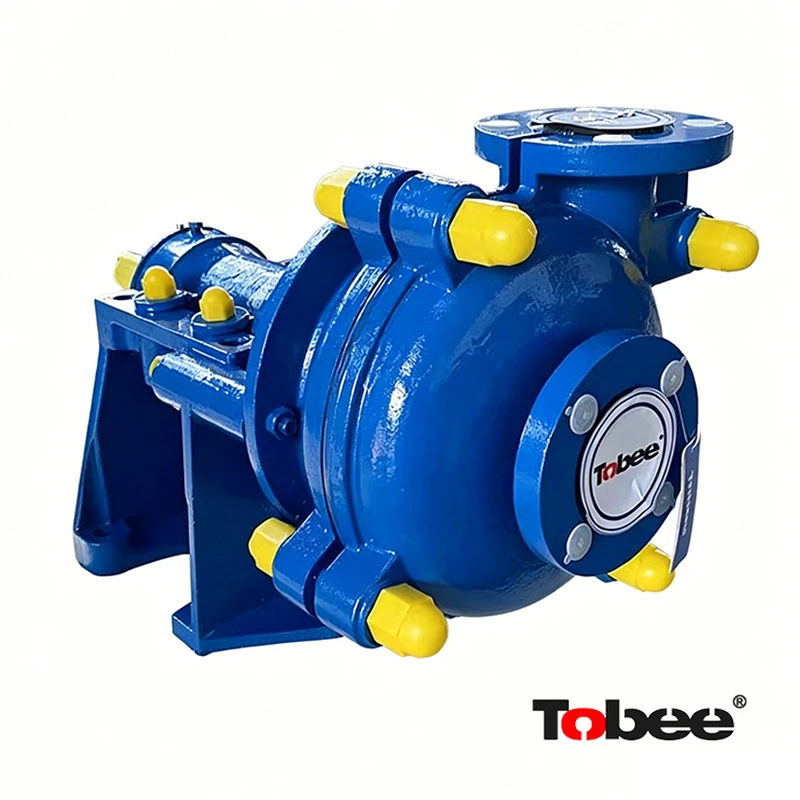

Tobee 1.5/1B TH Rubber Lined Slurry Pump

Capacity

10.8-25.2 m³/h

Head

7-52 m

Speed

1400-3400 rpm

Max. Power (kw)

15 kW

Handling Solids

14 mm

Tobee^® Rubber Lined Slurry Pump for Mining features a durable rubber impeller for abrasive slurries. Ideal as a Small Size Slurry Pump with Rubber Impeller and Industrial Slurry Pump for Sand and Sludge. Contact us today!

Inquire Now
Tobee 20x18TU TH Slurry Pump

Capacity

2520-5400 m³/h

Head

13-57 m

Speed

200-400 rpm

Max. Power

1200 kW

Handling Solids

140 mm

Tobee^® 20x18 TU TH Slurry Pump for Mill Discharge delivers rugged performance in large-scale mining. This Heavy Duty 20/18 TU TH Slurry Pump for Cyclone Feed features long wear life and interchangeable liners. Ideal for tailings management—contact us today!

Inquire Now
Tobee 18x16TU TH Slurry Pump

Capacity

2160-5040 m³/h

Head

8-66 m

Speed

200-500 rpm

Max. Power

1200 kW

Handling Solids

135 mm

Tobee® 18x16 TU TH Slurry Pump for Large Particles delivers reliable performance in high-density, abrasive conditions. This Heavy Duty 18/16 TU TH Slurry Pump for Dredging Industry features wear-resistant liners and reduced maintenance costs. Contact us today!

Inquire Now
Tobee 16x14TU TH Slurry Pump

Capacity

1368-3060 m³/h

Head

11-63 m

Speed

250-550 rpm

Max. Power

1200 kW

Handling Solids

135 mm

Tobee^® 16x14 TU TH Slurry Pump Replacement Solution offers high performance and durability. This Heavy Duty 16/14 TU TH Slurry Pump for Mining ensures efficient handling of abrasive, high-density slurries. Ideal for mineral processing—contact us today!

Inquire Now
