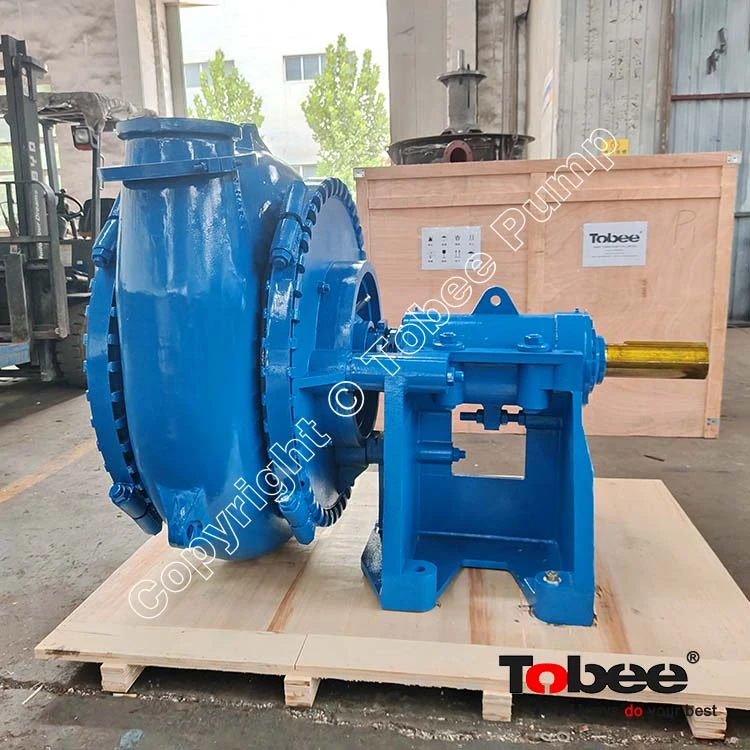

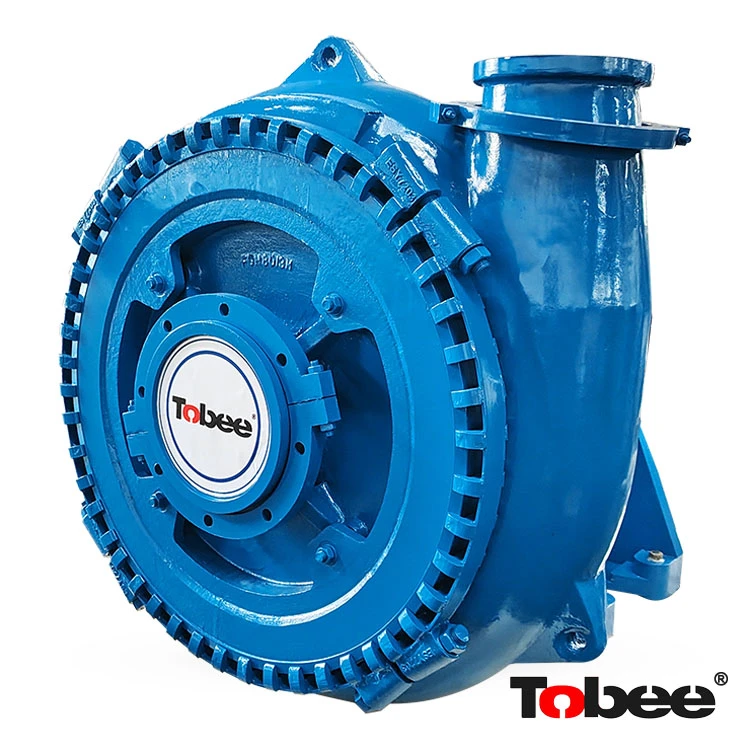

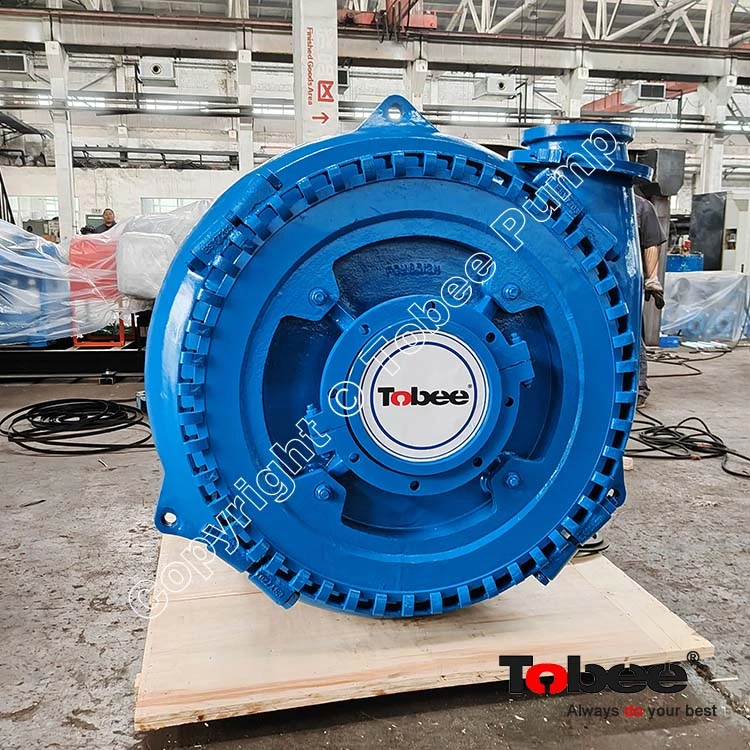

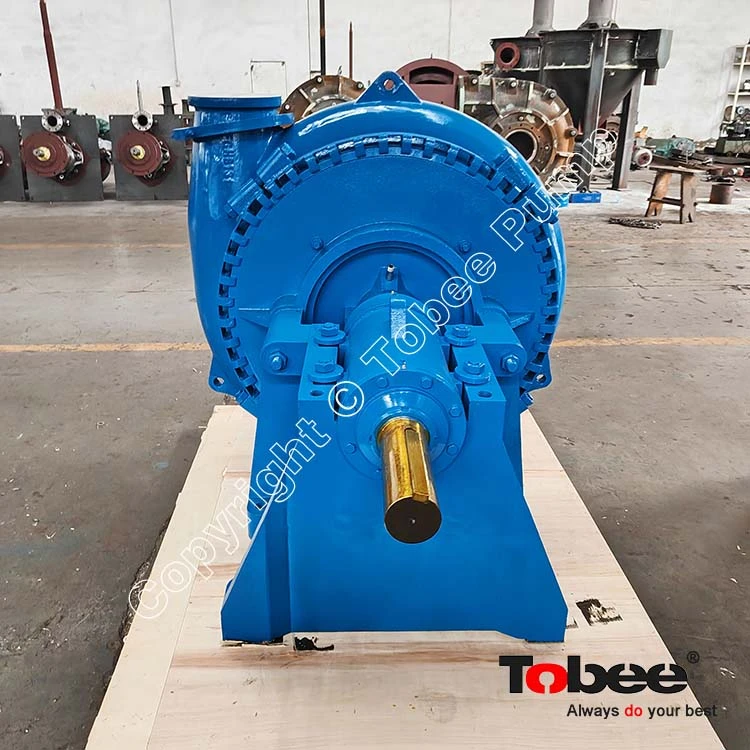

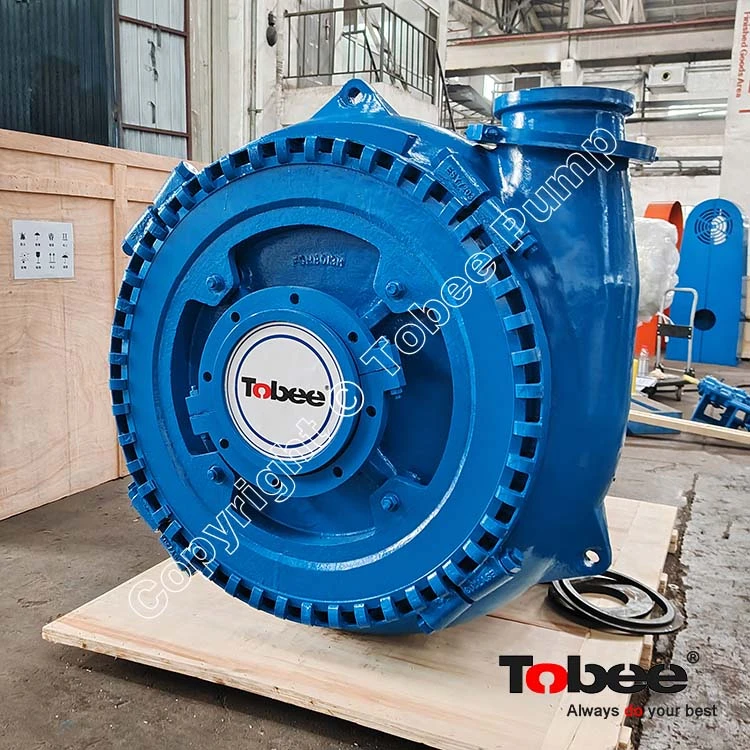

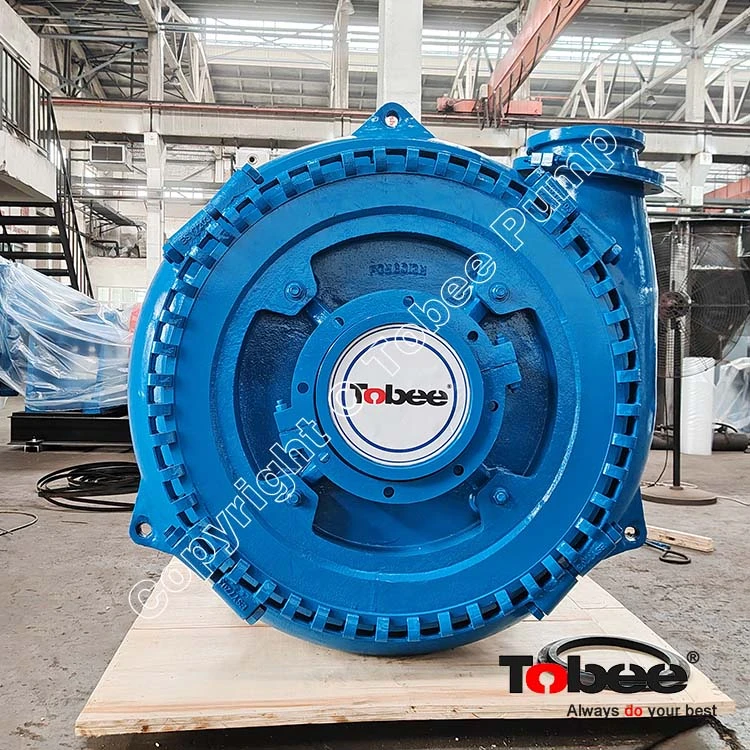

Tobee® TG10/8F Gravel Pump
The Tobee® TG10/8F Gravel Pump is a heavy-duty centrifugal pump specially designed for demanding applications involving sand, gravel, and abrasive slurry. With a robust construction and large internal flow passage, this Gravel Pump can efficiently handle large solid particles while reducing the risk of clogging and excessive wear. The pump features a heavy-duty casing, high-strength impeller, and reliable bearing assembly to ensure stable performance under harsh operating conditions.
Designed for high-volume material handling, the TG10/8F is widely used in Sand Pumping, Dredging, Mining, and Sand & Gravel Processing applications. Its wear-resistant wetted components provide extended service life when handling highly abrasive materials. The simple cantilever design also makes inspection, maintenance, and replacement of wear parts more convenient, helping reduce downtime and operating costs.
The Tobee® TG10/8F Centrifugal Slurry Pump provides reliable pumping performance, excellent durability, and strong resistance to abrasive working conditions. It is an ideal solution for contractors and mining operators looking for a dependable pump for continuous heavy-duty material transportation.
Tobee® TG10/8F Gravel Pump
Tobee® TG10x8F Dredging Gravel Pump Performance Parameter:
| Model |
Max.Power P (kw) |
Capacity Q (m³/h) |
Head H (m) |
Speed n (r/min) |
Eff. η (% ) |
NPSH (m) |
Impeller Dia. (mm) |
| TG10/8F | 260 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
| TG10/8S | 560 | 216-936 | 8-52 | 400-800 | 65 | 3-7.5 | 533 |
Tobee® TG10x8F Dredging Gravel Pump Frame Explanation:
| Frame type | A | B | C | D | E | R | F | G | S | T |
| Max.Power (kw) | 7.5 | 15 | 30 | 60 | 120 | 300 | 260 | 600 | 560 | 1200 |
| Frame Weight (kg) | 17 | 24 | 45 | 77.5 | 154 | 228 | 555 | 1006 | 546 | 1156 |
| Amount of Shaft Sealing Water (l/s) | 0.15 | 0.25 | 0.35 | 0.55 | 0.70 | 0.70 | 0.70 | 1.20 | 1.20 | 1.60 |

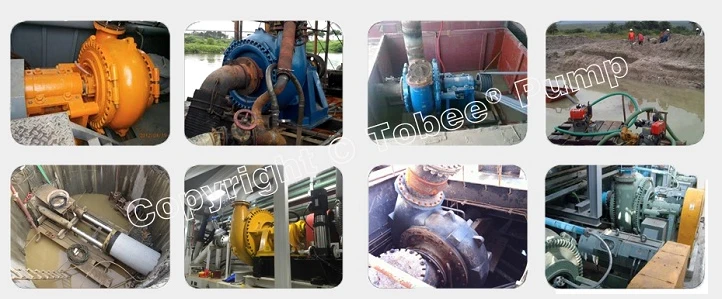

TG10x8F Dredging Gravel Pump On-site Applications:
The Tobee® TG10/8F Gravel Pump is designed for demanding applications involving abrasive slurry, sand, gravel, and large solid particles. Its heavy-duty construction and large flow passage make it suitable for:
