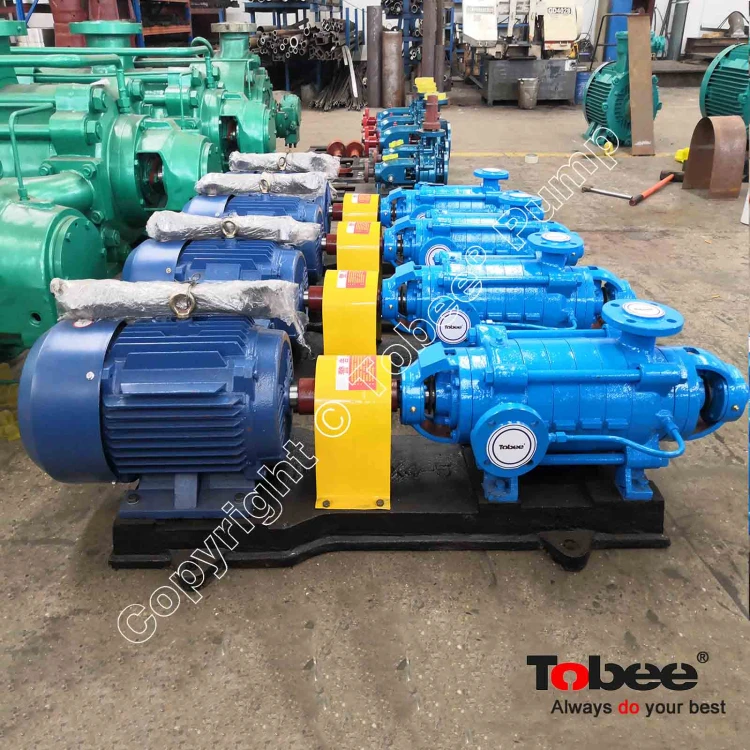

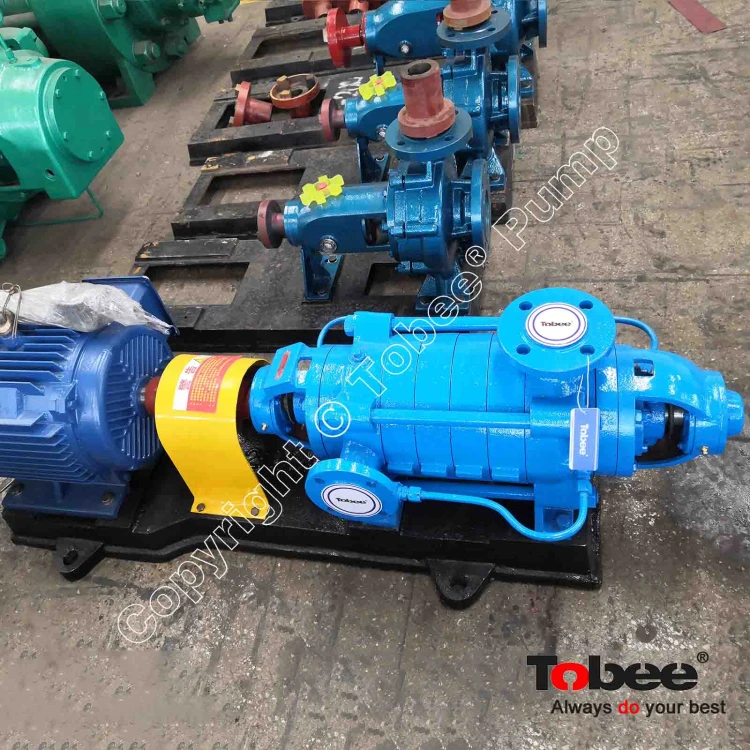

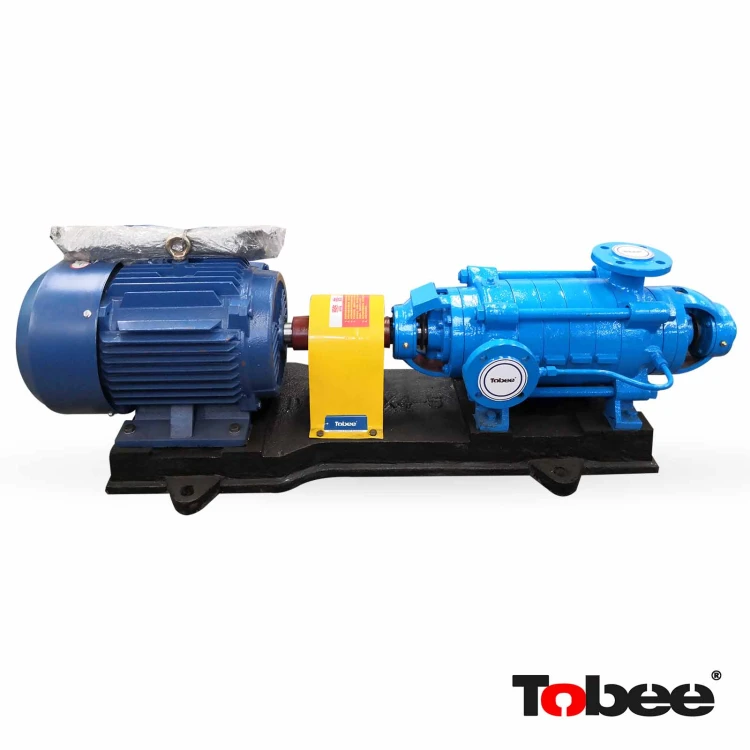

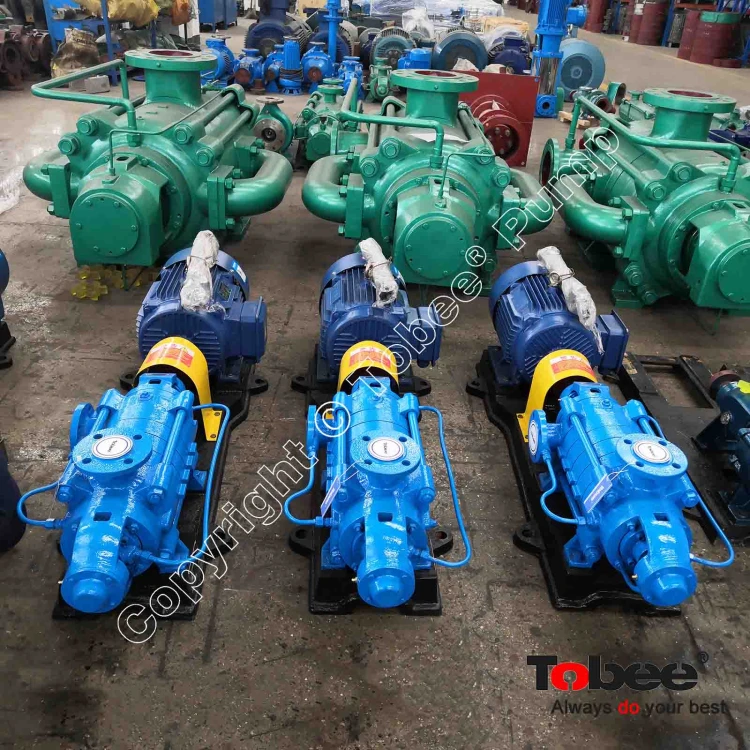

Magflow^® TD Multistage Water Pump

Magflow^® Multistage Pump Specifications

Size	25-400 mm
Capacity	3.75-3600 m³/h
Head	50-2500 m
Particle Size	free of solid particles
Tempreature	0-80℃
Power	5.5-4000 kW
Materials	Cast iron, Cast Steel, SS304, SS316L, Chrome Steel, Bronze, Duplex Stainless Steel, etc

Inquire Now

Magflow^® Multistage Pump Product Description

Magflow^®TD series multistage pump is a heavy-duty, multi-stage horizontal centrifugal pump designed with modular ring-section casings to deliver reliable high-pressure fluid transfer for HVAC Water Circulation, mine dewatering, and demanding industrial applications. Engineered for high hydraulic efficiency and continuous operation, it features customizable material options and shaft sealing systems to handle clean to mild slurry media across extreme head conditions.

Free Quote

Magflow^® Multistage Pump Design Features

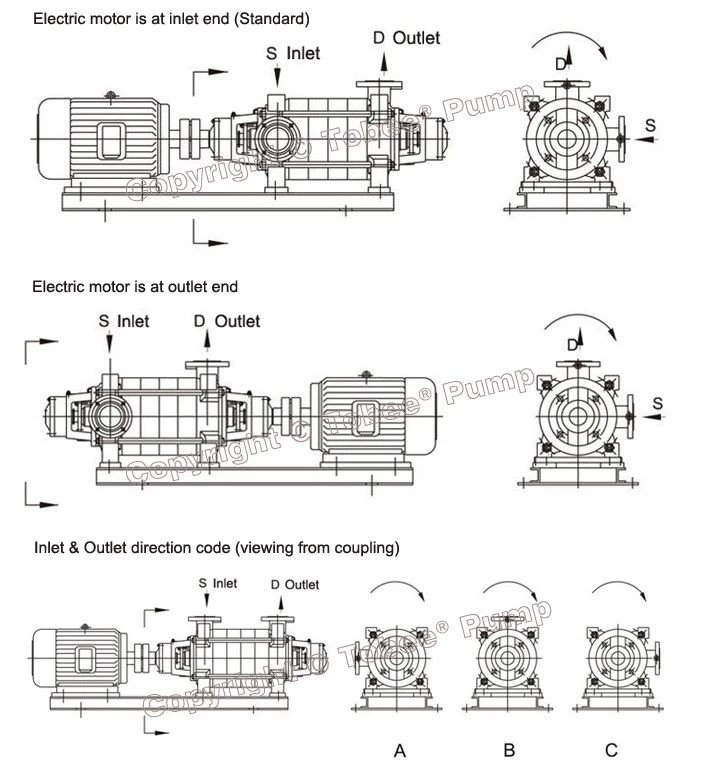

Stator Assembly Core Components: Suction casing (inlet section), stage casings (middle section), discharge casing (outlet section), and guide vanes, clamped together by tie-bolts to form the pressure chamber.Nozzle Configurations: D Series: Horizontal inlet, top-vertical outlet.
Rotor Assembly Core Components: Shaft, impellers, balance disc, and shaft sleeves.Functionality: The shaft transmits power to drive the impellers. The balance disc counteracts axial thrust forces generated during operation. Replaceable shaft sleeves protect the shaft against wear and corrosion.
Bearing Assembly Core Components: Bearing housing, bearings, and bearing glands.Lubrication & Types:Standard models feature rolling bearings with grease lubrication.
Shaft Sealing SystemGland Packing Seal: Standard configuration comprising a seal housing, soft packing, and a deflector ring (water retaining ring) located on the suction section and rear end cover. Pressurized fluid in the seal cavity provides sealing, cooling, and lubrication. D Series: Seal water is internally flushed from high-pressure pump stages.
Drive & Rotation Drive Type: Direct-driven by the prime mover via a flexible coupling.Direction of Rotation: Clockwise when viewed from the drive end.

Magflow^® Multistage Pump Perfomance Parameters

Model	Capacity Q (m³/h)	Head H (m)	Speed n (rpm)	Power P (kW)	Eff. η (%)	NPSHr (m)
TD6-25	3.75-7.5	73.5-306	2950	4-18.5	53	2-2.5
TD6-50	3.75-7.5	144-624	2950	11-55	36	3-3.5
TD6-80	3.75-7.5	220-982	2950	18.5-75	36	3-3.5
TD12-25	7.5-15	69-338.4	2950	7.5-30	58	2-2.5
TD12-50	7.5-15	93-648	2950	15-75	49	2-2.5
TD12-80	7.5-15	220-982	2950	30-132	40	2-2.5
TD25-30	15-30	82.5-340	2950	15-45	68	2.2-2.4
TD25-50	15-28	144-618	2950	22-110	61	2.4-2.8
TD25-80	15-30	380-1013	2950	75-160	56	3.1-3.8
TD46-30	30-55	81-340	2950	22-75	75	2.4-4.6
TD46-50	30-55	138-666	2950	37-160	71	2.5-3.2
TD46-80	27-54	380-1056	2950	110-280	65	3.9-5.5
TD85-45	55-100	117-510	2950	55-185	77	3.2-5.2
TD85-67	55-100	183-740	2950	90-280	73	3.3-4.4
TD85-80	51-102	304-880	2950	132-355	71	3.5-4.5
TD85-100	51-102	285-1100	2950	132-450	65	3.8-4.6
TD120-50	96-140	126.9-545	2950	90-250	78	3.2-6.7
TD120-100	96-144	360-1260	2950	220-630	74	3.8-5.5
TD150-30	119-190	85.5-330	2950	75-220	83	3.8-5
TD150-50	120-180	85-550	2950	75-355	75	3.2-6.6
TD150-80	90-180	228-880	2950	185-630	75	3.2-6.6
TD150-100	120-180	285-1100	2950	200-710	73	3.8-5
TD155-67	100-185	118-760	2950	90-450	79	3.2-6.6
TD200-50	120-240	135-580	2950	132-400	81	4.5-5.8
TD200-100	150-240	168-1130	2950	185-900	76	3.5-5
TD200-150	150-240	378-1725	2950	400-1400	72	2.5-3
TD210-70	160-260	186-712	2950	200-710	79.2	6.2-7.8
TD280-100	196-336	368-1100	2980	500-1250	78.5	4-6.5
TD155-30	119-190	54-320	1480	45-200	82	3.2-4.8
TD155-50	120-180	127.5-550	1480	110-355	71	3.2-6.6
TD200-50	132-240	198-544	1480	185-450	75	2.3-4.1
TD280-43	185-335	76-470	1480	110-500	81	2.5-5.2
TD280-65	185-355	186-680	1480	280-900	74	2.8-5.0
TD280-95	180-335	244-979.7	1480	355-1120	72.5	2.5-3.7
TD300-45	200-350	80-445	1480	110-450	85	2.5-5.2
TD360-40	300-440	106.5-420	1480	185-630	84	4.65-5.4
TD360-60	300-440	210-640	1480	400-1000	74.5	3.1-5.3
TD360-95	280-410	244-979.4	1480	400-1400	73	2.6-3.8
TD450-60	335-500	113-650	1480	250-1000	84	4.1-6.3
TD450-95	385-515	244-979.7	1480	500-1800	75	2.8-4
TD500-57	450-550	162-600	1480	355-1250	82	4.4-5.8
TD550-50	450-590	90-540	1480	220-1000	84	5.2-6.5
TD580-60	450-638	165-650	1480	450-1250	82.5	3.16-5.16
TD640-80	530-760	201.6-904	1480	710-2240	78	7.2
TD720-60	550-850	171-660	1480	560-1800	82	7
TD1100-85	850-1350	221-862	1450	1250-4500	84	7

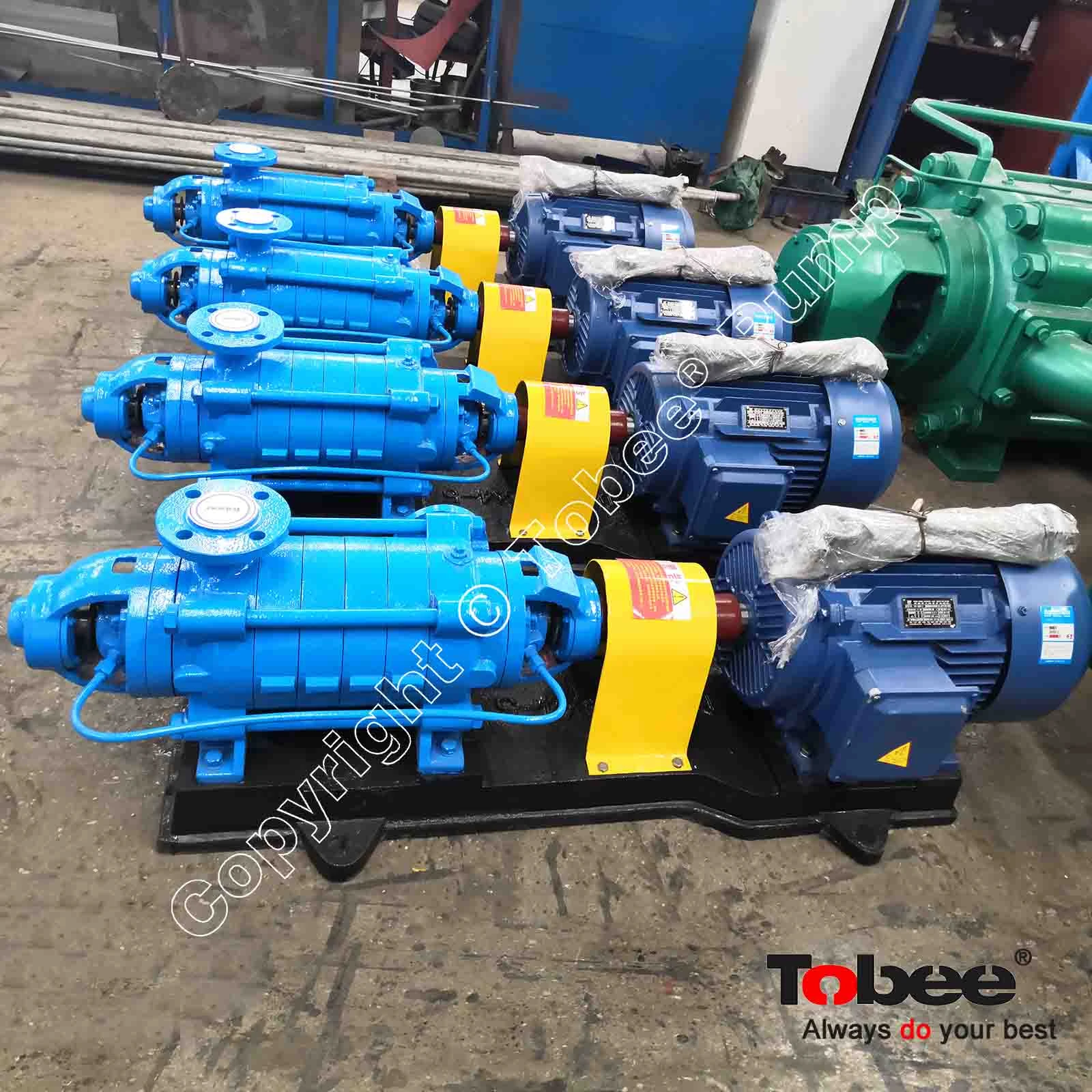

Magflow® Horizontal Multistage Pump Applications

Magflow^® Horizontal Multistage Pump Applications

Heavy Industrial & Utility Services (Horizontal Multistage)

Mine Dewatering: Handles high-head water evacuation from underground sumps, open-pit mines, and tunnel excavation projects.
Reverse Osmosis & Water Treatment: Feeds high-pressure raw water through RO membranes for desalination, industrial washdown, and municipal water purification.
Long-Distance Fluid Transfer: Pumps clean water or mild process fluids across steep elevations and long pipeline distances.
Tailing Water Recirculation: Transferring slurry supernatant and processed mine water across long distances and steep vertical elevations.

Oil, Gas & Petrochemical Industry

Water Injection Systems: Injecting treated water into oilfield reservoirs to maintain pressure and enhance oil recovery (EOR).
Hydrocarbon & Oil Transfer: Handling light crude oil, refined fuels, and liquid hydrocarbons under high pressure.
Petrochemical Feed Boosting: Feeding chemical feedstock and corrosive process fluids against elevated discharge pressures.

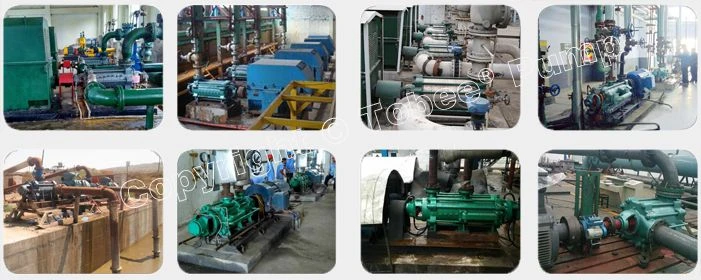

Magflow® Multistage Pump on-site Applications

Magflow^® Multistage Pump on-site Applications

Commercial & HVAC Systems

HVAC Water Circulation: Drives chilled and hot water loops across high-rise office towers, commercial complexes, and district heating networks.
Building Pressure Boosting: Maintains constant water supply pressure for upper floors in hotels, residential high-rises, and hospitals.
Cooling Water Transfer: Circulates cooling water through industrial heat exchangers, cooling towers, and data center chillers.
Firefighting & Utility Booster Systems: Functions as a jockey or pressure maintenance pump in fire protection networks and commercial utility lines.
