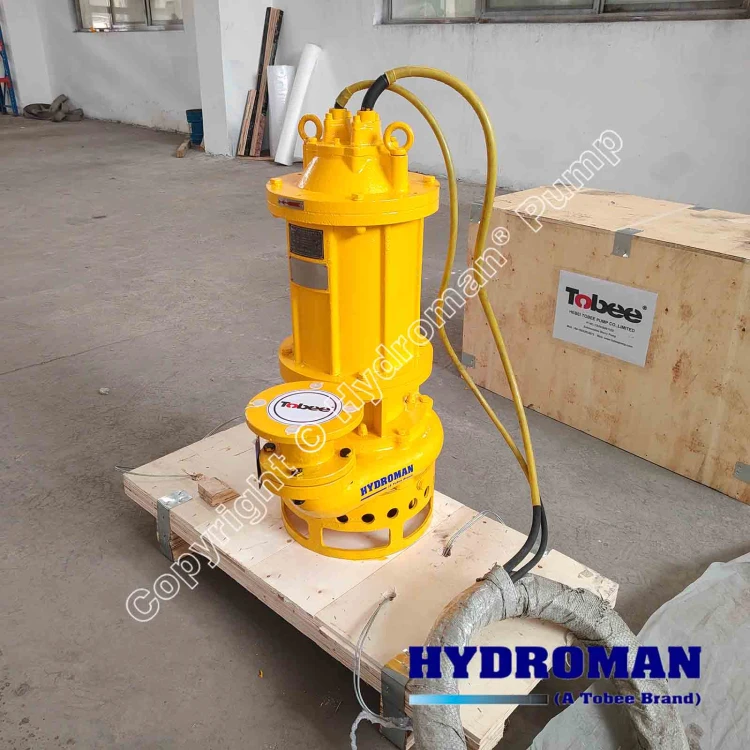

3kw Submersible Slurry Pump Description
TJQ series combines advanced centrifugal pumping technology with a fully submerged motor design, enabling reliable operation directly in slurry environments. 65TJQ3-50H4A pump driven by the 3 kW electric motor, the impeller generates powerful centrifugal force to efficiently transport slurry, while the bottom agitator breaks up and resuspends settled solids to minimize clogging risks and maintain continuous pumping performance. For challenging applications involving highly compacted or heavy sediment, optional accessories including side agitators and jet rings are available to enhance agitation capability and ensure optimal slurry handling efficiency.
Design Features for TJQ Electric Submersible Slurry Pump
Fully Submersible Design for Easy Operation: The TJQ series pumps features a compact fully submersible structure, allowing the pump to operate directly in slurry pits, tanks, ponds, and dredging areas. The submerged design eliminates suction lift limitations, simplifies installation, and ensures reliable performance in challenging pumping environments.
Heavy-Duty Wear-Resistant Construction: Hydroman® TJQ pump is designed with robust wear-resistant parts to process highly abrasive slurry conditions. Key wet-end parts, including the impeller, pump casing, back wear liner and front wear liner are manufactured from high-chrome alloy or other wear-resistant materials to provide extended service life and reduce maintenance frequency.
Double Mechanical Seal Protection: Hydroman® submersible slurry pump matched a double mechanical seal system to provide reliable separation between the motor and the pumped slurry. This prevents slurry leakage into the motor and significantly improves durability during continuous heavy-duty operation.
Reliable Submersible Electric Motor: TJQ submersible pump with the sealed high-performance electric motor is specially designed for underwater operation, it ensures stable operation even in harsh working conditions. Optional protection features, such as thermal overload protection and leakage monitoring, further improve operational reliability.

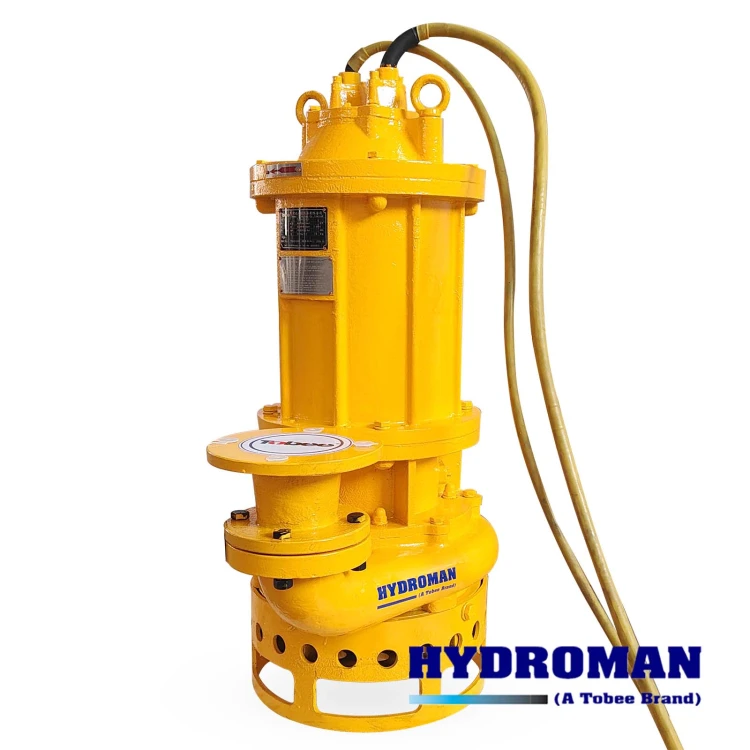

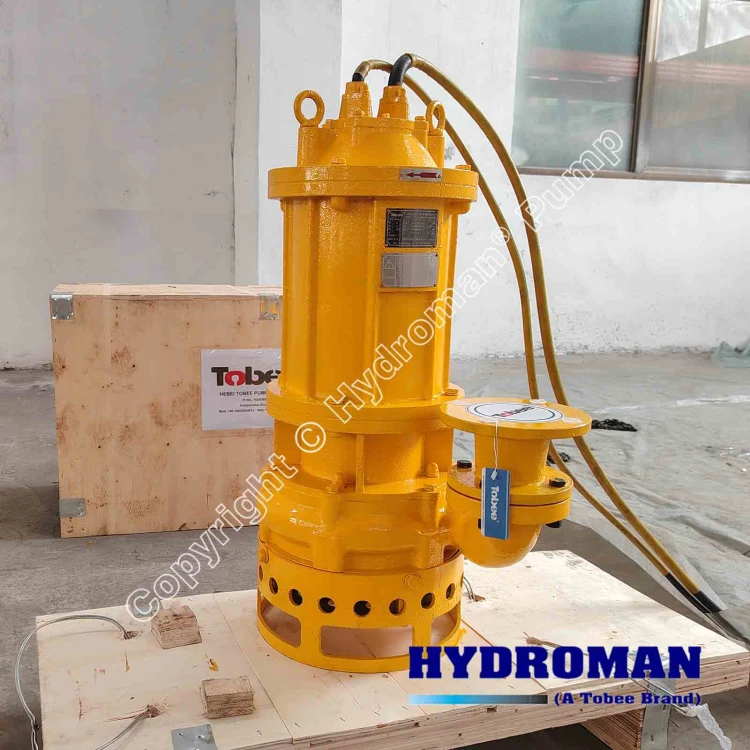

65TJQ3-50H4A Submersible Slurry Pump Performance Parameters
| Model |
Outlet (mm) |
Capacity (m³/h) | Head (m) | Power (kW) | Solids handling (mm) | Weight (kg) |
| 65TJQ3-50H4A | 65 | 30 | 10 | 3 | 14 | 125 |

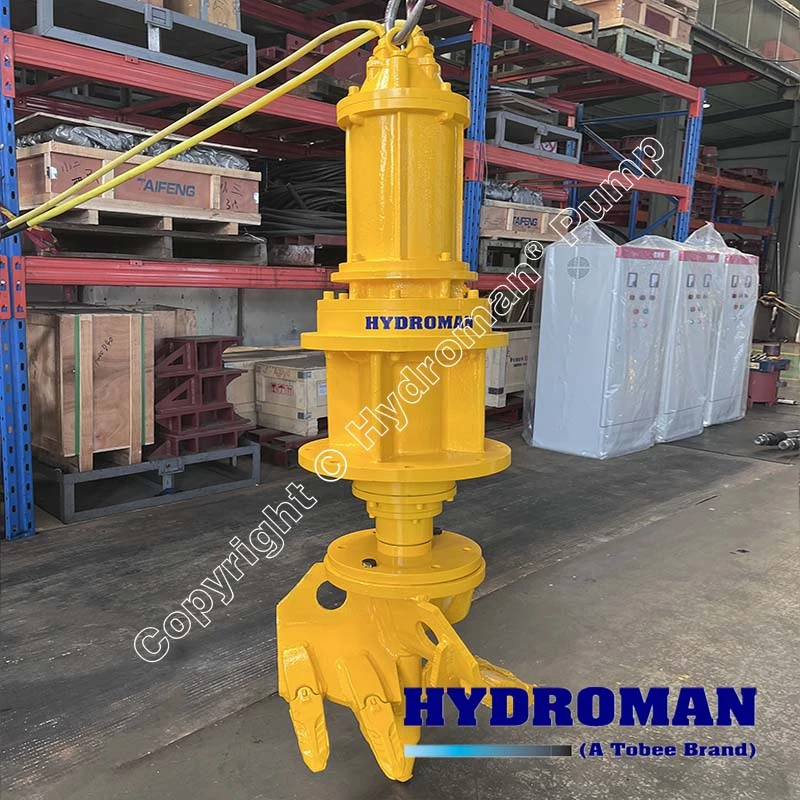

Side Agitator: Designed for heavy, compacted, or deeply settled solids.
The side agitators mounted on the side of the TJQ submersible slurry pump, the agitator generates additional turbulence to break up and resuspend accumulated sediment, helping create a more uniform slurry mixture around the pump inlet.
Compared with a standard bottom agitator, the Side Agitator provides enhanced agitation coverage and is particularly suitable for challenging conditions where solids tend to settle rapidly or form dense deposits. By continuously loosening and suspending settled materials, it helps improve solids intake, reduce the risk of blockage, and maintain stable slurry pumping performance.

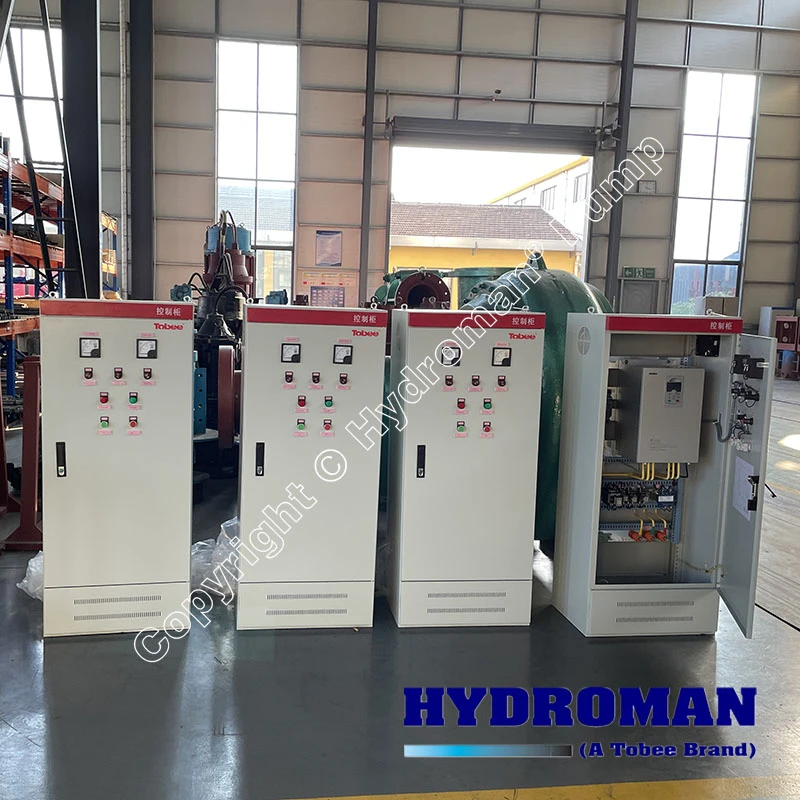

Control Panel: Designed to provide safe, reliable, and convenient operation.
The Control Panel is an optional electrical control system of submersible slurry pumps. It integrates essential electrical components and protection devices to control the pump motor, monitor operating conditions, and help protect the pump from potential electrical or mechanical faults.
Depending on the application requirements, the control panel can be equipped with functions such as motor start/stop control, overload protection, phase reversal protection, leakage protection, voltage protection and over-temperature protection. These features help ensure stable pump operation and reduce the risk of motor damage under demanding working conditions.

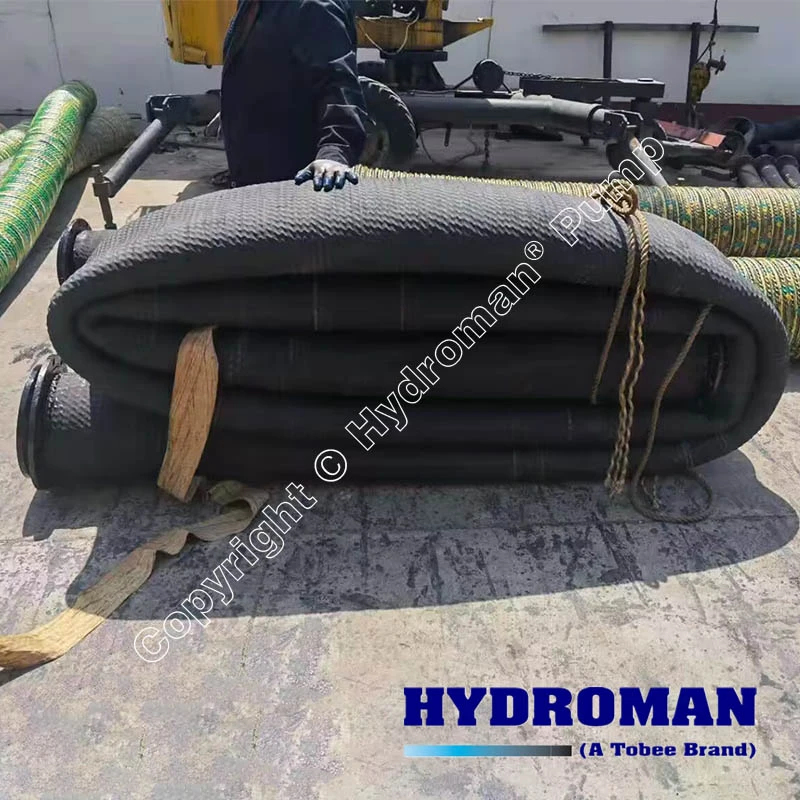

Rubber Hoses: Designed to provide reliable slurry transfer.
The Rubber Hoses is an optional discharge piping solution designed for the transportation of abrasive slurry, sediment, sludge, and solid-laden liquids from submersible slurry pumps.
The flexible rubber hoses offers excellent flexibility and impact resistance, making it easier to install, route, and reposition around uneven terrain, bends, and temporary pumping sites. It is particularly suitable for applications where the pump or discharge line needs to be frequently moved or adjusted, such as dredging, mining, construction dewatering, sediment removal, and temporary slurry pumping operations.
Available in different diameters and lengths, the Rubber Hoses can be supplied with suitable flanges and connection fittings to meet different pump configurations and site requirements.
What applications can the Hydroman 65TJQ3-50H4A Submersible Slurry Pump be used for?

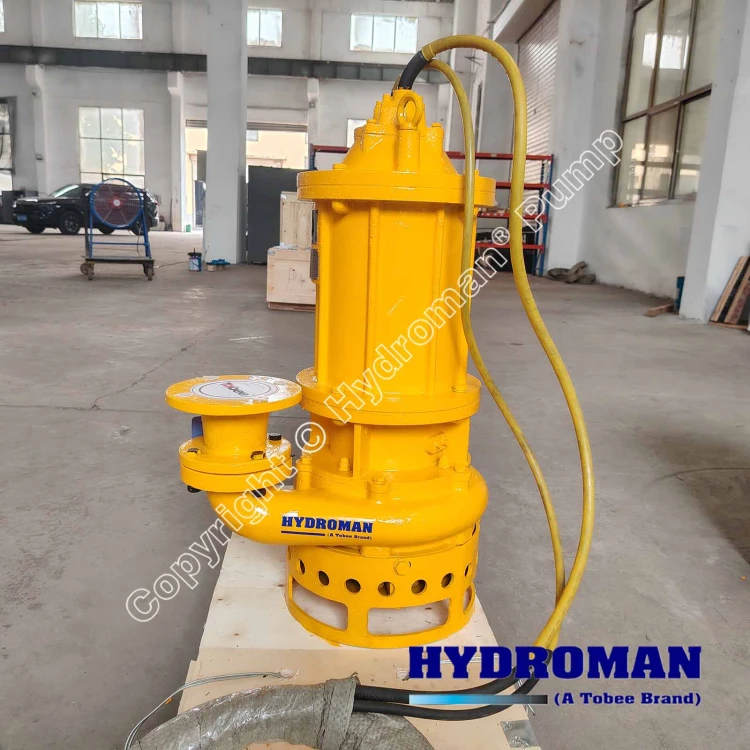

Dredging & Sediment Removal: The 65TJQ3-50H4A is well suited for removing and transporting sand, silt, mud, and sediment from rivers, lakes, reservoirs, canals, harbors, and other waterways. It can be used for channel maintenance, harbor dredging, sediment removal, and underwater excavation.
Construction & Dewatering: The 65TJQ3-50H4A can be deployed at construction pits, foundations, excavation sites, and other areas where slurry or sediment accumulates. Its submersible design allows direct operation in pits and sumps for pumping liquids.
Marine & Offshore Applications: The fully submerged design makes the pump suitable for underwater construction, marine sediment removal, barge unloading, caisson and bulkhead clean-out, and other offshore operations where conventional surface-mounted pumps may be difficult to install.
Mining & Tailings Handling: In mining operations, the pump can be used for ore slurry transfer, tailings reclamation, settling tank clean-out, coal slurry handling, and mineral sediment removal. Its wear-resistant wet-end components are designed to withstand abrasive solids commonly encountered in mining applications.

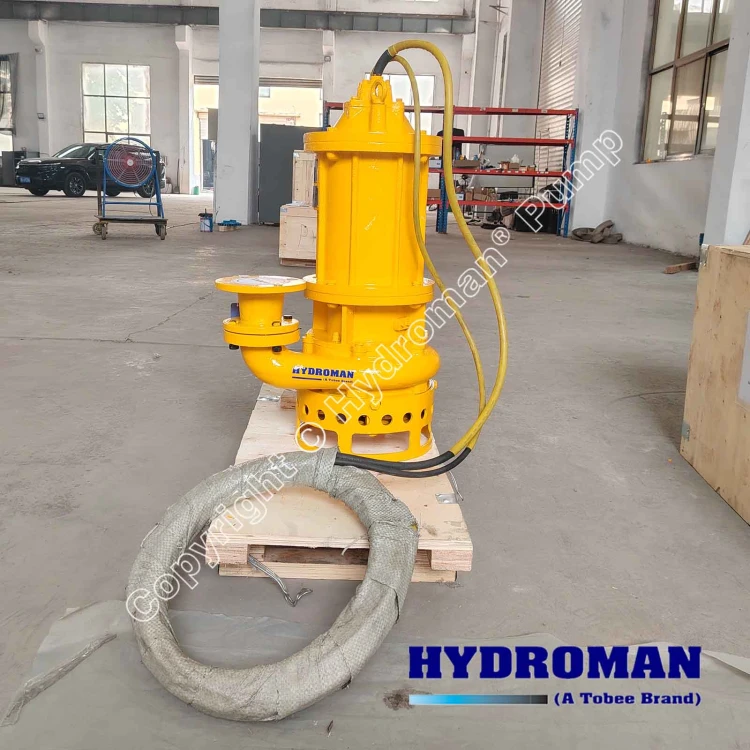

Sand & Gravel Processing: The pump can efficiently transport sand, gravel, and other solid-laden slurry, making it suitable for sand extraction, gravel mining, sand washing plants, and sediment recovery applications.
