Hydroman® Electric Submersible Slurry Pump Specifications
Hydroman® Electric Submersible Slurry Pump Product Description
Hydroman® submersible slurry pump is a heavy-duty electro-submersible centrifugal pump specifically engineered to operate fully submerged in high-density, abrasive, and corrosive liquid-solid mixtures. Unlike standard clear-water or sewage submersible pumps, submersible slurry pumps feature high-chrome wear-resistant metallurgy, reinforced mechanical seal chambers, and often an integral bottom agitator to resuspend settled solids.
Hydroman® Electric Submersible Slurry Pump Design Featuers
High-Abrasive Metallurgy: Wet-end parts (volute casing, impeller, and backplate) are typically cast in 27% High-Chrome White Iron Cr27 or specialized alloy steel hyper-chrome to withstand intense erosion.
Agitator / Cutter Mechanism: Equipped with an external agitator blade mounted below the main suction inlet. The agitator breaks up compacted bed silt and keeps solids suspended for higher particle pick-up concentration.
Double Mechanical Seals: Housed in an oil chamber between the motor and pump end, featuring to prevent slurry ingress into the motor housing.
Class H Insulation & Thermal Sensors: Submersible electric motors are sealed to IP68 rating, featuring moisture detection probes and thermal protection to prevent overheating when operating under high load or partial submergence.

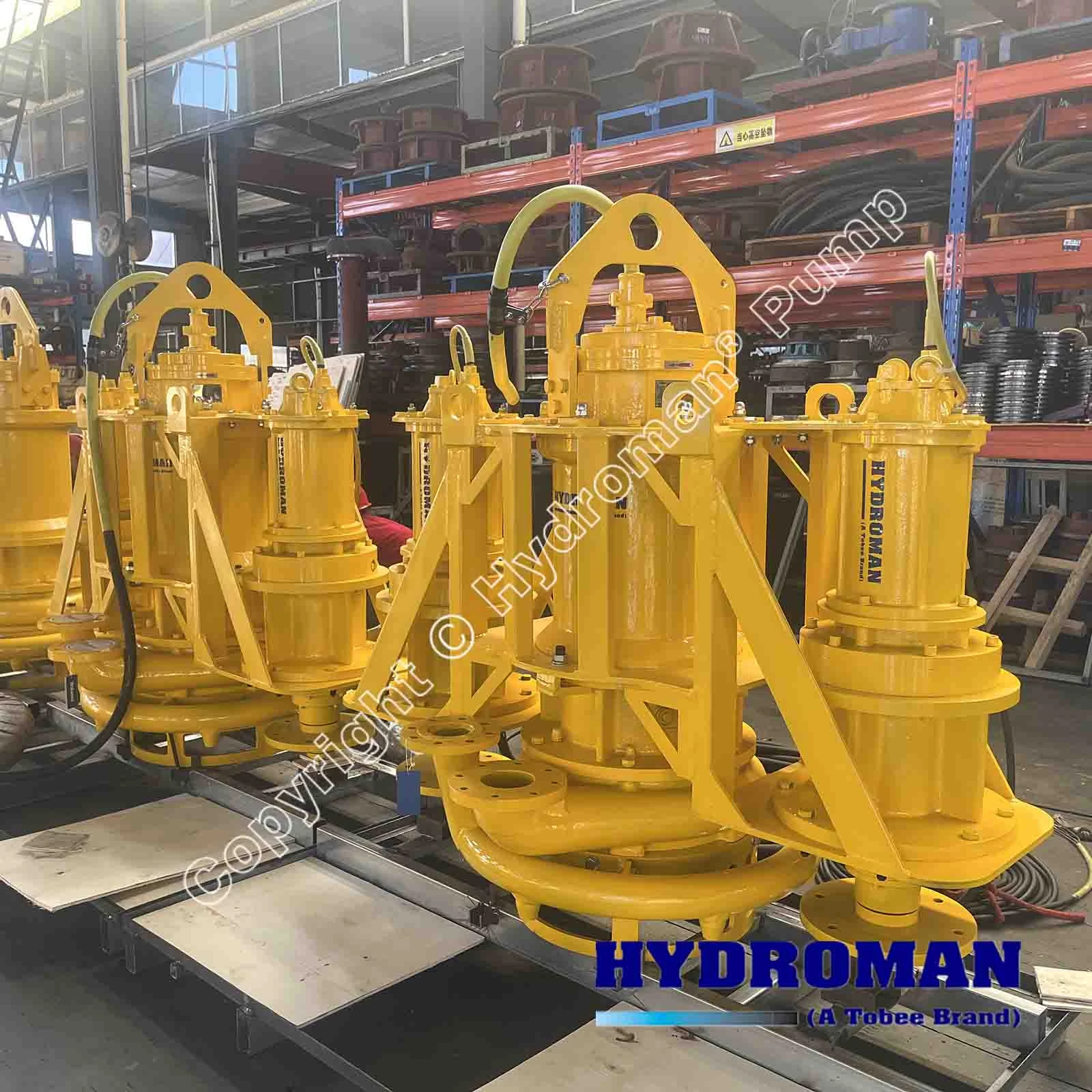

Hydroman® Electric Submersible Slurry Pump with Jet Ring and Side Agitators
Hydroman® Submersible Slurry Pump Operating Advantages vs. Cantilever Sump Pumps
No Shaft Length Limits: Eliminates the physical depth restrictions, shaft deflection, and bearing alignment issues typical of long vertical cantilever shaft pumps (e.g., SP/SPR series).
Simplified Installation: Requires minimal superstructure—can be suspended via crane, guide rail system, or pontoon/barge setup.
Flexible Submergence: Operates continuously at variable sump levels without risk of dry shaft seal burnout when fitted with a cooling jacket.

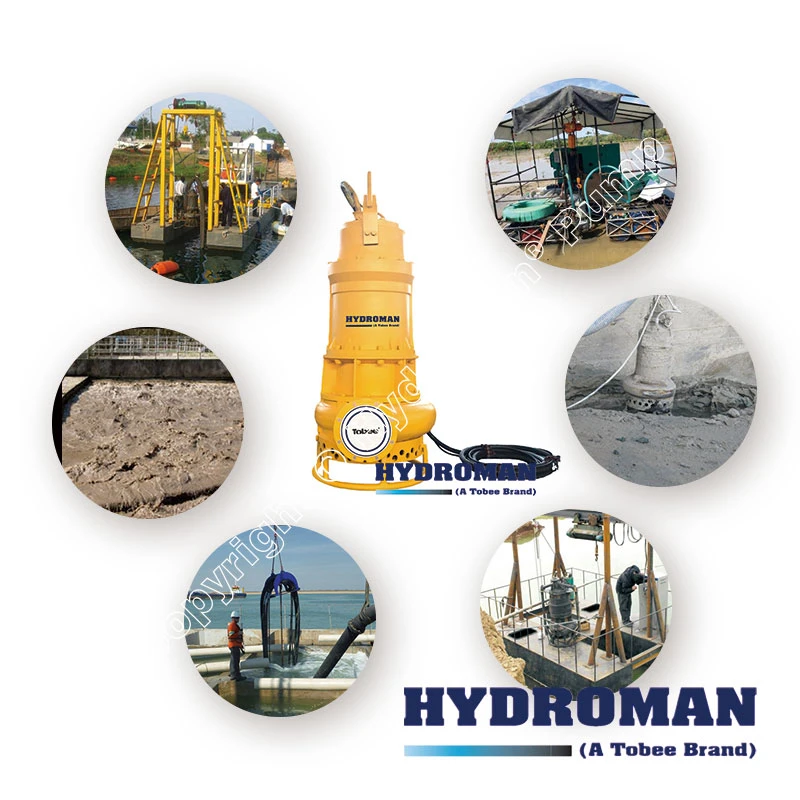

Hydroman® Submersible Slurry Pump Typical Applications
Tailings Storage Facilities (TSFs): Pumping settled mineral tailings, reclaim water with high solids content, and decant pond management.
Mill Sumps & Overflow Pits: Handling SAG/ball mill spillage, cyclone overflow, and thickener underflow where floor sumps flood unpredictably.
Underground Mine Dewatering: Clearing stage sumps containing drill cuttings, blasted rock fines, and acidic mine drainage (AMD).
Flotation & Concentrate Transfer: Handling dense mineral slurries (gold, copper, iron ore, coal refuse) without requiring priming suction loops.
Riverbed & Pond Sand Extraction: Extracting silica sand and fine gravel directly from water bodies using bottom agitators or cutter heads.
Harbor, Canal & Basin Dredging: Clearing silt, mud, and maintenance sediment from marina slips and shipping channels.
Pontoon-Mounted Excavation: Suspended from floating barges or excavator booms to clear settled sediment without building land-based pump foundations.

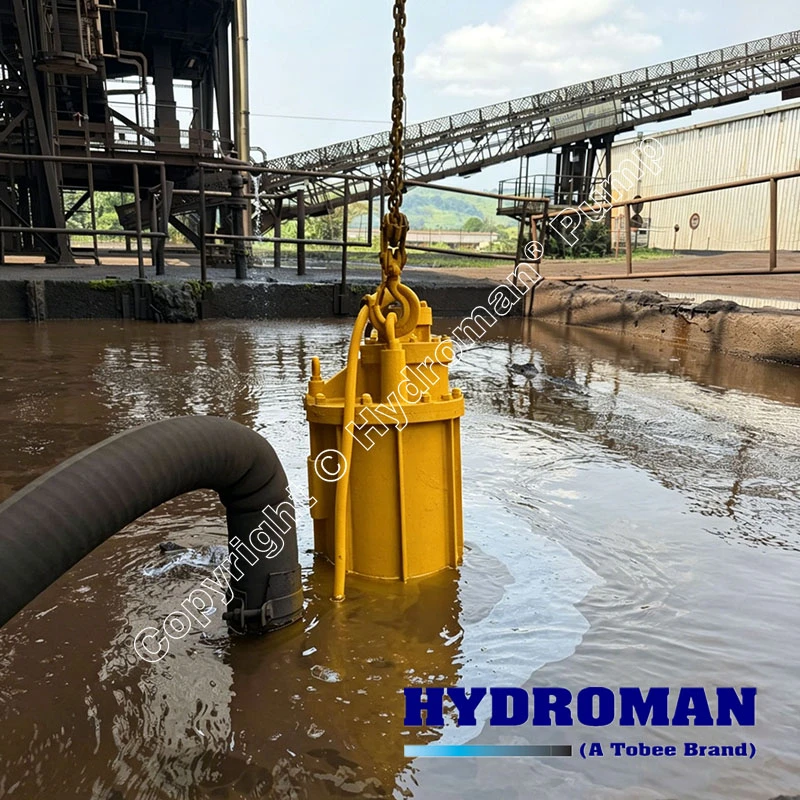

Hydroman® Submersible Dredge Pump on-site Applications
Scale Pits (Steel Production): Pumping abrasive heavy mill scale, slag particles, and cooling water mixtures beneath rolling mills.
Fly Ash & Bottom Ash Sumps: Handling highly abrasive coal ash slurries from boilers in coal-fired power plants.
Foundry Sumps: Cleaning out sand casting residue and heavy metallic sludge pits.

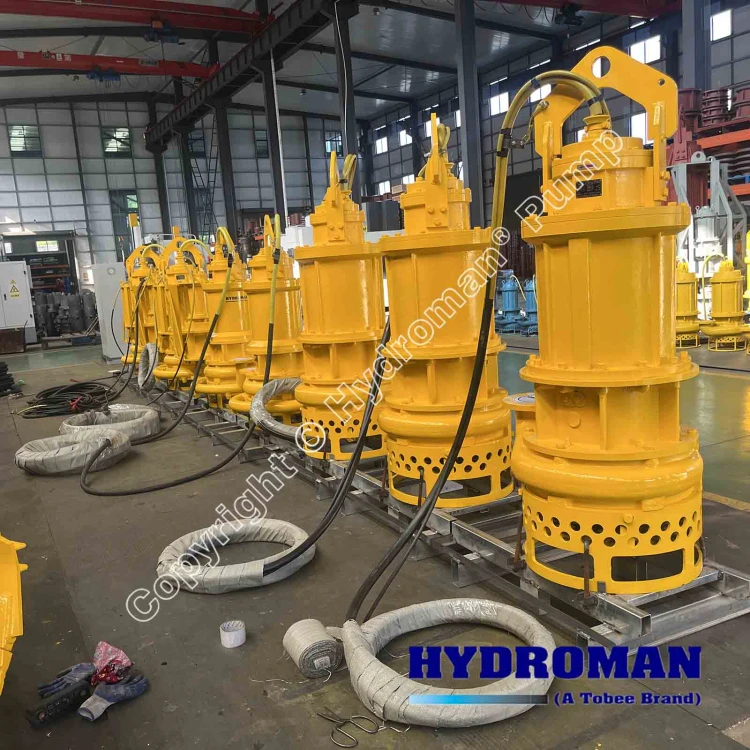

Bentonite Slurry Handling: Circulating and recovering heavy bentonite clay slurries used in diaphragm wall construction and micro-tunnelling / TBM operations.

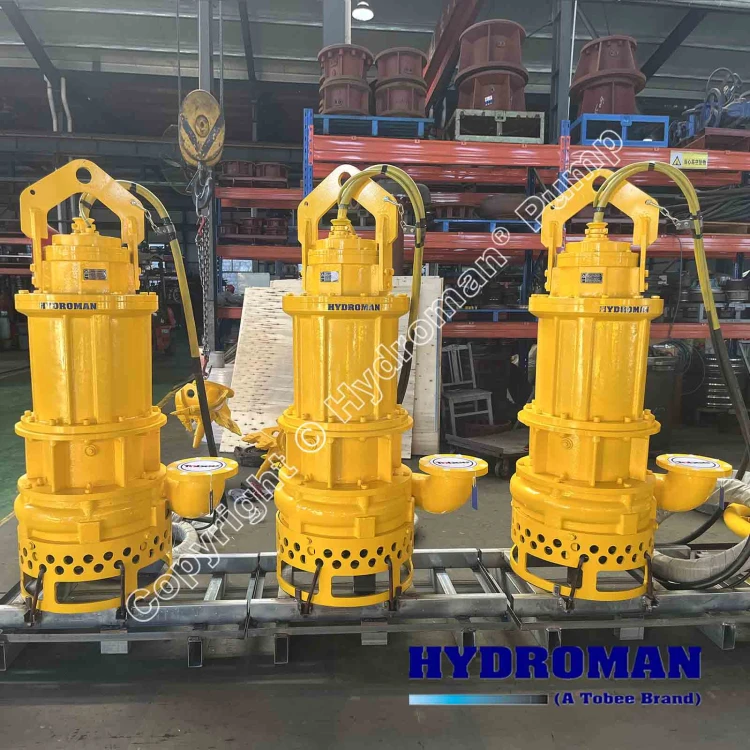

Deep Excavation Pit Dewatering: Pumping coarse sand, mud, and water out of foundations, cofferdams, and deep shaft excavations.
Caisson & Bridge Pier Sinking: Agitating and pumping out bottom mud during deep foundation caisson installation.
Toxic Lagoon Cleanouts: Dredging industrial waste lagoons, sludge ponds, and tailing dams where toxic vapors make dry excavation unsafe.
Paper & Pulp Waste: Pumping high-density wood pulp waste, lime mud, and sediment sumps.
