Hydroman® TBZ45.5 Pond Pump
When you're standing at the edge of a pond that needs draining before winter, or you're specifying equipment for a commercial water-transfer system, you don't want a pump that half-does the job. You want something you can lower into the water, switch on, and trust to keep moving water for as long as the task takes. That's exactly what the Hydroman® TBZ45.5 is built for.
The TBZ45.5 is an electric submersible pond pump designed to work fully underwater — no priming, no external suction line, no dry-run guesswork. You place it directly in the pond, tank, or collection basin, and the pump's own weight and sealed motor housing let it operate right where the water is. For anyone searching for a submersible water pump for pond use, an electric pond pump for continuous circulation, or an outdoor submersible water pump rated for unattended field duty, this is the kind of machine you're looking for.
What is the Hydroman TBZ45.5 used for? In practice, you'll find it moving water between ponds, draining flooded excavation pits, circulating water in aquaculture and irrigation ponds, and transferring water out of storage basins and collection sumps.
Where can it be installed? Anywhere the pump can be fully or near-fully submerged — natural ponds, lined water storage ponds, concrete pits, and temporary dewatering points on a job site.
Is it suitable for outdoor use? Yes. The motor housing, cable gland, and seal arrangement are built for continuous outdoor submersion, not just occasional indoor use, which is why contractors specify it for open-air ponds and drainage projects rather than light-duty utility pumps.
How Does a Submersible Pond Pump Work?
Unlike a surface pump that has to pull water up through a suction hose — and fight air locks and priming loss the whole way — the TBZ45.5 sits in the water itself. There's no suction piping to lose prime, no footvalve to clog, and no pump room to build. You lower it in, connect the discharge line, and it starts moving water from the moment power reaches the motor.
Inside the sealed housing, an electric motor spins an impeller at speed. That rotation throws water outward by centrifugal force, pulling more water in through the intake and pushing it out through the discharge port under pressure. It's a simple, well-proven mechanism, and it's why centrifugal design remains the standard for submersible centrifugal pond pump applications where reliability matters more than novelty.
Because the pump is already immersed in the fluid it's moving, there's very little energy lost to suction lift. For pond-to-pond transfer, tank filling, or continuous circulation, that translates into steadier flow and lower running costs over long duty cycles compared with an equivalent surface-mounted unit.
5.5 kW electric drive. Built for sites with a stable three-phase power supply, the motor is sized to handle sustained duty rather than short bursts — the kind of load profile you get from pond drainage and continuous circulation work.
Submersible design. Underwater operation means direct installation with no suction piping, a smaller equipment footprint on site, and less exposed hardware for debris or weather to damage.
Centrifugal pump construction. The enclosed impeller and volute casing are engineered for consistent hydraulic performance across the pump's rated curve, not just at one ideal operating point.
Heavy-duty construction. A cast iron body and impeller, together with a stainless steel shaft, give the TBZ45.5 the wall thickness and corrosion resistance to stay in the field — not just the workshop — for extended periods.
Easy installation and maintenance. Lifting handle, sealed cable entry, and a discharge connection sized to standard pipe fittings mean you can get it into the water and back out again for servicing without special tools.
Hydroman® TBZ45.5 Submersible Pond Pump Curve
TBZ45.5 Submersible Pond Pump Specifications
You'll get the most out of this pump when you match it to your actual site conditions rather than buying on power rating alone. Here's what defines the TBZ45.5 as a piece of equipment:
| Parameter | TBZ45.5 |
| Pump Type | Submersible Pond / Centrifugal Pump |
| Drive Type | Electric, 3-phase submersible motor |
| Motor Power | 5.5 kW |
| Installation | Fully submerged, vertical |
| Impeller Type | Enclosed centrifugal / semi-open, non-clog |
| Protection Class | IP68 |
| Speed | 1450 / 2900 rpm (voltage and pole configuration dependent) |
| Solids Passage | Up to approx. 8.5 mm, depending on impeller configuration |
| Cable | Submersible-rated rubber sheathed cable, standard 10 m (custom lengths available) |
| Discharge Connection | Flanged or threaded, sized to project requirement |
| Cooling | Self-cooled by surrounding liquid |
| Construction | Cast iron pump body and impeller, stainless steel fasteners and shaft |
Because a 5.5 kW submersible unit in this class typically delivers somewhere in the range of 105 m³/h of flow against heads of roughly 16–23 metres — the actual duty point shifting depending on impeller trim and discharge size — we size every TBZ45.5 to the flow and head your site actually needs rather than quoting one number that fits nobody. If you already know your target flow rate and lift, our team will confirm the exact performance curve before you order.
Where Is a Submersible Pond Pump Used?
Pond water transfer. Moving water from one pond to another, or from a pond into a holding tank, is one of the most common jobs for this pump class — and one where a dependable submersible water pond pump saves you the cost of a temporary surface-pump setup.
Outdoor water drainage. When a pond, retention basin, or excavation needs to be emptied out in the open, an outdoor submersible water pump rated for continuous exposure does the job without a pump house or shelter.
Pond water circulation. In aquaculture ponds and ornamental water features that rely on circulation to maintain oxygen levels and water quality, the TBZ45.5 runs continuously with minimal supervision.
Water storage and collection ponds. Reservoirs, collection ponds, and storage tanks that need periodic or continuous transfer benefit from a pump that's already positioned where the water is.
Large pond and commercial water systems. For sites that need genuinely large submersible pond pumps — agricultural operations, aquaculture farms, or industrial process water systems — the TBZ45.5's 5.5 kW rating puts it a step above residential-grade drainage pumps while still being manageable for a two-person install.
How to Choose the Right Submersible Pond Pump Size
Getting the size right up front saves you from under-delivering on flow — or paying for capacity you'll never use.
Determine your required flow rate. Work backwards from how much water you need moved and how quickly: pond volume divided by your target drain-down time gives you a flow rate in m³/h to design around.
Calculate your required head. Add up the vertical lift from the pump to your discharge point, then account for pipe friction losses, bends, and any valves in the line, plus outlet pressure if you're discharging into a pressurized system. Undersizing head is the single most common reason a pond pump underperforms on site.
Check your discharge pipe size. A pump rated for high flow will underperform if it's forced through an undersized discharge line — match pipe diameter to the pump's discharge port, not the other way around.
Consider your water quality. Ponds with sand, sediment, or suspended solids need a pump with adequate solids passage and wear-resistant materials; clean water applications have more flexibility in impeller choice.
If you're not sure where your numbers land, send us your pond volume, required drain time, and total lift, and we'll confirm the right size submersible pond pump for the job before you buy.

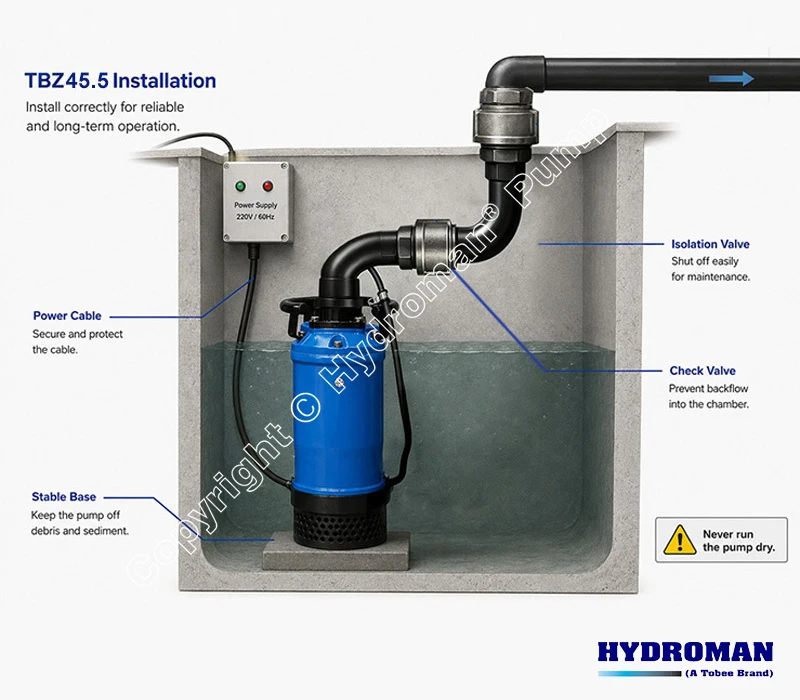

Installation of the TBZ45.5 Submersible Pond Pump
TBZ45.5 Submersible Pond Pump Maintenance
Keeping a submersible pump running well is mostly about staying ahead of what the water brings with it. Inspect the intake regularly for debris, sediment, or vegetation that can restrict flow. Check the impeller periodically for wear or partial blockage, especially in ponds with sandy or silty water. Look over the cable, cable gland, and electrical connections for any sign of abrasion or moisture ingress. And after extended duty cycles — particularly in ponds with higher solids content — plan a cleaning interval that matches how hard the pump has been working, rather than a fixed calendar date.
TBZ45.5 vs. Other Submersible Pump Types
Not every submersible pump is built for the same job, and choosing the wrong category costs you either performance or money. Here's how the TBZ45.5 compares with the pump types people most often confuse it with.
| Comparison | Submersible Pond Pump (TBZ) | Sump Pump | Sewage & Effluent Pump |
| Typical application | Continuous pond transfer, circulation, drainage | Intermittent basement/pit dewatering | Raw sewage, wastewater with solids |
| Solids handling | Light debris, sediment | Minimal — clear or lightly soiled water | High — designed for rags, solids, fibrous waste |
| Duty cycle | Continuous / long-run duty | Short, automatic on/off cycles | Continuous or intermittent, heavy-duty |
| Installation | Ponds, basins, open water bodies | Sump pits, crawl spaces | Lift stations, sewage wet wells |
| Typical power range | 1.5-15 kW | 0.25–1.5 kW | 3.7–75 kW |
Submersible pond pump vs. sump pump. A sump pump is built for small, automatic jobs — clearing a residential sump pit when the float switch trips. It's not designed for sustained flow or the higher heads a pond transfer job usually needs. The TBZ45.5, by contrast, is built to run for hours at a stretch.
Submersible pond pump vs. sewage & effluent pump. Effluent and sewage pumps are engineered around solids-handling — passing rags, sludge, and larger debris without clogging. The TBZ45.5 is a clean-to-moderately-soiled water pump; if your application genuinely involves raw sewage or high-solids effluent, you'll want a dedicated sewage & effluent pump from our range rather than pushing a pond pump beyond its intended duty.
Submersible pond pump vs. surface pump. A surface pump sits outside the water and has to draw water up through a suction hose, which means priming, a shorter practical suction lift, and more exposed piping to maintain. The TBZ45.5 skips all of that by working from inside the water itself.
 |
|
| Model (50/60Hz) | TBZ45.5 |
| d (mm) | 100 |
| A (mm) | 283 |
| A1 (mm) | 208 |
| B (mm) | 686 |
| D (mm) | 252 |
| H (mm) | 590 |
| W1 (mm) | 150 |
| N.W (Kg) | 77 |
| G.W (Kg) | 84 |
| Packing dimension(mm) | 750x350x360 |
You're not just buying a motor and an impeller — you're buying a pump that's engineered to keep running when it's out of easy reach, underwater, on a job site or in a working pond. The TBZ45.5 gives you an electric submersible design rated at 5.5 kW, true centrifugal pumping performance, and direct submerged installation that cuts out the piping and priming problems of surface alternatives. It's built with industrial-grade materials for outdoor water transfer duty that's meant to last seasons, not weeks.
Beyond the pump itself, Hydroman® supports OEM and customized configurations when your application calls for a non-standard discharge size, cable length, or impeller trim. Our technical team is available for sizing support before you order, and spare parts and aftersales service are organized so a worn seal or impeller doesn't turn into weeks of downtime.
What is a submersible pond pump? It's a pump designed to operate fully immersed in the water it's moving — pond, tank, or basin — rather than sitting outside the water and drawing it up through a suction line.
How does a submersible pond pump work? An electric motor inside a sealed, waterproof housing drives a centrifugal impeller. The impeller's rotation pulls water in and forces it out under pressure through the discharge port, with the surrounding water also cooling the motor.
Is the TBZ45.5 suitable for outdoor ponds? Yes — it's built with sealed cable entries, corrosion-resistant materials, and an IP68-rated motor housing specifically for continuous outdoor submersion.
What size submersible pond pump do I need? That depends on your pond volume, how quickly you need to move or drain the water, and your total head including pipe friction losses. Send us those numbers and we'll confirm the right model and configuration.
What is the difference between a pond pump and a sump pump? A sump pump is built for short, automatic dewatering cycles in small pits, typically at much lower power and flow. A pond pump like the TBZ45.5 is built for continuous, higher-volume duty in open water.
Can an electric pond pump run continuously? Yes, when it's sized correctly for the duty and supplied with stable power — continuous circulation and long drain-down cycles are exactly what this class of pump is designed for.
Can a submersible pond pump handle dirty water? The TBZ45.5 is built for clean to moderately soiled water with light sediment and debris. For raw sewage or high-solids effluent, a dedicated sewage & effluent pump is the better fit.
How do I maintain a submersible pond pump? Regular intake checks, periodic impeller inspection, monitoring the cable and seals, and cleaning on a schedule matched to your water quality and duty cycle.
How do I choose the right flow and head for a pond pump? Calculate flow from your pond volume and target drain time, then calculate head from vertical lift plus pipe friction, bends, and valves — undersizing head is the most common cause of disappointing flow on site.
Get a Quote for Hydroman® TBZ45.5 Submersible Pond Pump
If you're ready to move forward, tell us a few details and we'll come back with the right configuration and a formal quote:
Whether you need a single TBZ45.5 for a pond project or a batch of large submersible pond pumps for a commercial site, our team will help you land on the right size the first time.
