2 HP Electric Dewatering Pump
When water shows up where it shouldn't — in a foundation pit, a trench, a quarry sump, a flooded basement — your schedule stops until it's gone. That's the problem the Hydroman® TBZ21.5 submersible dewatering pump was built to solve. It's a compact, 2 HP electric submersible dewatering pump engineered to sit directly in the water, start pulling it out immediately, and keep running through the kind of gritty, unpredictable conditions that break lesser pumps.
You may also see this same pump listed under the model number KBZ21.5. That's not a coincidence or a different product — TBZ21.5 and KBZ21.5 describe the same submersible dewatering pump configuration, just under two model designations that Hydroman uses across its product range. If you were searching for one and landed on the other, you're in the right place.
Below, you'll find the full specification sheet, the engineering behind it, where it fits on your job site, and how it compares to the pumps you might already be considering.
Why the TBZ21.5 Is Built the Way It Is
A lot of buyers assume bigger horsepower always means better performance. In practice, a submersible dewatering pump 2 HP class like the TBZ21.5 is the sweet spot for small-to-medium dewatering tasks — pits, trenches, sumps, basement flooding — where you need reliable flow without the extra weight, extra current draw, and extra cost of an oversized unit. It's one of the reasons this size shows up so often on searches for a small submersible dewatering pump that still performs like an industrial tool.
The TBZ21.5 reaches 22 m of maximum head. That matters more than it sounds like it should. On paper, a lot of dewatering pumps advertise their rated head and quietly bury the maximum figure. When you're pulling water out of a deep excavation or pushing it up and over a berm to a drainage point, it's the maximum head number that tells you whether the pump will actually do the job. This is one reason the TBZ21.5 gets searched for specifically as a high head submersible dewatering pump — it's built to still be useful once the easy jobs are done.
The pump body and motor housing are cast iron — heavy, rigid, and resistant to the kind of knocks a pump takes getting dragged in and out of a pit day after day. Inside, the semi-open impeller is made from a high-chrome alloy and paired with a wear plate, which keeps hydraulic clearances tight even after the impeller has been chewing through water carrying grit, sand fines, or small construction debris. That combination is what separates a submersible pump for dewatering from a pump that's only rated for perfectly clean water.
Submersible means submersible — not "splash resistant." The TBZ21.5 carries an IP68 protection rating with a sealed motor housing, and the mechanical seal is specifically designed to hold up under the pressure of continuous submerged operation rather than just tolerating it for a few cycles. Combined with Class F insulation on the motor windings, it's built for the pump to sit in water for the length of a shift, not just dip in and out.
One detail that's easy to miss on a spec sheet: the discharge channel is routed to assist in cooling the motor as water passes through the pump. That's a meaningful design choice for continuous-duty dewatering, where a pump can run for hours without a break and heat buildup is the thing that actually shortens a motor's life — not the water itself.
The 50 mm outlet sits on top of the unit. It's a small layout choice with a real payoff on-site: less to snag on debris at the bottom of a pit, a shorter, simpler hose run, and easier installation in the tight, awkward corners of a sump or trench where you don't have room to work around a side-mounted outlet.
At 2 HP with a compact cast iron housing, the TBZ21.5 is genuinely portable between pits, sumps, and drainage points on the same site — you're not calling for a crane or a second set of hands every time the water source moves.

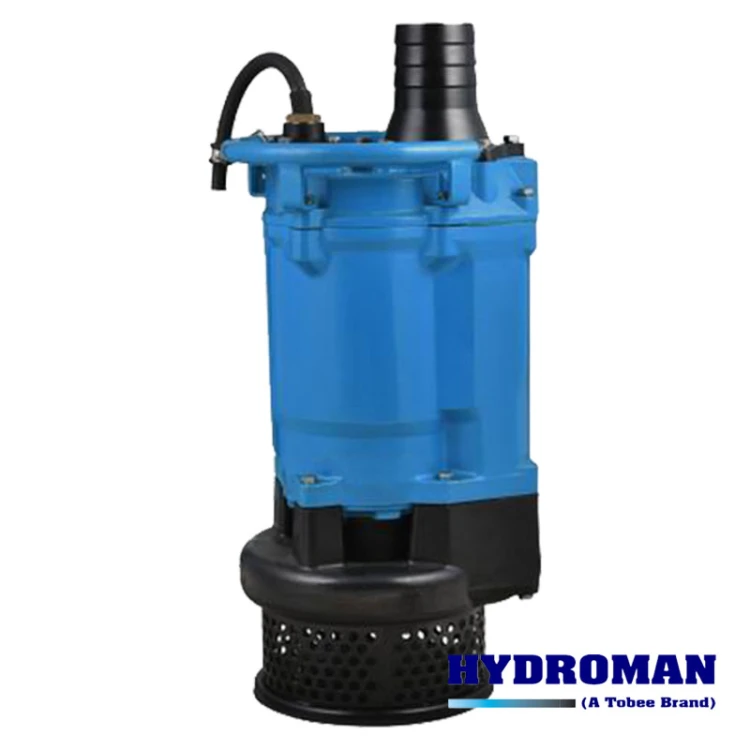

Hydroman® TBZ21.5 Submersible Dewatering Pump
TBZ21.5 Submersible Dewatering Pump — Full Specifications
Before you read another word of marketing copy, here are the numbers you actually came for.
| Parameter | TBZ21.5 | Pump type | Submersible dewatering pump |
| Model | TBZ21.5 (equivalent to KBZ21.5) | Outlet diameter | 50 mm (2") |
| Motor power | 1.5 kW / 2 HP | Frequency | 50 Hz |
| Rated current | 3.5 A at 400 V | Rated capacity | 15 m³/h |
| Rated flow | 0.25 m³/min | Rated head | 15 m |
| Maximum capacity | 27 m³/h | Maximum flow | 0.45 m³/min |
| Maximum head | 22 m | Impeller passage | 8.5 mm |
| Maximum immersion depth | 25 m | Liquid temperature | Up to 40℃ |
| Protection class | IP68 | Insulation class | F |
| Cable length | 10 m | Application | Dewatering, drainage, water removal |
If you're comparing this against other 2 HP units on the market, those numbers hold up well: a 15 m³/h rated capacity with 22 m of maximum head gives you enough push to lift water out of a moderately deep pit and still move it a reasonable distance across a site, without stepping up to a bulkier 3 HP or 5 HP unit you don't actually need.
It's a simpler mechanism than most people expect, and understanding it helps explain why submersible units outperform surface pumps in flooded conditions.
You lower the TBZ21.5 directly into the water source, fully submerged. The electric motor spins the semi-open impeller, which pulls water in through the inlet and throws it outward using centrifugal force. That water gets accelerated through the pump casing and pushed out through the 50 mm top discharge outlet into your hose or pipeline. As long as the pump stays covered by water, this cycle continues without you needing to prime it — the water around the pump does that job automatically, which is the core advantage a submersible pump for dewatering has over a surface-mounted alternative that needs suction lift and external priming to get started.
| Liquid / Condition | Suitability |
| Clean water | Excellent |
| Slightly contaminated water | Suitable |
| Construction runoff | Suitable |
| Water with small abrasive particles | Suitable |
| Mine drainage water | Suitable |
| Quarry drainage water | Suitable |
| Sand-laden water | Depends on concentration |
| Heavy slurry | Not the primary use case |
| Sewage with large solids | Not recommended |
If your water is closer to slurry than dewatering runoff — high sand content, heavy solids, tailings — you'll get better service life and performance from a Hydroman TJQ or TBS slurry pump instead. Matching the right pump to the right liquid is what actually determines how long an impeller lasts, and it's a conversation worth having before you buy, not after the wear plate fails.
Short answer: yes, they're the same pump. Hydroman's TBZ designation covers its submersible drainage and dewatering pump range, and KBZ21.5 is the corresponding model reference for the identical configuration. Same specifications, same construction, same performance curve. If you found this page searching for KBZ submersible dewatering pump, you don't need to look further — everything on this page applies directly.
| Feature | TBZ21.5 Submersible | Conventional Surface Pump |
| Installation | Submerged directly in the water | Positioned outside the water source |
| Priming | Not normally required | Often requires manual priming |
| Space required | Compact, minimal footprint | Needs external installation space |
| Flooded site conditions | Handles them directly | More difficult to set up |
| Piping | Simple discharge connection | Requires suction piping as well |
| Mobility | Easy to relocate between pits | More setup work each move |
| Noise on-site | Lower, since sound is dampened by water | Typically higher |
| Best suited for | Pits, excavations, sumps, flooded areas | Open surface drainage systems |
For anyone weighing an electric submersible dewatering pump against a diesel or gas-driven surface unit, the deciding factor usually comes down to this table — how fast you need to be up and running, and how much site space you actually have to work with.
Water accumulation on a job site isn't just an inconvenience — it's a recognized safety hazard. Under U.S. federal construction safety regulation 29 CFR 1926.651(h), employees are not permitted to work in excavations where water has accumulated or is accumulating unless adequate precautions — including active water removal — have been taken, and any dewatering equipment in use must be monitored by a competent person to confirm it's operating correctly. In practice, that means the pump you choose for excavation dewatering isn't just a productivity tool; it's part of how a site stays compliant and how crews stay safe. It's worth keeping a reliable, correctly sized unit like the TBZ21.5 on hand rather than treating dewatering as an afterthought once water is already rising.
Where the TBZ21.5 Goes to Work
Construction site dewatering is the most common call for this pump — foundation pits, excavation areas, trenches, basement construction, and general site drainage where water needs to come out before crews can go in. It's a genuinely practical dewatering pump for construction crews who need something they can drop in a pit at 7 a.m. and trust through the day.
Mining and quarry drainage is the other major use case — mine drainage, quarry pits, coal mining areas, ore processing zones, and collection sumps, where water accumulates continuously and needs a pump that can run for extended periods without babysitting.
Beyond those two, the TBZ21.5 shows up regularly as a submersible drainage sump pump in utility pits and collection tanks, in municipal and general drainage work including stormwater removal, and as an emergency response tool for flood water removal from basements and low-lying construction areas when water shows up faster than anyone planned for.
This is also worth being direct about: this is not a submersible sewage dewatering pump built for solids-laden wastewater with rags, fibers, or large debris. It's engineered for dewatering and drainage — water that may carry sand fines or small abrasive particles, but not raw sewage or heavy solids. If that's your application, Hydroman's sewage-specific submersible line, built with larger free-passage impellers, is the better fit.

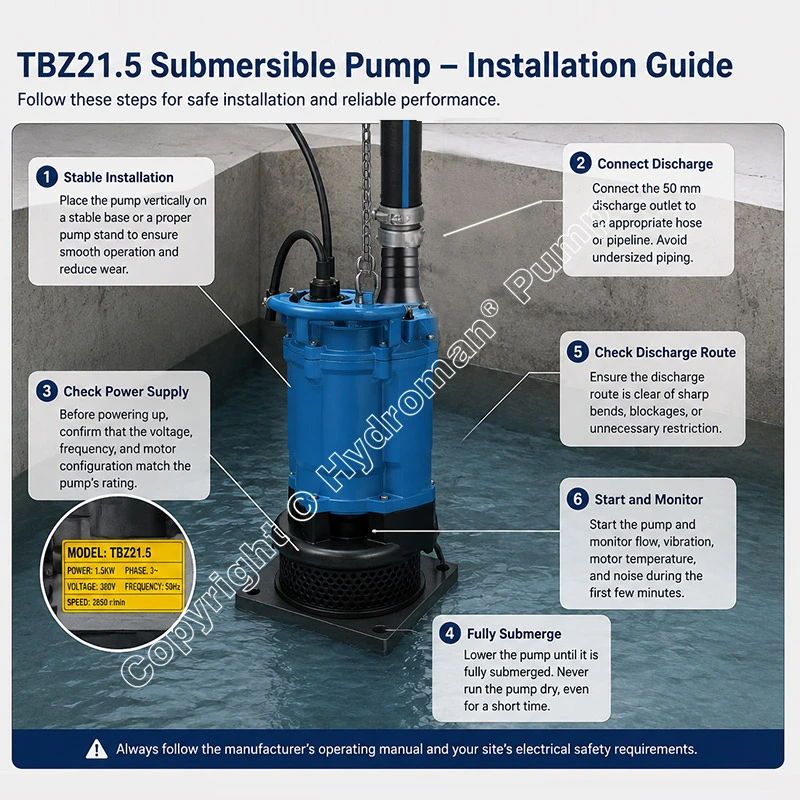

Installation, Step by Step
Getting the TBZ21.5 running correctly isn't complicated, but a few basics make a real difference in performance and service life.
Start by placing the pump vertically on a stable base or a proper pump stand — an uneven or unstable footing is one of the more common (and avoidable) causes of premature wear. Connect the 50 mm discharge outlet to a hose or pipeline sized appropriately for the flow you need; undersized discharge piping will choke performance no matter how strong the pump is.
Before powering up, confirm the voltage, frequency, and motor configuration on-site actually match the pump's rating — a mismatch here is one of the fastest ways to damage a motor. Lower the pump until it's fully submerged; running it dry, even briefly, is hard on the seal and bearings. Check that the discharge route is clear of sharp bends, blockages, or unnecessary restriction, then start the pump and monitor flow, vibration, motor temperature, and noise during the first few minutes of operation.
From there, always follow the manufacturer's operating manual and your site's electrical safety requirements for final setup.

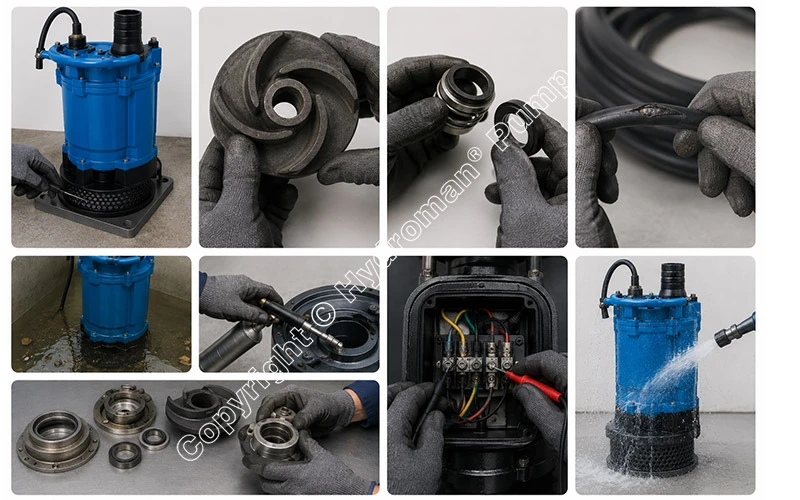

Keeping It Running: Maintenance That Actually Extends Service Life
A submersible dewatering pump earns its keep through uptime, and uptime comes down to a handful of maintenance habits: inspect the impeller and wear plate on a regular schedule, check mechanical seals during planned maintenance rather than waiting for a leak, examine the power cable for cuts or abrasion, and keep the intake area clear of debris.
Bearings should be checked according to schedule, and motor insulation and electrical connections deserve a periodic look before they become a failure. Never run the pump dry, flush it after handling dirty or abrasive water when you can, and when parts do wear out, replace them with compatible Hydroman components to keep the pump performing at its rated specification rather than a degraded version of it.
How to Pick the Right Submersible Dewatering Pump (Using the TBZ21.5 as the Example)
Choosing correctly comes down to five factors, and getting any one of them wrong is usually what leads to a pump that underperforms or wears out early.
Start with your required flow rate — how much water actually needs to leave the site per hour, not a rough guess. Then work out your required head, which is the vertical lift plus whatever friction losses your discharge pipeline adds — a pump rated for 22 m of head won't deliver that if your pipe run eats half of it in friction. Next, be honest about solid content: is this clean runoff, or water carrying real grit and sand? That answer determines whether a dewatering pump like the TBZ21.5 is the right category, or whether you need a slurry-rated unit instead. From there, match motor power to your actual flow and head requirements rather than buying more horsepower than the job calls for, and finally confirm the discharge diameter lines up with your flow needs and existing piping.
Not sure where your job lands on these five points? Send Hydroman your required flow rate, total head, liquid condition, and discharge distance, and you'll get a straight answer on whether the TBZ21.5 fits — or whether a different pump in the range is the better call.
Frequently Asked Questions
What is the Hydroman TBZ21.5?
A 1.5 kW / 2 HP electric submersible dewatering pump with a 50 mm discharge outlet, built for construction, mining, quarry, and general drainage applications.
Is the TBZ21.5 the same as the KBZ21.5?
Yes. They're the same submersible dewatering pump configuration under two model references.
How much water can the TBZ21.5 move?
Rated capacity is 15 m³/h, with a maximum capacity of 27 m³/h.
What's the maximum head?
22 m maximum head, with a rated head of 15 m.
Is it suitable for construction dewatering?
Yes — foundation pits, excavations, trenches, and general construction site drainage are its core use cases.
Is the TBZ21.5 a 2 HP submersible dewatering pump?
Yes, it runs on a 1.5 kW / 2 HP motor at 400 V, 50 Hz.
Can it handle slurry?
It can manage water with small abrasive particles, but it's designed for dewatering and drainage, not heavy slurry. For high-solids or heavy slurry applications, Hydroman's TJQ/TBS slurry pump range is the better fit.
What's the outlet size?
50 mm (2").
What's the maximum immersion depth?
25 m under specified operating conditions.
Is the TBZ21.5 submersible dewatering pump for sale, and what does it cost?
Yes — it's available directly from Hydroman. Submersible dewatering pump price depends on your voltage/frequency configuration, cable length, quantity, and shipping destination, so contact Hydroman with your project details for an accurate quote rather than a generic list price.
Get a Quote for the Hydroman TBZ21.5
Looking for a dependable submersible dewatering pump manufacturer for your next construction, mining, quarry, or drainage project? Reach out to Hydroman with your required flow rate, head, pumping liquid, solid content, discharge distance, voltage, frequency, and quantity, and you'll get a configuration and quote suited to your actual site conditions.
Contact Hydroman for the TBZ21.5 Submersible Dewatering Pump
Source referenced: U.S. Occupational Safety and Health Administration, 29 CFR 1926.651(h) — Specific Excavation Requirements, Protection From Hazards Associated With Water Accumulation, osha.gov.
