150TBS49 Submersible Electric Mud Pump
If you've ever stood at the edge of a bentonite slurry pit watching a pump choke on grit, or waited half a shift for a surface pump to re-prime after losing suction in muddy water, you already know why so many contractors and plant engineers are switching to submersible electric mud pumps. You don't need another pump that "mostly" handles solids. You need one that goes into the slurry, stays there, and keeps moving mud hour after hour without babysitting.
That's the job the Hydroman 150TBS49 was built for.
There's a real difference between a general-purpose sump pump and a true electric mud pump, and it matters the moment your water stops being clean. A sump pump is designed around drainage water — light debris, low solids, occasional grit. A mud pump is designed around the opposite assumption: that what you're moving is thick, abrasive, and full of suspended solids from the first minute of operation to the last.
The 150TBS49 sits in the submersible mud pump category for a reason. You lower it directly into the pit, sump, or slurry tank, and it goes to work below the surface — no long suction lines running across your site, no priming routine every time the water level drops, no separate suction pump feeding a surface unit. If you've searched for "how does a mud pump work" before choosing equipment, the honest answer for this design is simple: the motor drives a shaft, the shaft turns a high chrome alloy impeller, and that impeller — paired with an agitator — pulls settled mud and slurry into motion so it can actually reach the pump rather than sitting on the bottom of your pit while cleaner water gets pumped around it.
The Engineering Behind the 150TBS49
The 150TBS49 runs on a 4-pole submersible motor. In practical terms, that's a lower running speed than the 2-pole motors you'll find on cheaper mud pump electric motor packages, and lower speed means less wear on the impeller, wear plate, and shaft seals when you're pumping abrasive slurry day after day. It's a deliberate trade-off in favor of service life over sheer speed, and it's the same reasoning behind the electrical motors electric mud pump buyers in mining and civil engineering tend to favor once they've burned through a couple of high-speed units.
This is where the 150TBS49 earns its keep on heavy slurry. The impeller is cast from high chrome alloy — the same family of wear-resistant material used across Hydroman's submersible slurry pump range — giving it meaningfully better abrasion resistance than standard cast iron or bronze impellers when particle content climbs. Bolted alongside it is an agitator, which stirs settled mud and bentonite cake so it re-suspends into the flow instead of building up around the pump and starving it of intake. For a bentonite slurry pit during foundation drilling, or a settling pond that's had solids sitting for days, that agitator is often the difference between a pump that clears the pit and one that just carves a hole around itself.

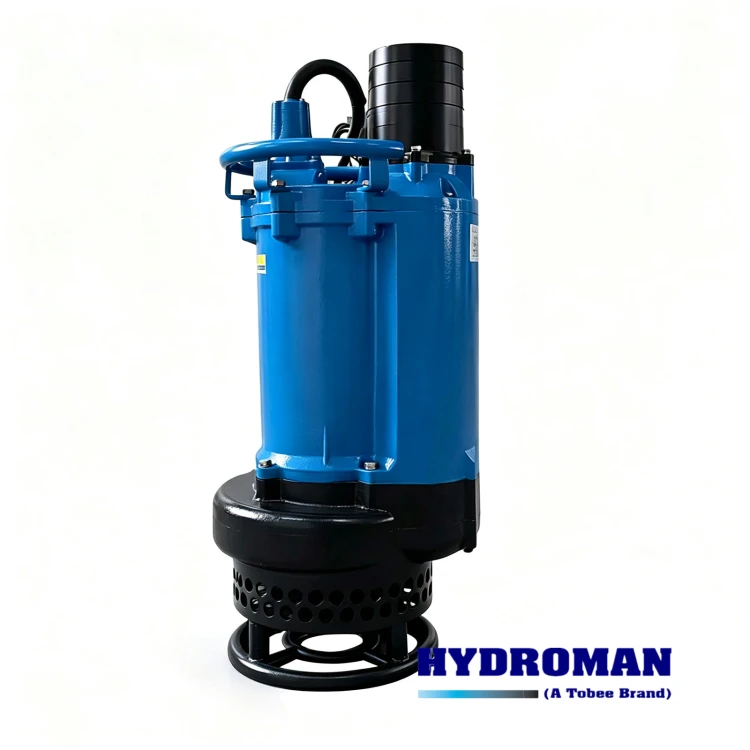

Space on a jobsite is never as generous as the drawings suggest. The 150TBS49 uses a slim vertical mud pump body with the discharge outlet on top rather than the side, which lets you drop it into a narrower casing or a tighter excavation shaft than a bulkier side-discharge unit would allow. If you're working inside a caisson, a small-diameter borehole casing, or a confined dewatering pit, this is one of the more underrated reasons contractors choose this model over a wider footprint alternative.
TBS Electric Mud Pump Curve
Indicative Technical Parameters
Exact figures depend on voltage, frequency, and the specific slurry you're handling, so treat the table below as a starting reference rather than a final spec sheet — confirm your operating conditions with Hydroman before ordering.
| Model | Outlet | Motor power | Starting metdod | Rated current (380V) | Rated capacity | Rated head | Max capacity | Max head | Impeller passage | |||
| (50/60Hz) | mm | kW | HP | A | m³/h | m³/min | m | m³/h | m³/min | m | mm | |
| 150TBS49 | 150 | 9 | 12 | D.O.L. | 19.5 | 100 | 1.67 | 15 | 192 | 3.20 | 21.5 | 30 |
These numbers sit in line with published performance bands for comparable 150mm-class submersible slurry pumps across the industry, which typically run 9 kW motors to deliver 100 m³/h at heads under roughly 21.5 metres — the flow-and-head envelope most bentonite and construction dewatering jobs actually need, without over-specifying a pump that's larger (and pricier) than the application calls for.
| 150TBS49 Submerged Mud Pump | Conventional Surface-Mounted Mud Pump | |
| Installation | Submersible, lowered directly into the slurry | Mounted above ground with suction piping |
| Priming | Not required during normal operation | Often required after any suction loss |
| Footprint | Slim, top-discharge — fits tighter casings | Larger footprint, more site space needed |
| Solids handling | Built-in agitator re-suspends settled mud | Depends heavily on suction line design |
| Site setup | Minimal piping, faster to deploy | Suction lines add setup and failure points |
Where the 150TBS49 Actually Gets Used
Civil engineering and foundation works. Diaphragm walls, bored piles, and slurry trench construction all generate bentonite-mixed water that has to move fast and continuously. This is the core use case the pump was engineered around — bentonite slurry handling on active foundation sites.
Mines and quarries. Slurry sumps at crushing and screening plants, tailings transfer, and general ore-slurry drainage all fall within reach of the 150TBS49's abrasion-resistant build.
Sewage treatment plants. Sludge pits and solids-laden basins benefit from the same submerged, no-priming operation that makes this pump useful on a construction site.
General muddy-water pumping. Excavation pits, temporary dewatering, pond and tank cleanout — anywhere you'd otherwise be fighting a pump that wasn't built for solids.
Buying an Electric Mud Pump: What Actually Affects Price
Electric Mud Pump vs. Conventional Surface Mud Pump
If you're comparing electric mud pump price or submersible mud pump price across suppliers, the number on the page rarely tells the full story. Two pumps with the same 150mm discharge size can carry very different price tags depending on:
Before you request an electric mud pump price or ask a supplier for an electric mud pump for sale quote, it's worth having your flow rate, head requirement, and slurry characteristics (solids concentration, particle size, specific gravity) ready. Suppliers — Hydroman included — can size a pump properly only when they know what you're actually pumping, not just the pipe diameter you want to connect to.
Why Buy From Hydroman
Hydroman has built its name specifically around submersible slurry pumps, sand pumps, sludge pumps, and heavy-duty electric mud pumps for exactly the industries the 150TBS49 serves — civil engineering, mining, and industrial dewatering. As a manufacturer rather than a reseller, Hydroman can support:
If you're sourcing a submerged mud pump supplier for an ongoing project rather than a single unit, that manufacturer relationship tends to matter more than the spec sheet — it's what keeps replacement parts and matching units available years down the line.
150TBS49 Electric Mud Pump Dimensions & Weights
 |
Item | Value |
| Model (50/60Hz) | 150TBS49 | |
| d (mm) | 150 | |
| A (mm) | 434 | |
| A1 (mm) | 324 | |
| B (mm) | 889 | |
| B1 (mm) | 727 | |
| D (mm) | 407 | |
| H (mm) | 776 | |
| W1 (mm) | 250 | |
| N.W (Kg) | 171 | |
| G.W (Kg) | 183 | |
| Packing dimension (mm) | 470x470x1045 |
How does a mud pump work?
An electric mud pump uses a motor-driven impeller to create centrifugal force that pulls mud or slurry into the pump housing and pushes it out through the discharge. On a submersible model like the 150TBS49, an agitator also stirs settled solids so they re-enter the flow instead of accumulating around the intake.
Is the 150TBS49 the same as the 150KBS49?
Yes — the 150TBS49 and 150KBS49 share the same core design, hydraulic performance, and construction. The naming difference reflects configuration variants rather than a change in pump capability, so the specifications, features, and application guidance in this article apply to both models.
What's the difference between a submersible mud pump and a vertical mud pump?
In practice, most submersible mud pumps — including the 150TBS49 — are also vertical mud pumps by design: the motor sits above the pump end on a shared vertical shaft, and the whole unit is lowered into the liquid rather than mounted horizontally on a base.
Can this pump handle bentonite slurry?
Yes. Bentonite-mixed water from foundation drilling and diaphragm wall construction is one of the primary applications this pump was designed for, thanks to the high chrome alloy impeller and integrated agitator.
Does the 150TBS49 work on both 50Hz and 60Hz power?
Yes, it's available in 50Hz and 60Hz configurations, so confirm your site's power supply and voltage when requesting a quote.
What information do I need to get an accurate electric mud pump price?
Flow rate, discharge head, slurry density and solids content, particle size, voltage/frequency, and quantity. With those details, Hydroman can confirm the right configuration and issue an accurate quote rather than a generic price range.
Ready to Move Your Mud, Not Fight It?
Send Hydroman your flow, head, and slurry conditions, and get a configuration recommendation for the 150TBS49 — or a comparable model from the wider submersible mud pump range — built around your actual jobsite, not a generic spec sheet.
