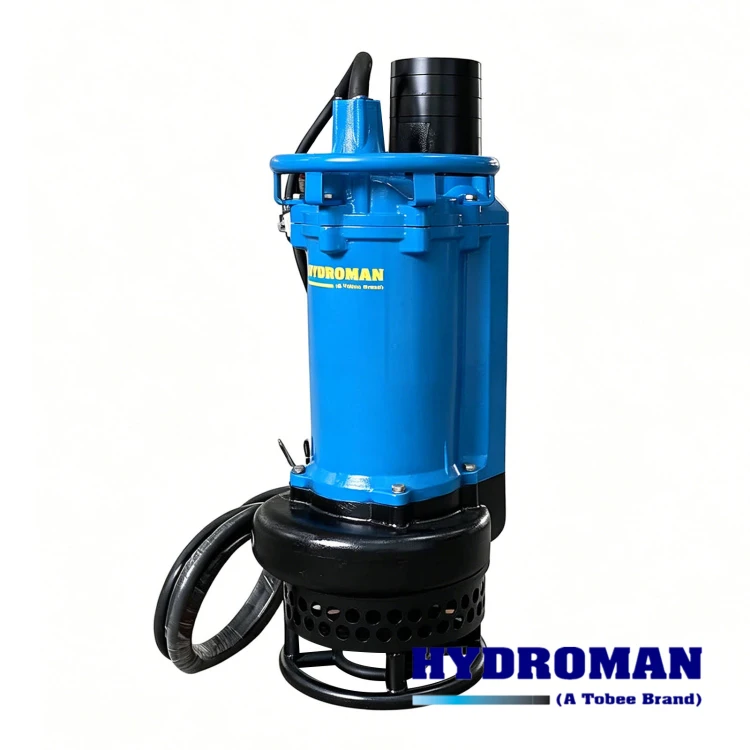

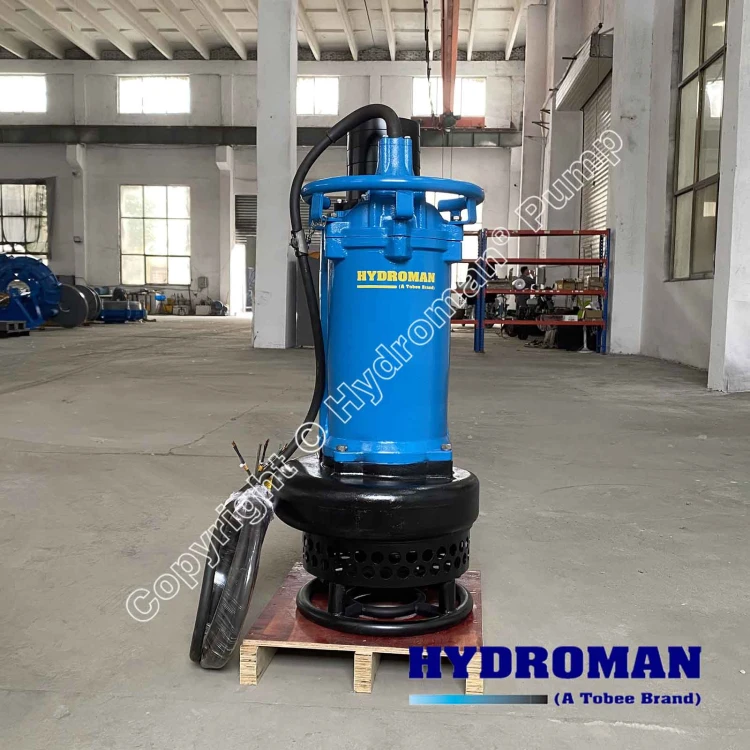

100TBS46 Submersible Sludge Pump Description
When you're standing at the edge of a settling pond, a mine sump, or a wastewater tank full of thick, gritty sludge, you don't need a pump that "might" handle it — you need one built for exactly that job. The Hydroman® 100TBS46 is a heavy duty submersible sludge pump engineered to sit fully submerged in high-density sludge, mud, sediment and abrasive slurry, and keep working, shift after shift, in mining, wastewater treatment, construction and industrial sites where ordinary pumps clog, wear out or simply give up.
You get a reinforced, wear-resistant machine with a 100mm discharge and a 6kW motor — enough muscle to move dense, solids-laden media without choking on it. If you're comparing a submersible sludge pump for sale, or looking to replace a unit that keeps failing on you, here's what the 100TBS46 brings to your operation.
Built Heavy, Built to Last: The 100TBS46 Design
You're not buying a light-duty utility pump here. The 100TBS46 (also referenced under the equivalent 100KBS series code in some catalogs) is built around a reinforced pump body, a heavy-duty bearing assembly and a high-strength shaft — the kind of construction that's meant for continuous duty, not occasional use. That matters because sludge handling is rarely a one-off job. Whether you're running returned activated sludge in a treatment plant or dewatering a mine pit, you're asking the pump to run for hours or days at a stretch, submerged, under load.
That's also why Hydroman doesn't treat this as "just another submersible pump." Every heavy duty submersible sludge pump in this range is designed around three things you actually care about: it has to keep pumping when the media is thick, it has to survive abrasive particles without wearing through in weeks, and it has to be serviceable without a crane and a week of downtime.
Standard drainage pumps are built for clean or lightly loaded water. The moment you introduce dense sludge, suspended solids or sediment, they clog, lose efficiency, or overheat. The 100TBS46 is built the other way around — it assumes the media is dirty and designs for it.
Large free-flow passage: lets solids and stringy material pass through instead of jamming the impeller

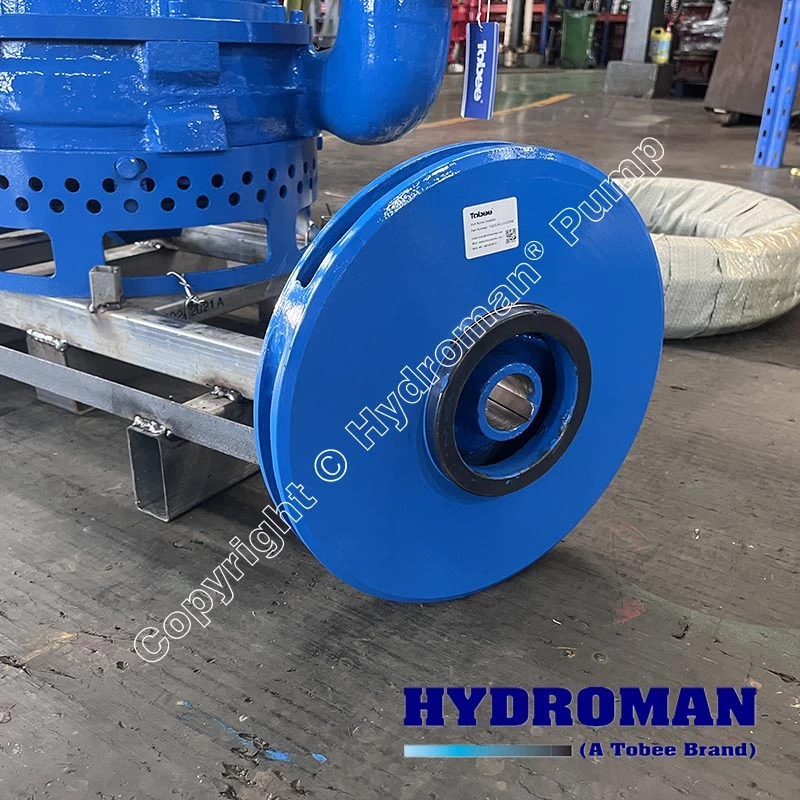

Wear-resistant impeller (high chrome alloy): extends service life when pumping sand, grit and abrasive particles
High-torque motor: keeps the pump moving dense, high-viscosity sludge without stalling
Non-clogging hydraulic profile: reduces the number of times you have to pull the pump to clear a blockage
In practical terms, this is what separates a true submersible pump for sludge from a repurposed dewatering pump: the 100TBS46 is designed to run in media most other pumps can't touch.
Abrasion is what kills most sludge pumps early — sand and grit act like sandpaper on the wet end, and cheaper castings wear through fast. The 100TBS46 uses high chrome alloy (grade A05-type wear material) for the impeller and casing, a hardened shaft, and mechanical seal protection to keep water and abrasive particles out of the motor chamber. This is the same class of wear-resistant construction Hydroman uses across its heavy duty submersible sludge pump and slurry pump lines, where field data shows high-chrome wet ends significantly outlasting standard cast iron in sand- and sediment-heavy service.
The working principle is straightforward, and understanding it helps you see why the pump handles solids so well:
 |

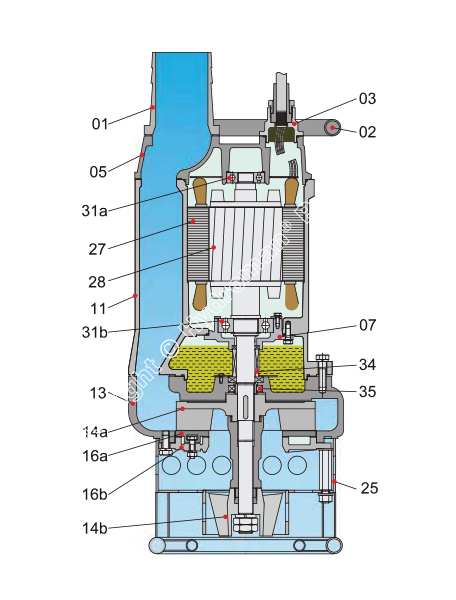

Item No. | Part name | Material | Item No. | Part name | Material | |
| 01 | Hose coupling | Cast iron | 16b | Inlet plate | Cast iron | ||
| 02 | Handle | Steel | 25 | Strainer | Steel | ||
| 05 | Upper cover | Cast iron | 27 | Stator | — | ||
| 07 | Bearing house | Cast iron | 28 | Rotor | Shaft: AISI420SS | ||
| 11 | Motor body | Cast iron | 31a | Bearing | Ball bearing | ||
| 13 | Pump body | Cast iron | 31b | Bearing | Ball bearing | ||
| 14a | Impeller | High chrome alloy | 34 | Mechanical seal | SiC-SiC/SiC-SiC | ||
| 14b | Agitator | High chrome alloy | 35 | Oil seal | Tc-SiC/SiC-SiC (≥15kW) | ||
| 16a | Inlet plate | High chrome alloy | 47 | Cable | — |
Motor → Shaft → Mechanical Seal → Impeller → Pump Casing → Discharge Outlet
The submerged electric motor drives the shaft, which spins the impeller. That rotation creates centrifugal force that draws sludge, mud and suspended solids in through the intake and pushes the mixture out through the discharge line. Because the whole unit works fully submerged, there's no suction lift to fight and no risk of losing prime — you place the pump directly in the tank, sump or pond, and it goes to work.

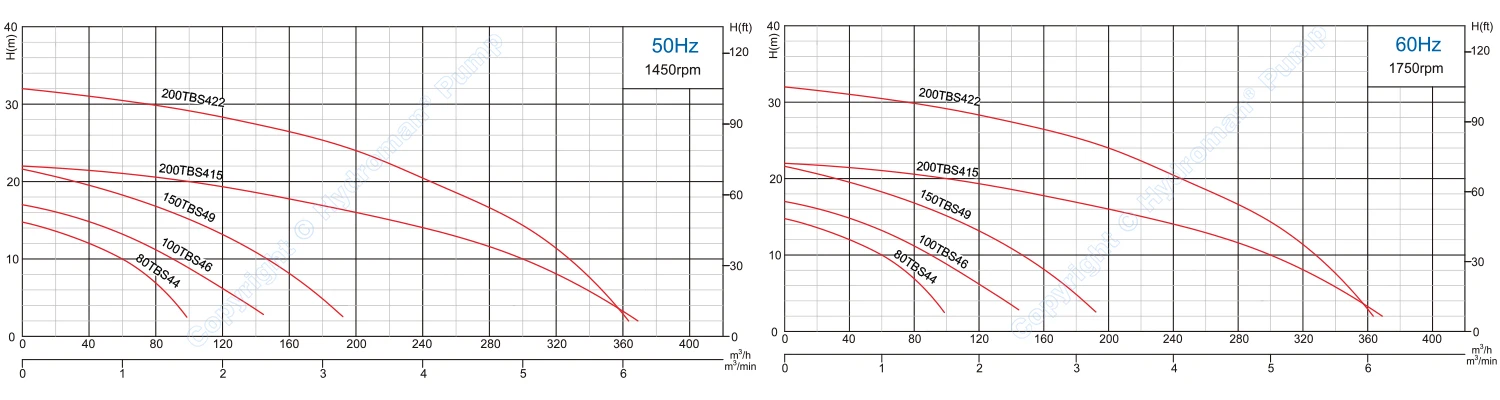

Hydroman® TBS Submersible Sludge Pump Curve
Technical Specifications
| Model | Outlet | Motor power | Starting metdod | Rated current (380V) | Rated capacity | Rated head | Max capacity | Max head | Impeller passage | |||
| (50/60Hz) | mm | kW | HP | A | m³/h | m³/min | m | m³/h | m³/min | m | mm | |
| 100TBS46 | 100 | 6 | 8 | D.O.L. | 13.8 | 90 | 1.50 | 10 | 144 | 2.40 | 16.9 | 30 |
Exact flow, head and free-passage figures vary by impeller and agitator configuration — Hydroman's engineering team can confirm the curve for your duty point.
| Component | Material | Function |
| Impeller | High chrome alloy | Abrasion resistance under solids-laden flow |
| Pump casing | High chrome alloy | Wear protection at the leading edge of erosion |
| Shaft | Stainless steel | Strength and corrosion resistance |
| Mechanical seal | Double SiC/SiC | Prevents leakage into the motor chamber |
| Motor housing | Cast iron | Structural protection, IP68-rated submersion |
You'll notice every wear component is independently replaceable — casing, impeller, wear plate. That's a deliberate design choice, because it means a worn part doesn't mean a new pump. It means a repair.
Where the 100TBS46 Gets Put to Work
This isn't a pump built for one industry. As a genuinely heavy duty submersible sludge pump, it moves between mining, wastewater treatment, construction and general industrial sludge handling without missing a beat.

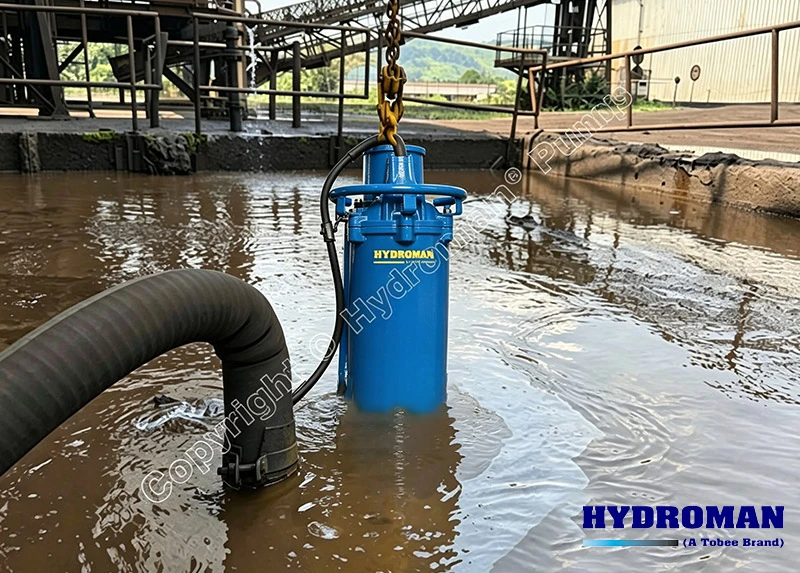

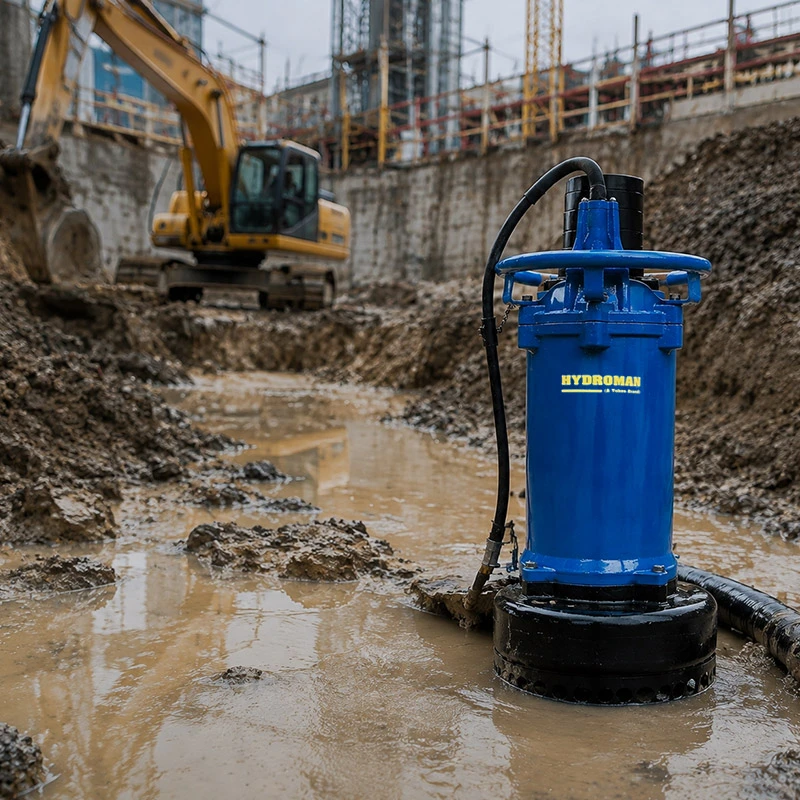

In mining operations, you'll find it pumping tailings, clearing mine wastewater and transferring slurry from settling ponds and pits. In municipal and industrial wastewater treatment, it's used for returning activated sludge, sludge removal from settling tanks, and temporary bypass pumping during maintenance — essentially, it functions as a sewage submersible sludge pump wherever the waste stream carries solid content. On construction sites, it handles excavation drainage, foundation sludge and general mud removal where a standard sump pump would clog within the hour. And across paper mills, chemical plants and steel plants, it's the workhorse for process sludge and industrial slurry transfer.
If your search started with "submersible sludge pump for sale" because your current sump pump or sewage & effluent pump can't keep up with solids, this is the category of pump built specifically for that gap.
Submersible Sludge Pump vs. a Standard Submersible Pump
People often ask what actually separates a submersible sludge pump from the general-purpose submersible pump sitting in the drainage aisle. The honest answer is: everything below the surface.
| Item | Standard Submersible Pump | Hydroman® Submersible Sludge Pump |
| Medium | Clean or lightly loaded water | Sludge, mud, sediment, slurry with high solids content |
| Solids handling | Limited, prone to clogging | High — designed for continuous solids passage |
| Wear resistance | Standard cast iron/plastic | High chrome alloy, wear-resistant wet end |
| Typical use | General drainage, sump pumps | Mining, wastewater sludge, dredging, industrial slurry |
If you're only ever pumping clean water, a standard submersible pump is fine and usually cheaper. The moment solids, grit or high-density sludge enter the picture, that's the line where you need a pump purpose-built for it — otherwise you're replacing impellers and seals every few months.
Installation & Maintenance, in Practice
Getting the pump running correctly and keeping it running are two different conversations, and both matter.
On installation, confirm your power supply matches the motor's electrical requirements before you drop the pump in, keep the unit at the correct submergence depth so the motor stays properly cooled, and route the discharge pipeline so it doesn't create unnecessary back-pressure or sharp bends that invite blockages.
On the maintenance side, a periodic check of impeller wear tells you early whether abrasive media is taking its expected toll, inspecting the mechanical seal catches leaks before they reach the motor chamber, and rinsing the pump after operation — especially after handling corrosive or high-solids sludge — extends the life of every wear component. None of this is complicated, but skipping it is the single most common reason sludge pumps fail early.
Why Buy Your Submersible Sludge Pump from Hydroman
You have options when you're shopping submersible sludge pump manufacturers, so here's the honest case for Hydroman. The 100TBS46 is built for continuous industrial duty, not intermittent use — that's the heavy-duty design difference you're paying for. The wear parts are high chrome alloy specifically because that's what survives abrasive sludge longest, which means fewer replacement cycles and less downtime over the life of the pump. And because sludge handling is rarely one-size-fits-all, Hydroman offers this pump with configurable motor power, alternative wear materials, optional agitators for heavier settled sludge, and custom discharge sizing — so what you install actually matches your duty point instead of being the closest catalog match.
Frequently Asked Questions
What is a submersible sludge pump?
A submersible sludge pump is designed to transfer high-density sludge, mud, sediment and wastewater containing solids while operating fully submerged in the media it's pumping — no external suction line, no priming issues.
What's the difference between a sludge pump and a sewage pump?
Sludge pumps like the 100TBS46 are built for higher solids concentration and more abrasive material — sand, grit, mining slurry. Sewage pumps are generally sized for wastewater carrying organic solids and softer debris, with less emphasis on abrasion resistance.
Can the Hydroman 100TBS46 pump sand and sediment?
Yes. The high chrome alloy wet end and heavy-duty bearing assembly are specifically there to handle sludge mixed with sand and other abrasive particles without premature wear.
Where is a submersible sludge pump typically used?
Mining, municipal and industrial wastewater treatment, construction dewatering, dredging, ponds, and industrial sludge transfer in plants like paper mills and steel mills.
Is the 100TBS46 available as a replacement submersible sludge pump for an existing installation?
In most cases, yes — Hydroman's engineering team can review your current discharge size, motor rating and duty point to confirm fit before you order.
Ready to Move Your Sludge Without the Downtime?
If you're dealing with high-solids sludge, abrasive slurry or a pump that keeps clogging on you, the Hydroman 100TBS46 heavy duty submersible sludge pump is built to solve exactly that problem. Get in touch with Hydroman's engineering team for a duty-point review, a performance curve for your application, and a quote — whether you need one unit or a fleet for a mining or treatment plant project.
Contact Hydroman today to request a quote or technical datasheet for the 100TBS46 submersible sludge pump.
