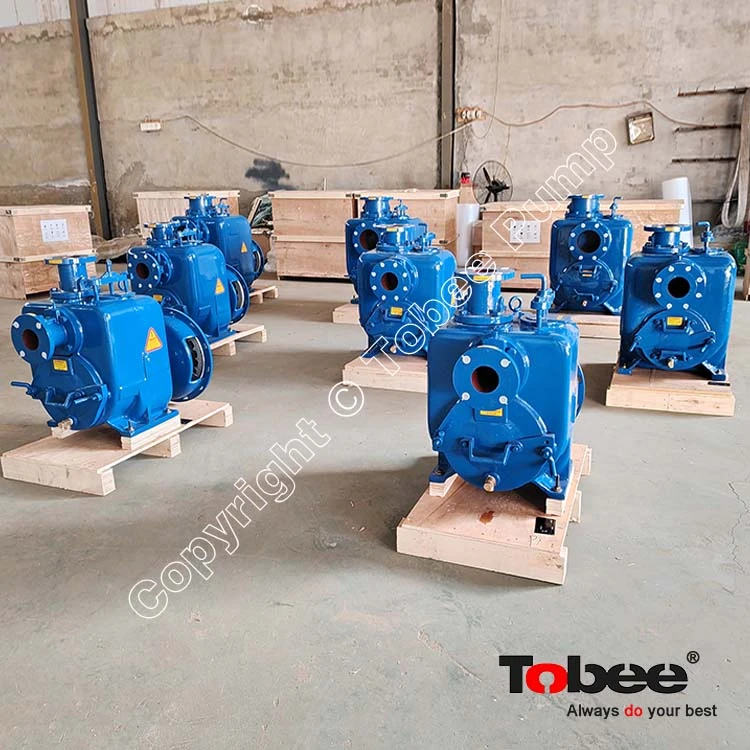

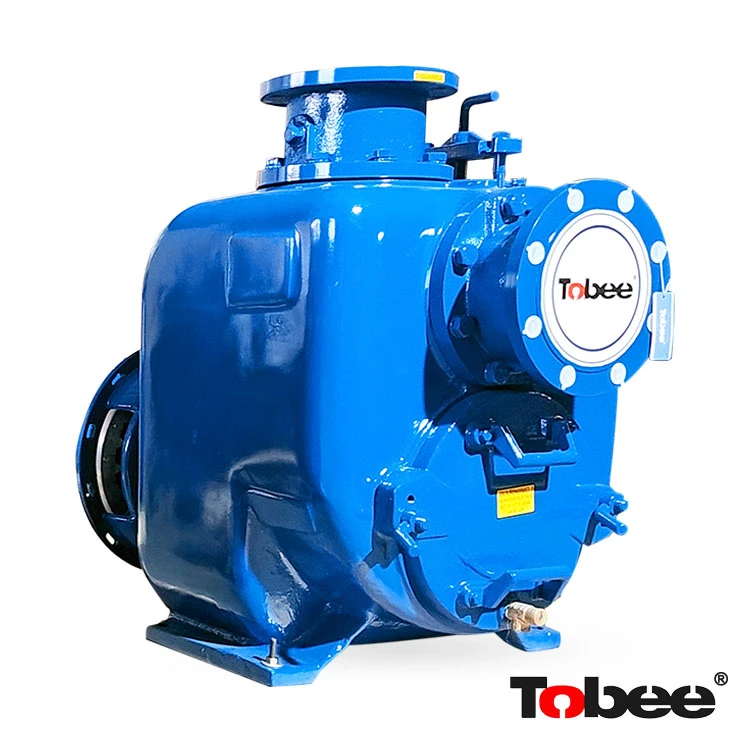

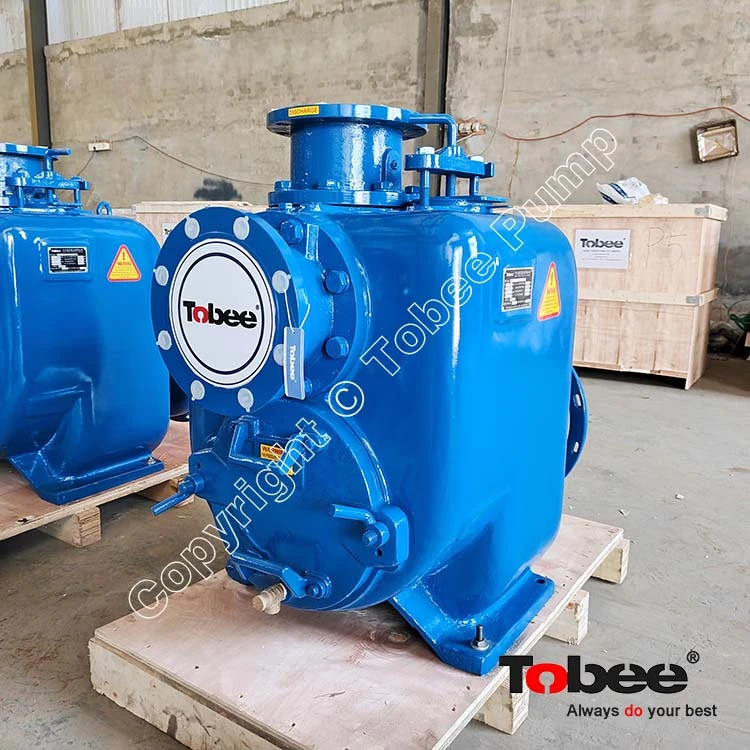

Aeries®TSPH Series High-Efficiency Self-Priming Pump
Aeries® TSPH Series High-Efficiency Self-Priming Trash Pump is an advanced pumping solution designed for applications requiring higher hydraulic efficiency, stable operation, and reliable wastewater transfer performance.
Featuring an optimized multi-vane open impeller design, the TSPH Series delivers excellent pumping efficiency while maintaining strong solids-handling capability.
It is ideal for industrial wastewater, municipal applications, process water transfer, and other fluid handling systems where energy savings and long-term reliability are critical.
With its self-priming capability, back pull-out structure, and above-ground service design, the TSPH Series provides convenient operation, reduced maintenance time, and lower lifecycle costs.

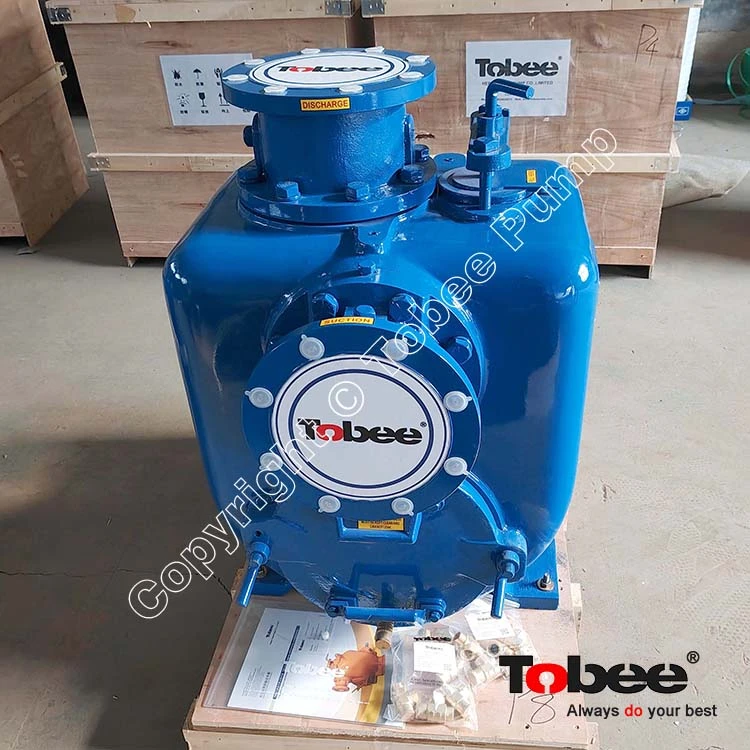

TSPH Self priming Wastewater Pump Highlight
High Efficiency. The TSPH Series adopts an optimized multi-vane open impeller to achieve excellent hydraulic performance and improved energy efficiency. With efficiency reaching up to approximately 75% (depending on model and operating conditions), the pump helps reduce operating costs while maintaining stable flow performance.
Reliable Self-Priming Performance. The advanced self-priming design eliminates the need for foot valves or external vacuum systems. After initial filling of the pump casing, the pump can quickly remove air and establish pumping operation automatically.
Smooth and Stable Operation. The optimized hydraulic design reduces vibration and noise while ensuring continuous and reliable operation in various industrial and municipal applications.
Easy Maintenance Design. The back pull-out structure allows inspection and servicing of internal components without disconnecting the piping system, significantly reducing downtime and maintenance costs.
Flexible Installation Options. The TSPH Series can be installed above ground, making it especially suitable for applications requiring easy access, frequent inspection, or flexible system layout.

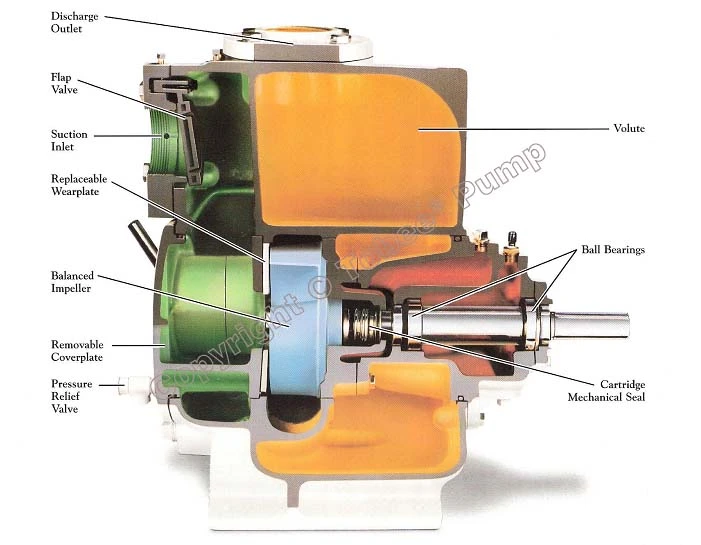

Aeries® TSPH Self-priming Pump Structural Drawing

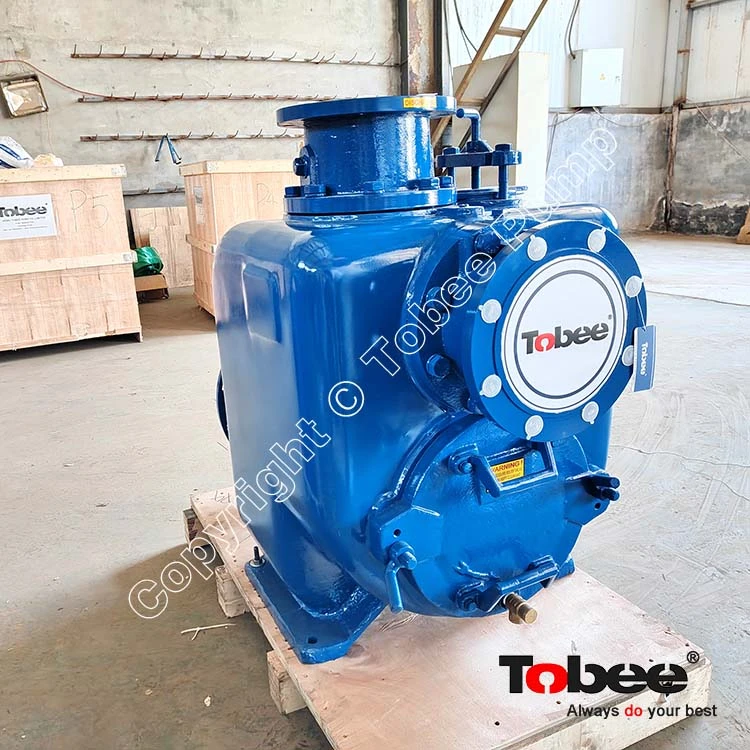

Self Priming Trash Pump Design Features
◆ High-Efficiency Open Impeller. The multi-vane open impeller design provides excellent hydraulic efficiency while allowing the passage of moderate solid particles.
It is suitable for clean water, wastewater, and industrial liquids with limited solids content.
◆ Durable Pump Construction. Heavy-duty materials and precision manufacturing ensure long service life under continuous operation conditions.
◆ Key components include:
Robust pump casing for reliable operation
Wear-resistant internal components
High-quality shaft and bearing system
Reliable mechanical seal for leakage protection
◆ Back Pull-Out Structure. The rotating assembly can be removed easily for inspection or maintenance without disturbing the pump casing or pipeline system, improving service efficiency.
◆ Advanced Mechanical Seal System. The mechanical seal design provides reliable sealing performance and reduces the risk of leakage during long-term operation.
◆ Multiple Drive Options Include:
Electric motor drive
Flexible coupling drive
V-belt drive
Gasoline engine drive
Diesel engine drive
Mobile pumping system
| Conventional Pump | TSPH Series Self priming Pump |
|---|---|
| Requires additional priming equipment | Self-priming design eliminates extra equipment |
| Difficult maintenance after installation | Easy access above-ground servicing |
| Higher energy consumption | Optimized efficiency |
| Limited installation flexibility | Suitable for various fixed and mobile systems |

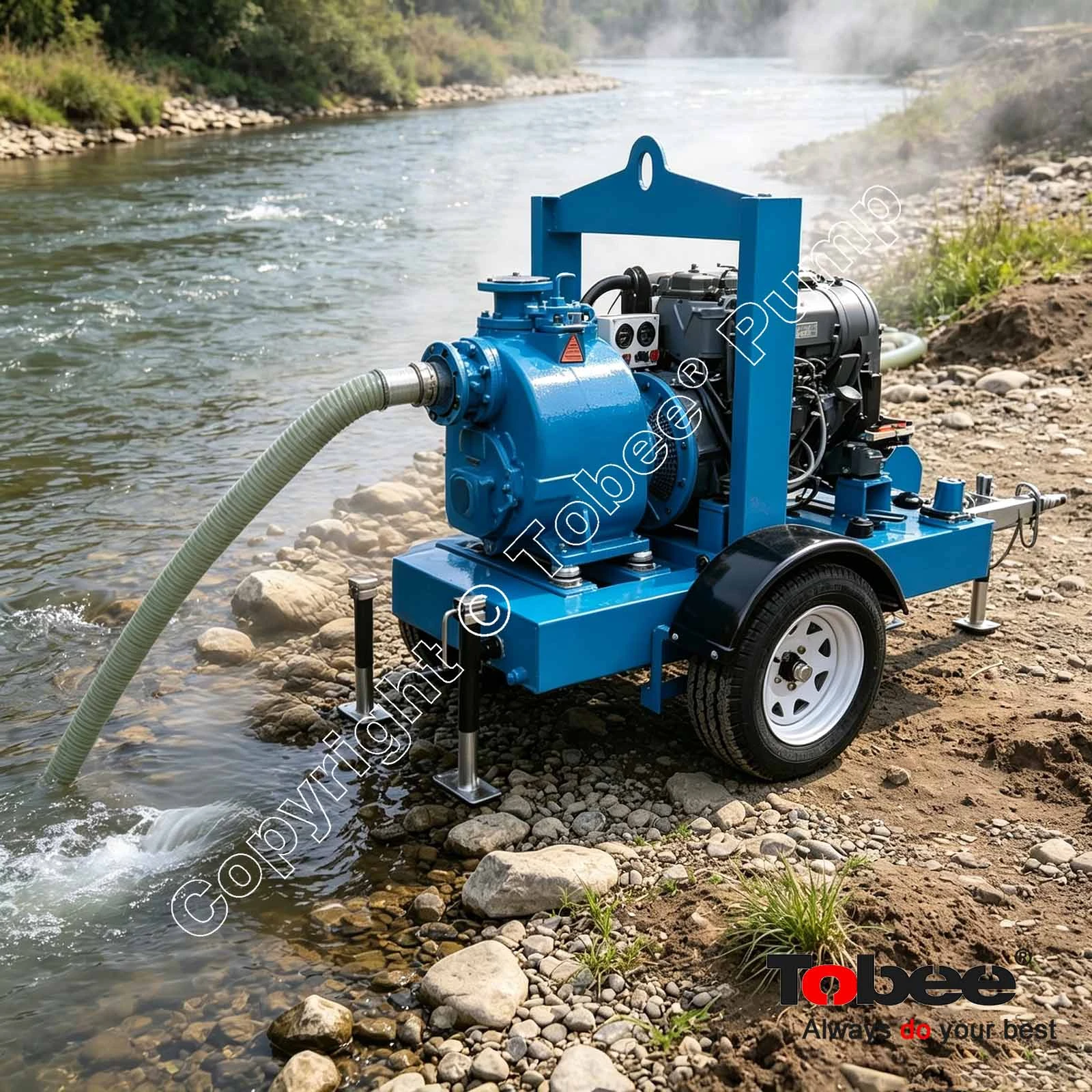

The wide application of TSPH pumps

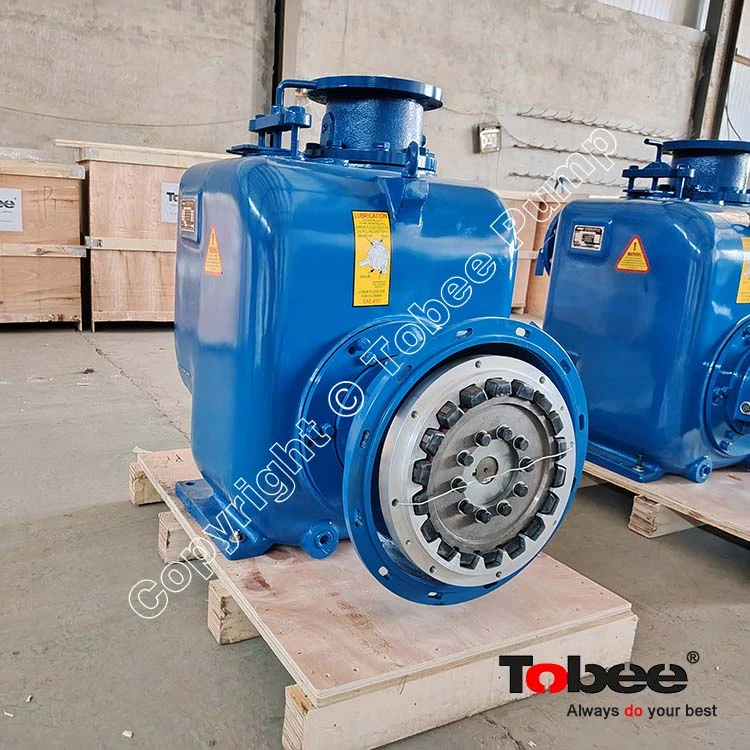

Advantages of SAE Coupling Connection
An SAE coupling is a standardized connection system used to connect diesel engines with pumps, hydraulic equipment, generators, and other driven machines.
SAE standards define: Engine flywheel dimensions; Flywheel housing sizes; Coupling mounting dimensions
Typical Connection:
Diesel Engine Flywheel → SAE Flywheel Housing → SAE Flexible Coupling → Pump Shaft
1. Compact Design. The diesel engine and pump can be directly connected, which provides: Space saving, Higher transmission efficiency
2. Vibration Absorption. The flexible SAE coupling can absorb diesel engine vibration and shock loads, providing:
Reduced vibration
Protection of pump bearings and shaft
Longer equipment service life
3. Easy Maintenance. With standardized SAE dimensions:
Engine replacement is easier
Pump replacement is simpler
No complicated transmission system design is required
Why Choose TSPH Series?
When efficiency, reliability, and easy maintenance are essential, the TSPH Series High-Efficiency Self-Priming Trash Pump provides the ideal solution.
Designed for modern wastewater and industrial applications, TSPH delivers high performance, lower operating costs, and dependable service for years of operation.
Contact us today for pumps specifications, technical information, and project cooperation.
Tobee is specialized in providing solutions for slurry pump, vertical sump pumps, gravel pump, dredging pumps, froth pump, seawater pumps, fire pumps, slurry pump parts and OEM pump parts for your harsh projects.
