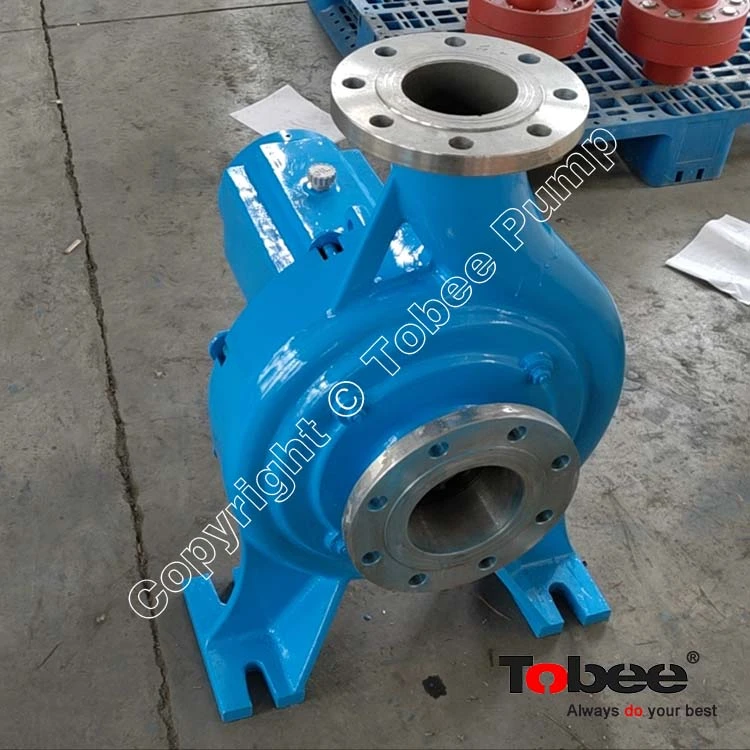

Andman S80-265 Pulp Pumps Description
Andman S80-265 Paper Pulp Pumps are belonging to S series pumps, S Series Pumps are single-stage horizontal centrifugal process pumps. They are the predecessor of the newer ACP series and are widely used in pulp & paper, recycled fiber, chemical, food, energy, water supply and wastewater industries.
Main Spare Parts List for S80-265 Pumps:
| Pos No. | Spare Part Name | Description |
| 102 | Pump Casing / Volute Casing | Main pressure-containing body |
| 161 | Casing Cover / Housing Cover | Front cover of pump |
| 230 | Impeller | Open / semi-open / closed type depending on application |
| 135.1 | Front Wear Lining / Front Insert | Protects casing from wear |
| 135.2 | Rear Wear Lining / Rear Insert | Protects rear casing area |
| 212 | Shaft | Transmits torque to impeller |
| 230 | Impeller | Common replacement item |
| 524 | Shaft Sleeve | Protects shaft at sealing area |
| 433 | Mechanical Seal | Shaft sealing component |
| 451 | Stuffing Box | Packing seal chamber |
| 452 | Gland | Packing compression part |
| 350 | Bearing Bracket / Bearing Housing | Supports bearings |
| 360.1 / 360.2 | Bearing Cover | Bearing protection |
| 642 | Oil Sight Glass | Lubrication monitoring |
| 922 | Impeller Nut | Fixes impeller on shaft |
Andman S Series Paper Stock Pumps
Main Andman S Series Pump Models:
S80-265, S100-265, S125-265, S100-350, S125-350, S150-330, S125-400, S150-400, S200-380, S150-470, S200-470, S250-430, S350-470, S500-600 etc.
Andman S80-265 Pumps for Typical Industries:
Pulp & Paper
White water circulation
Stock preparation
Low consistency pulp transfer
Sugar
Juice transfer
Syrup circulation
Process water
Chemical
Process liquid circulation
Water treatment
Industrial water transfer
Depending on application, S80-265 Pumps Spare Parts Common Materials:
| Pump Parts | Common Materials |
| Impeller | Cast iron, stainless steel, duplex stainless steel |
| Casing | Shaft sleeve |
| Wear lining | Stainless steel / wear-resistant materials |
| Shaft | Stainless steel |
| Shaft sleeve | Stainless steel |
Andman S Series Paper Pumps Pumping Medium
1. With Different Impeller Options
Open impeller
Better for fiber-containing liquids
Reduced clogging risk
Common in pulp applications
Semi-open impeller
Suitable for liquids containing solids or fibers
Closed impeller
Higher efficiency for cleaner liquids
2. Typical Pumped Media
Pulp & Paper
Low consistency pulp
White water
Process water
Fiber suspensions
Sugar
Juice
Syrup
Condensate
Process water
Other Industries
Industrial water
Chemical solutions
Wastewater
Andman S80-265 Pumps for Paper Mills
1. Stock Preparation
Recycled fiber (RCF) system
Pulp slurry transfer
Broke handling
Pulper circulation
2. Paper Machine Systems
Approach flow system
White water circulation
Headbox supply systems
Machine circulation pumps
3. Bleaching & Pulp Processing
Bleaching plant circulation
Chemical pulp transfer
Process water pumping
Typical media:
Low consistency pulp
Fiber suspension
White water
Process water
Andman S80-265 Centrifugal Pumps for Chemical, Power & Energy, Water & Wastewater Treatment
1. Chmeical Industry:
Process liquid circulation
Chemical solution transfer
Cooling liquid circulation
Washing systems
Possible fluids:
Water-based chemicals
Mild corrosive liquids
Industrial solutions
2. Power & Energy Industry
Cooling water circulation
Auxiliary water systems
Condensate transfer
Process water supply
3. Water & Wastewater Treatment
Industrial wastewater transfer
Sludge-related liquid handling (depending on design)
Filtration systems
Reuse water circulation
Why S Series Pumps Fits These Applications?
Why Choose Andman S Series Pumps?
1. Wide flow and head range:
Small process circulation system
Large industrial transfer systems
Continuous production processes.
2. Multiple impeller designs can handle:
Clean water
Process liquids
Pulp suspension
Fiber-containing fluids
Slightly contaminated liquids
3. Suitable for Different Industries
Pulp & Paper, Sugar, Chemical, Power Energy, Water Treatment.
4. Adaptable materials and sealing options
Cast iron
Stainless steel
Duplex stainless steel
Wear-resistant materials
5. Reliable Mechanical Design
Strong bearing arrangement
Rigid shaft design
Durable casing structure
Replaceable wear parts
6. Different Sealing Solutions
Single mechanical seal
Double mechanical seal
Packing seal
This makes them suitable for:
Clean water
Chemical liquids
High-temperature fluids
Critical process applications
7. Easy maintenance and spare parts replacement
Impeller, Shaft, Shaft sleeve, Mechanical seal, Bearings, Wear liners etc.
