Andman S100-350 Paper Pulp Pumps

SPECIFICATIONS

Type	Single Stage Centrifugal Pump
Capacity	40-3300m³/h
Head	5-100m
Concentration	0%-8%
Working Temp	≤120℃
Materials	Cast iron, SS202, SS304, SS316L, Duplex stainless steel etc

Inquire Now

Andman S Series Paper Stock Pumps Primarily used in sectors such as pulp and paper, industrial processes, chemicals, and water treatment.

S Series Paper Pulp Pumps Mainly Pumping Pulp stock, Liquids containing solid particles, Process water, Wastewater, Chemical medias etc.

Andman S100-350 Paper and Pulp Pumps Advantages: High wear resistance, Easy maintenance, Long service life, High-efficiency operation.

Andman has extensive experience in pulp and paper processes. Our paper pumps are engineered to handle:

High-consistency pulp
Stock suspensions with fibers
White water and process water
Chemical and bleaching processes
Difficult media containing solids

Andman Paper Pumps are widely used throughout the paper production line, Paper mills pump liquids containing: Wood fibers, Recycled fibers, Pulp stock, Suspended solids, typical applications include:

Stock Preparation: Pulp transfer, Recycled fiber systems, Broke handling

Approach Flow System: White water circulation, Machine chest pumping, Headbox supply systems

Process Water System: Cooling water, Filtrate transfer, Wastewater handling

Andman^® S Paper Pumps Core Design Features

Open impeller design — the defining feature of the S series. Two options: a 3-blade impeller with a large open cross-section (better for passing solids/fibrous material), or a 6-blade impeller for higher pressures and lower pressure pulsations. The open design gives low axial thrust and open flow channels suited to conveying difficult media like pulp stock.
Wear linings (2x) — replaceable liners protect the pump casing and casing cover itself, so the expensive casting doesn't wear out — you replace cheap liners instead.
Sturdy shaft — oversized for minimal deflection and low vibration, which extends seal and bearing life.
Oversized bearings — sized up from minimum requirements specifically for long service life.
Bearing support — a single casting combines the bearing housing and lantern (the piece connecting pump casing to bearing frame), and Andman uses only five bearing support sizes across the entire S series range — meaning fewer unique spare parts to stock regardless of pump size.

S Series Paper Pumps Technical Specifications

Item	Value
Pump Series	S Series
Pump Type	Single-stage centrifugal pump
Size	80-500 mm
Capacity Range	40-3300 m3/h
Head Range	5-100 m
Material	Cast iron, SS202, SS304, SS316L, Duplex stainless steel etc
Installation	Horizontal arrangement (common design)
Application	Process pumping, pulp pumping, industrial liquids
Drive Types	Electric motor with flexible coupling

Materials of Construction

Component	European Standard	US Standard (UNS)
Impeller	EN-JL1040 / EN-GJL 250	Class 40B
Casing / casing cover	1.4460	J93370
Bearing housing	1.4021	S42000
Front/rear lining	1.4462	S32205
Stuffing box body	1.4517	J93373
Shaft	1.4517 (hardened)	J93373

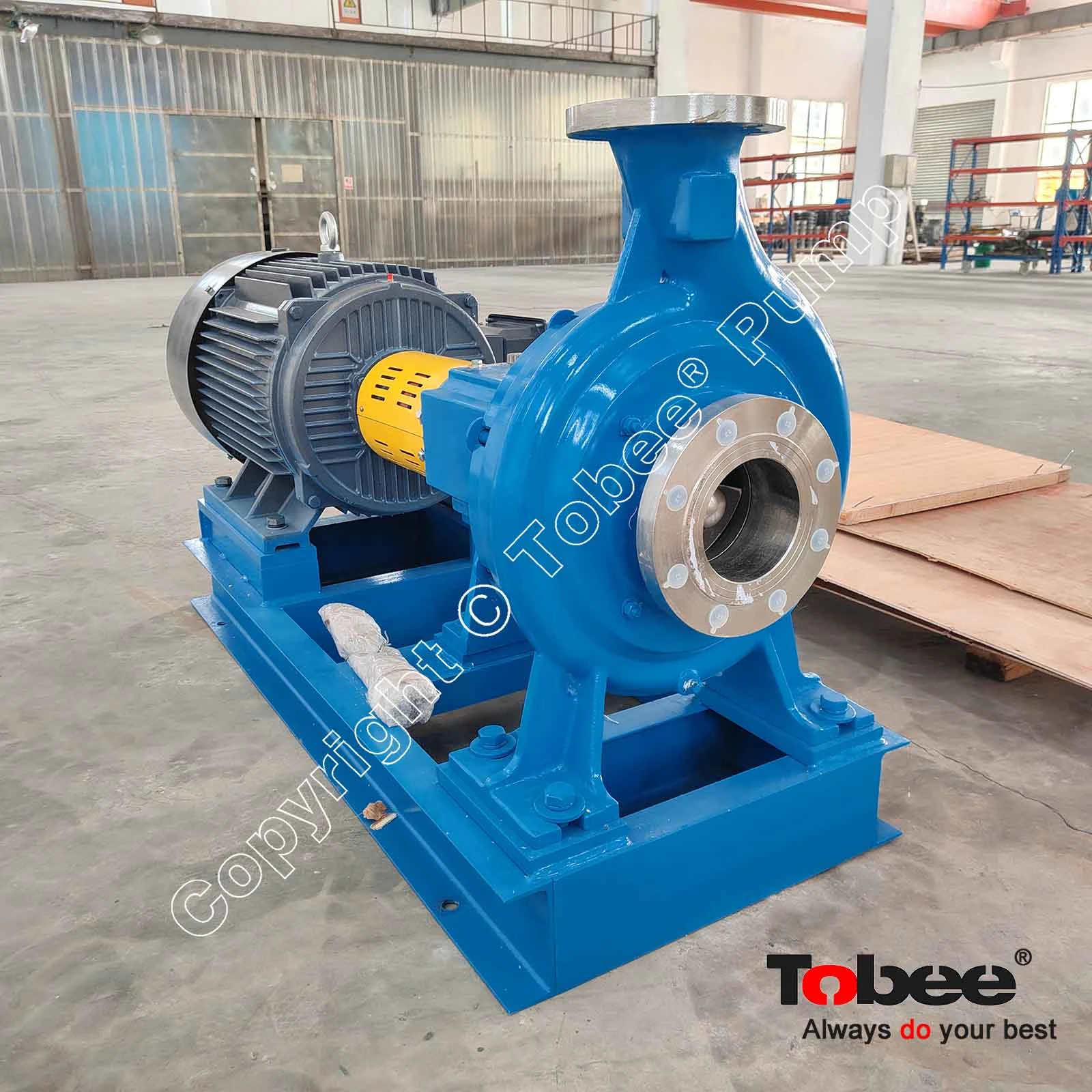

Andman S Series Paper Stock Pumps

Why Paper Mills Choose Andman^® S100-350 Paper Pumps?

Andman S Paper Pumps are an excellent choice for paper mills because they provide Stable pulp pumping performance, No fiber clogging problems, high hydraulic efficiency, easy maintenance, Fast spare parts support, and long service life. They help paper manufacturers reduce energy consumption, minimize downtime, and achieve lower total operating costs.

Andman Pulp Pumps with Excellent Handling of Pulp and Fiber Suspensions, designed with suitable impeller options helps maintain smooth pulp flow throughout the production process, High Efficiency Reduces Energy Costs, Suitable for Different Paper Mill Processes,

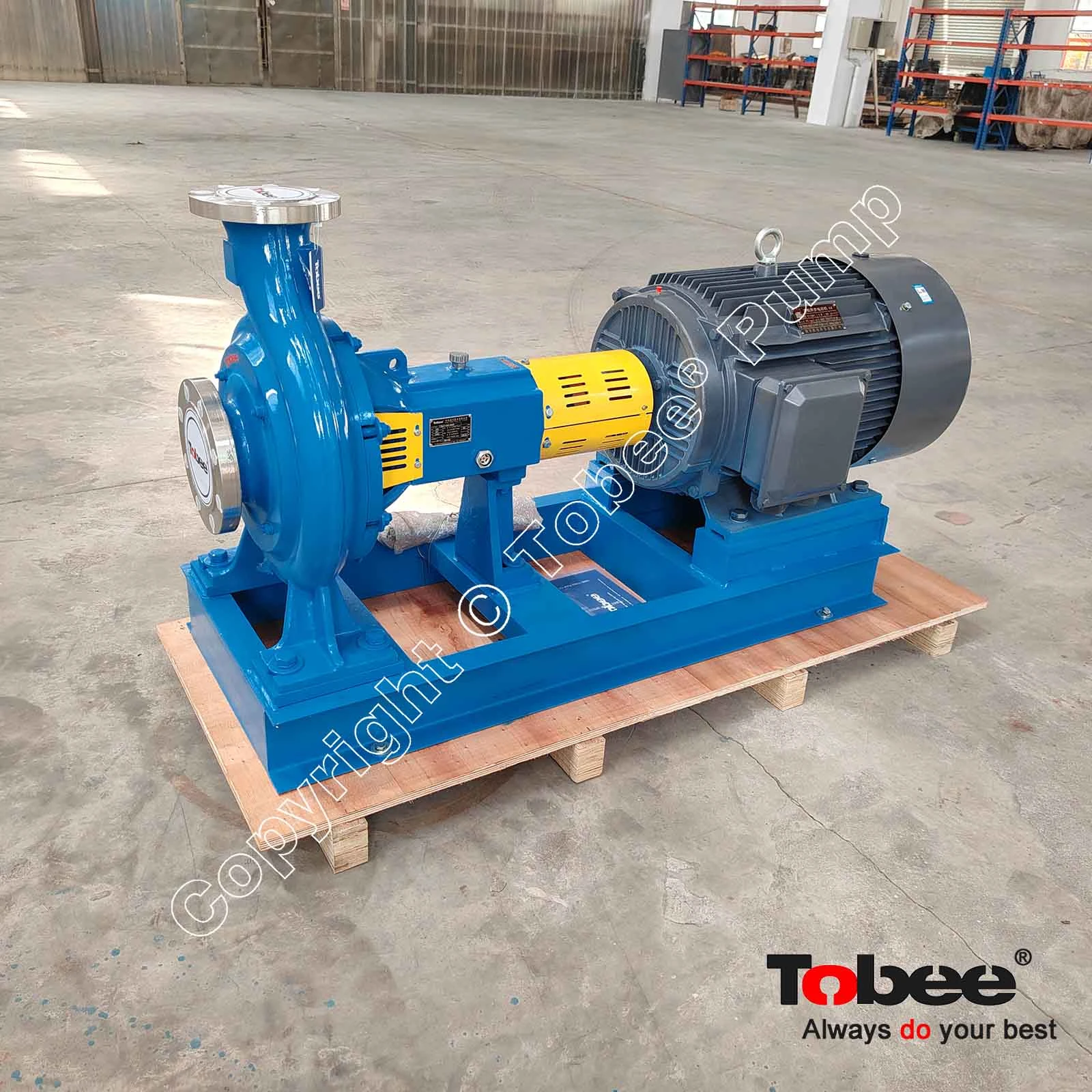

S Series Pumps for Sugar Plant

Andman Pumps can be used in various areas of sugar plant processing production, including:

Juice extraction and clarification
Raw juice and clear juice transfer
Evaporator circulation
Condensate handling
Syrup transfer
Molasses pumping
Water and process liquid circulation
Boiler feed and auxiliary systems

Andman^® S100-350 Paper Pumps Typical Applications

Pulp & Paper Industry

Pulp stock transfer
White water circulation
Recycled fiber preparation
Paper machine process pumping

Industrial Applications

Process liquids
Chemical transfer
Cooling water
Wastewater treatment

Other Industries

Food processing
Energy plants
Water supply systems

Andman S Equivalent Paper Pumps and Interchangeable Spare Parts

Andman S Series centrifugal pumps used in pulp & paper mills, S Paper Pumps Interchangeable wear parts are essential to maintain pump efficiency, reliability, and production stability. Andman S pumps use different impeller designs and wear protection solutions depending on the application and pumped medium, We can work out most suitable pumping solutions for your paper mills, sugar plant, chemical industrials, whenever need technical support, let's talk any time!
