Hydroman^® Submersible Slurry Sludge Pump for River Sand Dredging

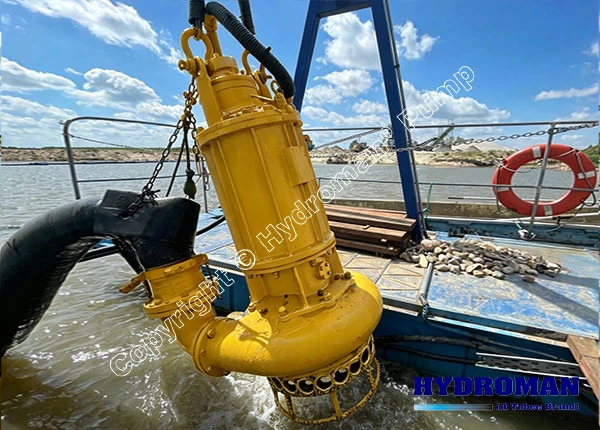

1. River Sand and Gravel Extraction

For commercial sand mining operations, the pump's ability to operate at depths exceeding 20 meters while maintaining consistent flow rates is transformative. Unlike hydraulic excavator-mounted pumps that require continuous diesel engine operation, this electric unit can be powered from shore or barge-mounted generators, delivering steady performance without exhaust emissions near sensitive waterways.

2. Harbor and Marina Maintenance

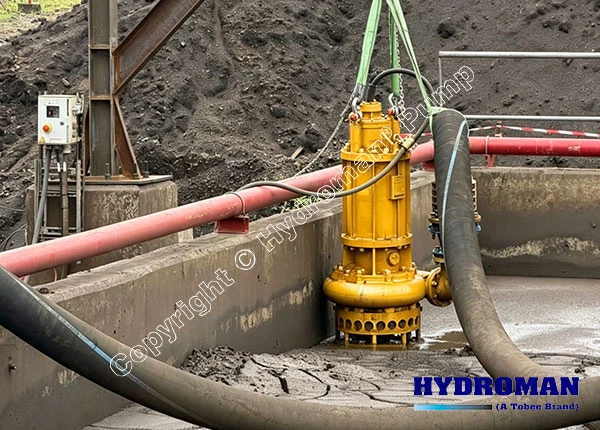

Port authorities face recurring challenges with silt accumulation in turning basins and berthing areas. The Vertical Electric Sand Slurry Pump with Agitator can be deployed via crane or A-frame directly into confined spaces where larger dredging vessels cannot navigate. Its vertical orientation allows precise positioning over sediment hotspots, minimizing unnecessary excavation of clean bottom material.

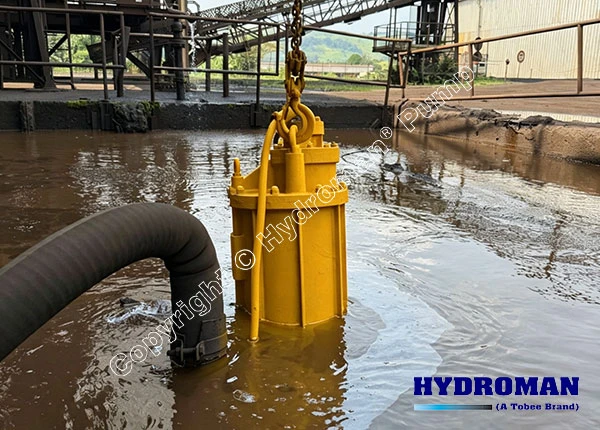

3. Mine Tailings and Settling Ponds

Mining operations generate massive volumes of tailings slurry that must be continuously relocated. The pump's abrasion-resistant construction handles sharp-edged mineral particles without rapid wear, while its submersible design eliminates the need for complex suction piping systems that frequently clog in high-density applications.

Frequently Asked Questions About Hydroman^® Submersible Slurry Pumps

Q: What maximum solids size and concentration can this pump handle?

A: The Hydroman^® submersible slurry pump handles solid particles up to 120mm in diameter—sufficient for gravel, small rocks, and coarse sand. For concentration, the pump reliably processes slurries with up to 70% solids by weight, though optimal performance typically occurs in the 40-60% range depending on material density and particle size distribution.

Q: How deep can the pump operate, and what depth-related considerations exist?

A: Standard configurations support submerged depths up to 25 meters without modifications. For deeper applications—such as harbor dredging or offshore sediment removal—customized sealing systems extend capability to 50 meters or more. At extreme depths, operators should account for increased cable length voltage drop and consider using soft-start motor controllers to manage inrush currents.

Q: Can the pump handle corrosive slurries in addition to abrasive ones?

A: Yes. While standard models use high-chrome alloy for maximum abrasion resistance, Hydroman offers 316L stainless steel wetted components for applications involving acidic mine drainage, chemical plant effluent, or saltwater exposure. The stainless steel option maintains similar wear characteristics while providing superior corrosion resistance.

Why Project Engineers Choose Hydroman^® for River Sand Dredging

The decision to specify a Hydroman^® Vertical Electric Sand Slurry Pump with Agitator over competing technologies—whether hydraulic-driven units, surface-mounted centrifugal pumps, or mechanical dredges—rests on three quantifiable advantages:

Elimination of cavitation: Because the pump operates below the water surface, suction lift is zero. This completely eliminates cavitation—the formation and collapse of vapor bubbles that erodes impellers and reduces efficiency in surface pumps. Field data indicates that cavitation-related downtime accounts for 15-20% of maintenance events in conventional dredging operations; Hydroman's submerged design removes this variable entirely.

Superior energy efficiency: Submersible pumps do not expend energy "pulling" water into the suction inlet; ambient hydrostatic pressure forces slurry into the pump naturally. This passive intake mechanism reduces required input power by an estimated 12-18% compared to surface-mounted alternatives of equivalent capacity.

Reduced auxiliary equipment requirements: The integrated agitator eliminates the need for separate mixing jets, cutter heads, or mechanical stirrers. One pump performs both agitation and extraction functions, simplifying deployment, reducing capital costs, and minimizing on-site equipment footprint.

For river sand dredging specifically, the combination of electric drive (zero on-site fuel storage requirements, reduced noise emissions) and vertical submersible configuration (direct sediment access, no suction pipe losses) creates a solution that balances operational efficiency with environmental responsibility.

Contact Hydroman^® Today for Your River Dredging Project

Choosing the right Electric Submersible Slurry Pump for River Dredging requires matching pump specifications to your specific material density, dredging depth, and discharge distance. The Hydroman engineering team provides application-specific selection guidance, customizing impeller designs, seal configurations, and motor ratings to your exact project requirements.

Contact Hydroman^® today to discuss your river sand dredging operation—provide your material type (fine sand, coarse sand, mud, or gravel), target depth, and total discharge distance, and receive a pump recommendation optimized for your conditions.

Hydroman^® — Engineered for the toughest slurry applications worldwide.
