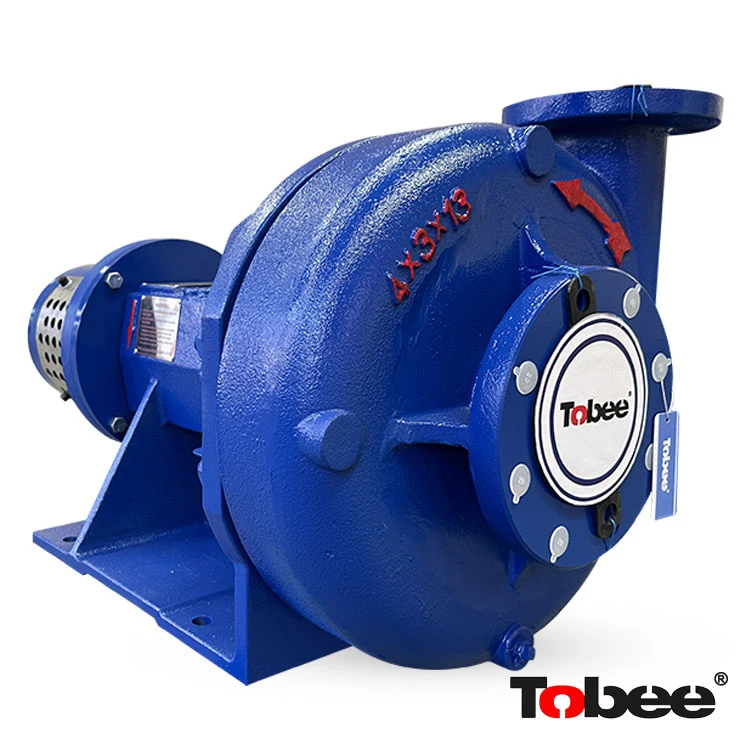

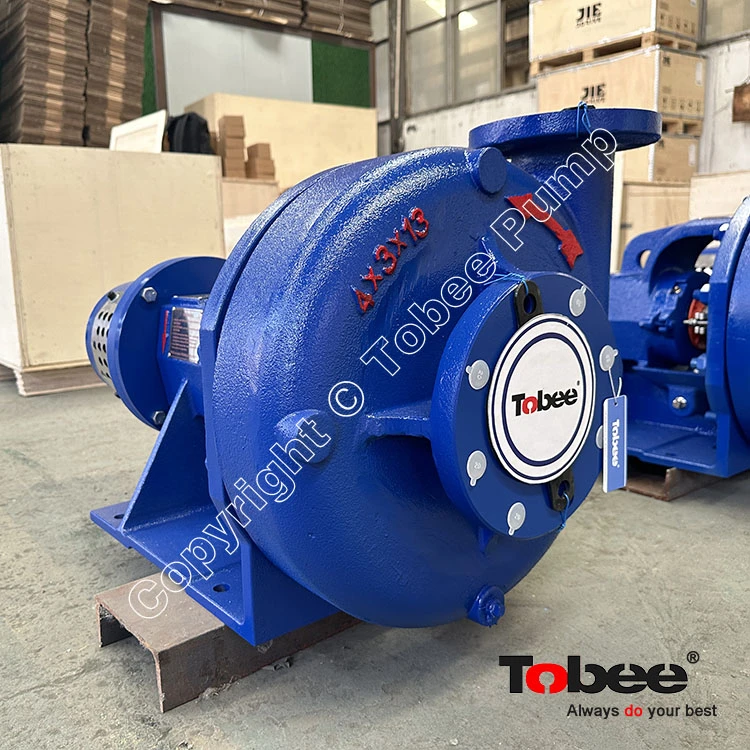

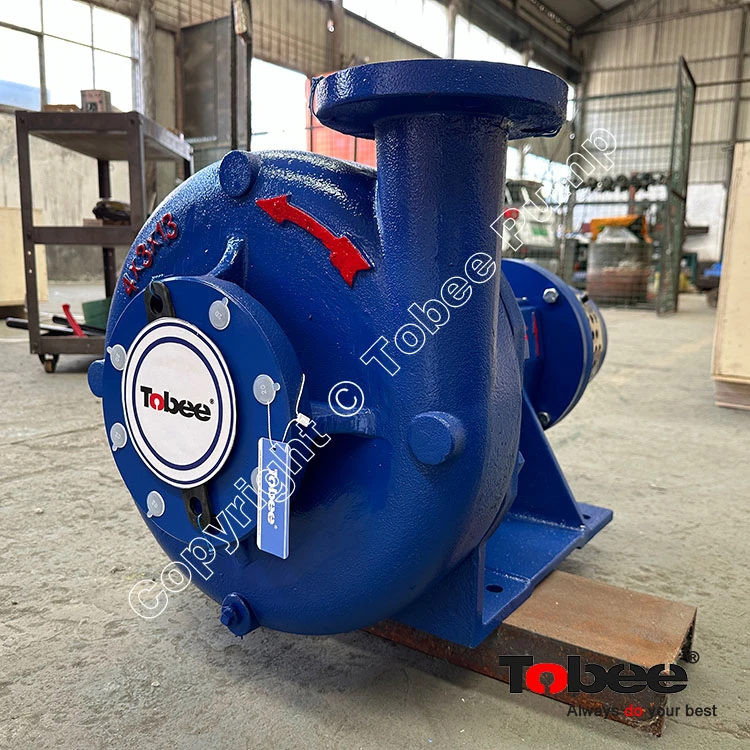

Sandmaster 4x3x13 Pump for oilfield drilling
Sandman® Mission Sandmaster 4×3×13 centrifugal sand pump is a high-performance centrifugal pump designed for oilfield drilling, solids control systems, and industrial fluid transfer applications. Featuring a compact structure, excellent wear resistance, and reliable operating performance, the Sandmaster 4×3×13 is engineered to handle demanding applications involving drilling fluids, abrasive slurries, and high-solid-content fluids.
Built on Mission’s proven centrifugal pump technology, the Sandmaster series pumps delivers stable flow performance, easy maintenance, and extended service life in harsh operating environments.
Sandmaster 4x3x13 Pump Design Features
Compact and Flexible Design-compact design that requires minimal installation space, making it ideal for mobile drilling units, mud systems, and equipment packages with limited space.
Superior Wear Resistance-The pump is available with durable wear-resistant components, including high-chrome alloy options for critical wetted parts. This design helps reduce erosion caused by sand particles and abrasive solids, extending pump service life.
Excellent Solids Handling Capability-The open impeller design allows the pump to process drilling fluids containing sand and solid particles while reducing blockage risks.
Reliable Operation Under Heavy Duty Conditions-Designed for oilfield environments, the Sandmaster 4×3×13 can operate continuously under demanding conditions with high reliability.
Easy Maintenance-The modular construction allows quick access to key components, reducing downtime and simplifying routine maintenance and replacement of wear parts.

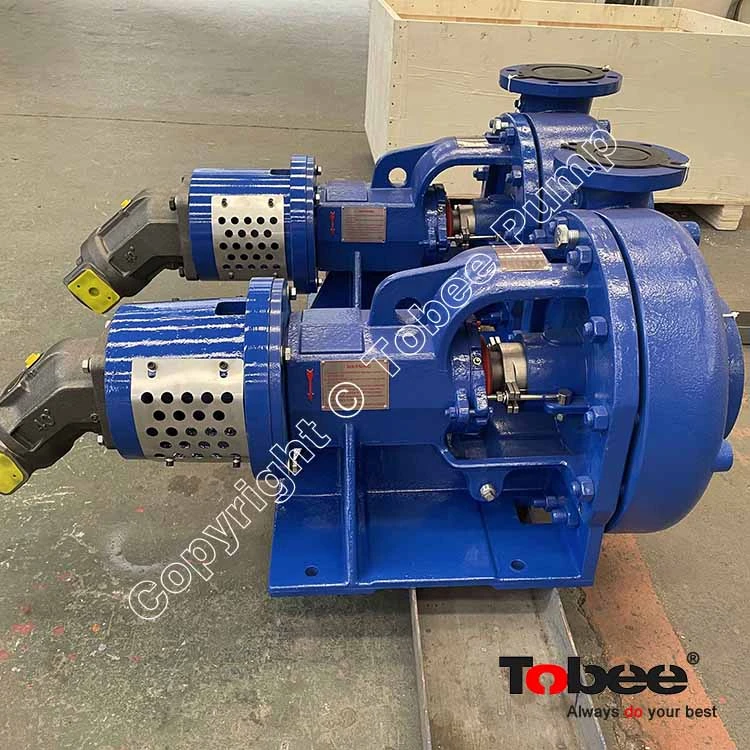

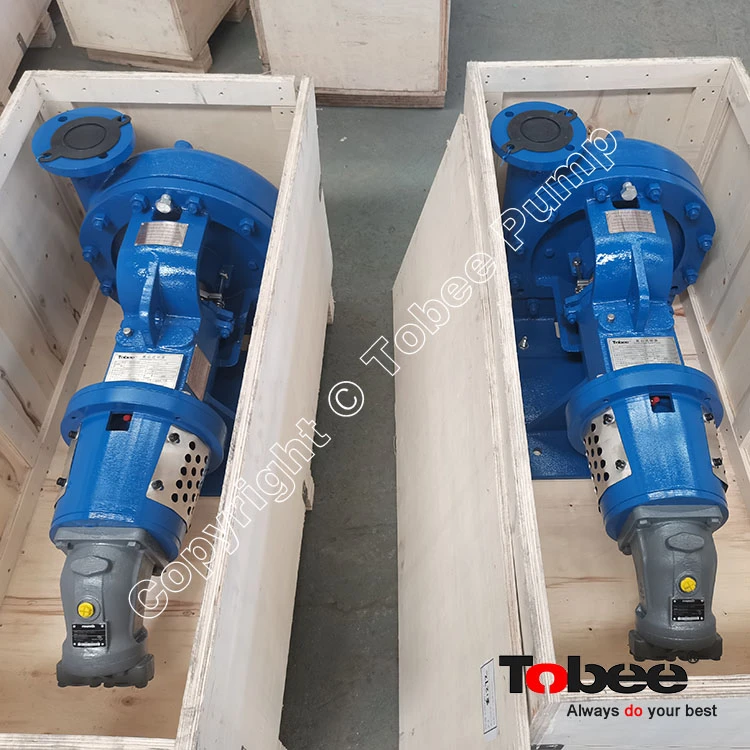

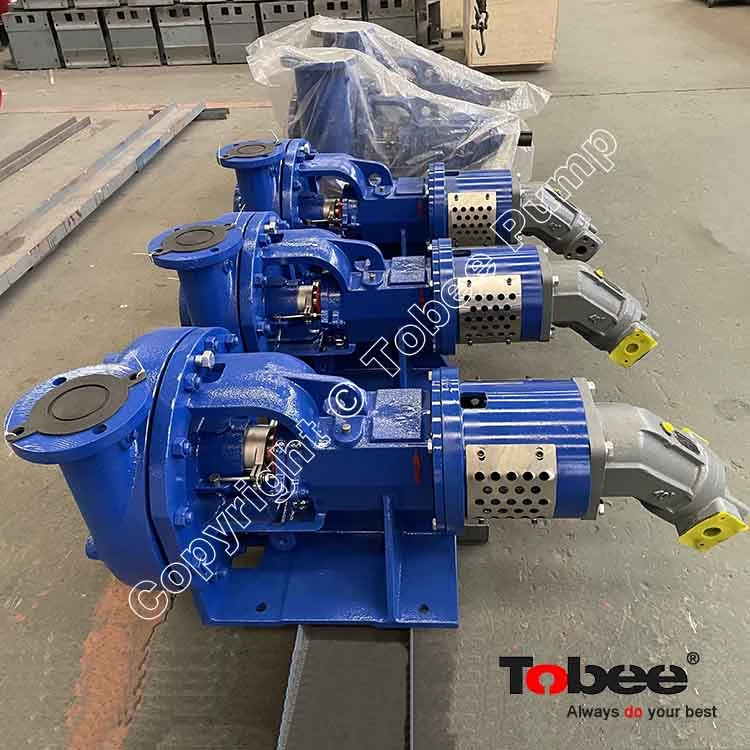

Multiple Drive Options-The Sandmaster 4×3×13 can be configured with electric motor drive or hydraulic motor drive to meet different equipment requirements and installation conditions.
Reduced Operating Costs-Durable wear components and easy maintenance features help reduce downtime and lower total ownership costs.
Stable Hydraulic Performance-The optimized hydraulic design provides consistent flow and pressure, improving the efficiency of drilling fluid systems.

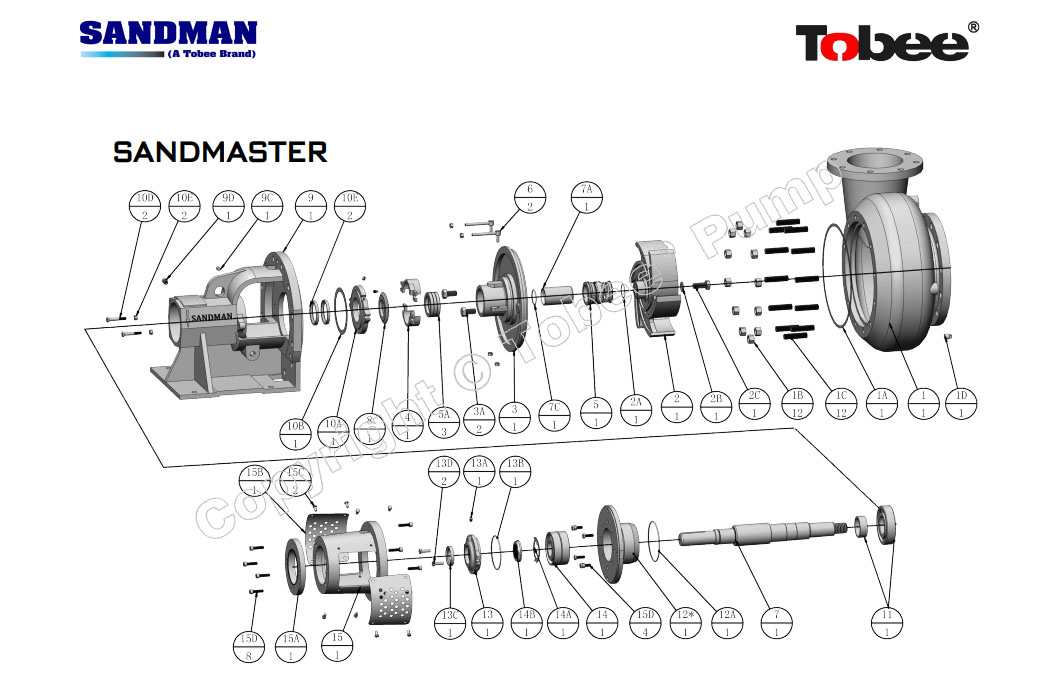

Sandmaster Pump Structure
The Mission Sandmaster 4×3×13 centrifugal sand pump is designed with a rugged construction to withstand demanding oilfield and industrial environments. Each component is engineered for durability, efficient operation, and simplified maintenance.
Main Components Include:
Pump Casing: Heavy-duty casing design provides excellent pressure resistance and protects internal components under continuous operation.
Impeller: Open impeller design improves solids handling capability and reduces the risk of clogging when pumping fluids containing abrasive particles.
Shaft Assembly: Precision-machined shaft ensures stable rotation and minimizes vibration during operation.
Bearing Assembly: High-quality bearings provide smooth operation and extended service life.
Mechanical Seal: Reliable sealing system helps prevent leakage and improves operational safety.
Recommended Operating Conditions
The Sandmaster 4×3×13 Pump is suitable for applications involving:
For maximum pump life, the operating conditions should be selected according to fluid density, viscosity, solids concentration, and required flow rate.
Typical Fracturing Applications

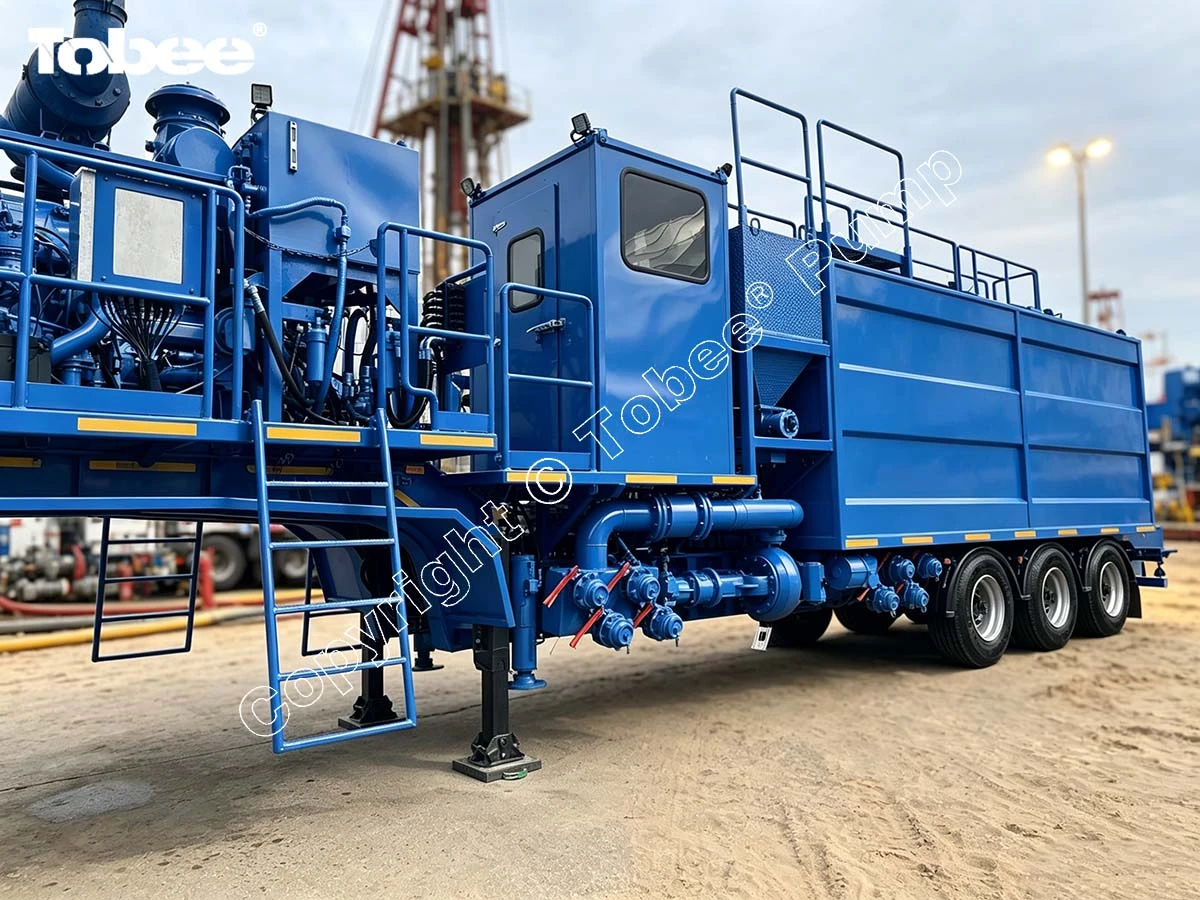

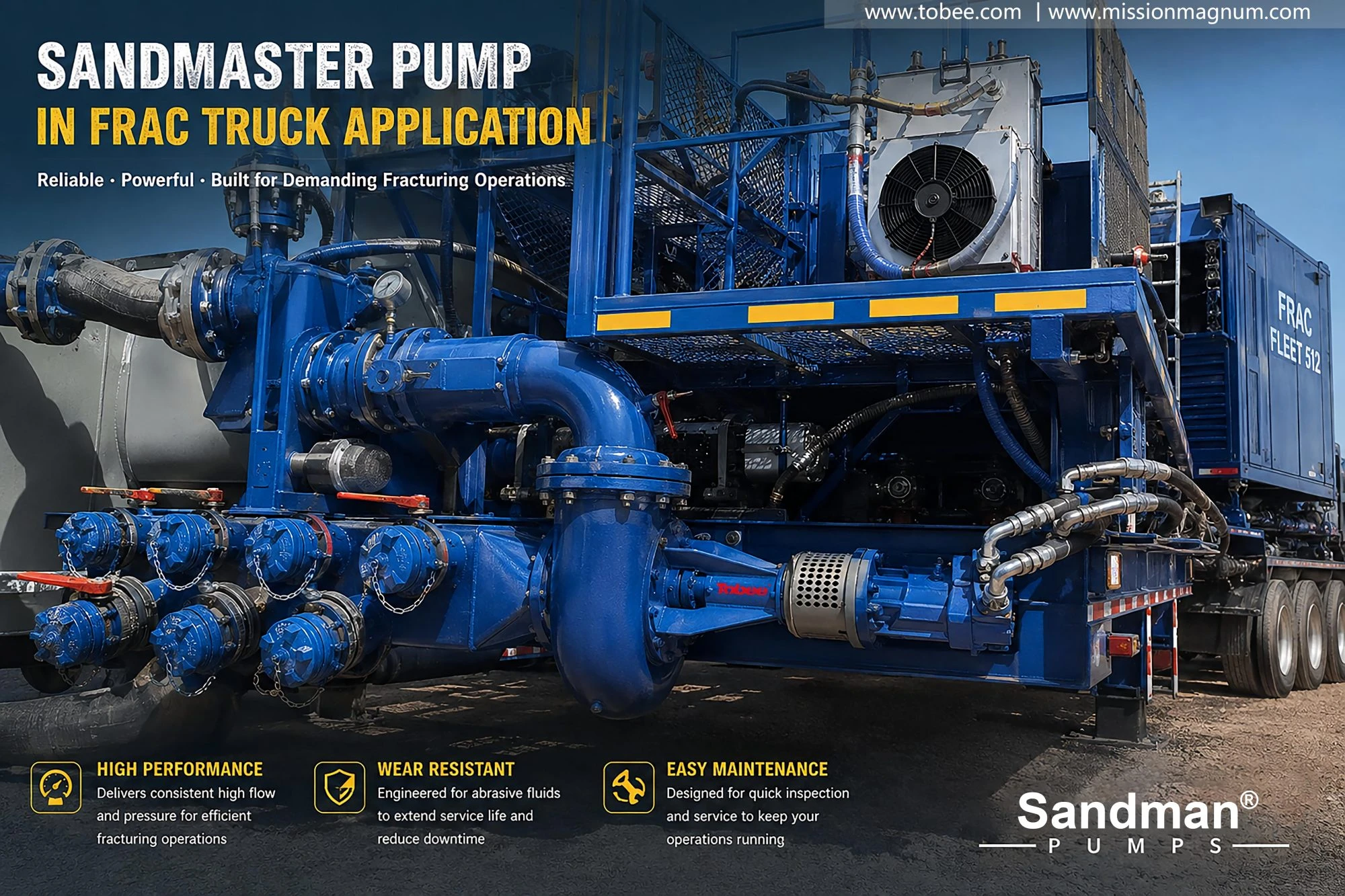

The Mission Sandmaster 4×3×13 centrifugal sand pump can be used as an auxiliary fluid transfer pump in hydraulic fracturing equipment, including frac trucks and fracturing support systems.
Get a solution
Choosing the right centrifugal pump is essential for maintaining efficient drilling and fluid handling operations.
The Mission Sandmaster 4×3×13 combines proven pump technology, rugged construction, and excellent solids-handling capability to deliver dependable performance in challenging environments.
Whether used in oilfield drilling, solids control, or industrial slurry transfer, the Sandmaster 4×3×13 provides a reliable pumping solution built for long-term operation.
