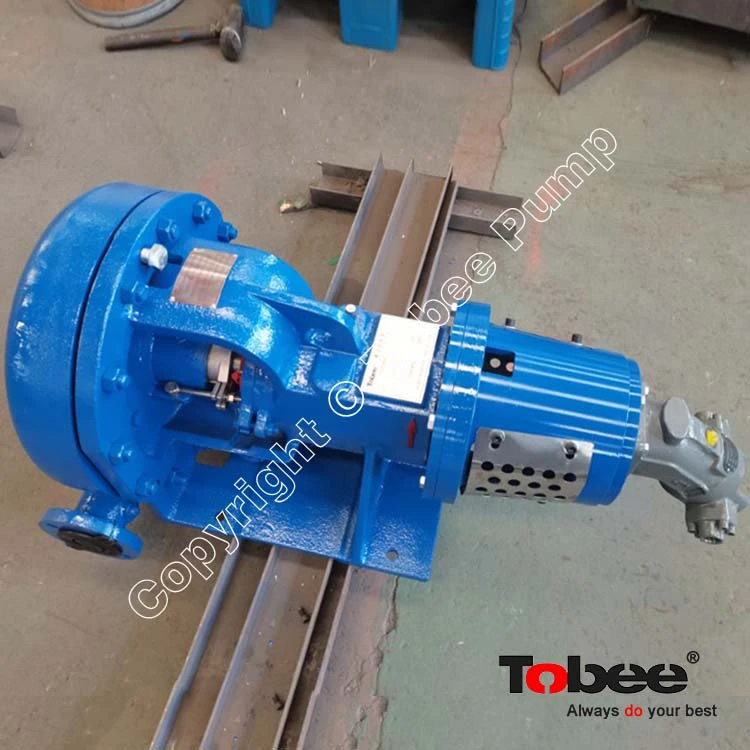

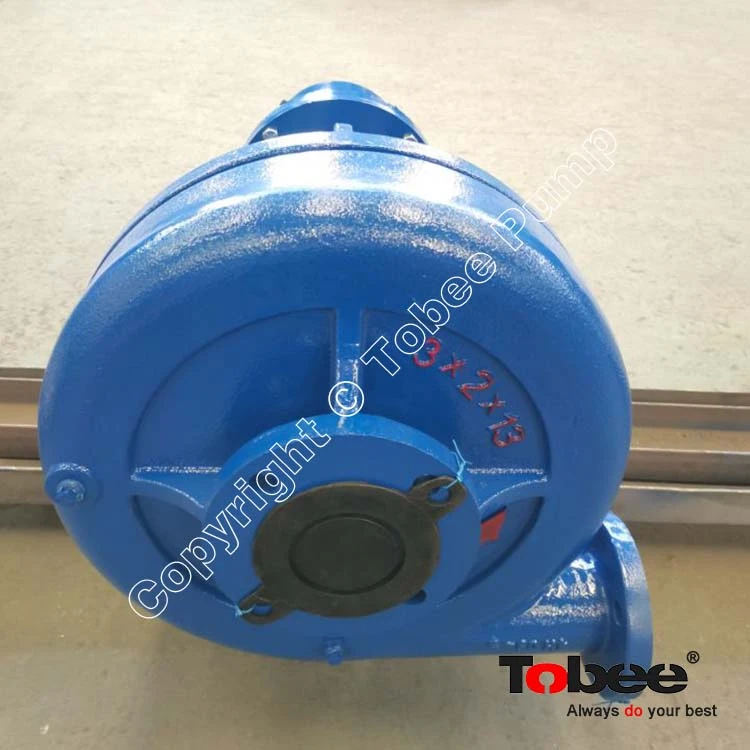

Mission Sandmaster 3x2x13 Drilling Pump

SPECIFICATIONS

Size	3" x 2" x 13"
Capacity	45-365 m³/h
Head	15-73 m
Speed	800-3500 rpm
Eff.	65%
Drive type	Hydraulic motor
Impeller dia.	7-13 inch
Materials	Hard iron, High chrome alloy, Stainless steel, Bronze, TC coated, etc

Inquire Now Next Product

Sandman® Mission Sandmaster Pumps

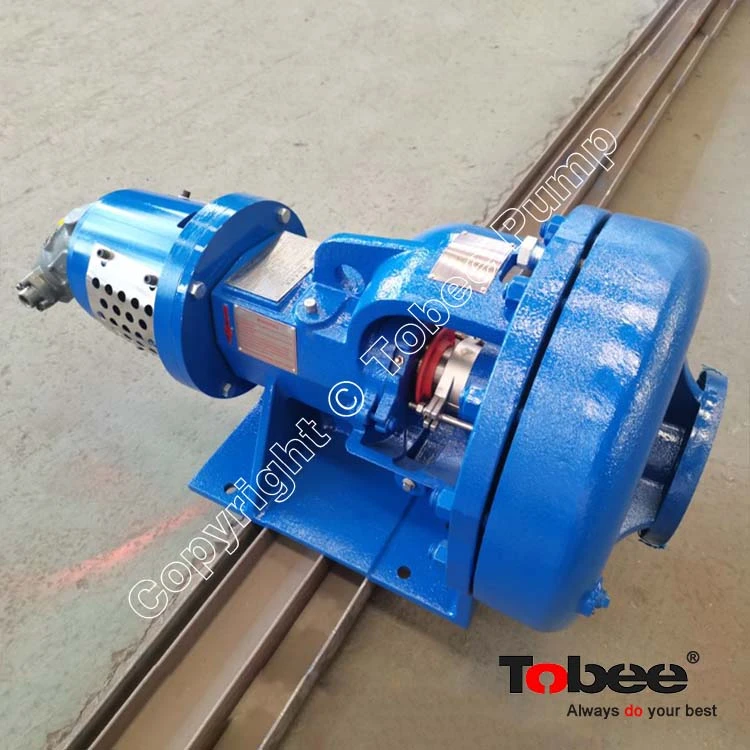

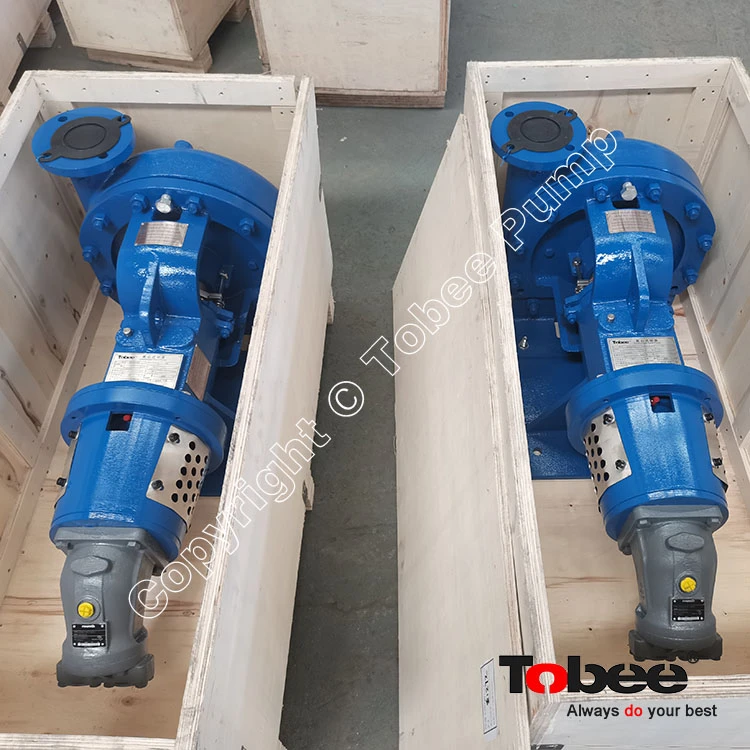

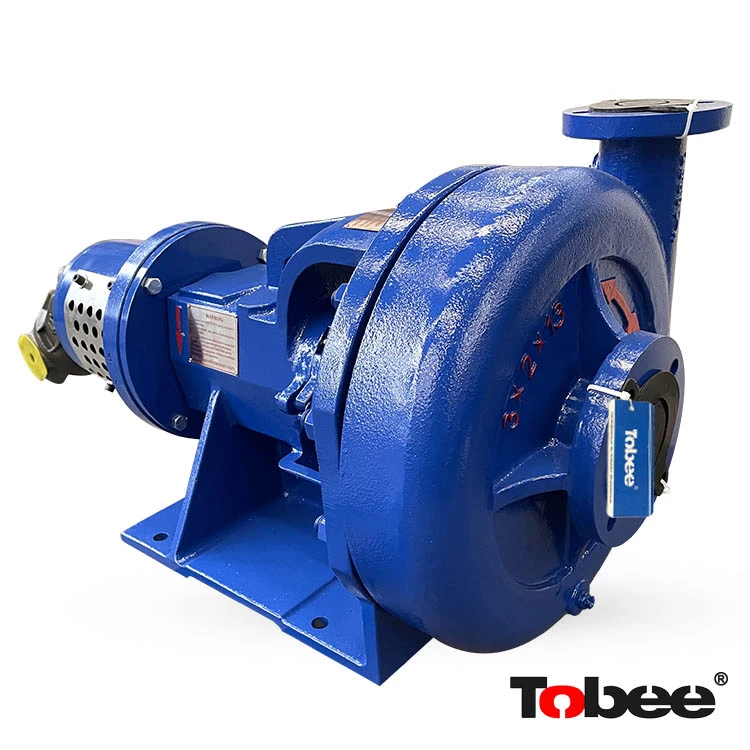

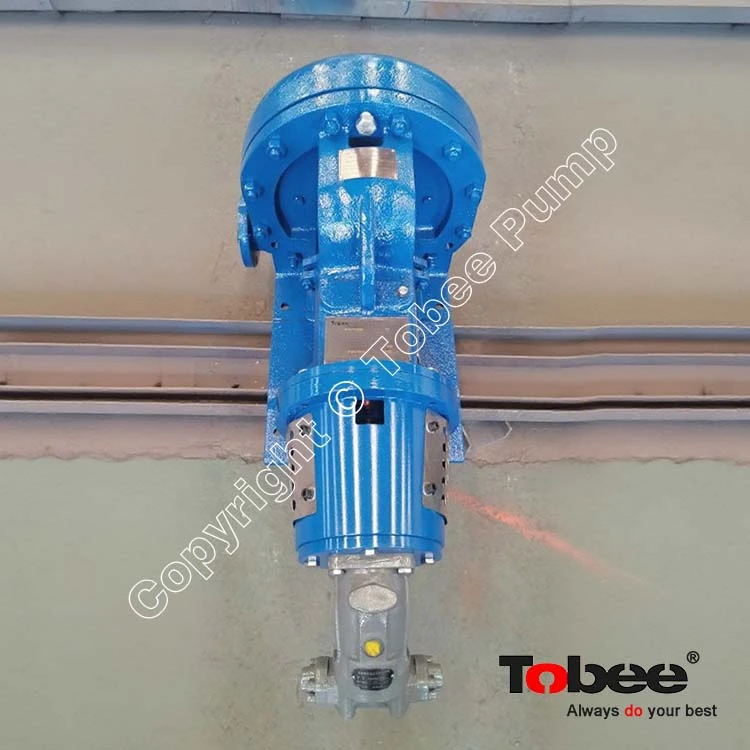

Sandman^®Mission Sandmaster Pumps are compact, heavy-duty centrifugal pumps designed with many of the proven features of the Mission Magnum I pump series. Compared with traditional Magnum I pumps, the Sandmaster features a more compact structure and can be configured with a hydraulic motor drive, making it an ideal solution for applications where installation space is limited and prime mover options are restricted.

With variable-speed hydraulic drive capability, the Sandmaster pump is widely used in demanding applications such as oilfield fracturing trucks, blending systems, pump charging services, and water well drilling operations. Its rugged construction and adaptable design make it the preferred choice for reliable fluid transfer in challenging field environments.

Whether used for solid control systems, mud circulation, fracturing support, or water well drilling, the Sandmaster delivers consistent performance where reliability matters most.

Mission Sandmaster Pump Features

Compact, heavy-duty frame design suitable for limited installation spaces

Designed for multiple applications in the oil and gas industry

Full-open impeller design reduces shaft loading and improves pump reliability

Replaceable stuffing box cover for easier maintenance

Available in hard ductile iron and high chrome alloy wet-end materials, including casing, impeller, wear plate, and stuffing box

Customized wet-end materials such as stainless steel and aluminum bronze are available upon request

Available in multiple sizes, including 3×2, 4×3, 5×4, 6×5, 8×6, and 10×8 configurations

One-piece concentric casing design with increased thickness for enhanced durability

Equipped with SKF bearings or equivalent high-quality bearings

Available with oil lubrication or grease lubrication systems: Oil lubrication is recommended for speeds above 2400 RPM; Maximum speed up to 3500 RPM is available for 3×2×13 and 4×3×13 models

Fully interchangeable with other popular Centrifugal pump designs:Spare parts are interchangeable with standard market models

Sandmaster Pump Easy Maintenance parts

Sandman^®Mission Sandmaster pumps are designed to be fully interchangeable with Mission magnum pumps (except Shaft; Frame; Housing); Other popular centrifugal pump designs in the market.

Most standard spare parts can be directly replaced without major modifications.

No.	Part Number	Stock #	Description	Materials
1	19203-01-30A	641101753	Casing, 3 x2x13	Hard iron
2	19206-XX-30	641215603	Impeller, open, 3 x2x13	Hard iron
3	20938-02-01	644302622	Frame, Sandmaster	Hard iron
4	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
5 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
6	22451-1	648414308	Mechanical Seal	Tungsten carbide
7	25014-04M-B	661007005	Packing, Shaft	Teflon
8	20939-02-33	646492454	Shaft, Sandmaster	AISI 4140
9	20943-04A	641103437	Shaft Sleeve (M.S. Pump)	416SS
10	20613-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
11	20615-1	661009010A	Inboard Bearing, with spacer	Customized
12	20616-1	648408201S	Outboard Bearing	Customized
13	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
14	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
15	20619A	641103312	Grease Seal Kit	Buna-n

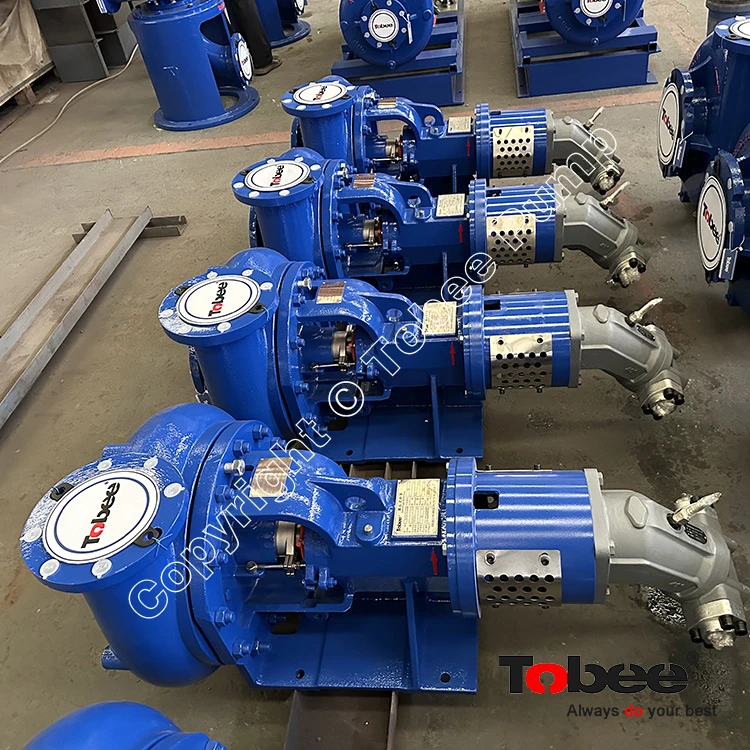

Typical Model Applications

Sandman^® Mission Sandmaster centrifugal pumps are designed to meet various drilling fluid, sand pump, and solid control system requirements.

Available pump units include bare shaft pumps and motor-driven packages with power ratings from 7.5 kW to 90 kW, supporting operating speeds of: 800, 1000, 1150, 1450, 1750, up to 3500 RPM (50 Hz or 60 Hz operation available)

Typical Model:

10×8×14 and 8×6×14 Sandmaster Pumps
Used in solid control systems for drilling rigs deeper than 3000 meters, especially where drilling fluids have high viscosity and high specific gravity.
8×6×11 Centrifugal Mud Pumps
Suitable for drilling rigs below 3000 meters and commonly used as feeding pumps for triplex mud pumps.
6×5×11 Centrifugal Pumps
Ideal for truck-mounted drilling rigs and compact drilling equipment.
4×3×13 Centrifugal Pumps
Commonly used as measuring pumps or replenishment pumps.
3×2×13 Centrifugal Pumps
Typically used for clean water pumping applications.

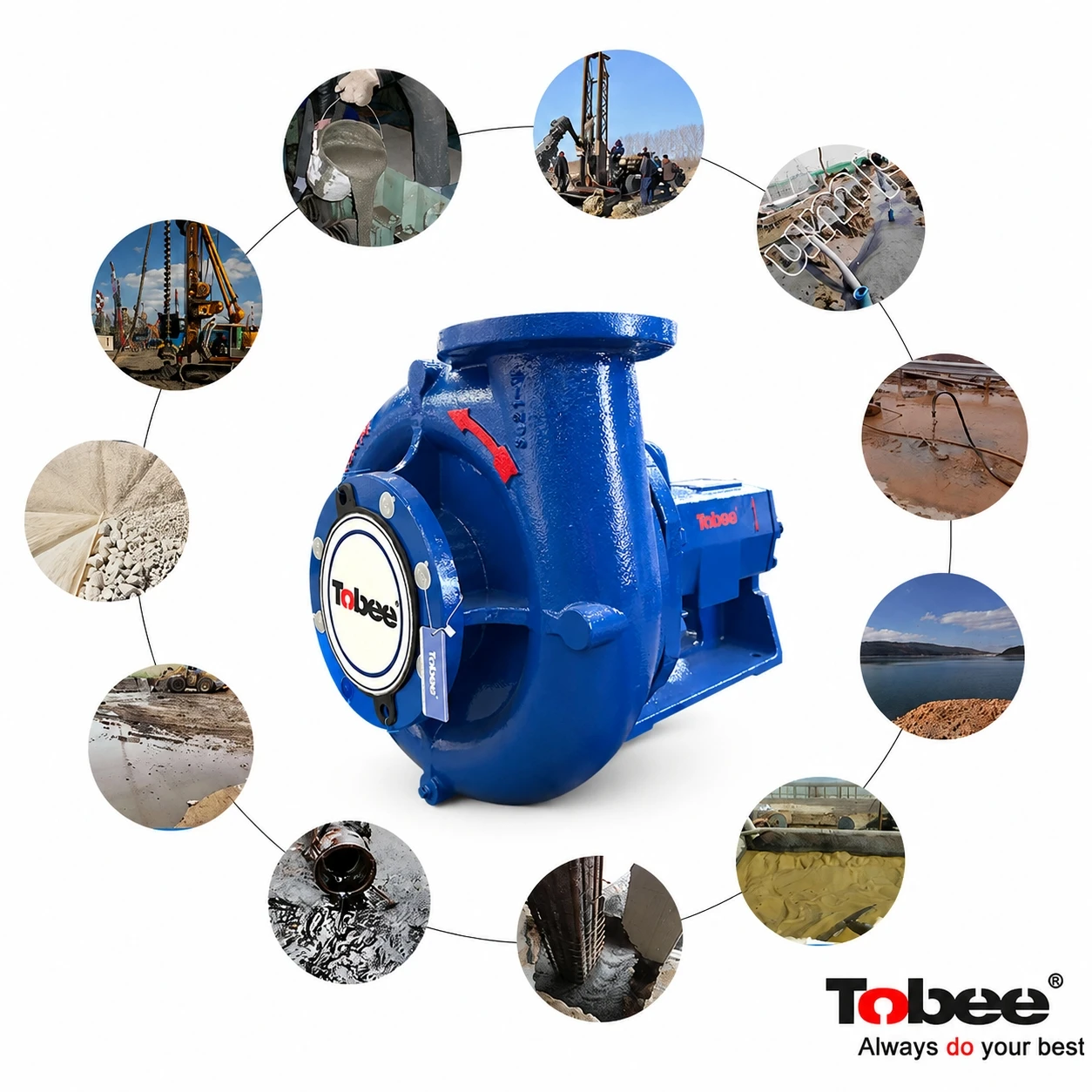

Installable Applications

The Mission Sandmaster 3x2x13 can be installed in:

▪ Drilling Fluid Systems

Used as a transfer pump, mixing pump, or circulation pump in drilling mud systems.

▪ Solids Control Equipment

Provides reliable fluid transfer for shale shakers, desanders, desilters, and mud cleaning systems.

▪ Cementing and Grouting Systems

Suitable for transferring cement slurry and other high-density fluids.

▪ Industrial Processing Systems

Can be used for abrasive slurry transfer, wastewater treatment, and mineral processing applications.

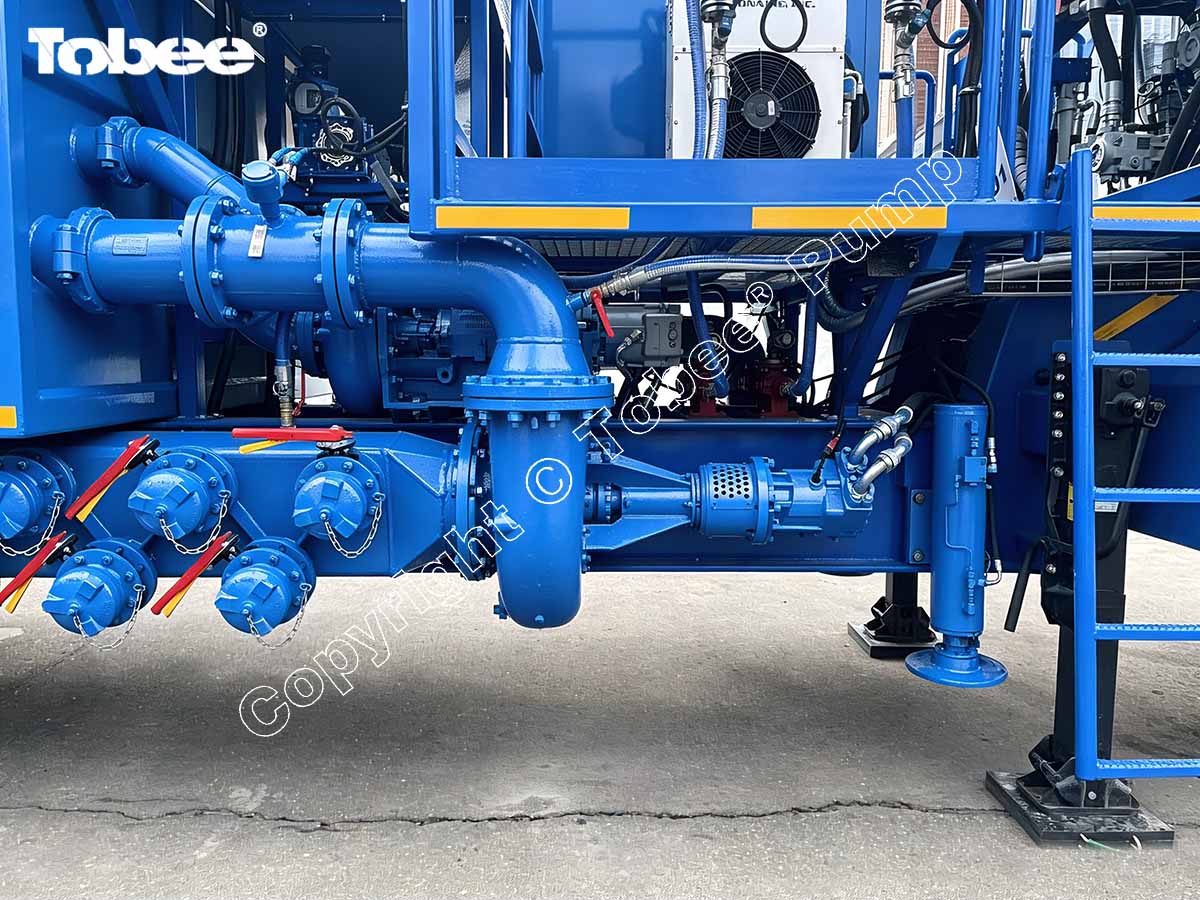

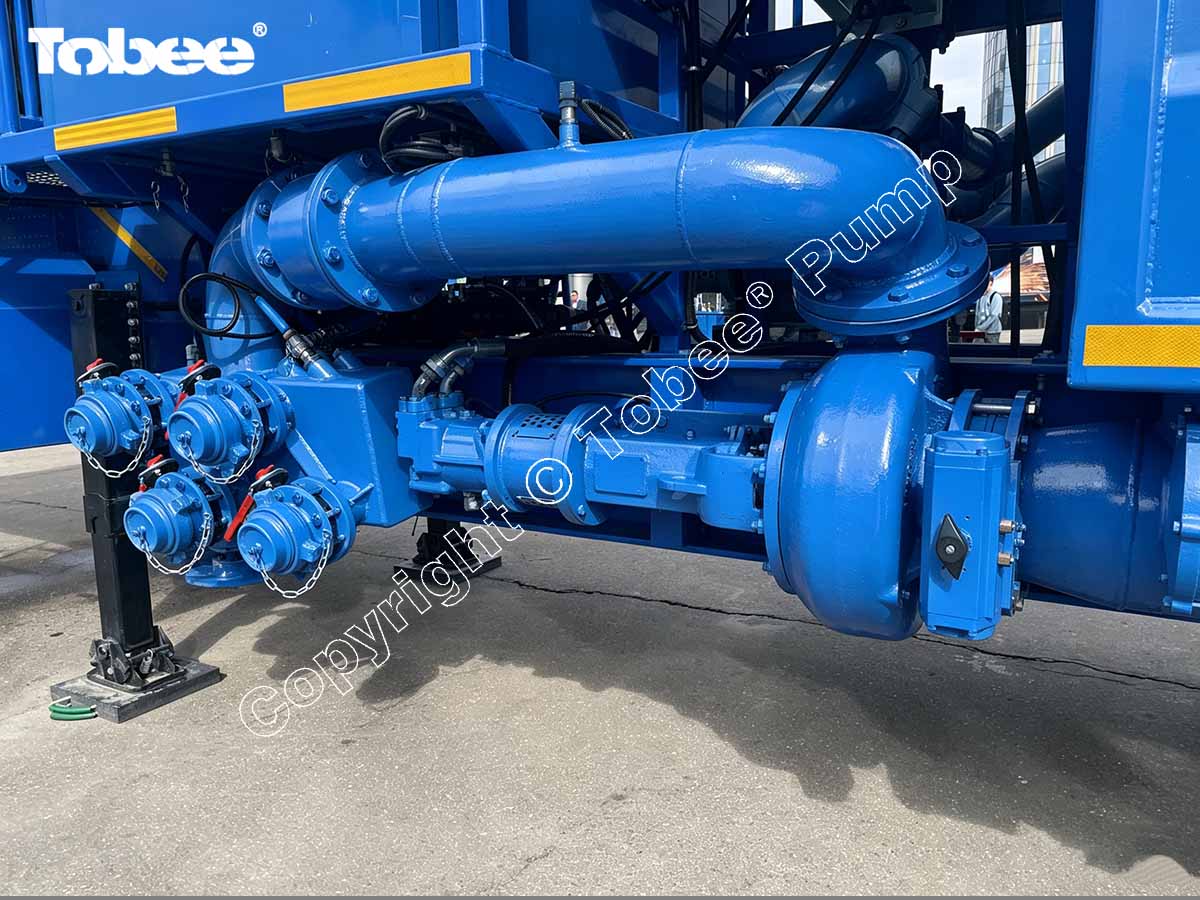

Frac Truck Applications

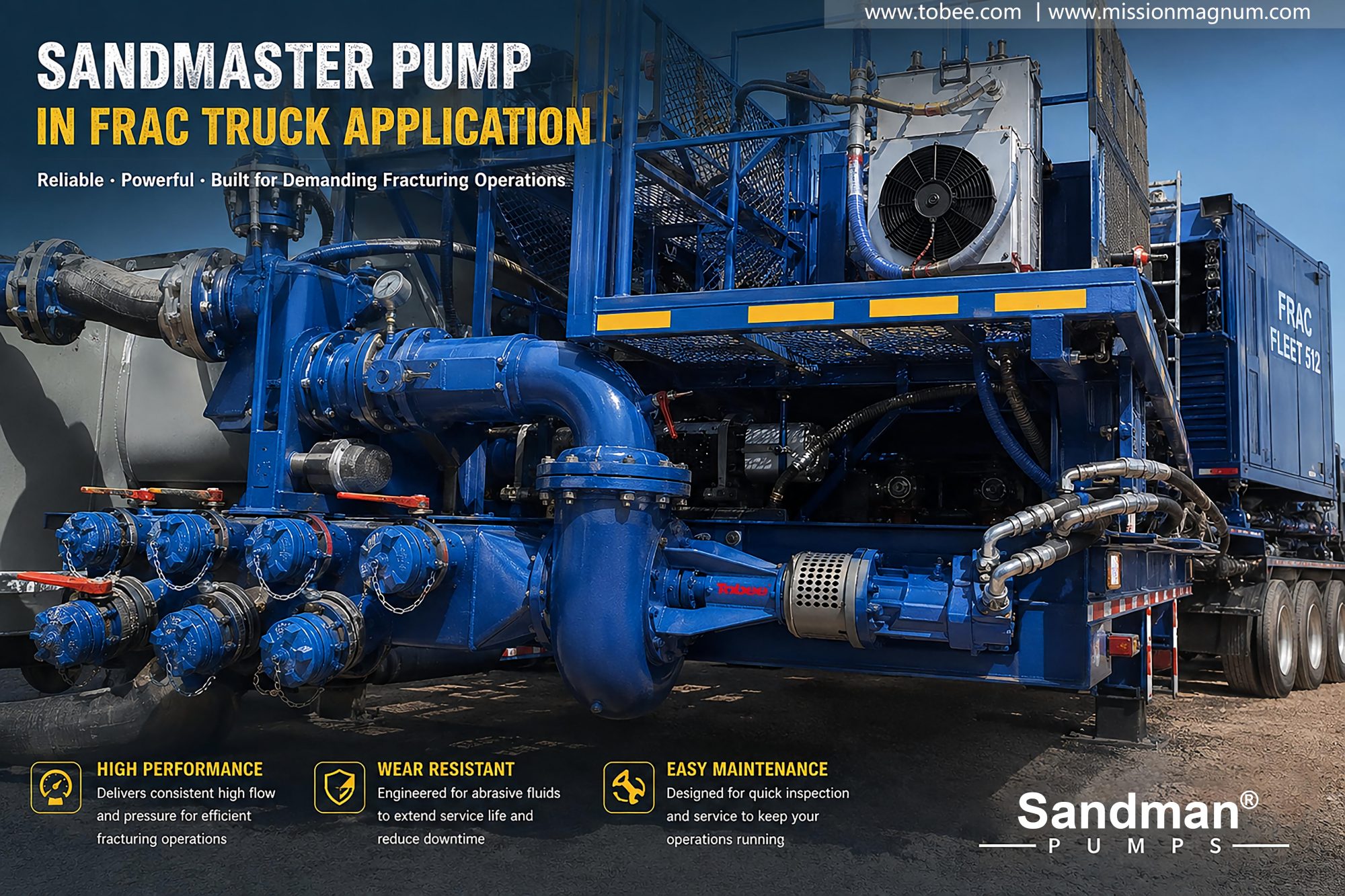

Mission Sandmaster 3x2x13 Pump for Frac Truck Applications

The Mission Sandmaster 3x2x13 centrifugal pump is also used in hydraulic fracturing equipment for reliable fluid transfer and auxiliary pumping applications. Its compact design, rugged construction, and excellent solids-handling capability make it suitable for demanding oilfield environments.

frac truck centrifugal pump

fracturing fluid transfer pump

hydraulic fracturing equipment pump

Why Choose Sandmaster Mission Sandmaster Pumps?

When space is limited and reliable performance is required, Sandman Mission Sandmaster Pumps provide a compact, versatile, and durable pumping solution for oilfield, drilling, and industrial applications.
