Mission Sandmaster Hydraulic Sand Pump China Supplier

Home > Pumps > Sandman^® > Sandmaster Series

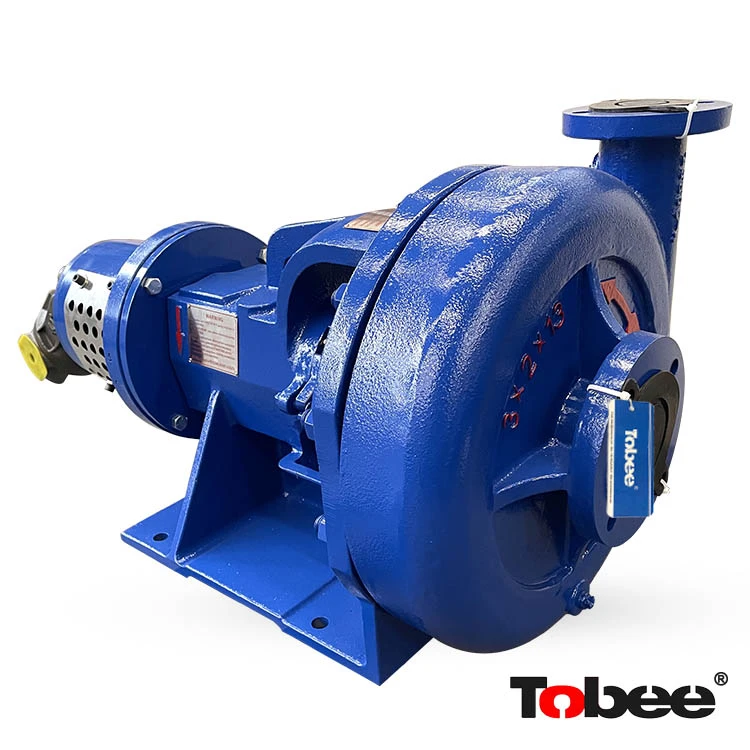

Sandmaster Series

The Sandmaster series is engineered for applications where space and weight are at a premium. Sharing the same proven hydraulic performance as the Magnum I line, the Sandmaster features a shortened frame and shaft design that delivers full-power performance in a compact footprint—making it the go-to choice for frac trucks, tight skids, and other mobile or weight-sensitive rig setups.

Key Selling Points

Compact, Space-Saving Design — Shortened frame and shaft reduce overall footprint and weight without sacrificing hydraulic performance, ideal for mobile equipment
Hydraulic Motor Compatibility — Available with variable-speed hydraulic motor drives in addition to standard electric motors, offering greater flexibility for mobile and remote operations
High Flow & Pressure Capacity — Handles flow rates up to 2,600 GPM (155 bbl/min) and head pressures up to 550 feet, matching the demands of large-scale drilling operations
Scalable Power Options — Power frames and motor configurations ranging from 7.5 kW to 90 kW (up to 200 HP) to suit a wide range of job requirements
Abrasion-Resistant Construction — Hard-iron or high-chrome alloy liquid ends (casing, impeller, and wear pads) withstand harsh, sandy drilling fluids
Open Impeller Design — Reduces axial thrust and shaft loading while minimizing clogging during heavy solids-control work

Available Sizes

3x2x13, 4x3x13, and configurations up to 10x8x14 and 12x12x15, covering everything from compact mobile units to large-capacity fixed installations.

Applications

Frac trucks and mobile pumping units
Space-constrained skid packages
Oilfield drilling and well-servicing
Heavy-duty industrial slurry transfer

View More Show Less

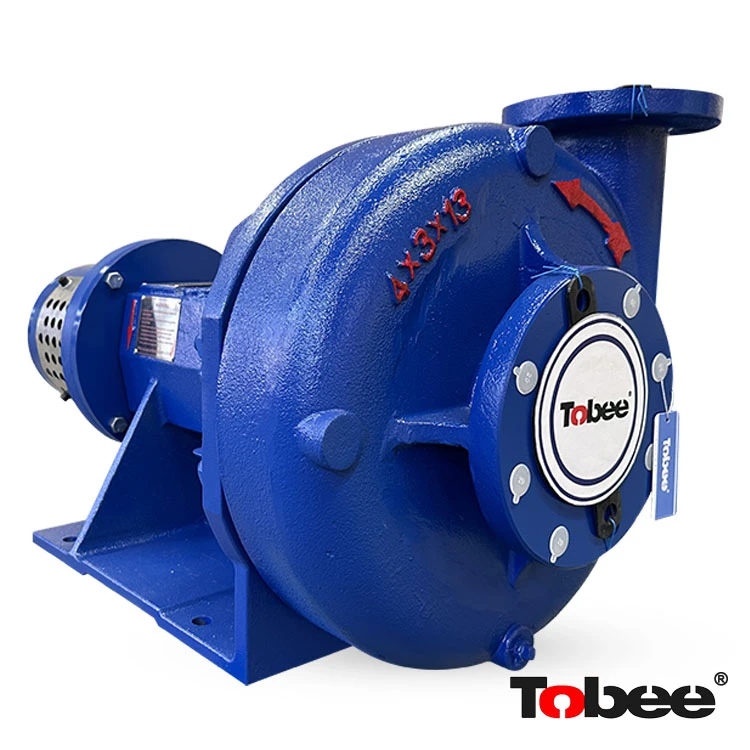

Sandman^® Mission Sandmaster 4x3x13 Pump

Capacity

45-365 m³/h

Head

15-73 m

Speed

800-3500 rpm

Drive Type

Hydraulic motor

Efficiency

65%

Sandman^® Sandmaster 4×3×13 is mainly used for drilling mud transfer, solids control systems, and other applications requiring a durable centrifugal pump.

Inquire Now
Mission Sandmaster 3x2x13 Drilling Pump

Capacity

45-365 m³/h

Head

15-73 m

Speed

800-3500 rpm

Drive Type

Hydraulic motor

Efficiency

65%

Sandman^® Sandmaster 3x2x13 Pump for drilling mud, frac trucks, and oilfield fluid handling applications.

Inquire Now

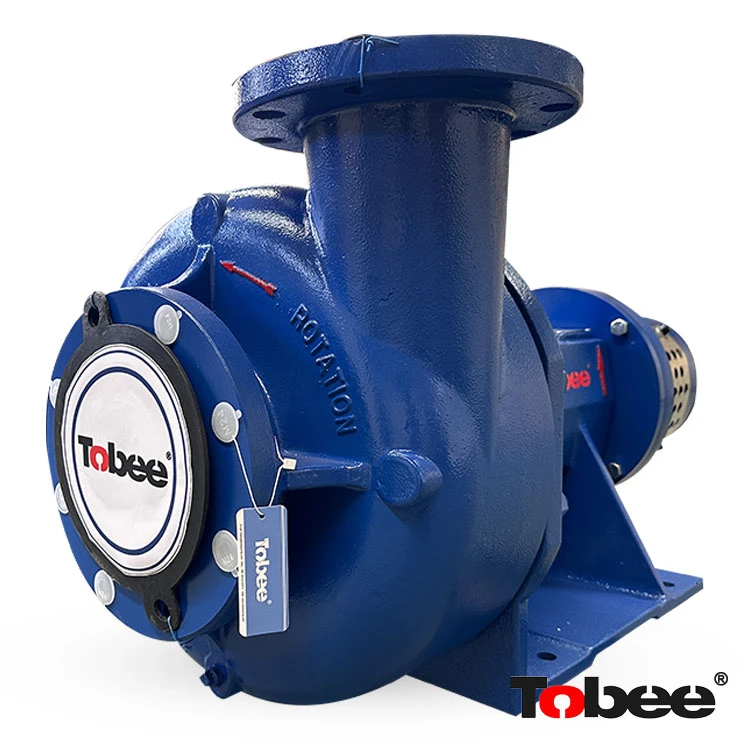

Sandman Mission Sandmaster 6x5x11 Pump

Capacity

22-410 m³/h

Head

9-48 m

Speed

800-2600 rpm

Drive Type

Hydraulic motor

Efficiency

65%

Sandman^® Mission Sandmaster 6x5x11 centrifugal pump particularly well-suited for truck-mounted rigs, pocket rigs, and skid-mounted units where footprint and weight are critical constraints.

Inquire Now

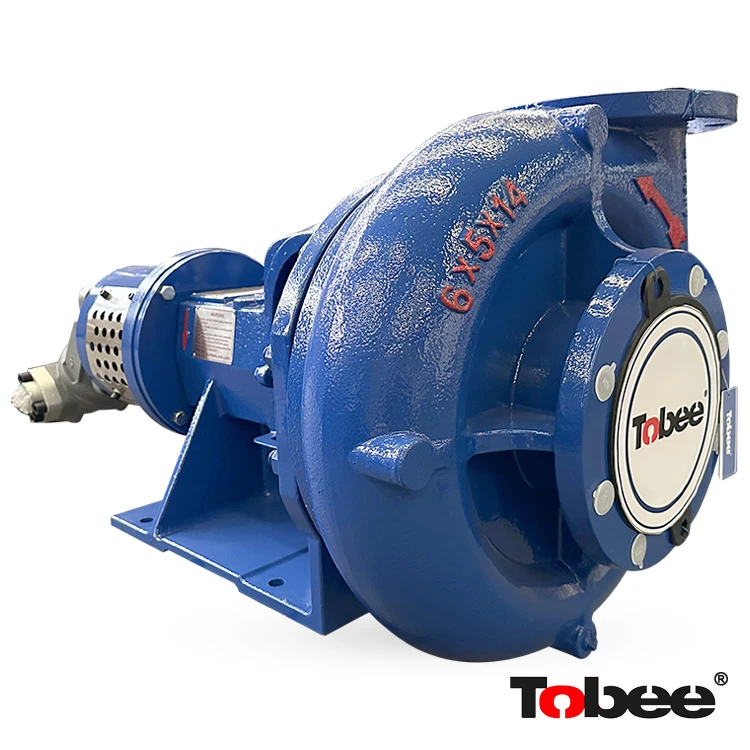

Sandman Mission Sandmaster 6x5x14 Pump

Capacity

45-365 m³/h

Head

15-73 m

Speed

800-1800 rpm

Drive Type

Hydraulic motor

Efficiency

65%

Sandman^® Mission Sandmaster 6x5x14 centrifugal sand pump combines the abrasive-fluid handling features, its compact structure is suitable for mobile oilfield equipment with flexible prime mover arrangements.

Inquire Now

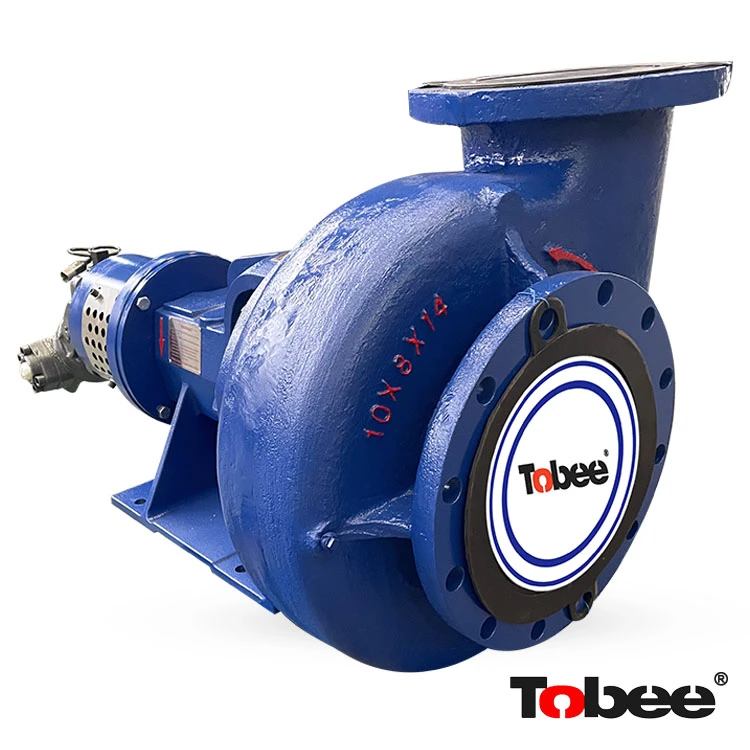

Sandman Mission Sandmaster 10x8x14 Pump

Capacity

110-910 m³/h

Head

15-53 m

Speed

800-1800 rpm

Drive Type

Hydraulic motor

Efficiency

65%

Sandman^® Mission Sandmaster 10x8x14 centrifugal pump is a heavy-duty centrifugal pump designed for high-volume transfer of sand-laden fluids, slurries and abrasive fluids in demanding oilfield applications.

Inquire Now

Tobee is specialized in providing solutions for slurry pump, vertical sump pumps, gravel pump, dredging pumps, froth pump, seawater pumps, fire pumps, slurry pump parts and OEM pump parts for your harsh projects.
