Sandman Mission Magnum I 6x5x11 Pump

SPECIFICATIONS

Size	6" x 5" x 11"
Capacity	23-410 m³/h
Head	8-48 m
Speed	800-1900 rpm
Eff.	65%
Power	Max. 45 kW
Impeller dia.	8-11 inch
Materials	Hard iron, High chrome alloy, Stainless steel, Bronze, TC coated, etc

Inquire Now Next Product

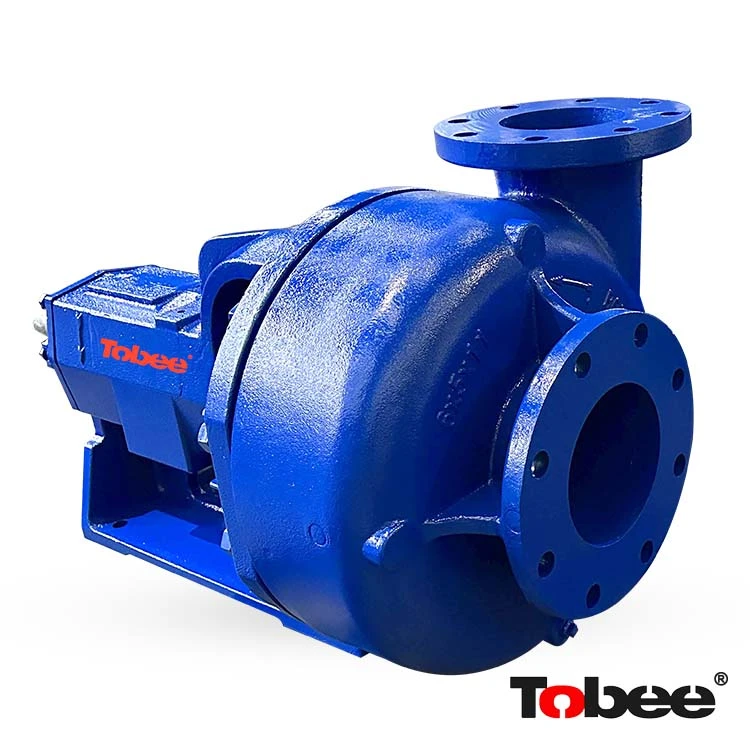

Sandman^® Mission Magnum 6x5x11 Pump

Sandman^® Mission Magnum I 6x5x11 C-pump is a heavy-duty horizontal centrifugal pump independently developed for harsh industrial working conditions, adhering to the Magnum series' consistent high-strength design philosophy of durability and low maintenance. The model naming follows the industry standard caliber-impeller diameter specification, with a 6-inch inlet, 5-inch outlet and a maximum impeller diameter of 11 inches, laying a solid foundation for balanced flow and pressure output.

Different from ordinary civilian centrifugal pumps, this model is positioned for industrial heavy-load operation, focusing on solving high-flow and medium-head fluid transfer problems in complex working environments such as impurity-containing slurry and circulating cooling water.

Performance & Operating Parameters

Mission 6x5x11 Grouting Pump is designed to deliver stable and efficient fluid transfer performance with optimized hydraulic parameters. The pump provides flexible operating configurations to meet different regional power standards and application requirements.

Operating Speed: The pump supports dual-frequency operating configurations to adapt to global industrial power supply standards in 1450 RPM (50Hz industrial power supply) and 1750 RPM (60Hz industrial power supply).

Hydraulic Efficiency: The comprehensive operating efficiency hits 65%, realizing a perfect balance between high flow rate and energy-saving operation.

Operating Parameters: Under the standard 1450 RPM operating condition, the pump's matching operating parameters are highly standardized: the optimal working flow reaches 180 m³/h, the total dynamic head (TDH) is stably maintained at 24 to 28 meters (maximum up to 160 feet).

Motor Power Configuration: In terms of power matching, the model supports three mainstream motor configurations of 30kW, 37kW and 45kW (maximum configurable 60HP), among which the 37kW motor is the most widely used standard configuration, perfectly matching the rated operating load to avoid power waste or insufficient power output.

Select Spare Parts for Your Mission 6x5x11 Pump

No.	Part Number	Stock #	Description	Materials
1	19222-01-30A	641101456	Casing, 6x5x11	Hard iron
2	19121-XX-30	641211602	Impeller, open, 6x5x11	Hard iron
3	22223-01-30	641116157	Stuffing box, Mech. Seal	Hard iron
4 (option)	20614-01-30	643365042	Stuffing Box, Packed	Hard iron
5	22451-1	648414308	Mechanical Seal	Tungsten carbide
6	25014-04M-B	661007005	Packing, Shaft	Teflon
7	20612-02-33	646490557	Shaft	AISI 4140
8	20943-21	641102182	Shaft Sleeve (M.S. Pump)	416SS
9	2063-21G-7A	641102181	Shaft Sleeve (Pack Pump)	Ceramic
10	20615-1	661009010A	Inboard Bearing	Customized
11	20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

Multiple Material Options for Mission Pumps

To meet various application requirements, Sandman offers multiple material solutions for Mission drilling pumps, allowing customers to select the most suitable configuration according to fluid characteristics, solids content, abrasion level, and corrosion conditions.

Hard Iron
High Chrome Alloy
Stainless Steel / Duplex SS
Bronze / Aluminum Bronze
Tungsten Carbide Coating

Wide Industrial Applications

Mission 6x5x11 Mud Circulating Pump is widely applied in multiple industrial fields, becoming a trusted core fluid handling equipment:

Drilling Mud Circulation Pump
• Provides circulation power for mud systems
• Supports operations for onshore drilling and offshore drilling platforms

Mud Mixing Pump / Hopper Mixing Pump
• Used for mixing drilling materials such as bentonite, barite, and polymers.

Mud Transfer Pump
• Transfer between mud pits
• Feeding from mud tanks and mud systems

Triplex Mud Pump Charging Pump
• Provide stable suction pressure for the triplex mud pump.

Drilling Fluid Processing System
• Works in conjunction with solids control equipment such as desanders, and desilters.

Need Mission Pump Parts or Complete Pump Package?

Whether you need a new Mission Magnum pump, replacement wear parts, maintenance kit, or customized pump system, Sandman can provide a reliable solution to keep your equipment operating efficiently.

Contact Sandman today for your Mission Pump quotation and Technical Support.
