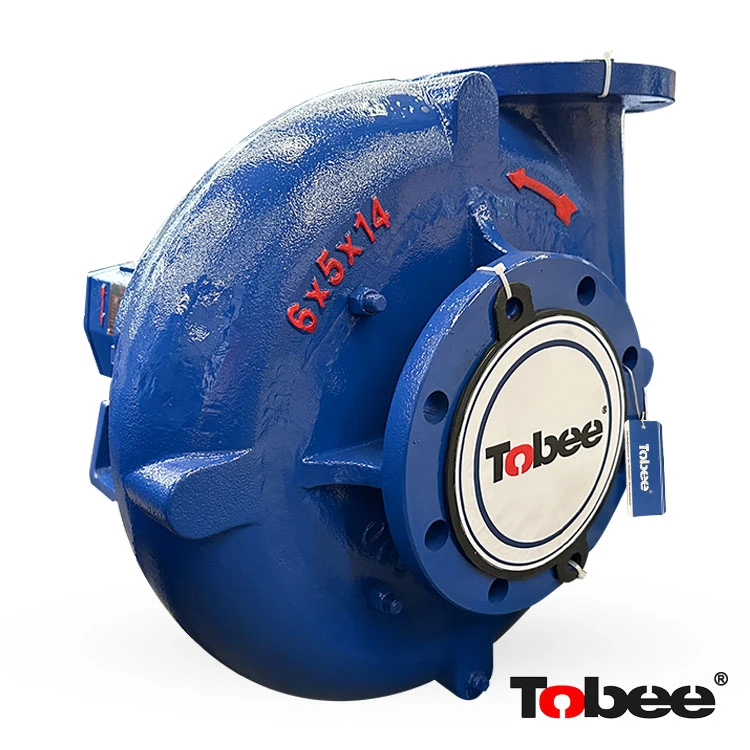

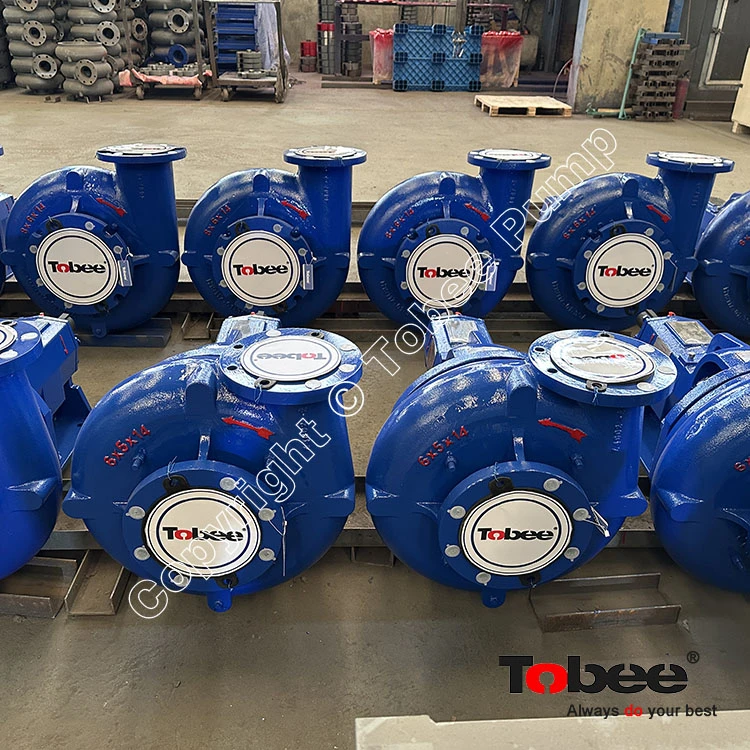

Sandman® Mission 2500 Supreme 6×5×14 Mud Pump
Sandman® Mission 2500 Supreme 6×5×14 Centrifugal Pump is a high-performance, heavy-duty centrifugal pump designed for handling drilling mud, abrasive slurry, and high-density industrial fluids. As one of the most commonly used models in the Mission 2500 Supreme series, the 6×5×14 pump provides an excellent balance of flow capacity, wear resistance, and operating reliability for demanding applications.
The pump adopts a semi-open impeller design with wide-tipped vanes, which allows efficient handling of solids-containing fluids while maintaining smooth hydraulic performance. The optimized flow passage reduces turbulence, minimizes wear on internal components, and improves overall pump efficiency.
The 6×5×14 centrifugal pump is widely used in oilfield drilling operations, solids control systems, and industrial slurry transfer applications.
It can be supplied with different fluid-end materials, including Hard Iron, Supreme Hard Iron, High Chrome Alloy, Stainless Steel, Aluminum Bronze, and Tungsten Carbide, to meet various requirements for abrasion resistance and corrosion protection.
2500 Supreme Pump Features
Heavy-Duty Wear Resistant Construction-The Mission 2500 Supreme centrifugal pump is built for continuous operation in abrasive environments. The thick concentric casing provides maximum strength and durability, while replaceable wear components reduce maintenance costs and extend equipment life.
Advanced Semi-Open Impeller Design-The wide semi-open impeller creates lower axial thrust, reducing stress on bearings and improving long-term reliability. The open design also allows efficient handling of solids and high-viscosity fluids.
Optimized Hydraulic Performance-The full pipe diameter suction inlet reduces flow restriction and turbulence, ensuring smooth fluid entry into the impeller. This design improves efficiency, reduces energy consumption, and provides stable operation under variable load conditions.
Reliable Shaft and Bearing System-The pump is equipped with: Duplex angular contact bearings for high load capacity; Labyrinth seals for maximum bearing protection; Replaceable shaft sleeve to protect the shaft from wear; Heavy-duty power end designed for extended service life
Flexible Sealing Options-The versatile stuffing box design supports different sealing arrangements. A long-life mechanical seal option is available to achieve near-zero leakage operation and reduce environmental contamination.
Simplified Maintenance-All Mission 2500 Supreme pump sizes share the same power end design, allowing easier spare parts management, faster maintenance, and reduced downtime.
Available Impeller Options
The Mission 2500 Supreme features a semi-open impeller design with wide-tipped vanes and a tangential suction profile. This advanced design creates a smoother flow pattern, improves solids handling capability, and reduces wear when pumping abrasive fluids.
Available impeller options allow the pump to be customized according to specific performance requirements:
| Impeller Parts Number | Impeller Size |
| H2524-70-30 | 6x5x14-11inch |
|
H2524-74-30 |
6x5x14-11.5inch |
|
H2524-80-30 |
6x5x14-12inch |
|
H2524-84-30 |
6x5x14-12.5inch |
| H2524-90-30 | 6x5x14-13inch |
|
H2524-94-30 |
6x5x14-13.5inch |
| H2524-A0-30 | 6x5x14-14inch |

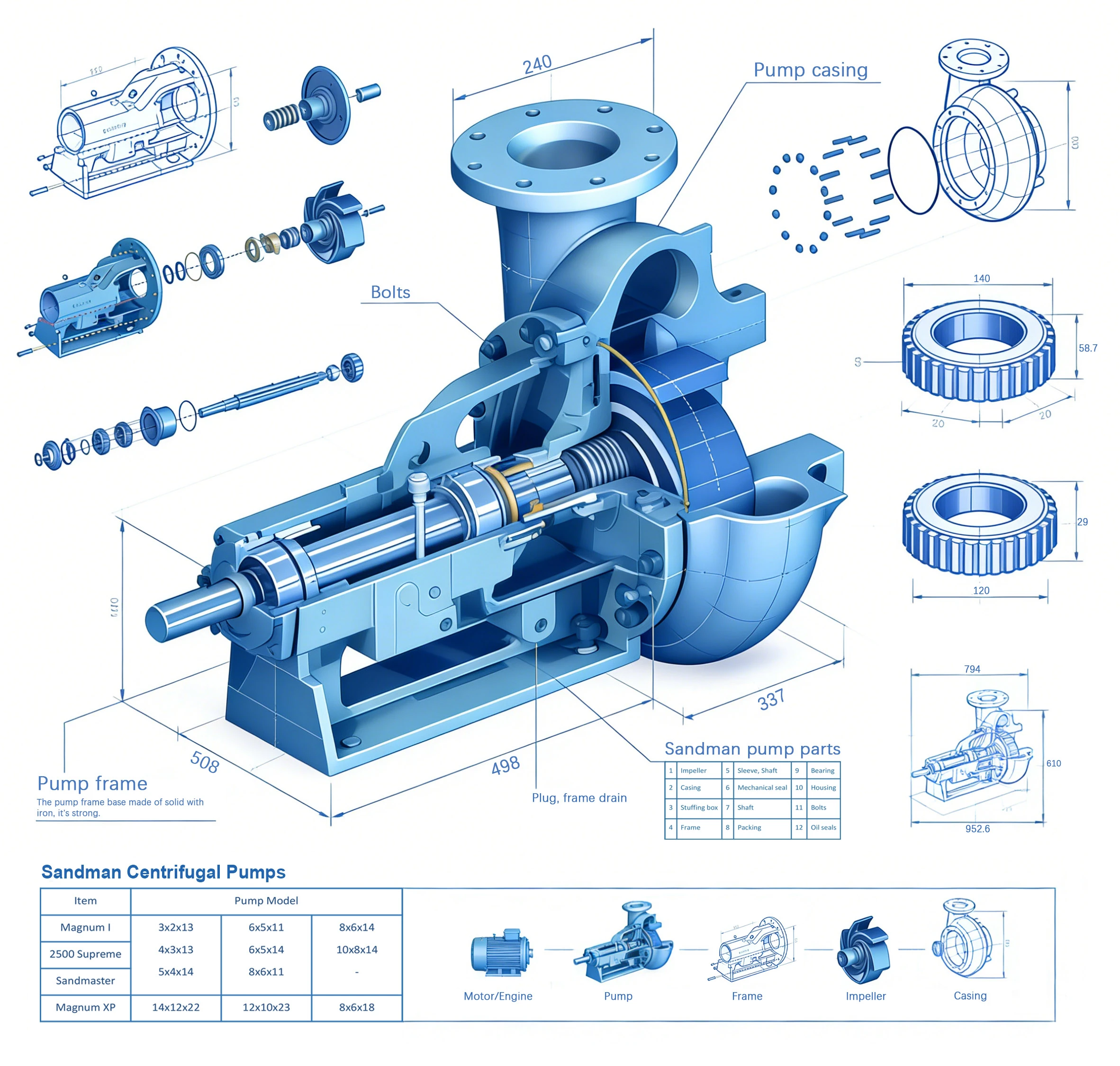

2500 Supreme Centrifugal Pump Structure
A complete range of replacement parts is available to support maintenance requirements:
These parts help extend equipment life and ensure long-term reliable operation.
Drive Configuration
Sandman Mission 2500 Supreme 6×5×14 centrifugal pump can be supplied as:
A Mission pump plays an important role in the mud tank system by providing efficient drilling fluid circulation, mixing, and transfer during drilling operations.
Mission pump helps control solid content and maintain proper drilling fluid properties.
Mission pump continuously moves drilling fluid between mud tanks and processing equipment.
Mud Circulation and Transfer, preventing mud from settling.
Customized Solutions
Choose the Sandman® Mission 2500 Supreme 6×5×14 Pump for proven performance, exceptional durability, and reliable pumping in challenging applications.
Contact us today for customized solutions tailored to your operational needs.
