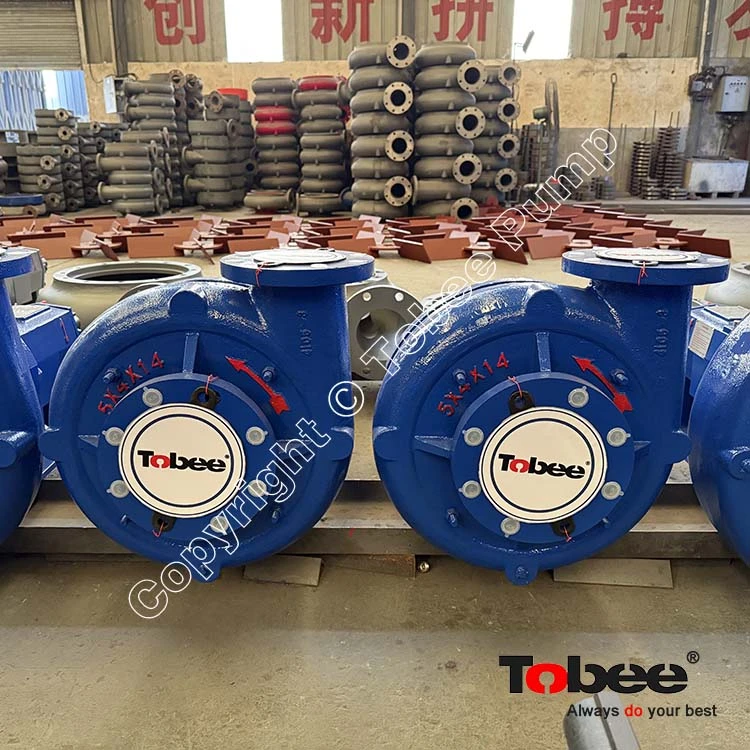

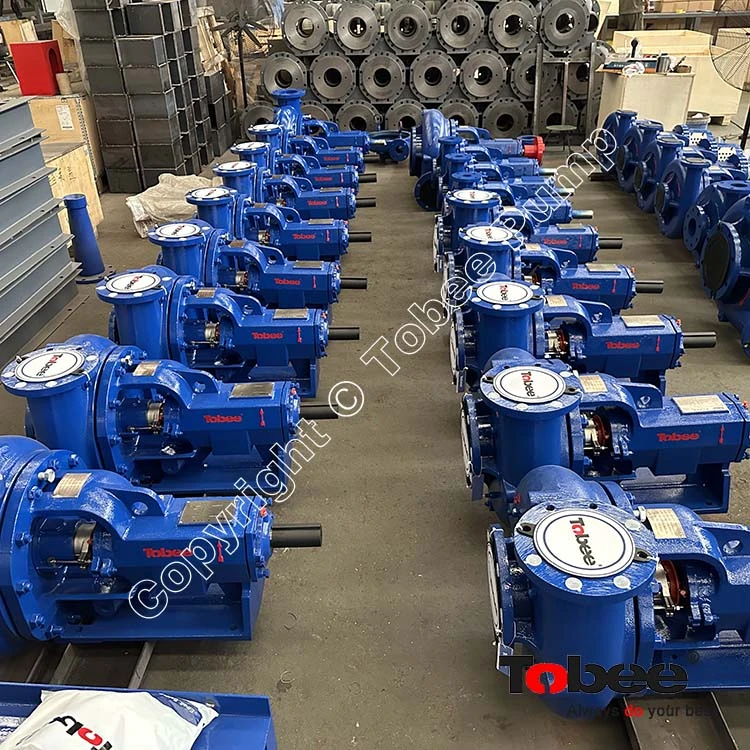

Sandman® Mission 2500 Supreme 5x4x14 Pump
Sandman® Mission 2500 Supreme 5×4×14 Centrifugal Pump is a heavy-duty centrifugal pump designed for reliable transfer of drilling fluids, abrasive slurries, and industrial process fluids, the 5×4×14 model is widely used in drilling operations, slurry handling systems, and general industrial pumping applications.
The pump features a semi-open impeller with wide-tipped vanes, which provides excellent solids-handling capability and creates a smoother flow pattern when pumping abrasive fluids. The optimized hydraulic design reduces turbulence, minimizes wear, and improves pump efficiency and service life.

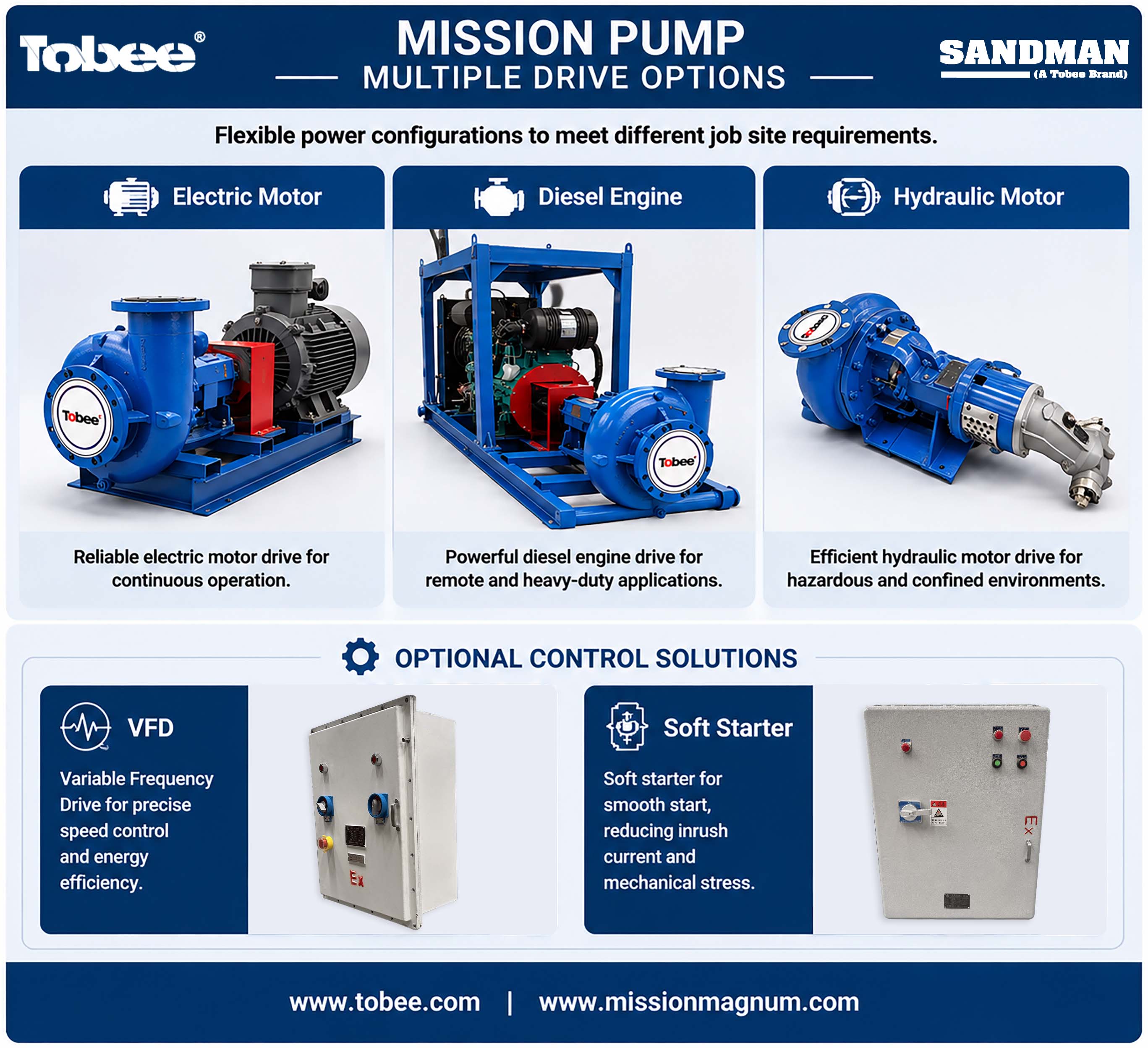

The 5×4×14 pump is available with Hard Iron, Supreme Hard Iron, and Aluminum Bronze fluid ends to meet different wear and corrosion resistance requirements. It can be equipped with electric motors, diesel engines, or hydraulic motors and supplied in horizontal, vertical, or close-coupled configurations.
Design Features
Sandman® Mission 2500 Supreme 5×4×14 Centrifugal Pump provides an efficient and durable pumping solution for oilfield drilling, mining, and industrial slurry applications where reliability and wear resistance are critical.
Heavy-duty concentric casing design for maximum strength and durability
Replaceable casing wear components for extended operating life
Semi-open impeller design suitable for abrasive and high-solid fluids
Wide impeller vanes reduce axial thrust and improve bearing life
Full-size suction inlet minimizes turbulence and improves hydraulic efficiency
Replaceable shaft sleeve protects the shaft from wear
Duplex angular contact bearings provide high load capacity
Labyrinth seals protect bearings from contamination
Mechanical seal option available for near-zero leakage operation
Solid frame base ensures stable operation
Common power end design simplifies maintenance and spare parts inventory
Typical Pump Configurations
Sandman® Mission 2500 Supreme Centrifugal Pump Series includes a complete range of heavy-duty centrifugal pumps from 3×2×13 to 10×8×14, designed to handle demanding applications involving drilling fluids, abrasive slurries, high-density mud, and industrial process fluids.
Typical Industries & Applications
In drilling operations, the 5×4×14 centrifugal pump is mainly used as a reliable auxiliary pump for:
Its wear-resistant construction makes it suitable for handling drilling fluids containing barite, sand, clay, and other abrasive solids.
Applications
Depending on different operating conditions, the Mission centrifugal pump can also be used as:
Why Choose Sandman® Mission 2500 Supreme Pump?
✔ Heavy-duty design for harsh working environments
✔ Excellent wear resistance for abrasive fluids
✔ High efficiency with reduced energy consumption
✔ Stable operation with high-density slurry
✔ Multiple material options for different applications
✔ Flexible drive and installation configurations
✔ Easy maintenance with interchangeable power end design
✔ Long service life and reduced operating costs
