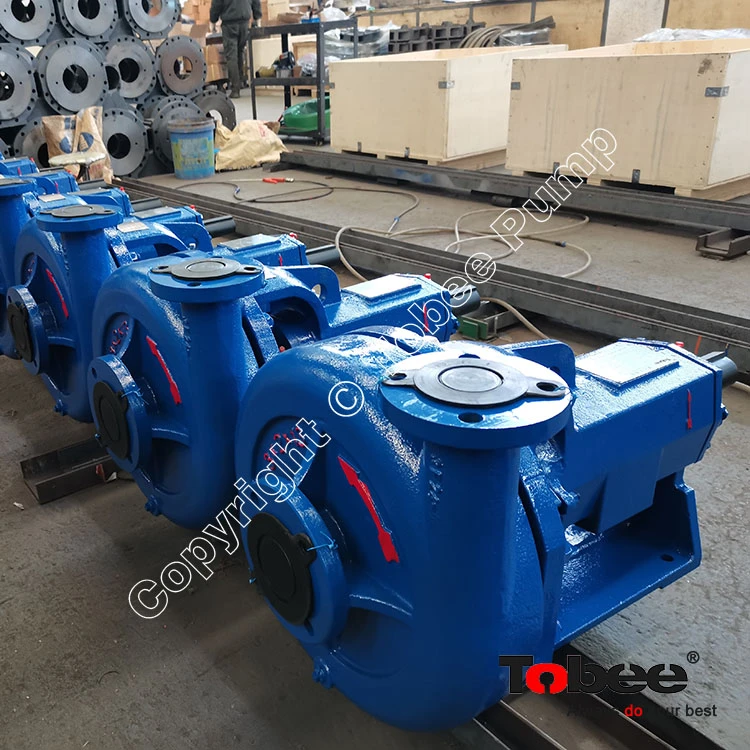

2500 Supreme 3x2x13 Centrifugal Pump

SPECIFICATIONS

Size	3" x 2" x 13"
Capacity	250-280 m³/h
Head	28-33 m
Speed	800-2100 rpm
Power	Max. 90 kW
Impeller dia.	6-13 inch
Materials	Hard iron, Stainless Steel, High chrome, Bronze, Tungsten carbide, etc

Inquire Now

Mission 2500 Supreme Mud Circulation Pump

Sandman^® Mission 2500 Supreme Centrifugal Pump is a high-performance centrifugal pump specially designed for handling abrasive fluids, high-density drilling mud, and industrial slurries.

Featuring a semi-open impeller with wide-tipped vanes, the pump provides excellent solids-handling capability while maintaining stable hydraulic performance. The optimized suction passage with a more tangential circumference creates a smoother flow path, reducing turbulence, minimizing wear, and improving overall pumping efficiency.

Key Design Features

Versatile stuffing box design

Suitable for different sealing requirements

Heavy-duty concentric casing

With high structural strength and replaceable casing wear pad for extended service life

Replaceable stuffing box

With dual stuffing box bolts for improved reliability

Long-life mechanical seal

option for near-zero leakage operation

Replaceable shaft sleeve

To protect the pump shaft and reduce maintenance costs

Solid frame

Base providing excellent stability and durability

Labyrinth seals

For maximum bearing protection against contamination

Duplex angular contact bearings

For higher load capacity and longer bearing life

Full pipe diameter suction entrance

To minimize turbulence and maximize pump efficiency

Wide semi-open impeller design

Reducing axial thrust and improving bearing performance

Common power end design

For all pump sizes, simplifying maintenance and spare parts management

Multiple fluid-end material options

Centrifugal Pump

2500 Supreme Centrifugal Pump Wear Parts

No.	Part Number	Stock #	Description	Materials
1	H19203-01-30A	19203AH	Casing, 3x2x13	Hard iron, SS, High Chrome, Bronze etc...
2	H19204-XX-30	641215603	Impeller, open, 3x2x13	Hard iron, SS, High Chrome, Bronze etc...
3	H22223-01-30	22223H	Stuffing box, Mech. Seal	Hard iron, SS, High Chrome, Bronze etc...
4 (option)	H20614-01-30	20614H	Stuffing Box, Packed	Hard iron, SS, High Chrome, Bronze etc...
5	H22451-1A	648414308	Mechanical Seal	Tungsten carbide
6	8264-24-OB	648402600	Packing, Shaft	Teflon, Lantern
7	H20612-02-33	646490557	Shaft	AISI 4140
8	H20613-21A	646492505	Shaft Sleeve (M.S. Pump)	416SS
9	H20613-21G-7A	646490656	Shaft Sleeve (Pack Pump)	Ceramic
10	H20615-1	661009010A	Inboard Bearing	Customized
11	H20616-1	648408201S	Outboard Bearing	Customized
12	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
13	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
14	20619A	641103312	Grease Seal Kit	Buna-n

Mission Pump Drive

Multistage Drive Options

Mission pumps can be equipped with a variety of drive systems to meet different application requirements, including flow rate, pressure, fluid characteristics, and automation needs.

The available drive options include:

Electric Motor Drive: Equipped with standard AC motors, variable frequency motors, or explosion-proof motors, electric drives provide reliable operation, easy maintenance, and wide application flexibility. Combined with a frequency inverter, the pump speed can be adjusted to achieve precise flow and pressure control, making it suitable for industries such as chemical processing, pharmaceuticals, food, and environmental protection.
Hydraulic Drive: Provides high driving force and stable performance, suitable for heavy-duty applications, high-pressure systems, and special industrial environments.
Variable Frequency Drive (VFD) Control: By adjusting motor speed through a frequency converter, the pump output can be flexibly controlled according to actual process requirements. This improves energy efficiency, reduces operating costs, and enhances system performance.

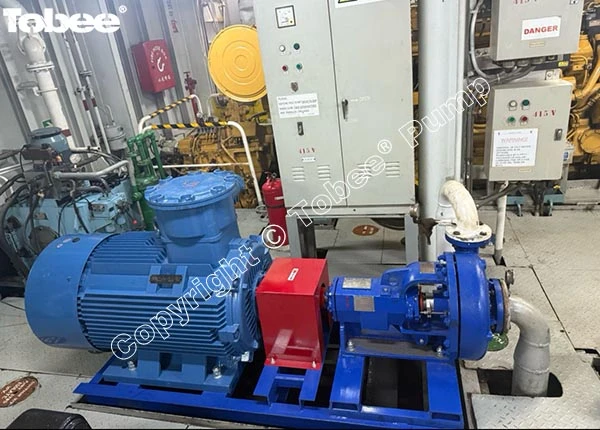

Typical Applications

The Tobee Mission 2500 Supreme Centrifugal Pump is widely used for:

Barite, ferric oxide, and mineral oil transfer
Base drilling mud circulation
Glass fiber slurry handling
Sugar processing systems
Ash and coal conveying systems
Cement slurry transfer
Mine dewatering
Lime slurry processing
Kaolin clay handling
Crystalline mineral applications

Reliable Pumping Solutions

Sandman^® provides Mission 2500 Supreme centrifugal pumps from 3×2×13 to 10×8×14, with flexible material and drive options for oilfield drilling, solids control, mining, and mud handling applications.
