Sandman^® 2500 Supreme 8x6x14 Pump for Mud Circulation

SPECIFICATIONS

Size	8" x 6" x 14"
Capacity	55-560 m³/h
Head	8-67 m
Speed	800-1750 rpm
Eff.	65%
Power	Max. 110 kW
Impeller dia.	8-14 inch
Materials	Hard iron, High chrome alloy, Stainless steel, Bronze, TC coated, etc

Inquire Now Next Product

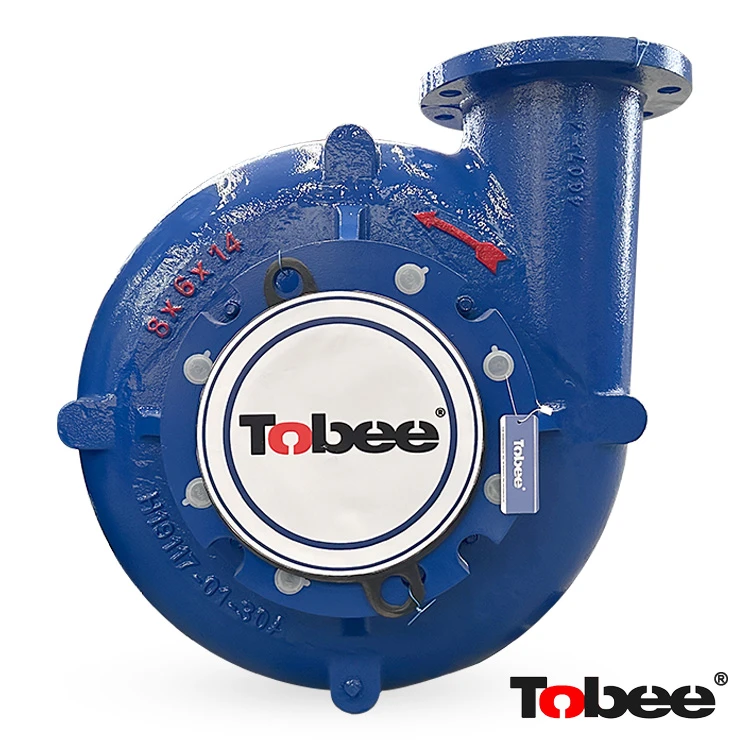

Mission 2500 Supreme 8×6×14 Centrifugal Pump

Sandman^® Mission 2500 Supreme 8×6×14 Centrifugal Pump is a high-capacity, heavy-duty centrifugal pump designed for large-scale drilling operations, high-density drilling fluid circulation, and mud transfer applications. As one of the largest models in the Mission 2500 Supreme series, the 8×6×14 pump delivers excellent flow capacity, outstanding wear resistance, and stable performance under demanding operating conditions.

The pump features a semi-open impeller with wide-tipped vanes, providing superior solids-handling capability and smoother fluid passage when pumping abrasive and high-viscosity fluids. The optimized suction design reduces turbulence, improves hydraulic efficiency, and minimizes internal wear, resulting in longer service life and reduced maintenance requirements.

The 8×6×14 centrifugal pump is widely applied in oilfield drilling rigs, solids control systems, mud circulation systems, and industrial mud handling applications. It is especially suitable for drilling rigs with high-density and high-viscosity drilling fluids, including deep drilling operations.

2500 Supreme Series Centrifugal Pump Design

Heavy-duty concentric casing engineered for superior strength, durability, and long-term operation in demanding environments.

Semi-open, wide-vane impeller designed for efficient solids handling while reducing axial thrust and improving bearing life.

Optimized hydraulic design delivers stable flow and reliable performance when handling high-viscosity and abrasive fluids.

Replaceable wear components simplify maintenance, extend service life, and help reduce operating costs.

Replaceable shaft sleeve provides effective protection against abrasion and wear, extending shaft service life.

Duplex angular-contact bearings provide excellent load-carrying capacity and reliable operation under continuous-duty conditions.

Labyrinth bearing seals effectively protect the bearing assembly from drilling fluid, dust, and other contaminants.

Optional mechanical seal provides reliable sealing performance and helps achieve near-zero leakage.

Heavy-duty frame base ensures excellent structural stability and reliable pump support during operation.

Standardized power-end design simplifies maintenance, spare-parts management, and interchangeability across the pump series.

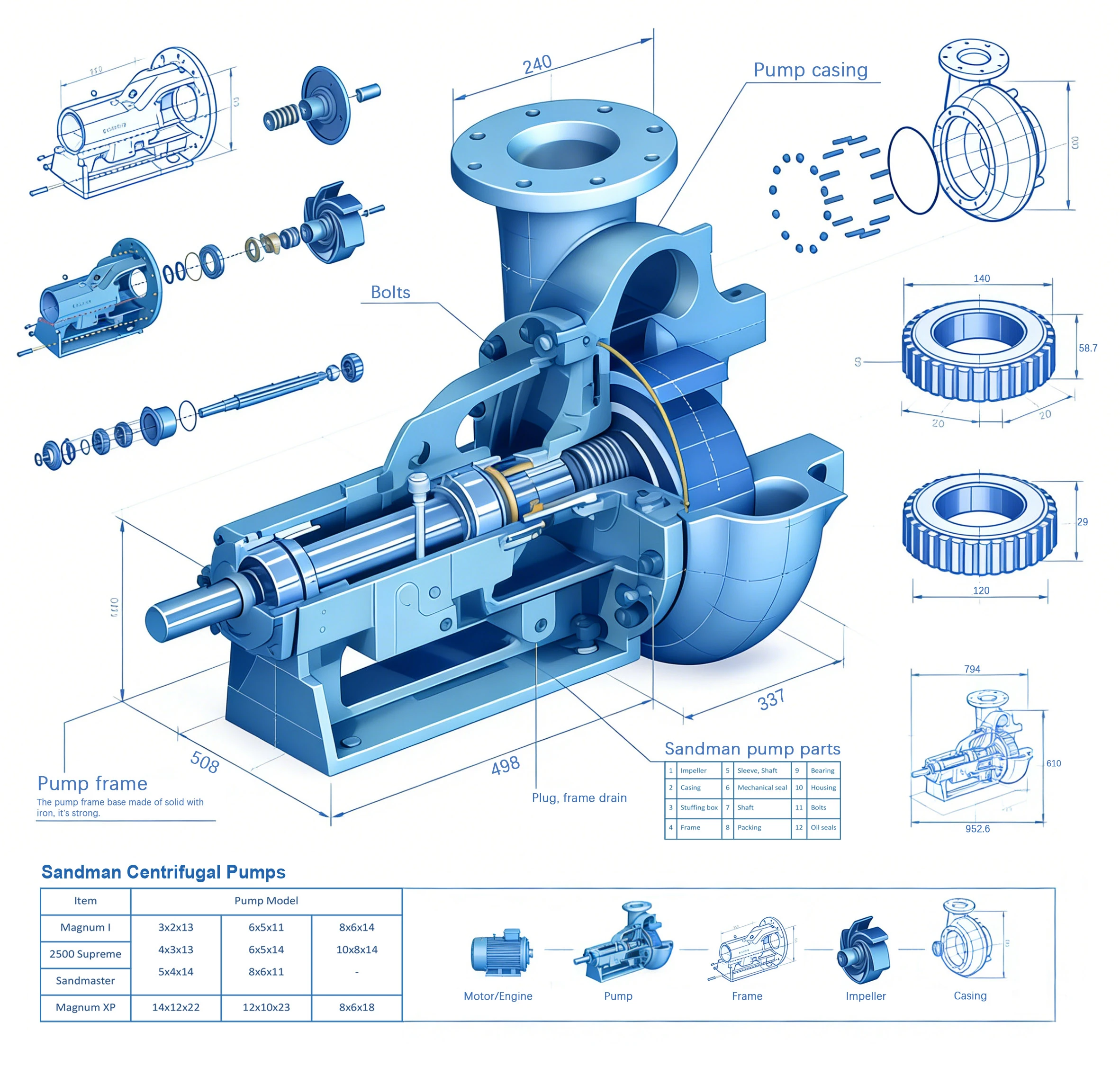

Mission 2500 Supreme Pump Structure Chart

Mission Pump Parts

8x6x14 Pump Wear Parts List

No.	Part Number	Stock #	Description	Materials
1	H19117-01-30A	19117AH	Casing, 8x6x14	Hard iron
2	H2525-XX-30	Varies	Impeller, 8x6x14 Semi-open	Hard iron
3	H2506-01-30A	2506-37AH	Wear Pad, 8x6x14	Hard iron
4	H22223-01-30	22223H	Stuffing box, Mech. Seal	Hard iron
5 (option)	H20614-01-30	20614H	Stuffing Box, Packed	Hard iron
6	H22451-1	648414308	Mechanical Seal	Tungsten carbide
7	8264-24-OB	648402600	Packing, Shaft	Teflon
8	H20612-02-33	646490557	Shaft	AISI 4140
9	H20613-21A	646492505	Shaft Sleeve (M.S. Pump)	416SS
10	H20613-21G-7A	646490656	Shaft Sleeve (Pack Pump)	Ceramic
11	H20615-1	661009010A	Inboard Bearing, with spacer	Customized
12	H20616-1	648408201S	Outboard Bearing	Customized
13	10399-46-1A	641101076	Fluid End Gasket Kit	Vellumoid/Viton
14	20625A	641103353	Power End Gasket Kit	Vegetable fiber/Buna-n
15	20619A	641103312	Grease Seal Kit	Buna-n

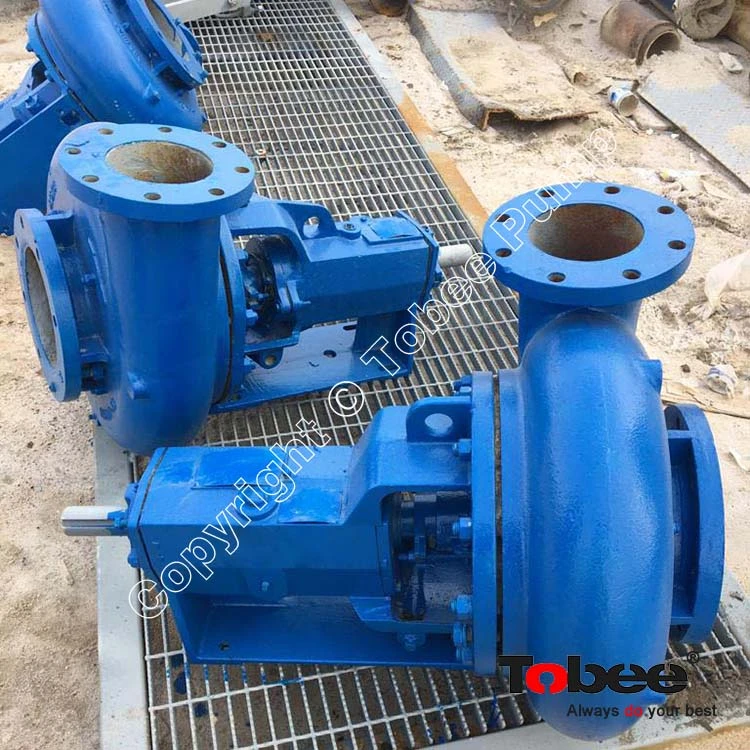

Typical Working Conditions

The 8x6x14 model is ideal for applications requiring:

Medium to high flow rates
Continuous-duty operation
High solids concentration handling
Strong abrasion resistance
Reliable performance in harsh environments

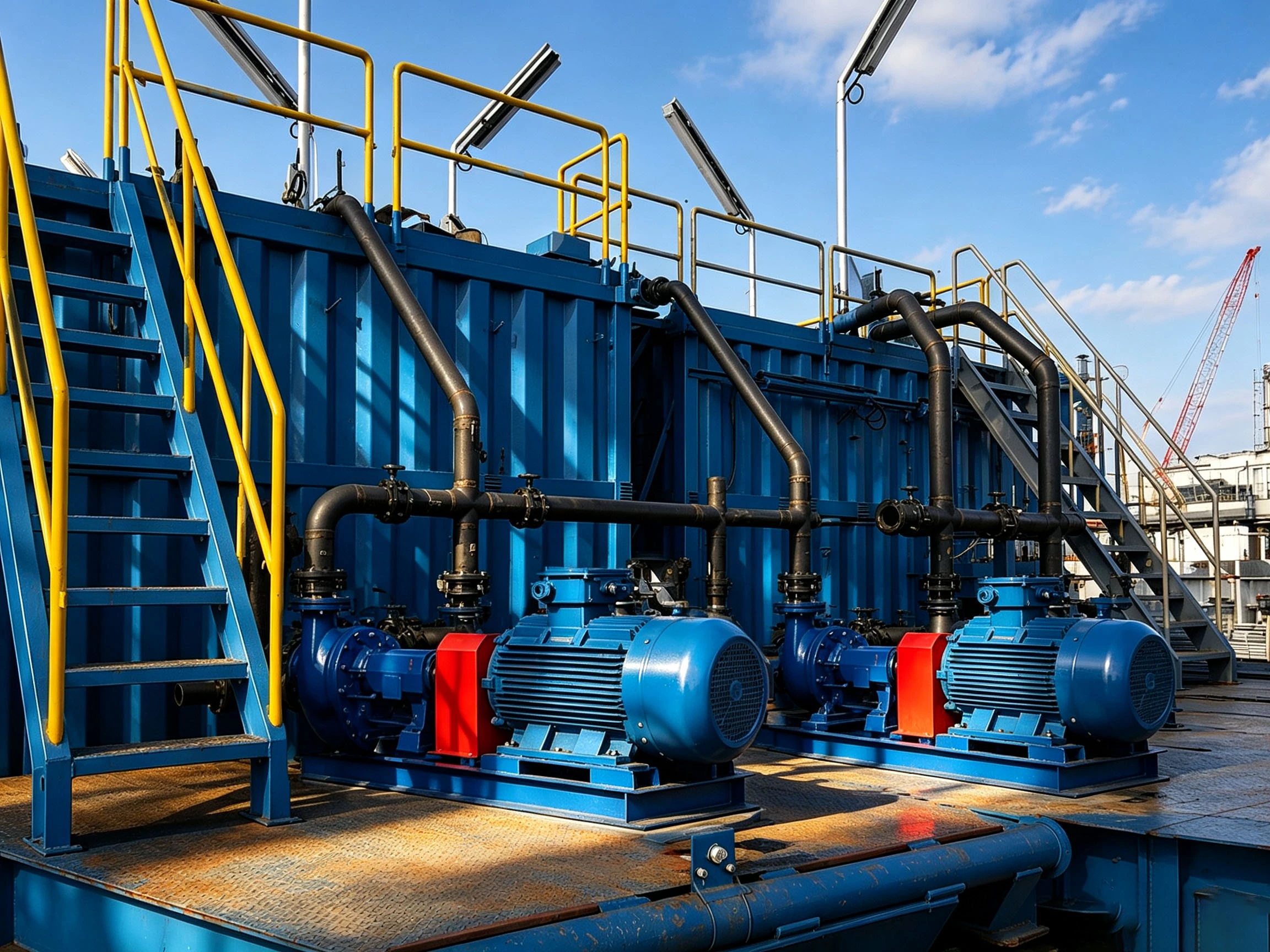

8x6x14 Mud tank pump

Mission Pump and mud tank system

A Mission pump plays an important role in the mud tank system by providing efficient drilling fluid circulation, mixing, and transfer during drilling operations.

Installed near or connected to the mud tank, the Mission pump draws drilling fluid from the tank through the suction line and transfers it to other equipment, such as shale shakers, desanders, desilters, or mud mixing systems.

The pump uses a centrifugal impeller to generate the required pressure and flow, ensuring continuous movement of drilling fluid throughout the mud processing system.

Why choose Mission Magnum Pump?

✓ Globally proven application experience

It has been validated in industrial fields over a long period of time and is adapted to the needs of complex working conditions.

✓ Excellent wear resistance

Reduce replacement frequency and extend equipment lifespan.

✓ Stable operation performance

It meets the requirements for continuous production and high-load operation.

✓ Flexible configuration options

Customized solutions can be provided for different working conditions.
