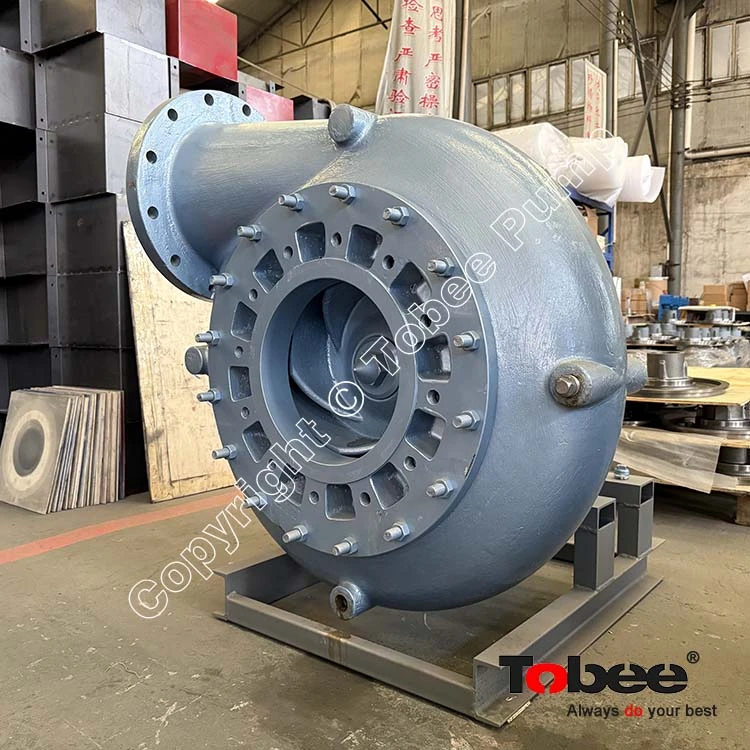

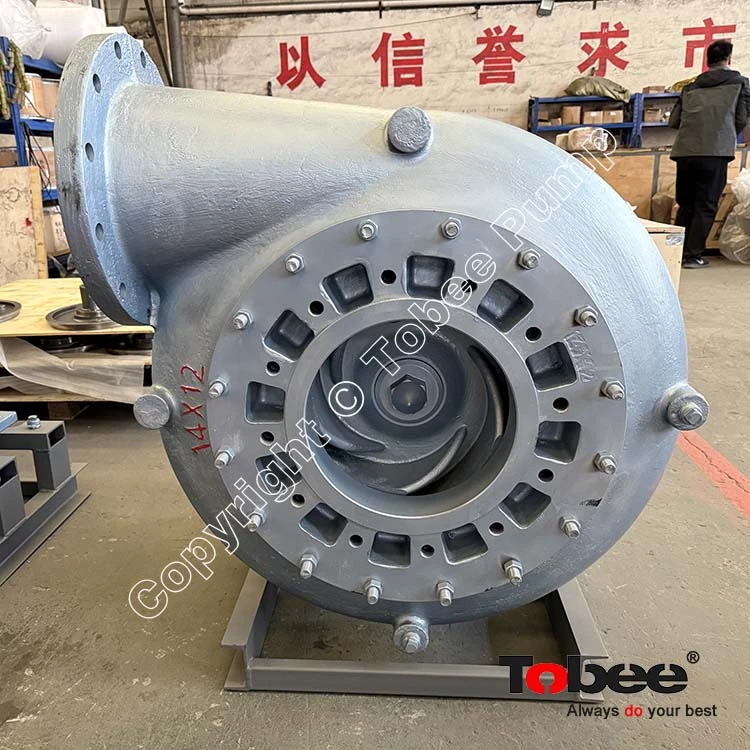

Mission XP 14x12x22 Centrfugal Pump
Sandman® Magnum XP blender pump is built for pumping high volumes of heavy slurries that are abrasive, corrosive, or otherwise difficult to handle. Across the XP series pump, the 8x6x18, 12x10x23, and 14x12x22 pumps can deliver flow rates up to 7,500 GPM and head pressures up to 540 feet, making the 14x12x22 the largest and highest-capacity model in the lineup. At low operating speeds specifically, the 14x12x22 and 12x10x23 models deliver flow rates from 3,000–7,500 GPM at 75–410 feet of head.

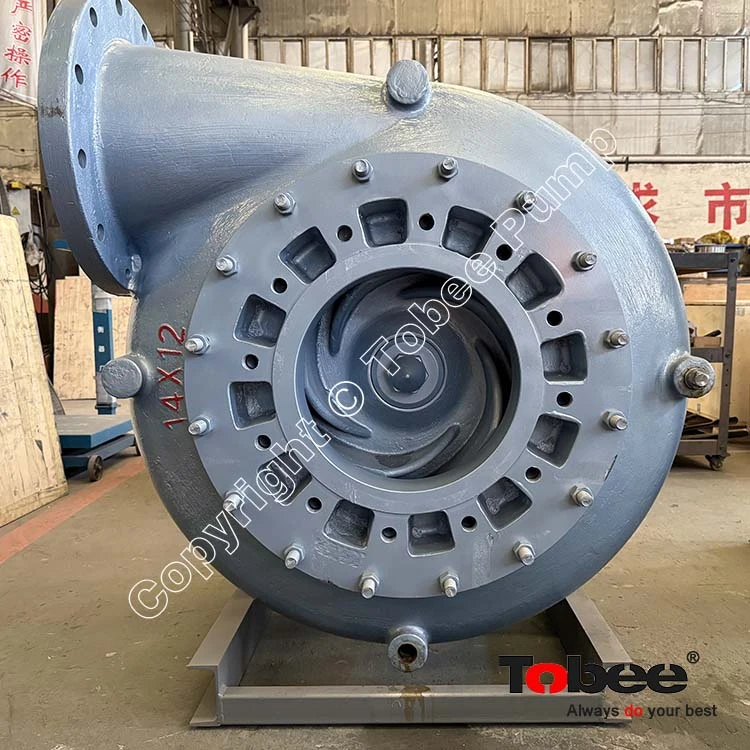

When a hydraulic fracturing spread needs to move thousands of gallons of abrasive, corrosive slurry per minute without missing a beat, the Mission XP frac blender 14x12x22 is one of the pumps operators reach for most. Purpose-built as a blender discharge and frac suction pump, it's become one of the most recognized names in the well-stimulation pump market, it combines massive throughput with a footprint small enough to fit on the crowded deck of a blender truck or skid.
Magnum XP Pump Design Features
Heavy-Duty Construction Robust casing and components for demanding oilfield and industrial service.
High-Flow Hydraulic Design Optimized impeller and casing geometry for efficient high-volume fluid transfer.
Heavy-Duty Shaft & Bearings Designed to withstand high radial and hydraulic loads during continuous operation.
Low Stuffing-Box Pressure Helps reduce seal wear and extend sealing component life.
Flow Divider Design Reduces radial loading on the impeller and shaft, improving bearing life.
Replaceable Wear Components Simplifies maintenance and helps reduce lifecycle costs.
Multiple Material Options Available in abrasion-resistant materials such as hard iron and high chrome alloy.
Flexible Drive Configurations Can be adapted to electric motor, diesel engine, direct-coupled, or belt-driven systems.
Easy Maintenance Service-friendly construction allows key components to be inspected and replaced efficiently.

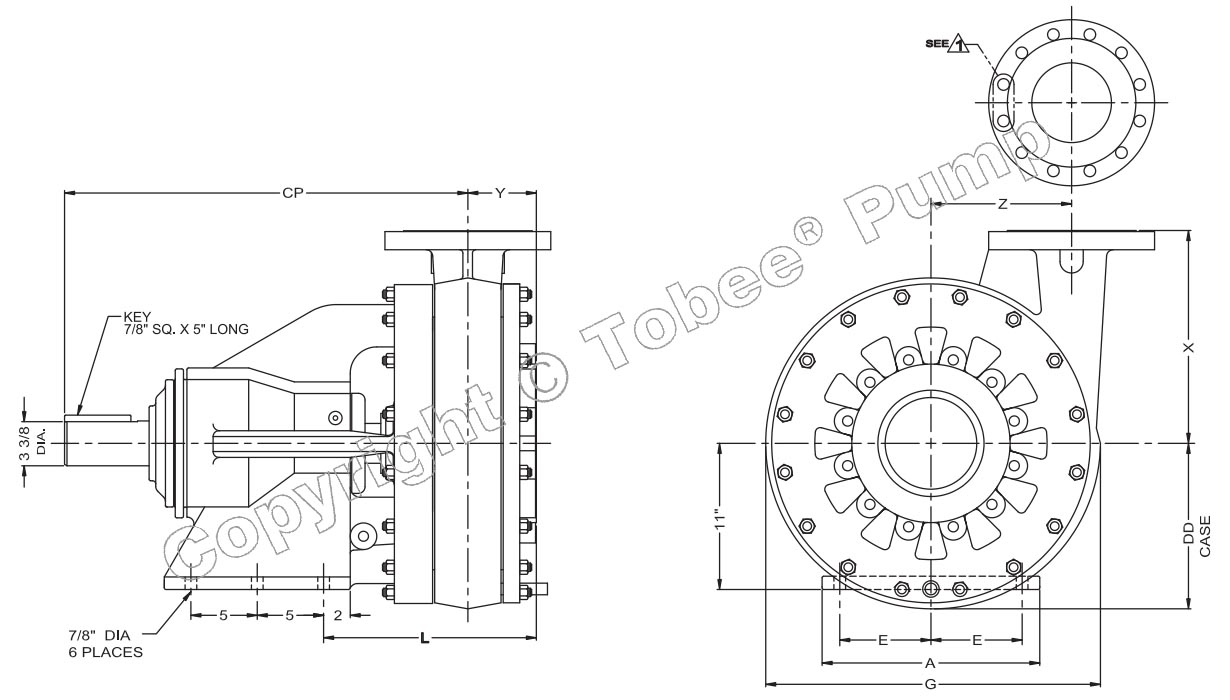

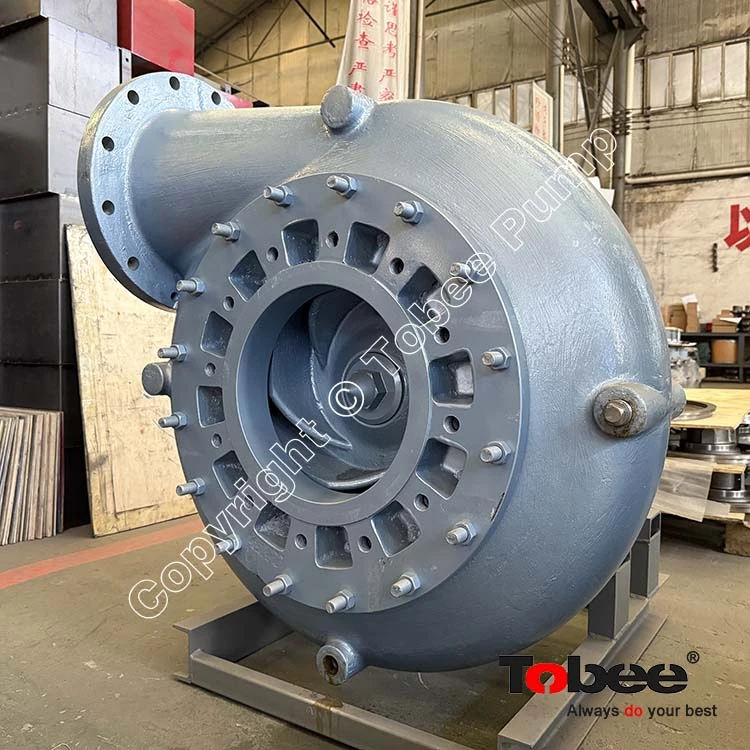

Magnum XP 14x12-22 Pump Dimensions
|
Model
|
Suction Flange |
Discharge Flange |
A
|
E
|
G
|
L
|
X
|
Y
|
Z
|
CP
|
DD
|
||||||
|
Size |
n |
d |
BC |
Size |
n |
d |
BC |
||||||||||
|
14×12×22 |
14" |
12 |
1" 8UNC 2B |
18 3/4" |
12" |
See Note I |
16 13/32" |
6 7/8" |
37 3/4" |
18 3/8" |
19 7/16" |
6 5/8" |
14 9/16" |
31 3/16" |
18 13/16" |
||
* THE ABOVE FLANGES ARE ANSI STANDARD 150 SERIES FLAT FACE EXCEPT 8×6×18 IS ANSI 250# (300SERIES) RAISED FACE. ALL DISCHARGE FLANGE HOLES ARE THRU CLEARANCE HOLES EXCEPT AS NOTED.
NOTE I: THE DISCHARGE FLANGE FOR THE 14×12×22 HAS 12 HOLES,10 HOLIES THRU 1″ DIA &2 HOLES TAPPED 7/8-9UNC-2B AS SHOWN,ON A 17″ DIA.B.C
NOTE: Dimensions are for reference only. Certified drawings should be requested for construction purposes.

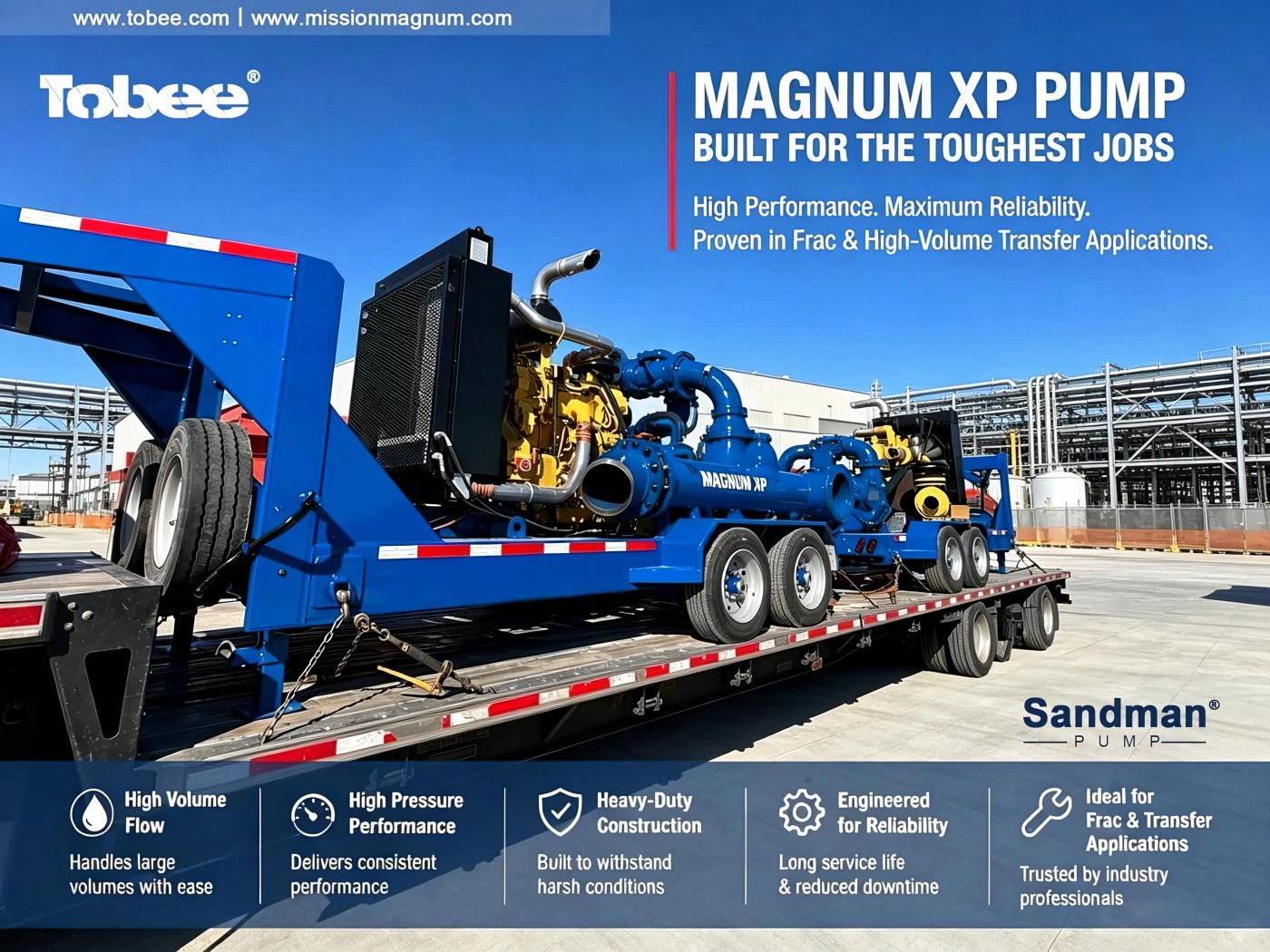

Hydraulic Fracturing Applications

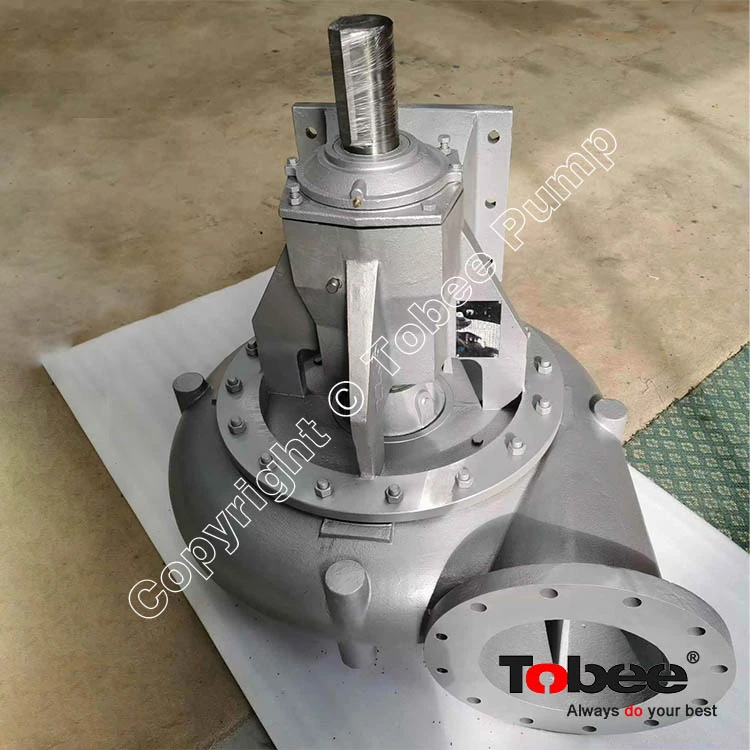

Sandman® Mission XP 14x12x22 XP pump is primarily used in high-volume fluid transfer within hydraulic fracturing systems, where large flow rates and continuous-duty operation are required.
Typical Frac Applications:

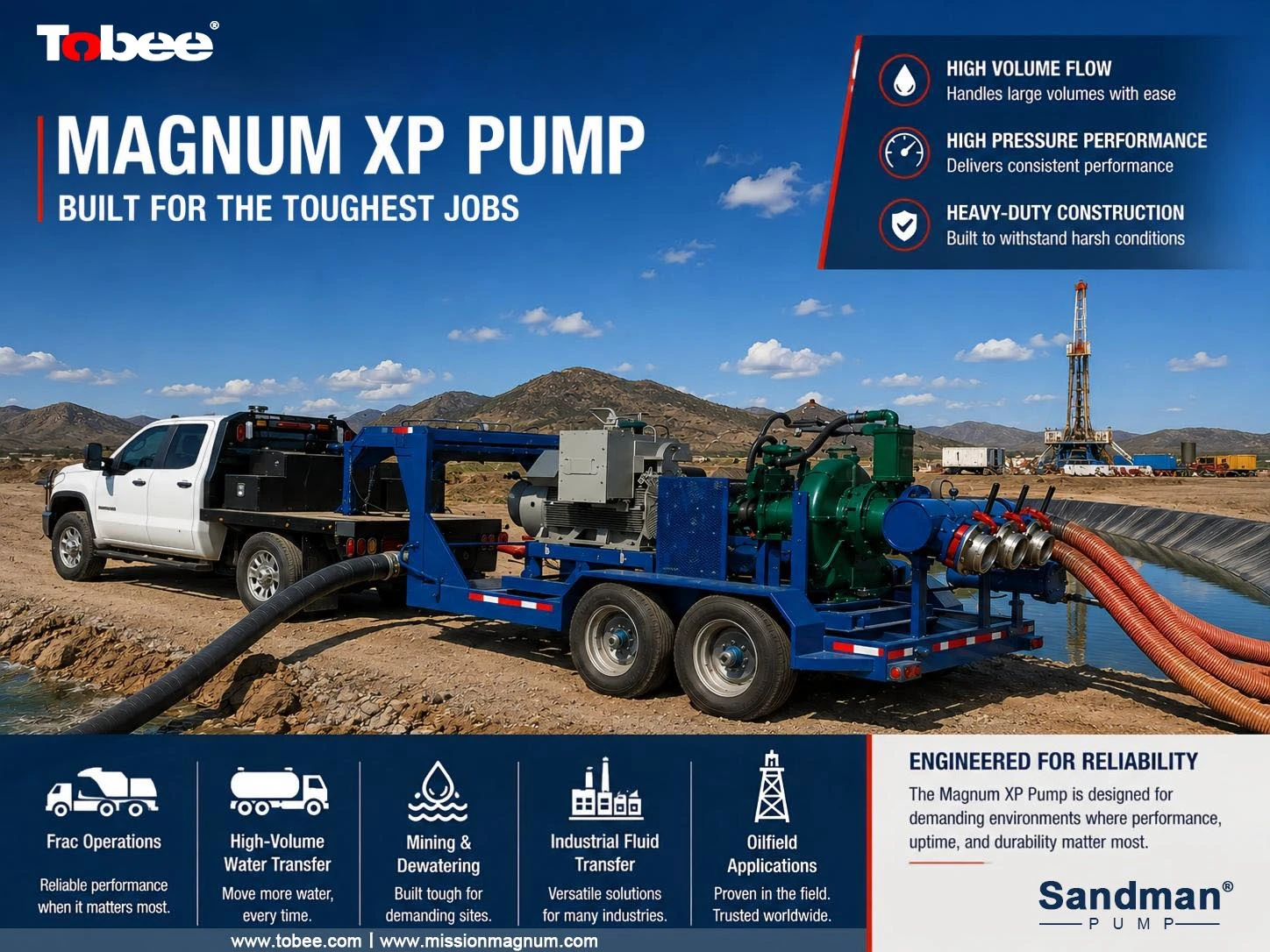

Application Solution for Frac Blender
Sandman® Fracturing Pump 14x12x22 provides high-volume fluid transfer for frac blender systems.
How the XP Frac Pump supports a frac blender:
• Fluid Transfer
Moves large volumes of base fluid from tanks to the blender unit.
• Sand Slurry Handling
Transfers mixed fluids containing proppant, requiring robust hydraulic components and wear-resistant materials.
• Blender Recirculation
Supports continuous circulation through the mixing system to maintain consistent fluid and proppant distribution.
• High-Volume Discharge
Provides the flow capacity needed to keep downstream high-pressure frac equipment continuously supplied.
• Continuous-Duty Operation
Heavy-duty construction helps the pump handle demanding, extended frac operations.
Recommended XP Pump Wear Parts

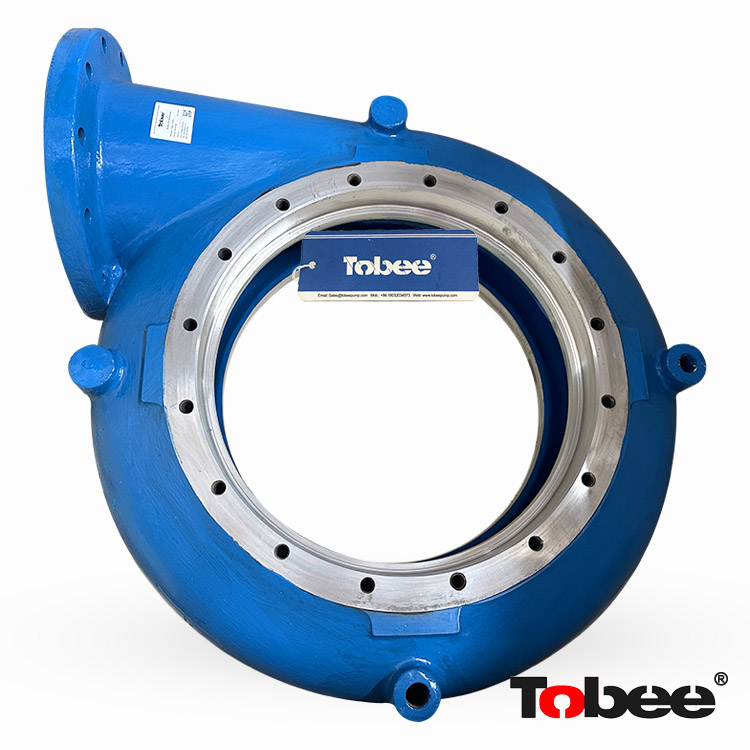

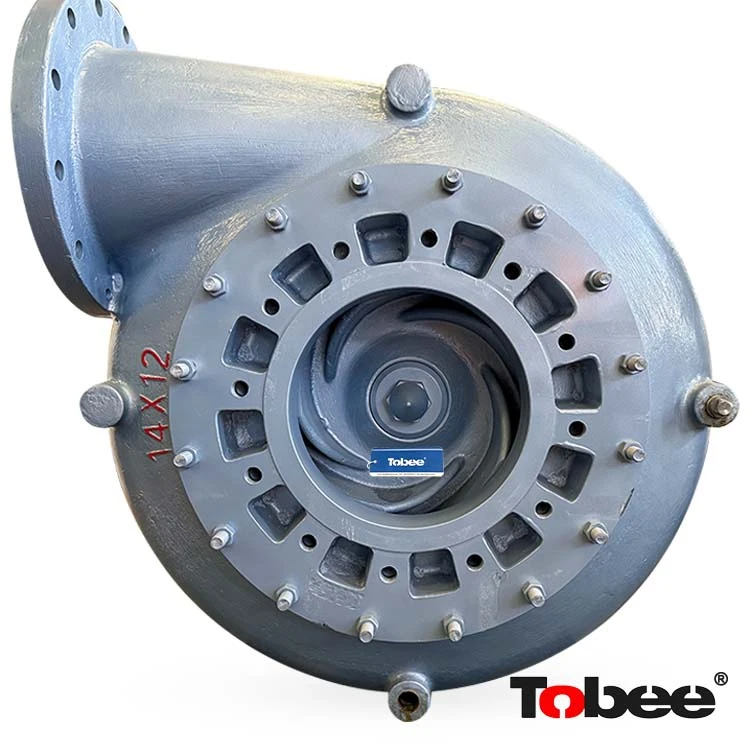

Sandman® Mission Magnum XP blender pump 14x12x22 is available with two casing material options to match different operating conditions, Hard Iron Casing 24022-01-30A (651120206), and High Chrome Alloy Casing 24022-01-AYA (662001007).

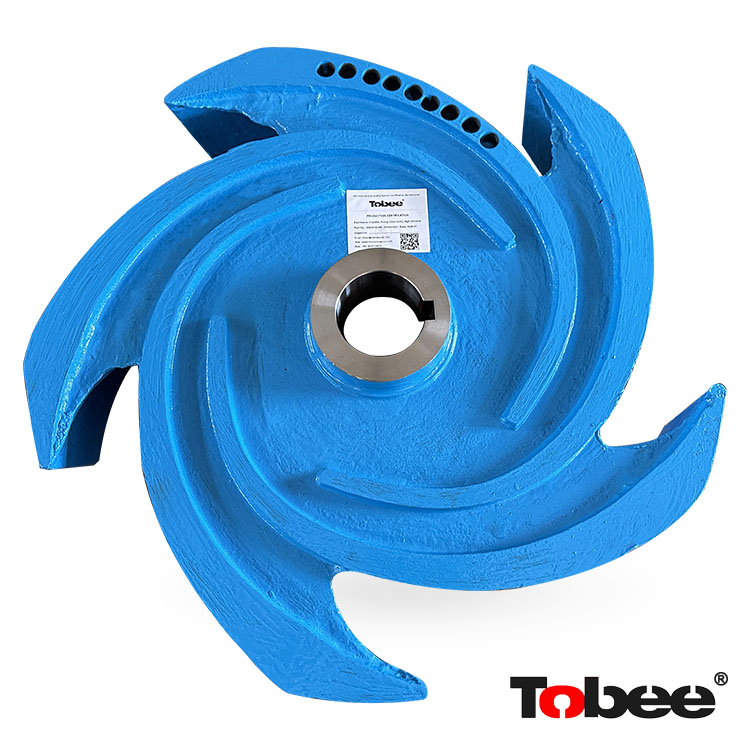

Sandman® Magnum XP 14x12x22 C-pump impeller is available in two material configurations. Hard Iron 24024-X0-30 (652307307) provides dependable performance for general heavy-duty service, while High Chrome Alloy 24024-X0-AY (662005010) offers enhanced wear resistance for severe abrasive applications.

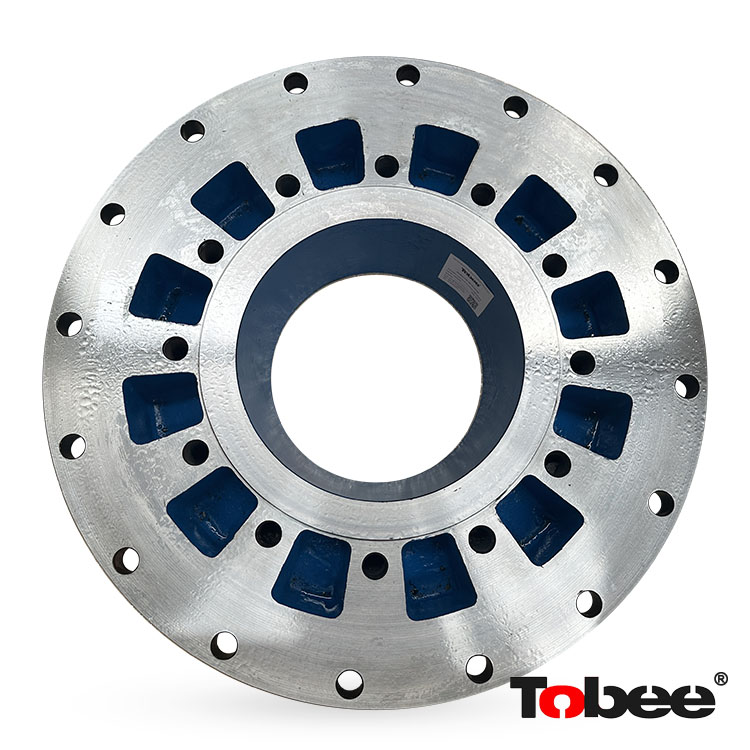

Sandman® 24021-01-30 (654310309) Front Cover is a key wear and containment component for the Mission type Magnum XP Centrifugal Pump, forming the front section of the pump casing and supporting proper internal hydraulic clearance.

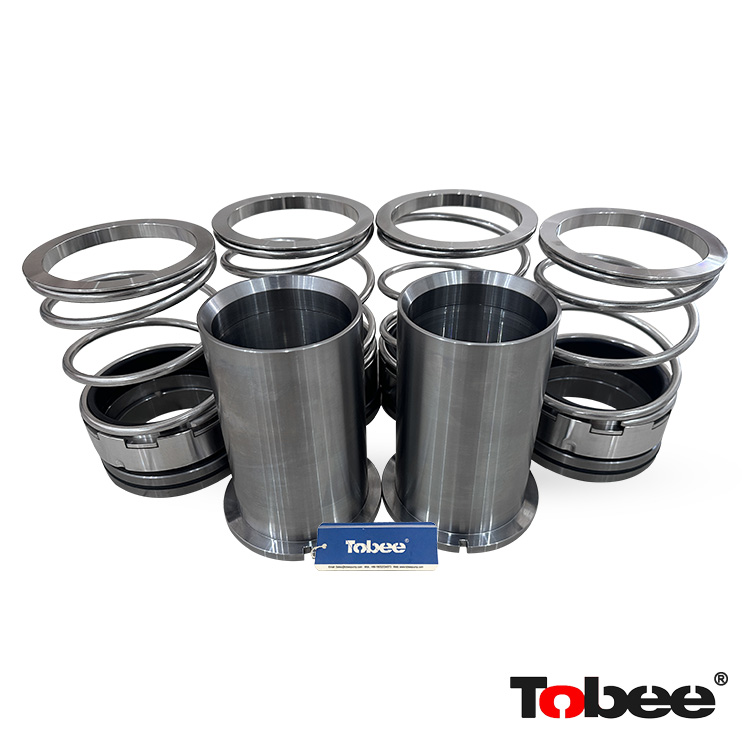

Sandman® Mission Magnum XP Frac Blender Pump, the 24029-21BZ (656422201) Shaft Sleeve and 24036 (658416102) TC Mechanical Seal are critical sealing-area components that work together to protect the shaft and prevent fluid leakage.
Ready to Upgrade Your Mission XP Pump?
Upgrade your Mission XP 14x12x22 Pump with reliable replacement pumps, wear parts, and application-specific solutions from Sandman.
Complete Pump Solutions
Mission XP-compatible centrifugal pumps engineered for demanding frac, oilfield, slurry, and high-volume transfer applications.
Replacement Parts
Impellers, casings, front covers, stuffing boxes, shafts, bearings, mechanical seals, and other critical parts for routine maintenance and overhaul.
Send us your pump model, required capacity, and application. We'll help you find the right solution.
