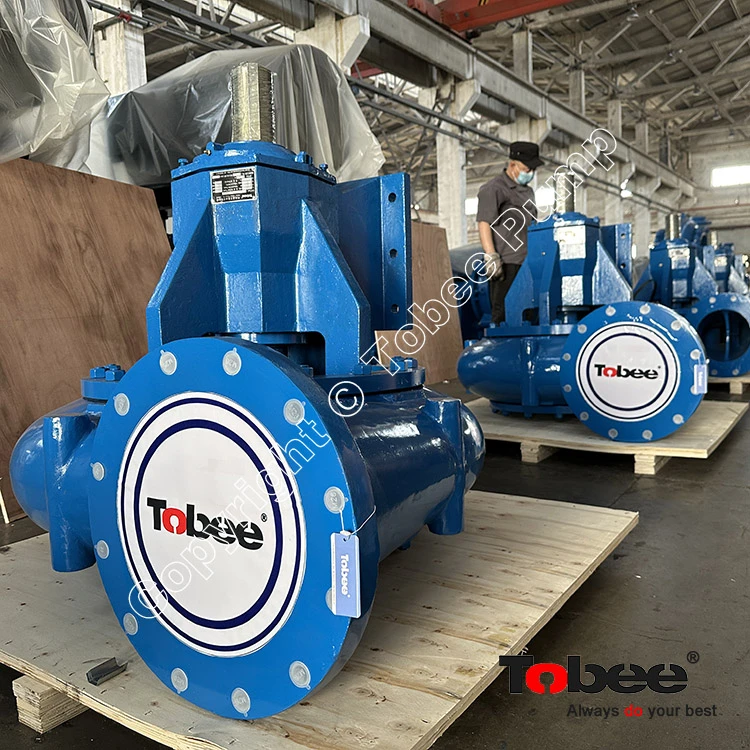

Sandman® Fracturing truck Pump

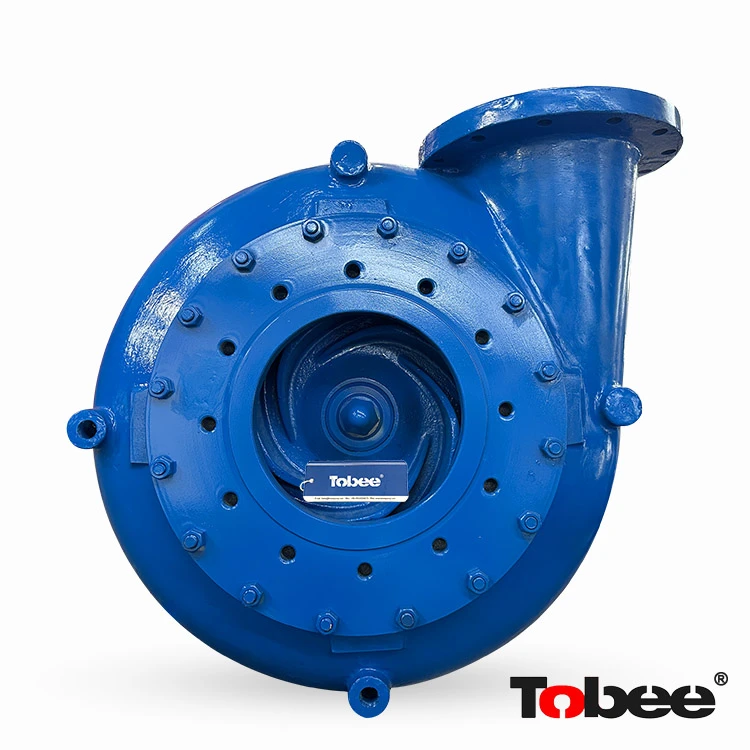

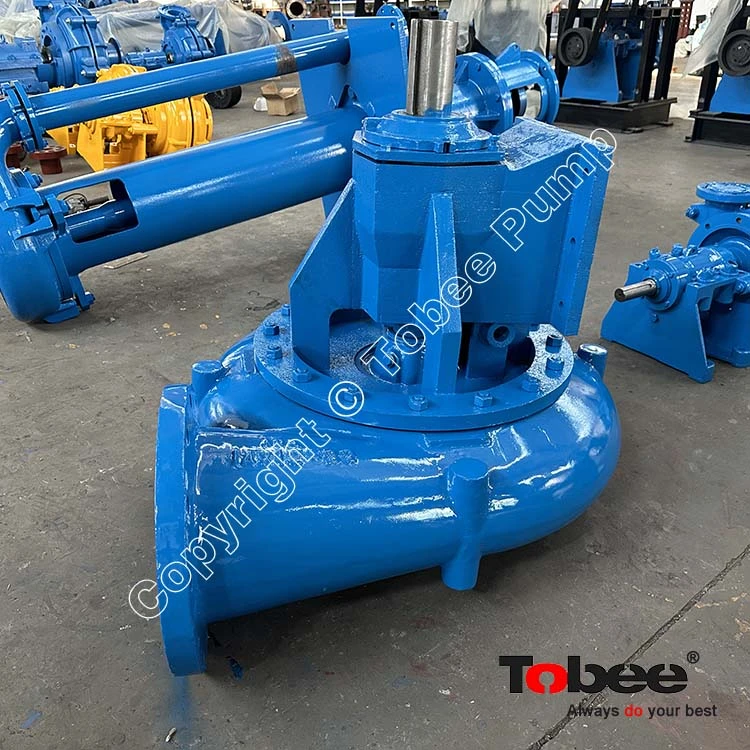

Sandman® Mission Magnum 12×10×23 XP Blender pumps are designed for high-flow, high-abrasion, and highly corrosive slurry transport applications. With their superior wear resistance, compact design, and reliable performance, this series of pumps is widely used in oil and gas fracturing, sand mixing systems, drilling fluid treatment, and industrial mud transport .
The low stuffing box pressure design effectively reduces the operating load on the mechanical seal, increasing its lifespan by approximately 50% . The heavy-duty, thickened shaft structure minimizes shaft deflection, improving equipment stability; the heavy-duty, permanently lubricated bearing design reduces maintenance frequency, providing reliable assurance for continuous industrial operation.
Designed for maximum efficiency and durability, the MAGNUM XP delivers exceptional flow capacity at low operating speeds, making it an ideal choice for both mobile and stationary pumping systems.
Its space-saving design makes the MAGNUM XP an excellent solution for applications where installation footprint is limited but high-volume pumping performance is required.
Key design features
Full-open wide impeller design ensures excellent solids handling capability and stable performance under demanding operating conditions.
Long-life, maintenance-free mechanical seal design provides near-zero leakage and extended service intervals.
Heavy-duty concentric casing with replaceable casing wear pad enhances durability and reduces maintenance costs.
Available in hard iron and high chrome alloy materials for superior abrasion resistance.
High-power design delivers large flow capacity with heads up to 500 ft.
Compact footprint design allows flexible installation for both mobile and stationary applications.
Designed to meet fracking industry standards and optimized for blending operations.
Every pump casing undergoes a pressure test before shipment to ensure reliability and safety.
Advanced heat treatment improves material hardness and wear resistance, extending service life in abrasive environments.
Shaft sleeves are manufactured from 416 stainless steel with ceramic coating protection to minimize wear caused by abrasive fluids.
Mechanical seal options include Tungsten-Tungsten, Tungsten-Silicone, and Silicon Carbide configurations, featuring highly polished sealing faces, piston bellows, and stainless-steel springs for maximum reliability.
Pump units can be configured with explosion-proof electric motors, diesel engines, direct in-line drive, or over-belt drive systems to meet various application requirements.

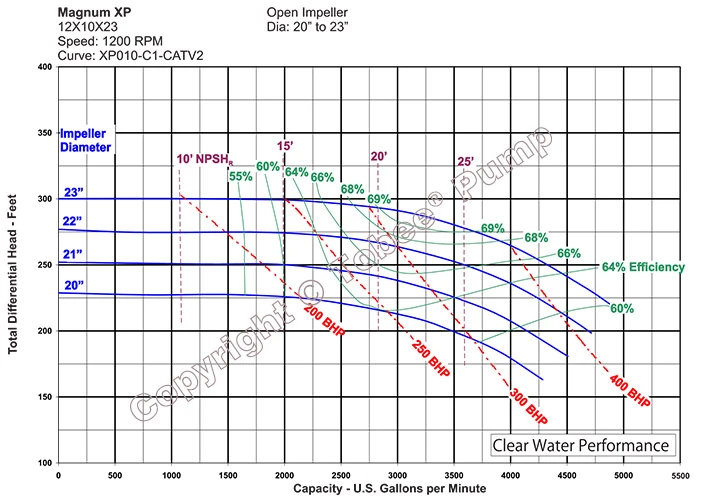

Mission Magnum XP 12x10x23 Pump Performance Cruves
Mission Magnum XP Pump Dimensions
Application areas
Mission Magnum 12x10x23 Pump Wear Parts

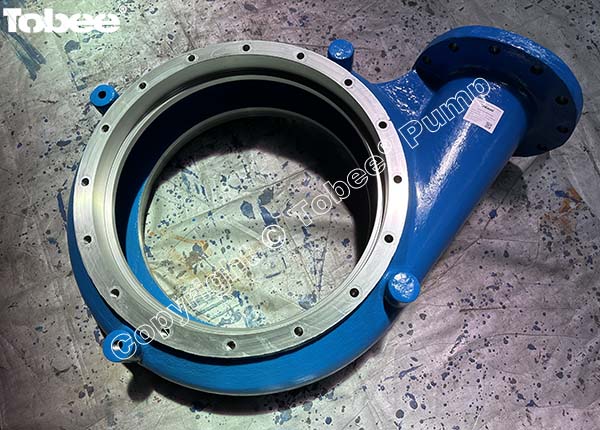

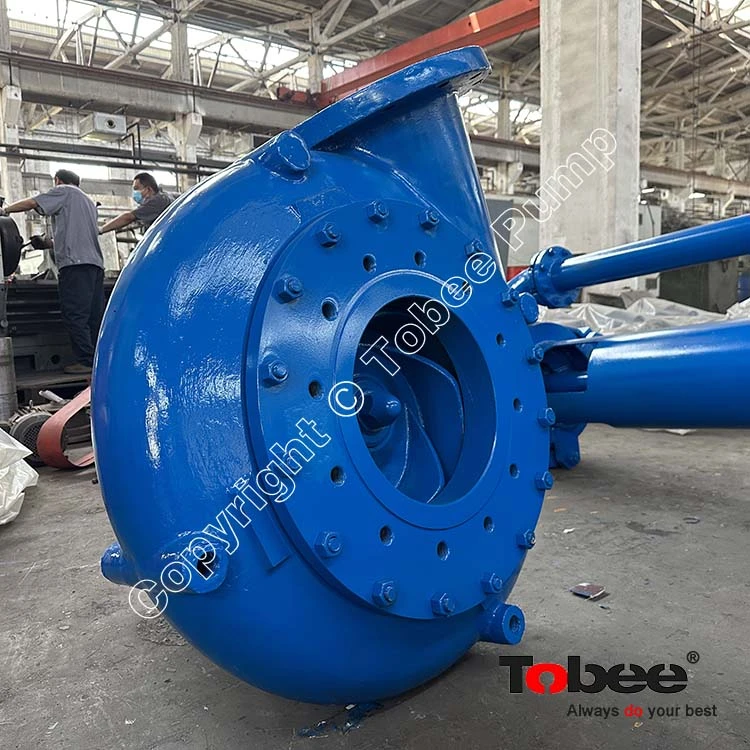

The Magnum XP pump casing features a heavy-duty, one-piece construction designed to withstand continuous operation under severe slurry conditions.

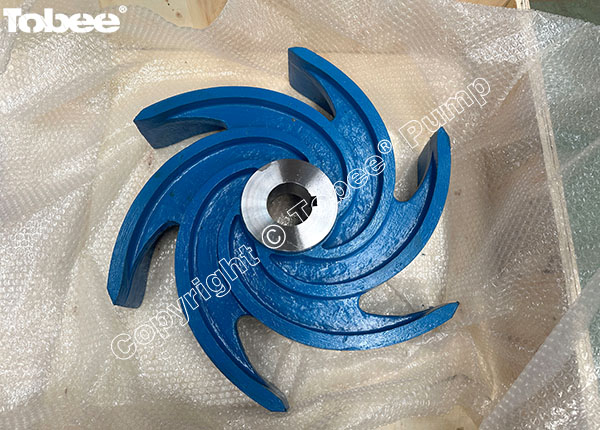

The Magnum XP impeller is designed for high-volume slurry handling while maintaining hydraulic efficiency and minimizing wear.

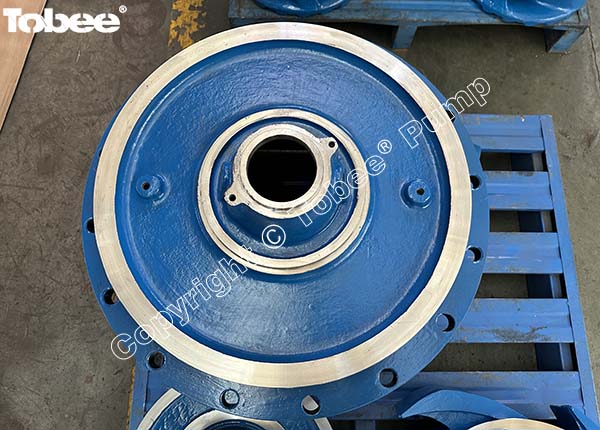

The Magnum XP pump cover front provides excellent wear resistance, structural strength, and easy maintenance access.

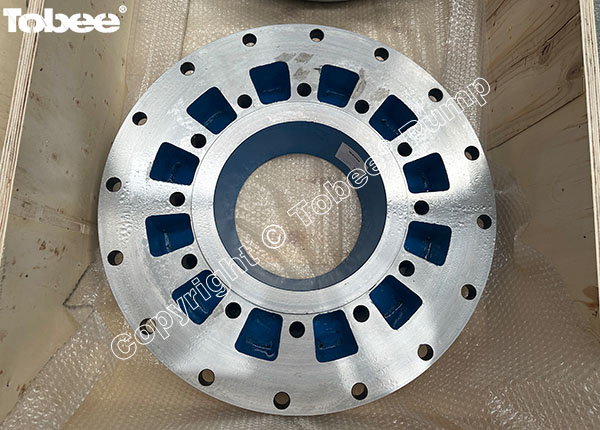

The stuffing box is designed to provide reliable sealing performance while protecting the pump shaft and internal components from slurry contamination.
Why Choose Mission Magnum XP Pump?
✔ Designed for Extreme Slurry Conditions
Handles abrasive, corrosive, and high-solid fluids where conventional pumps struggle.
✔ Lower Maintenance Requirements
Advanced sealing and bearing systems reduce downtime and service costs.
✔ Longer Component Life
Heavy-duty shaft, reinforced casing, and optimized hydraulics minimize wear.
✔ High Performance in Limited Space
Compact dimensions provide powerful pumping capability with a smaller installation footprint.
✔ Reliable Continuous Operation
Engineered for 24/7 industrial service with dependable performance.
