Understanding Pump Types: An Easy Introduction

Whether you're evaluating your first excavator-mounted dredge pump or scaling up a dewatering operation across multiple sites, choosing the right pump is one of the most consequential decisions you'll make. This guide cuts through the jargon — because the right pump choice at the start saves you weeks of downtime and tens of thousands of dollars down the line.

What Is a Pump and Why Is It Important?

A pump is a mechanical device that transfers fluid from one location to another by adding energy to the fluid system — typically in the form of velocity, pressure, or both. That definition sounds straightforward until you're standing at a job site with 40,000 cubic meters of silted dredge material and a pump that wasn't designed for it.

The global pump market exceeded $68 billion USD in 2023, and it's projected to grow past $90 billion by 2030, driven primarily by infrastructure investment, mining expansion, and increasingly demanding environmental remediation projects. The numbers tell you something important: industries are not just buying more pumps — they're buying more specialized ones.

In agriculture, pumps move roughly 70% of global freshwater withdrawals. In the oil and gas sector, multistage centrifugal pumps and progressive cavity pumps run continuously, often 8,000+ hours per year. In dredging and slurry handling — Hydroman's home territory — the demands are even more specific: you need pumps that can push abrasive, high-density slurries at distance, often from a submersible position, driven by hydraulic power from an excavator or dedicated power pack.

The Main Categories of Pumps

Every pump ever made belongs to one of two families: positive displacement or dynamic (also called kinetic). Understanding this split first makes everything else easier to follow.

Positive Displacement Pumps

These pumps move a fixed volume of fluid with each cycle, regardless of the downstream pressure. Think of it as a mechanical hand that grabs a chunk of fluid and pushes it forward. They're ideal when you need precise flow control, when the fluid is viscous, or when system pressure is high and variable. Gear pumps, lobe pumps, diaphragm pumps, and peristaltic pumps all belong here.

Dynamic Pumps

Dynamic pumps — most commonly centrifugal pumps — impart kinetic energy to the fluid through a rotating impeller, which is then converted into pressure. They're the workhorses of water supply systems, HVAC, and fire protection because they handle large volumes efficiently at moderate pressures. The trade-off: their performance drops significantly if fluid viscosity rises or if the system head changes dramatically.

Common Types of Positive Displacement Pumps

Rotary Pumps

Rotary pumps — gear, lobe, and vane variants — trap fluid in rotating chambers and force it through the outlet. Gear pumps are widely used in hydraulic systems and lubrication circuits, operating at pressures up to 300 bar in some industrial configurations. Lobe pumps, because they handle solids gently without gear-to-gear contact, are standard in food processing and pharmaceutical lines. Vane pumps strike a balance between flow rate and pressure, commonly found in automotive power steering and mobile hydraulic systems.

Reciprocating Pumps

Piston and plunger pumps dominate high-pressure applications — pressure washing, oil extraction, and hydraulic test rigs. A typical triplex plunger pump used in oil-field mud service operates at 300–1,000 bar, with flow rates from 100 to 1,500 liters per minute. Diaphragm pumps, also reciprocating, are valued where leak-free containment is critical, such as in chemical dosing or pharmaceutical fluid handling.

Peristaltic Pumps

Peristaltic pumps work by squeezing a flexible tube, moving fluid in the same way your digestive system does. Because the fluid only contacts the tube — never the pump body — they're the go-to choice for aggressive chemicals and biological fluids. They also self-prime reliably, which matters in field applications where consistent priming is hard to guarantee.

Common Types of Dynamic Pumps

Centrifugal Pumps

Centrifugal pumps account for roughly 70–80% of all industrial pump installations worldwide. Their appeal is straightforward: simple construction, high flow capacity, and good efficiency across a wide range of operating conditions. Impeller design — open, semi-open, or closed — determines how well they handle solids. Open impellers tolerate debris and fibrous material; closed impellers offer higher hydraulic efficiency for clean fluids.

Submersible centrifugal pumps designed for slurry service — like Hydroman's hydraulic-driven dredge pump series — combine the centrifugal working principle with hardened wear components and hydraulic drive systems, making them suitable for deployment directly into the dredge zone from an excavator arm.

Axial and Mixed-Flow Pumps

Axial flow pumps move fluid parallel to the shaft axis, like a ship's propeller. They excel in high-volume, low-head applications — flood control systems might move 10,000+ cubic meters per hour at just 2–5 meters of head. Mixed-flow pumps split the difference: part centrifugal, part axial, they appear in irrigation systems, drainage channels, and large-scale water transfer projects where flow requirements are high but head requirements fall in the moderate range.

Key Considerations When Choosing a Pump

Fluid Type

This is the single biggest variable. A pump sized perfectly for clean water will wear out in weeks if you run abrasive slurry through it without hardened liners and impellers. Slurry specific gravity (SG) typically ranges from 1.1 to 1.5 in dredging applications — and every 0.1 increase in SG reduces effective pump head. Hydroman's THY series is engineered specifically for slurries with SG up to 1.5 and solid particle sizes up to 100mm, depending on the model.

Flow Rate and Pressure Requirements

Pressure (head) and flow rate define the pump's operating point. On a pump curve, the system curve intersects this point — and if your system changes (a longer discharge hose, a higher elevation), you need a pump whose curve accommodates the shift. Centrifugal slurry pumps, for example, are typically rated for heads between 10 and 40 meters per stage, with flow rates from 50 to over 2,000 m³/h depending on impeller diameter and speed.

Power Source

Electric motors are efficient and controllable via VFDs (variable frequency drives), but require stable grid access. Diesel hydraulic power packs extend deployment to remote sites — rivers, coastal dredging zones, fish farm ponds — where grid power isn't available. Hydroman offers hydraulic-driven models that connect directly to an excavator's hydraulic circuit (typically 150–300 L/min at 200–350 bar), eliminating the need for a separate power source entirely.

Efficiency and Maintenance

Best Efficiency Point (BEP) is where a centrifugal pump operates with minimal vibration, heat, and wear. Running consistently away from BEP — even 15–20% off — can reduce wear-part life by 50% or more. For slurry pumps, wear life of impellers and liners is a key economic metric: Hydroman's chrome-alloy wear parts are designed for extended service intervals even in high-solids applications.

Advantages and Disadvantages of Each Pump Type

Applications in Different Industries

Where you deploy a pump defines everything about which pump you need. Here's how different sectors approach selection:

In agriculture, turbine pumps and axial-flow submersible units dominate large-scale irrigation, with systems routinely pumping 200–1,500 m³/h from surface water sources or boreholes. For fish farm pond management — an increasingly critical application as aquaculture expands — hydraulic dredge pumps are used to remove accumulated sediment and sludge without draining the pond or stressing the fish population. Hydroman's fishfarm pond hydraulic dredge pump series is designed specifically for this scenario, with gentle hydraulic power control that allows precise flow adjustment in sensitive environments.

In construction, dewatering submersible pumps run continuously at job sites, typically handling flows of 50–500 m³/h to keep excavations dry. Concrete pumps operate at high pressure — 50 to 150 bar at the cylinder — to push material vertically and horizontally.

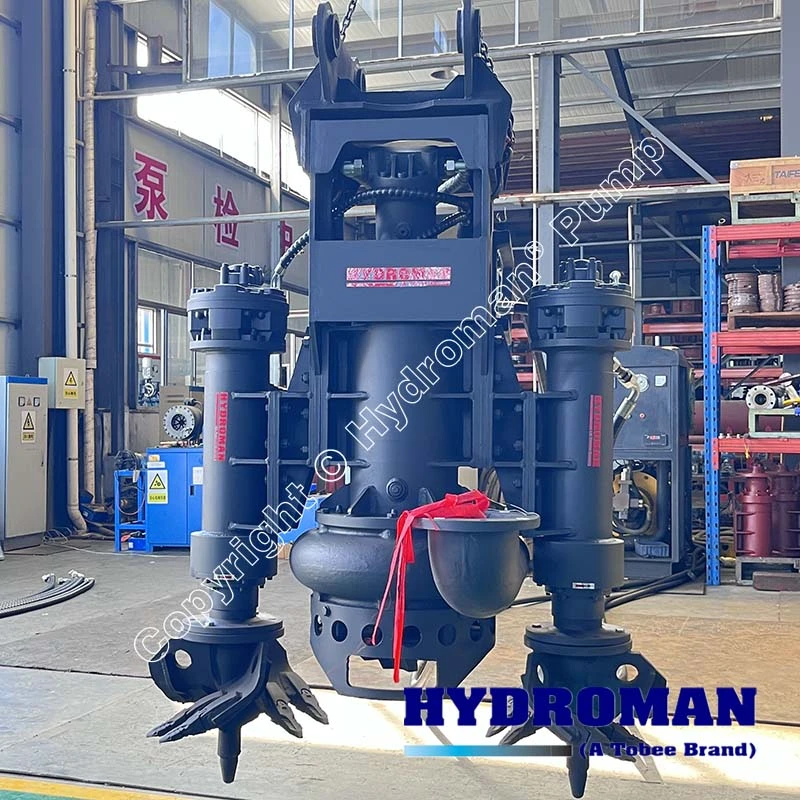

In the marine and coastal dredging sector, the requirements are among the most demanding in industry. Sea and river dredging requires pumps that can handle salt water, variable solid concentrations, and the mechanical stresses of being attached to a moving excavator. Hydroman's excavator-mounted hydraulic suction pump for sea and marine work is engineered for exactly this environment — fitted to Hitachi, Komatsu, Caterpillar, or JCB excavators, it can dredge sand, silt, and gravel at depths up to 10–15 meters depending on the model configuration.

In oil and gas, progressive cavity pumps handle viscous crude and drilling mud, while multistage centrifugal pumps move refined product through long pipeline networks at sustained operating pressures of 80–120 bar.

How the Hydroman Hydraulic Dredge Pump Delivers in Extreme Conditions

If you work in dredging, pond management, sand extraction, or coastal excavation, you've likely run into the limitations of conventional pump setups. Electric pumps need shore power. Diesel-direct drives need careful maintenance. Neither is easy to deploy from an excavator arm at short notice.

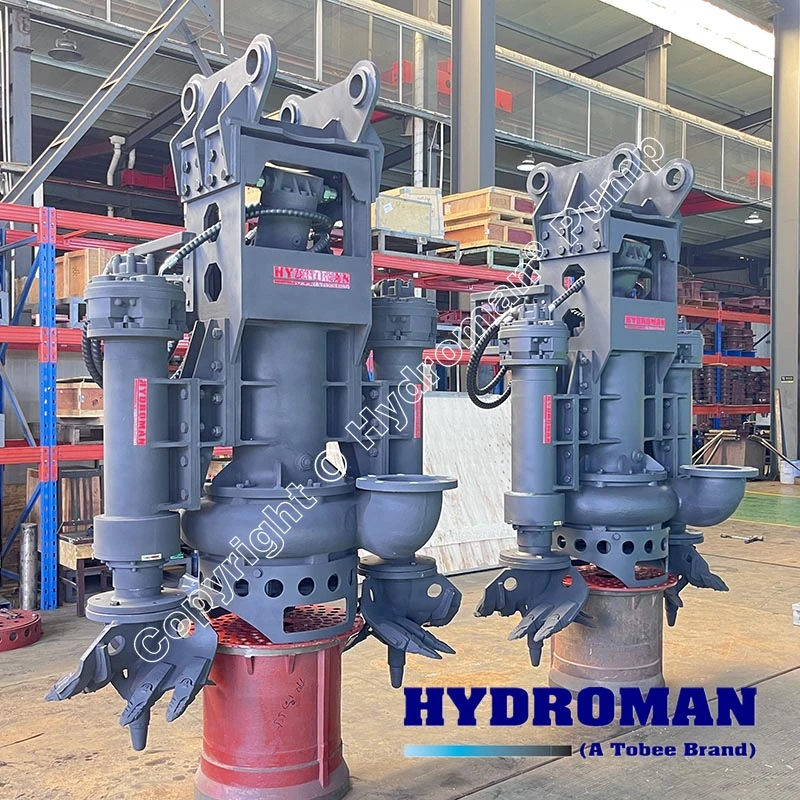

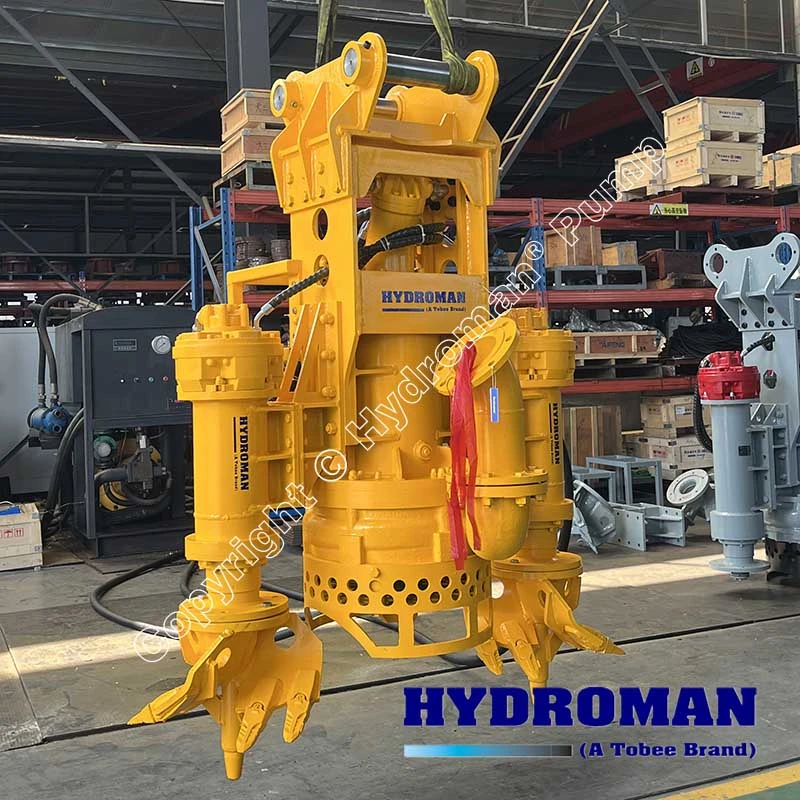

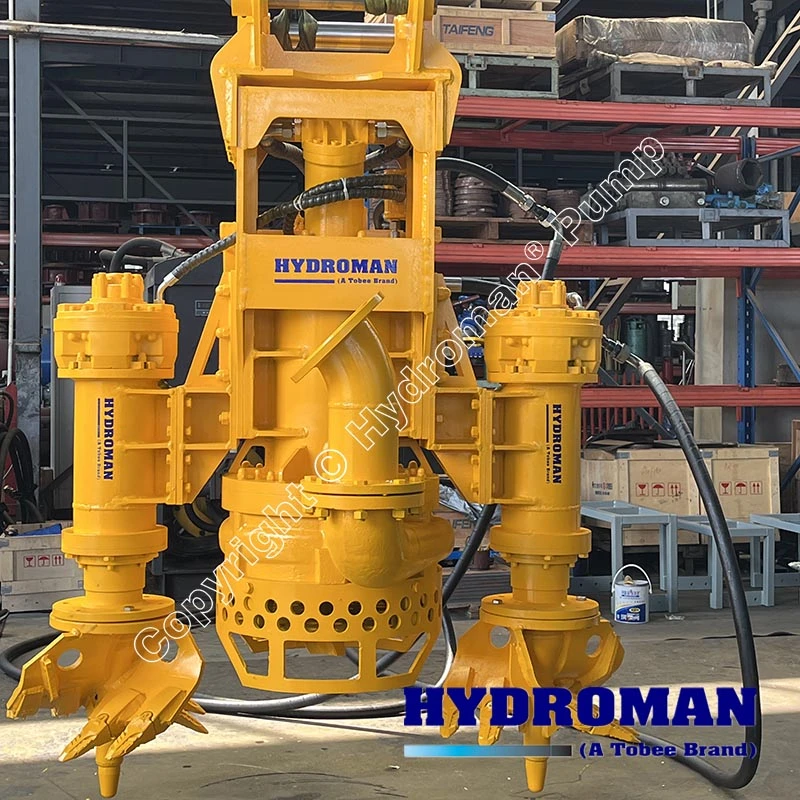

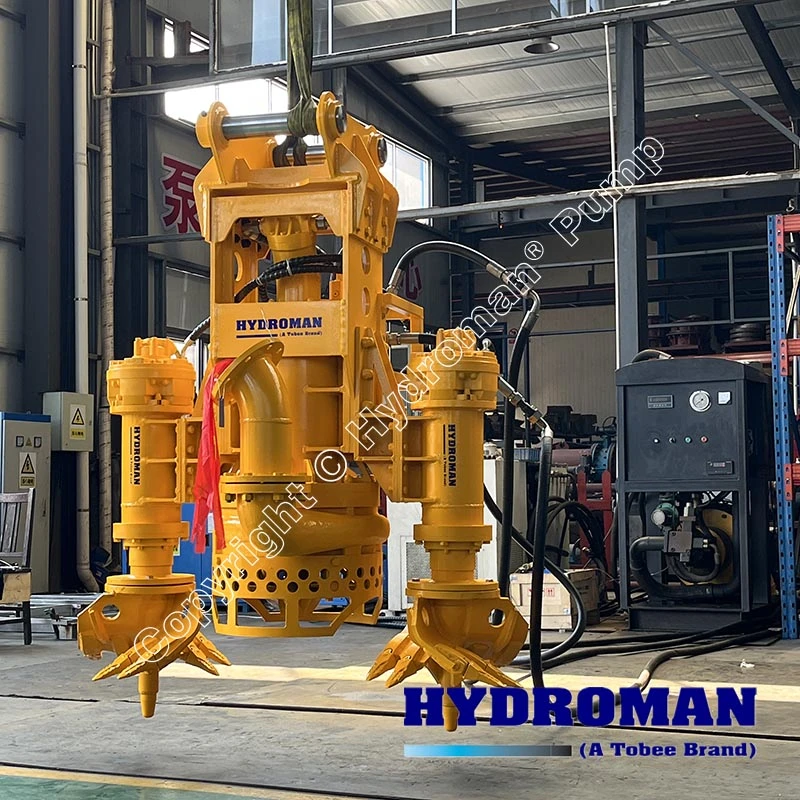

Hydroman's hydraulic submersible slurry dredge pumps solve this by integrating directly with your excavator's hydraulic system. The pump draws power from the machine's existing auxiliary hydraulic circuit — no generator, no separate power pack needed in most configurations. The result is a system that goes where your excavator goes: into the river, into the fish pond, into the harbor — and starts moving material immediately.

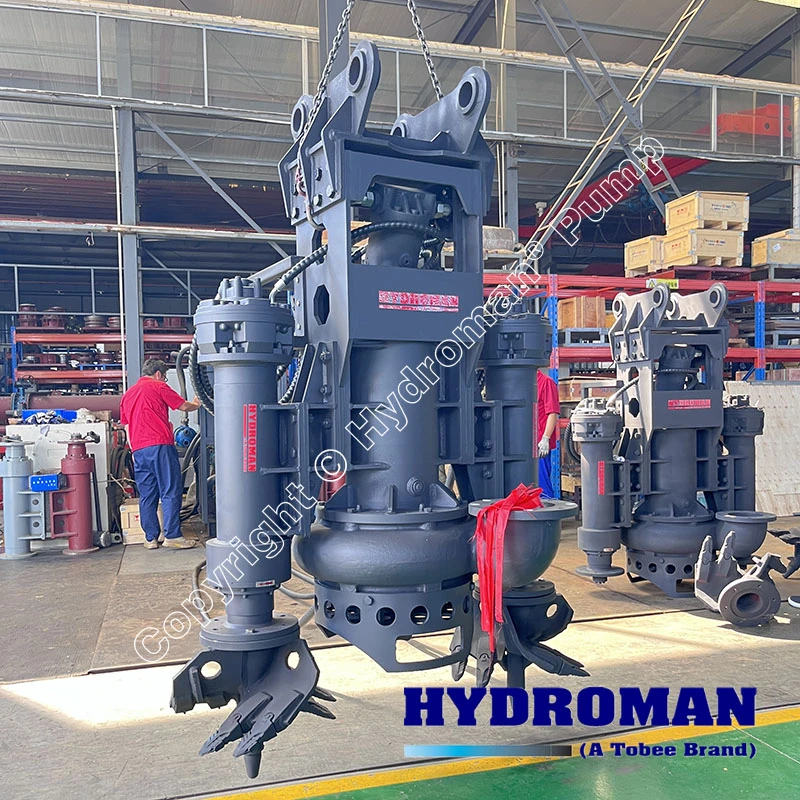

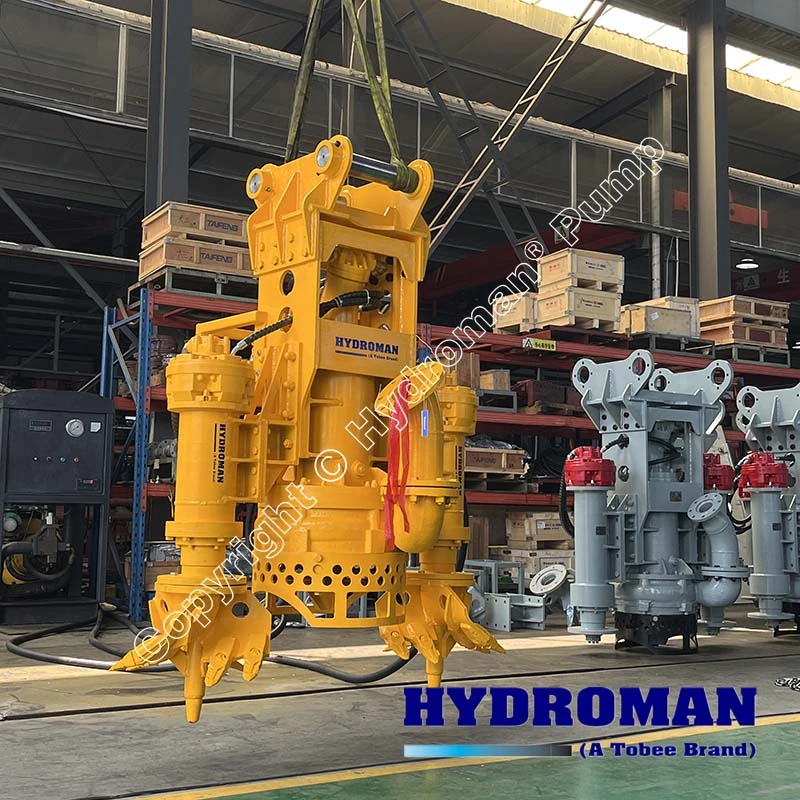

The THY series ranges from compact units like the THY24 — suited for 6–13 ton mini-excavators — through to the THY400B, which pairs with 20–30 ton machines and handles 8-inch or larger discharge lines for high-volume dredging operations. The THY175A sits in the middle of the range, offering a practical balance of flow rate and head for medium-scale sand extraction and pond dredging. All models feature chrome-alloy impellers and wear plates designed to outlast standard cast-iron equivalents in abrasive service.

For sites without an available excavator, Hydroman also offers submersible hydraulic pumps complete with a diesel engine hydraulic power pack — a self-contained dredging solution that can be deployed from a pontoon, barge, or floating frame. The 16-inch and 18-inch models in this configuration are capable of commercial-scale dredging and sand mining operations, particularly in river systems and coastal maintenance projects.

How to Choose the Right Pump for Your Needs

Start with the fluid. Everything else follows. If you're handling clean water at moderate head, a standard centrifugal pump is your most cost-effective and maintainable option. If you're moving sediment, sand, sludge, or slurry — especially from a submersible position — you need a pump built for abrasive service, with hardened wear parts and a drive system that matches your site's power supply.

Next, calculate your system head and flow requirement before you call a supplier. Head includes static elevation, friction losses in the discharge hose (which increase dramatically with distance and smaller hose diameters), and any pressure required at the outlet. A 100-meter discharge hose in 6-inch diameter adds roughly 8–12 meters of friction loss at 300 m³/h — that's not trivial when your pump's rated head is 25 meters.

Consider deployment logistics. An electrically-driven pump is cheaper to run per hour, but if your job site changes every two weeks, the flexibility of a hydraulic unit that hooks up to your existing machine is worth the premium. Hydroman's THY pump for JCB backhoe, for example, connects to the backhoe's hydraulic system in under an hour — a practical setup for contractors who move frequently between sites.

Finally, factor in total cost of ownership, not just purchase price. Wear-part replacement intervals, motor reliability in wet environments, and service availability in your region all affect the real cost of operating a pump over two to five years. A pump that costs 20% more upfront but lasts three times longer on impeller wear parts is the better economic choice in almost every scenario.
