SPECIFICATIONS
Hydraulic Pump 300THY220-6P Description

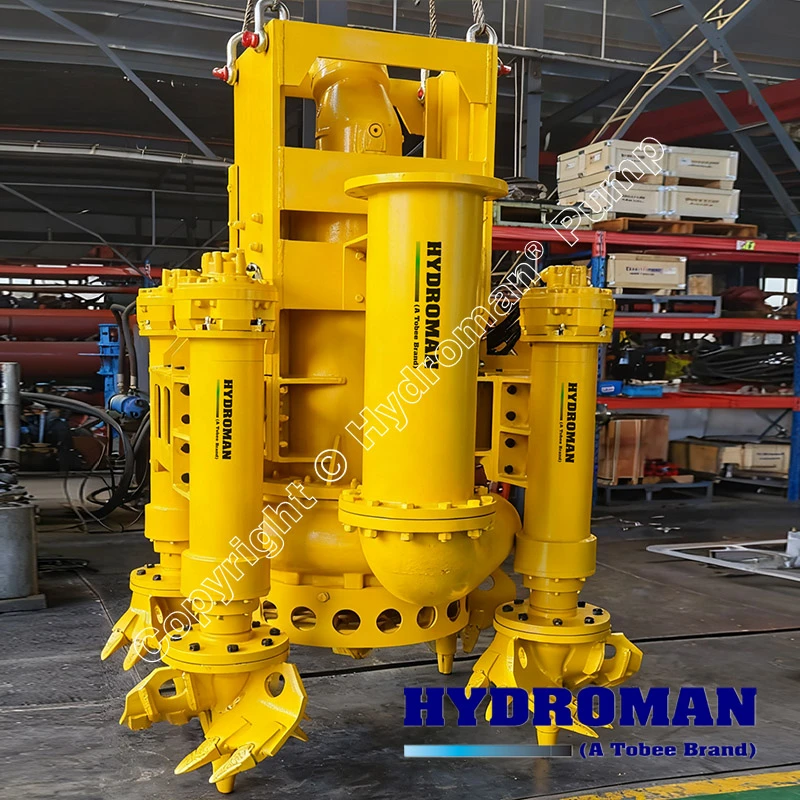

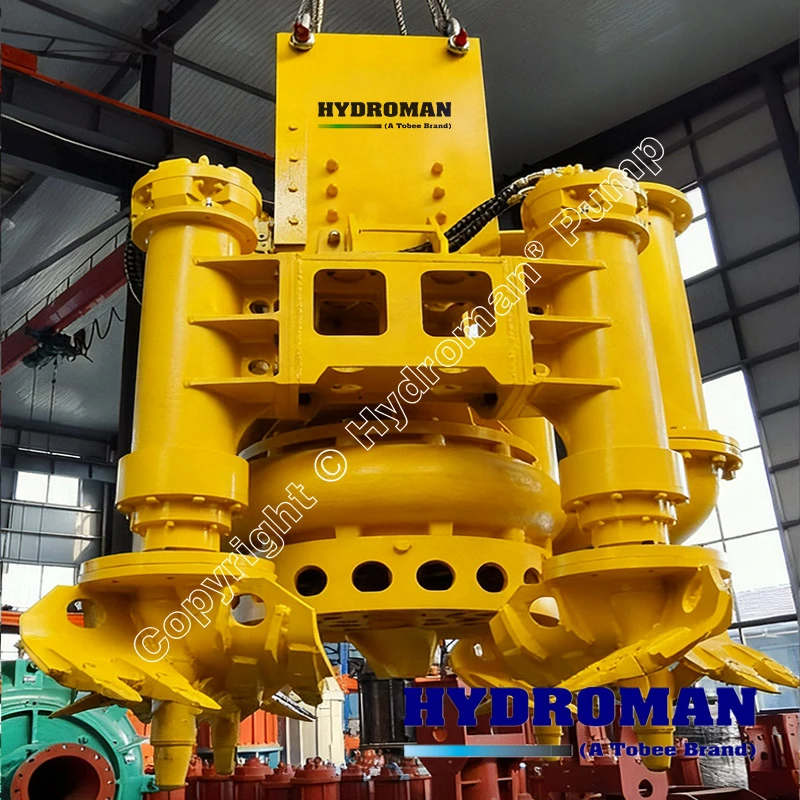

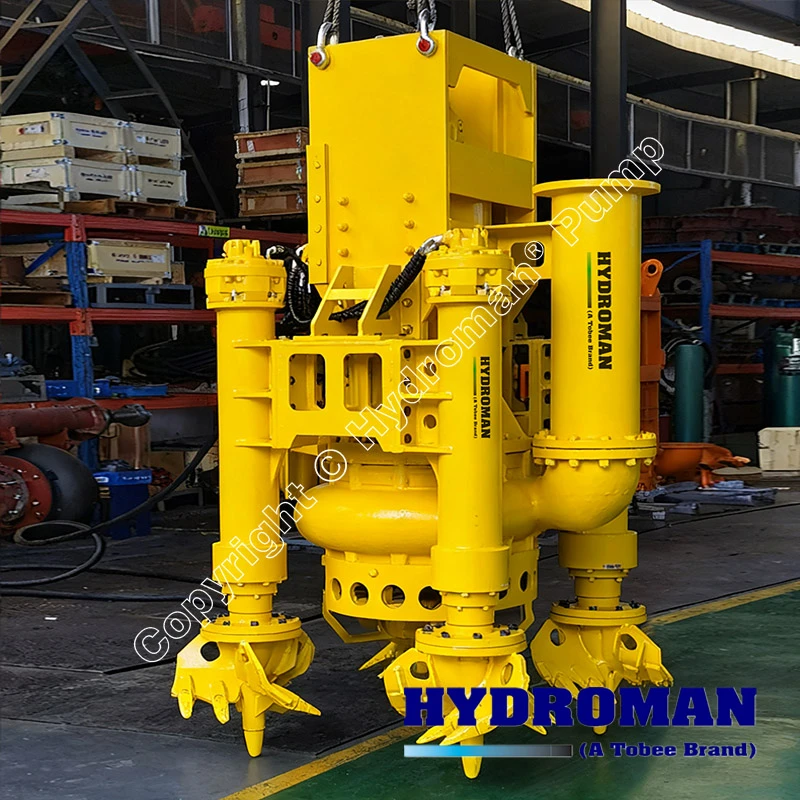

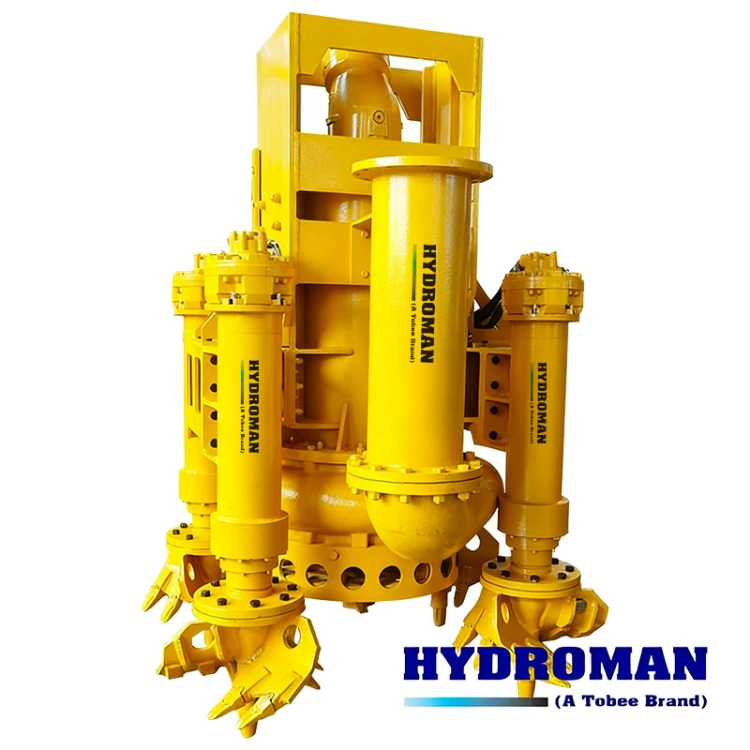

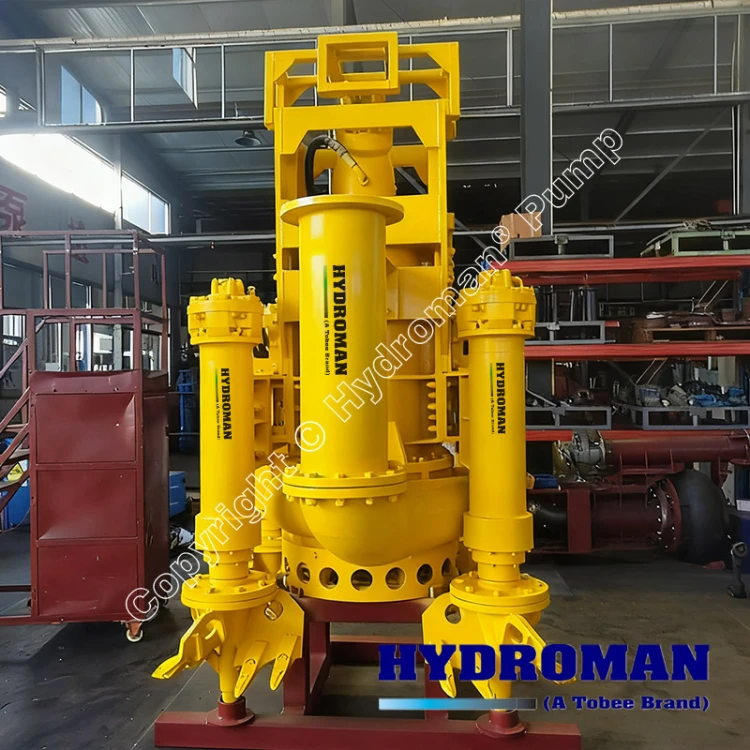

When your dredging site turns into a soupy mess that buckets can't handle, a Hydraulic Excavator Pump for Sludge Removal 12 Inch becomes your most valuable asset. The Hydroman® 300THY220-6P is a Vertical Hydraulic Dredge Pump for Underwater Sludge Cleaning engineered specifically for excavator mounting. With a massive 300mm Outlet Hydraulic Slurry Pump for Excavator Use configuration, this 220kW Hydraulic Submersible Pump for Sludge Handling delivers relentless power underwater. As a true Heavy Duty Hydraulic Pump for Excavator Sludge Transfer, it turns any 15-to-30-ton excavator into a mobile dredging powerhouse, pumping solids concentrations up to 70% by weight directly through pipelines. The unit functions as a Submerged Hydraulic Dredging Pump for Industrial Sludge Removal, operating fully submerged to break up compacted materials at the source.
Design Features of Hydroman® Hydraulic Excavator Pump for Sludge Removal 12 Inch
The Hydroman® Hydraulic Excavator Pump for Sludge Removal 12 Inch is built with four standout engineering features that set it apart for extreme sludge handling:
High-Chrome Abrasion-Resistant Wear Parts:
The impeller, casing, and all wetted components are constructed from premium high-chrome cast iron (27%+ Cr content) . This metallurgical specification provides exceptional resistance against the grinding wear of sand, gravel, and mineral tailings, extending service life dramatically compared to standard steel pumps.
Hydraulic Motor Drive with Variable Speed Control:
Unlike electric pumps that require external generators or grid connections, the unit draws power directly from your excavator's auxiliary hydraulic circuit . The hydraulic motor delivers high torque at low rotational speeds, reducing internal wear while allowing operators to adjust pumping velocity on the fly based on material density and suction requirements.
Bottom Agitator and Dual Side Cutter Configuration:
Integrated at the intake, the robust bottom agitator aggressively stirs and fluidizes compacted mud, sludge, and settled solids into a homogenous slurry before suction . This pre-conditioning mechanism ensures clog-free feeding even when handling viscous or fibrous industrial waste materials.
True Submersible Vertical Construction with Open Flow Channels:
Engineered for complete underwater submersion, the pump body features open, non-clog flow passages capable of passing solids up to 120mm in diameter . The vertical orientation positions the intake directly above the sludge bed for maximum material pickup efficiency without requiring additional suction extensions.
Hydroman® 300THY220-6P Hydraulic Dredge Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (kW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 300THY220-6P | 300 | 800 | 55 | 220 | 45 | 500 | 27 | 500 |
Mining and Mineral Tailings Management with Hydraulic Driven Vertical Pump for Waste Sludge Pumping
Why Use a Hydraulic Driven Vertical Pump for Waste Sludge Pumping in Mining Environments:
Mining operations generate enormous volumes of tailings slurry—the residual byproduct left after mineral extraction. Traditional mechanical methods struggle when tailings ponds become deep, watery, or unstable. The Hydroman® Hydraulic Driven Vertical Pump for Waste Sludge Pumping tackles this challenge directly by mounting to a standard excavator's boom arm. The operator positions the pump intake precisely above settled tailings, while the integrated agitator and hydraulic motor work together to lift and transport high-concentration slurry through pipelines extending 400+ feet to disposal sites .
Applications include coal slime management, copper and gold mine tailings reclamation, settling tank cleaning, and ash transfer at thermal power plants. With solids-handling capacity up to 70% by weight, this system outperforms conventional dredging vessels or truck-hauling methods while reducing labor costs by eliminating secondary transport equipment.
Environmental Dredging and Waterway Restoration
How This Submerged Hydraulic Dredging Pump for Industrial Sludge Removal Cleans Waterways:
Rivers, harbors, lakes, and marinas accumulate sediment, silt, and industrial sludge over time. When water levels prevent standard excavator bucket digging, the Submerged Hydraulic Dredging Pump for Industrial Sludge Removal provides a superior alternative. The unit operates fully immersed, extracting sludge directly from the bottom while leaving surrounding water relatively undisturbed. Municipal wastewater treatment plants use this configuration for digestor tank cleaning and lagoon remediation.
Port authorities deploy it for channel deepening and dock maintenance. The hydraulic drive eliminates electrical safety concerns in submerged or wet environments, and the excavator's mobility allows operators to reach shallow banks, confined basins, and areas around bridges or piers that dedicated dredging vessels cannot access .
Frequently Asked Questions (FAQ)
Q1: What size excavator is required to operate the Hydraulic Excavator Pump for Sludge Removal 12 Inch?
The Hydraulic Excavator Pump for Sludge Removal 12 Inch is specifically tailored for medium-to-large excavators in the 15-to-30-ton weight class (e.g., Komatsu PC200, Hyundai HX220L, Caterpillar 320-330 series) . The THY220 hydraulic motor requires an auxiliary oil flow rate of 300-325 liters per minute at operating pressures between 230-300 bar . Always verify your excavator's hydraulic specifications before installation.
Q2: Can this Vertical Hydraulic Dredge Pump for Underwater Sludge Cleaning operate in saltwater environments?
Yes, absolutely. The Vertical Hydraulic Dredge Pump for Underwater Sludge Cleaning is constructed with corrosion-resistant high-chrome alloys and optionally available in stainless steel grades (SS304, SS316L) or duplex materials (CD4MCu, 2205) for marine or chemically aggressive applications . The hydraulic motor and seals are rated for continuous saltwater submersion without degradation. This makes the unit suitable for harbor dredging, coastal reclamation, and port maintenance projects where saltwater exposure is unavoidable.
Q3: What maintenance schedule is recommended for the Heavy Duty Hydraulic Pump for Excavator Sludge Transfer?
Maintenance requirements are minimal compared to electric or diesel-driven alternatives. Daily checks should include inspecting hydraulic hoses for leaks or damage, verifying oil cleanliness in the excavator's hydraulic system, and ensuring the impeller and agitator rotate freely. Wear parts (impeller, volute liner, wear plate) require replacement based on hours of operation and material abrasiveness—typically every 800-1,200 hours in heavy sand or gravel applications. The low rotational speed design reduces wear effects on components . Hydroman® provides full technical data sheets and detailed parts diagrams with each unit.
Ready to Upgrade Your Sludge Handling Capabilities?
The Hydroman® Hydraulic Excavator Pump for Sludge Removal 12 Inch delivers proven performance in the most demanding dredging, mining, and industrial waste applications worldwide. From tailings ponds in South American mines to harbor restoration projects in Southeast Asia, this 300mm Outlet Hydraulic Slurry Pump for Excavator Use has earned its reputation for reliability, abrasion resistance, and operational efficiency. Stop struggling with ineffective bucket digging in watery sludge pits. Mount the 220kW Hydraulic Submersible Pump for Sludge Handling on your excavator today and start pumping high-concentration slurry directly where it needs to go.
Contact Hydroman® now for a free technical consultation, performance curve, and quote specific to your excavator model. Let our engineering team help you select the correct THY series pump configuration for your dredging, mining, or environmental cleanup project. Your submerged hydraulic dredging pump is ready—reach out today!
