12 Inch Sand Pump Description

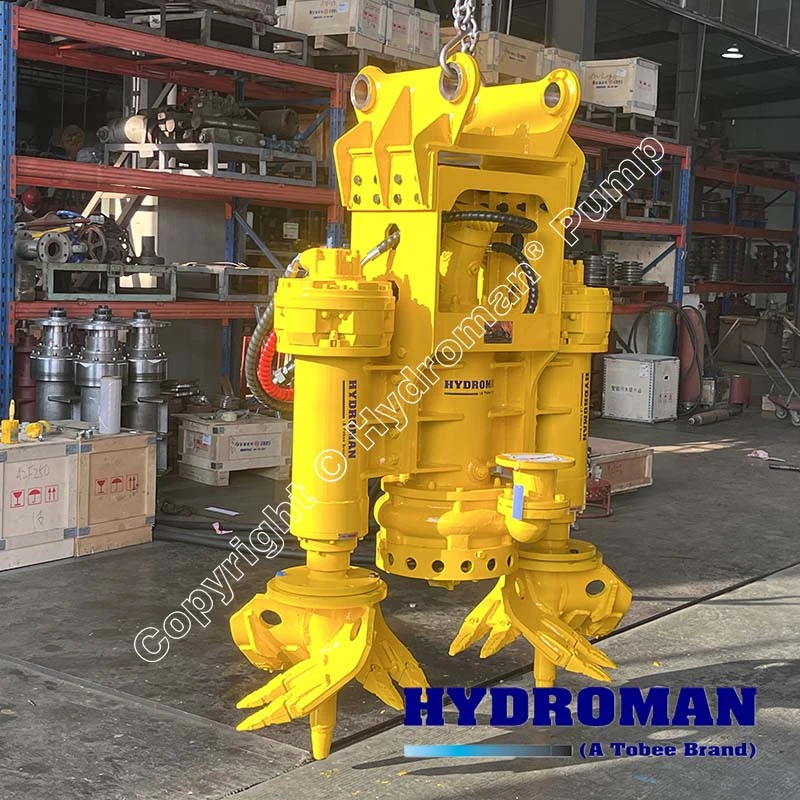

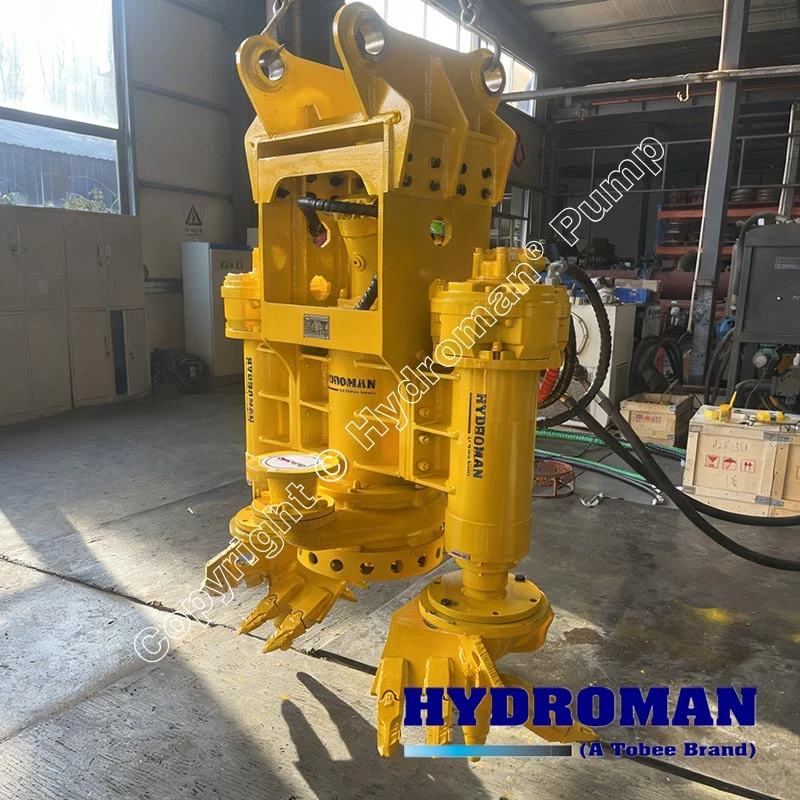

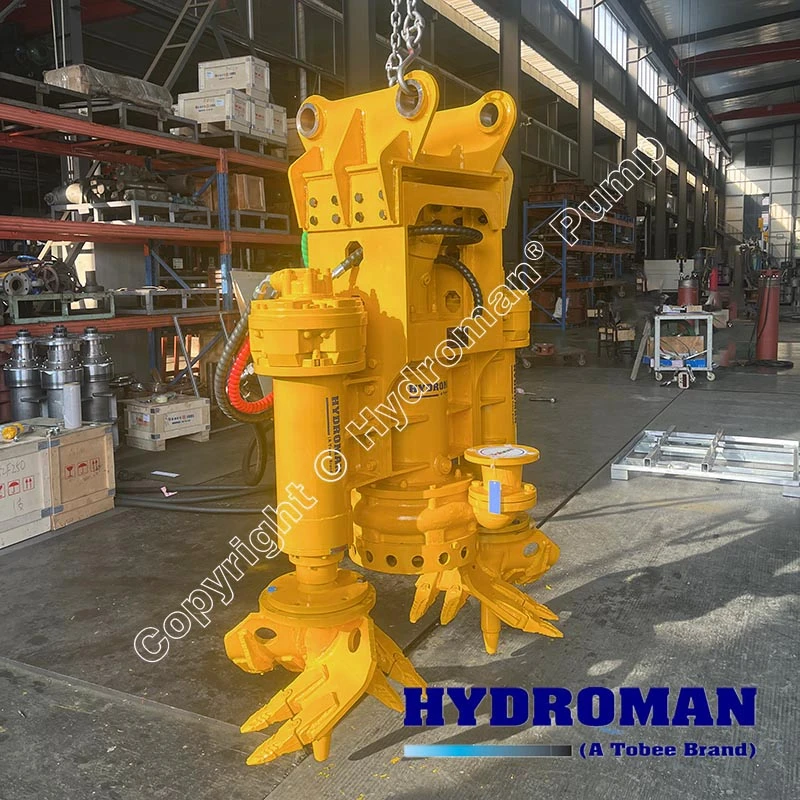

Looking for a Hydraulic Excavator Mounted Sand Pump for Dredging that delivers unmatched power and reliability? The Hydroman® 300THY132-6P features a 300mm Outlet Hydraulic Sand Pump for Excavators, offering high-volume slurry transfer. As a Vertical Submersible Sand Pump for Underwater Use, it operates directly from your excavator's hydraulic system. This 132kW Hydraulic Pump for Sand Removal tackles the toughest dredging challenges. An Excavator Installed Hydraulic Pump for Slurry Handling built to last.
This is not just another pump. It's a specialized attachment engineered to turn your standard excavator into a high-performance dredging powerhouse. The Heavy Duty Submerged Sand Pump for Mining designation means it's built to withstand the harshest, most abrasive environments imaginable.
Unlike traditional electric pumps that require generators and long power cables, the Hydroman® 300THY132-6P draws its immense power directly from your excavator's existing hydraulic system. This eliminates the need for external power sources, allowing you to work in remote locations, deep water, and off-grid sites with complete freedom.

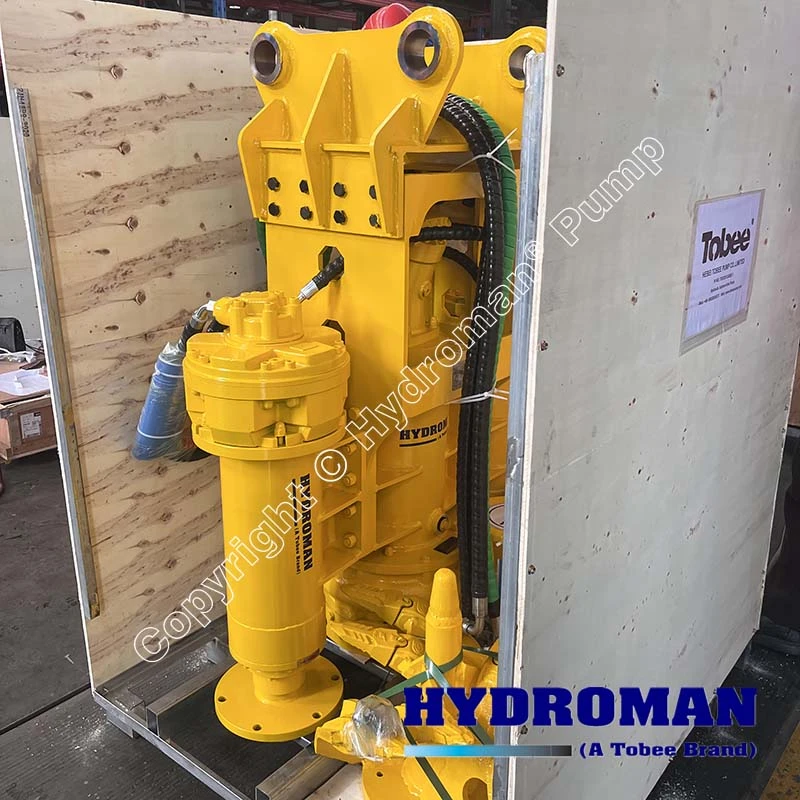

With a massive 300mm (12 Inch) discharge outlet and a powerful 132kW hydraulic motor, this pump moves large volumes of sand, gravel, slurry, and mining tailings quickly and efficiently. It operates in a vertical, submerged position, sitting directly on the material bed to achieve maximum suction efficiency.
5 Design Features That Set the Hydroman® 300THY132-6P Apart
Engineered for extreme durability and high efficiency, here are the key features that make this 300mm Outlet Hydraulic Sand Pump for Excavators a market leader:
1. High-Chrome Alloy Wear Parts
The impeller, casing, and wear plates are constructed from premium high-chromium cast iron (up to 27% Cr). This material delivers exceptional resistance against the abrasive grinding action of sand, gravel, and mining tailings, significantly extending service life compared to standard cast iron pumps.

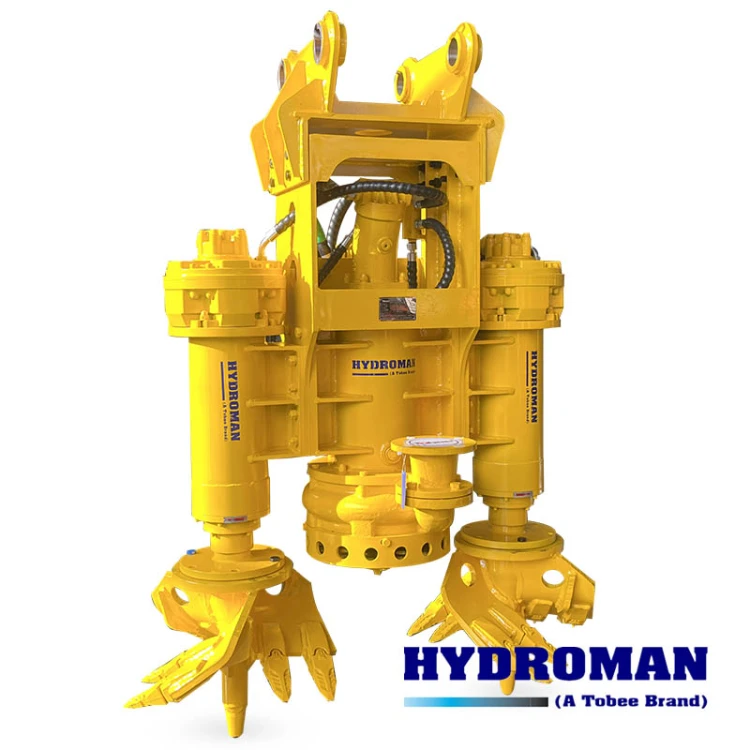

2. Integrated Agitation Impellers (Side Cutters)
Unlike conventional pumps that require manual jetting or pre-mixing, the Hydroman® 300THY132-6P features built-in agitation impellers. These Hi-Chrome agitator blades spin to lift settled sediments, mud, and sand directly into the pump suction, creating a continuous flow of concentrated slurry.
3. Hydraulic Drive for Unlimited Depth Capability
Powered by your excavator's hydraulic system, this pump has no electric motor that can short out. This makes it a true Vertical Submersible Sand Pump for Underwater Use, capable of operating in deep water conditions where electric pumps fail.
4. Unique Lip Seal System for Maximum Reliability
A specialized lip seal system prevents abrasive material from penetrating the seal and damaging internal components. This design reduces maintenance frequency and ensures reliable operation even when pumping high-concentration slurries.
5. High Solids Handling Capacity
The pump can handle solid particles up to 120-150mm in diameter and maintain a solid-liquid extraction concentration exceeding 70% by weight. This makes it one of the most capable Heavy Duty Submerged Sand Pump for Mining solutions available today.
Hydroman 300THY132-6P Excavator Mounted Sand Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 300THY132-6P | 300 | 800 | 35 | 132 | 70 | 250 | 27 | 300 |
| 300THY132-6P | 300 | 1000 | 22 | 132 | 70 | 250 | 27 | 300 |
Sand and Gravel Mining from Riverbeds and Seabeds
The Hydraulic Excavator Mounted Sand Pump for Dredging excels in commercial sand and gravel extraction operations. Mounted directly onto an amphibious excavator, the Hydroman® 300THY132-6P can access riverbeds, seabeds, and lake bottoms that are impossible to reach with conventional land-based equipment.
The integrated agitators break up compacted sediment layers, while the high-chrome impeller rapidly transfers material through the 300mm discharge outlet. This setup eliminates the need for dedicated dredgers, reducing capital equipment costs and improving job site mobility. It's widely used for river sand mining, sea sand extraction, and aggregate recovery for construction projects.
Harbor, Marina, and Port Maintenance Dredging
Keeping commercial waterways navigable requires continuous sediment removal. The 300mm Outlet Hydraulic Sand Pump for Excavators is the ideal solution for harbor and marina maintenance. The pump's ability to operate in confined spaces, combined with the excavator's articulation, allows operators to precisely remove silt buildup around docks, piers, and channel entrances.
Unlike large dredgers that require extensive mobilization, an excavator with this pump attachment can be deployed quickly for targeted desilting operations. The pump handles everything from fine silt to coarse gravel, maintaining water depth for safe vessel passage. It also plays a key role in beach reclamation projects, restoring eroded coastal areas by pumping sand from offshore borrow sites.
Frequently Asked Questions (FAQ)
Q1: How deep underwater can the Hydroman® 300THY132-6P operate?
A: As a Vertical Submersible Sand Pump for Underwater Use, the Hydroman® 300THY132-6P can operate at immersion depths exceeding 80 meters. Since it is hydraulically driven rather than electrically powered, there are no depth limitations caused by electric motor submersion risks. For specialized configurations, operating depths up to 120 meters are achievable. This makes it an excellent choice for deep-water sand mining, reservoir desilting, and offshore dredging applications.
Q2: What size excavator is required to operate this pump?
A: The Hydroman® 300THY132-6P is designed to be compatible with a wide range of excavator sizes. It can be mounted on 120, 150, 220, 240, 300, 330, 360, and other small, medium, and large series excavators. The pump draws hydraulic power directly from your excavator's existing system, eliminating the need for separate power units. For optimal performance, the excavator should have sufficient hydraulic flow capacity to drive the 132kW hydraulic motor. Many customers successfully deploy this pump on 20-ton to 40-ton excavators.
Q3: What is the maximum solids concentration this pump can handle?
A: The Hydroman® 300THY132-6P can handle slurries with solids concentration exceeding 70% by weight. This high-concentration capability is achieved through the combination of powerful suction from the 132kW hydraulic drive and the integrated agitation impellers that keep solids in suspension. The pump can process solid particles up to 120-150mm in diameter, making it suitable for pumping everything from fine silt and sludge to coarse sand, gravel, and mining tailings.
Built for the Toughest Conditions
The Heavy Duty Submerged Sand Pump for Mining designation is earned through real-world performance in the most challenging environments. From gold tailings reclamation to coal slurry management, this pump handles abrasive materials that would destroy standard pumps in hours. The high-chrome alloy construction and unique sealing system ensure continuous operation with minimal downtime, even when pumping mixtures containing up to 70% solid content.
Whether you need to clear a silted reservoir, extract sand from a remote riverbed, or manage tailings at a mining site, the Hydroman® 300THY132-6P delivers reliable, efficient performance.
Hydroman® Hydraulic Excavator Mounted Sand Pump features a 300mm (12 Inch) outlet and powerful 132kW drive for efficient underwater sand removal. Designed for vertical submerged use on excavators, it delivers reliable dredging performance. Contact us today!
