Hydroman 300THY110-6P Pump Description

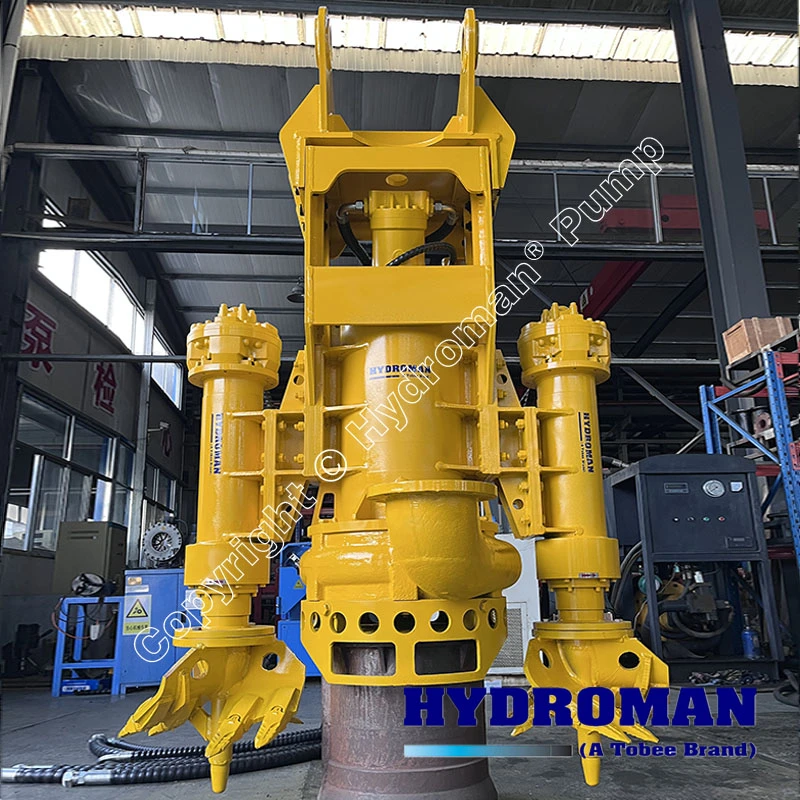

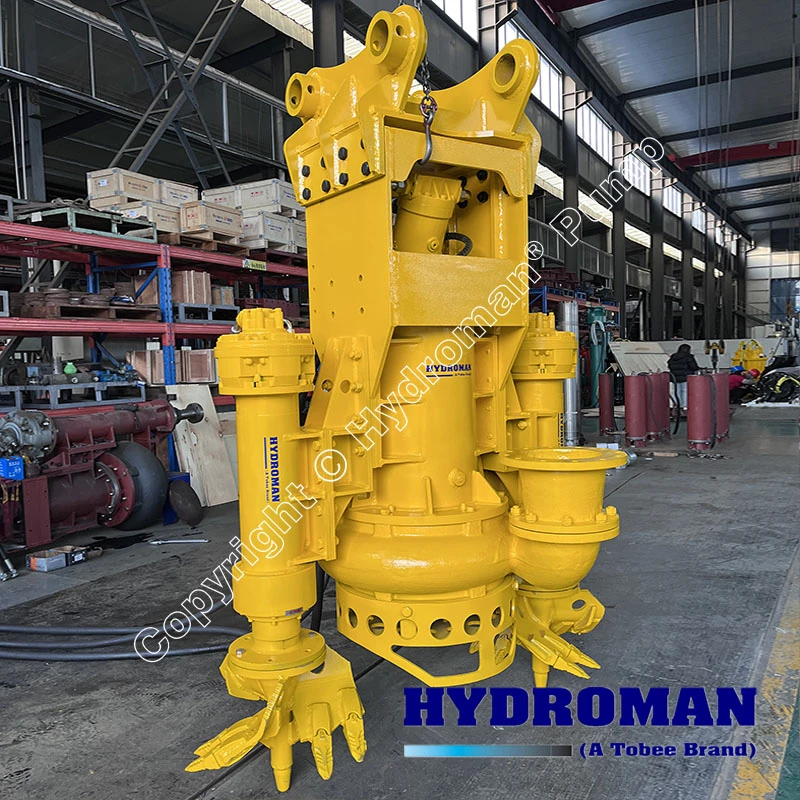

When canal maintenance projects demand continuous, high-volume removal of compacted sand, silt, and abrasive slurry, standard electric pumps often fall short. The Hydroman® 300THY110-6P Hydraulic Excavator Driven Canal Dredging Submersible Pump delivers 110kW of raw hydraulic power with a 300mm 12 Inch Hydraulic Submersible Dredge Pump discharge diameter. Engineered for vertical underwater deployment, this 110kW Excavator Hydraulic Vertical Slurry Pump transforms any compatible excavator into a high-performance dredging powerhouse—capable of pumping solids concentrations up to 70% by weight at depths reaching 120 meters.
FAQ: What makes hydraulic drive superior to electric for canal dredging?
Hydraulic submersible pumps maintain full torque and efficiency at greater depths, while electric motors lose performance due to cable resistance and cooling limitations. Hydraulic systems also provide instant overload protection—when debris influx occurs, the pump automatically slows rather than burning out, eliminating costly motor replacements in remote job sites.
Unmatched Durability & Engineering – Design Features of the 110kW Excavator Hydraulic Vertical Slurry Pump
The 110kW Excavator Hydraulic Vertical Slurry Pump is purpose-built for the harshest underwater environments. Every component reflects decades of engineering refinement in abrasive solids handling.
High-Chromium Alloy Wear Parts
The impeller and volute casing are cast from premium high-chromium alloy (Cr27+), delivering Brinell hardness exceeding 600 HB. This metallurgy resists erosion from sharp sand particles, gravel, and mining tailings—extending service life by 3–5 times compared to standard cast iron pumps. High-chrome wear parts are field-replaceable, minimizing downtime.
Bottom Agitation Impeller for High-Concentration Slurry Production
Unlike passive suction pumps that struggle with settled solids, the integrated bottom agitator impeller rotates directly beneath the intake, mechanically loosening compacted sediment into turbulent suspension. This action enables the pump to achieve slurry concentrations of up to 70% solids by weight without requiring auxiliary jetting equipment—significantly reducing water dilution and disposal volumes.
Low Rotational Speed – Reduced Wear, Extended Service Intervals
Operating at a deliberately lower RPM range, this hydraulic submersible pump generates less internal turbulence and particle impact velocity. The result is dramatically reduced wear on critical surfaces, lower vibration, and extended mean time between maintenance intervals. Operators report 500+ continuous operating hours before wear part replacement is needed in typical sand dredging applications.
Double Mechanical Seal with Pressure-Balanced Oil Chamber
Submerged operation demands absolute sealing integrity. The pump incorporates a dual-face mechanical seal system protected by a pressure-balanced oil chamber that equalizes internal and external pressures at depth. This design prevents water ingress even during extended submersion at maximum rated depth of 120 meters, safeguarding the hydraulic motor from contamination.
Hydroman 300THY110-6P Hydraulic Excavator Submersible Canals Dredging Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 300THY110-6P | 300 | 780 | 26 | 110 | 70 | 250 | 27 | 250 |
| 300THY110-6P | 300 | 1000 | 18 | 110 | 70 | 250 | 27 | 250 |
While versatile across multiple industries, two application scenarios showcase the true capability of this hydraulic dredging system.
Canal & Waterway Maintenance – Precision Sediment Removal Without Disruption

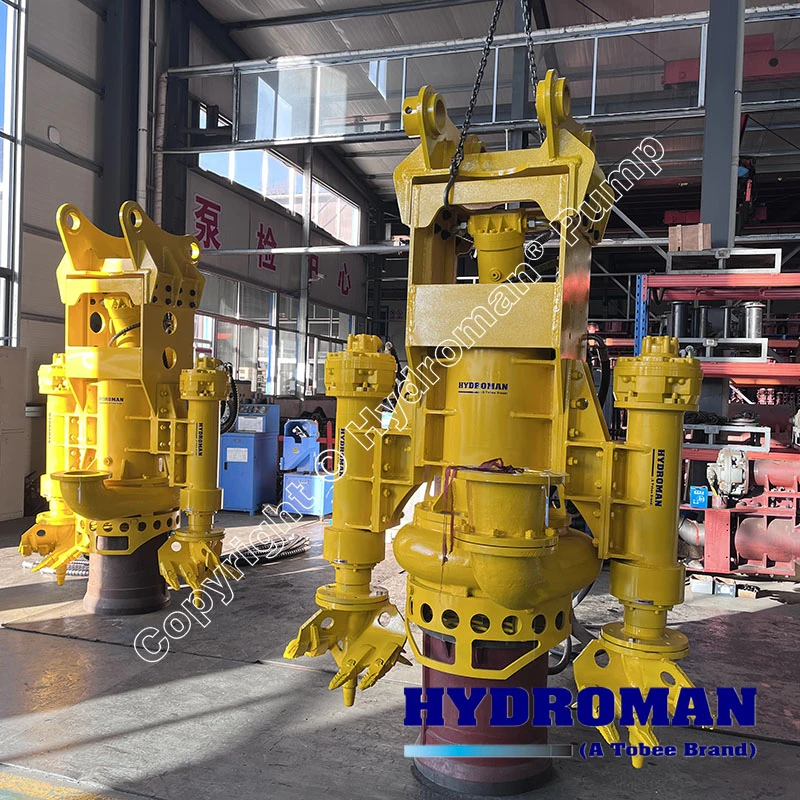

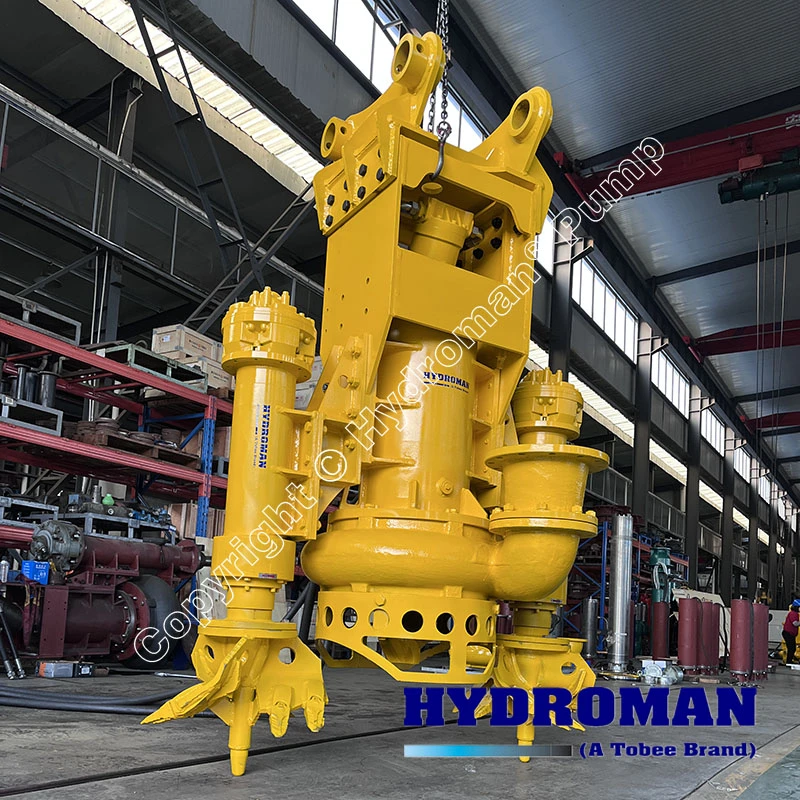

Canal Slurry Sand Sediment Dredging Hydraulic Pump applications demand equipment that removes accumulated material without damaging concrete linings, banks, or aquatic ecosystems. The excavator-mounted configuration allows operators to position the Underwater Hydraulic Submersible Pump for Canal Cleaning with millimeter precision—directing suction exactly where sediment has accumulated while avoiding structural features.
Municipal canal authorities benefit from rapid deployment: attach the pump to a standard excavator, lower it into the waterway, and begin dredging within minutes. The high-concentration slurry output reduces the number of truckloads required for disposal, cutting transportation costs by up to 40% compared to conventional hydraulic dredging methods. Whether maintaining irrigation canals, urban drainage channels, or industrial cooling water intakes, this system restores design flow capacity efficiently.
Mining & Tailings Management – Handling Extreme Abrasives in Remote Locations

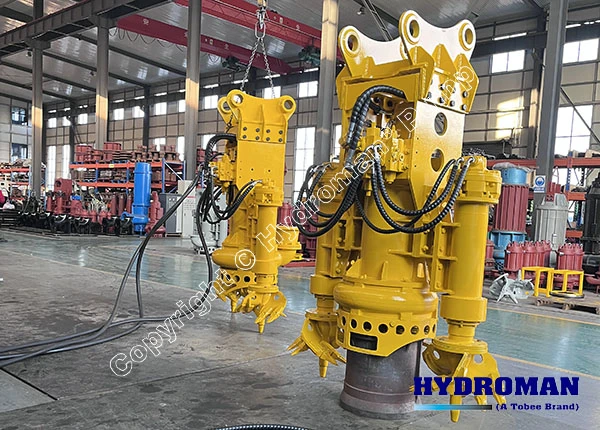

Vertical Excavator Hydraulic Pump for Mud Sludge Removal becomes indispensable in mining operations where electricity is unavailable or unreliable. Coal prep plants, ash sumps, and tailings ponds accumulate millions of tons of abrasive slurry annually—material that rapidly destroys standard pumps.
The 300THY110-6P’s high-chrome construction withstands the erosive action of coal fines, fly ash, and mineral tailings. The excavator’s hydraulic system provides power directly, eliminating the need for diesel generators or electrical substations in remote pit locations. Operators can reposition the pump across multiple tailings cells, sumps, and settling ponds during a single shift—transitioning between locations simply by moving the excavator. Field trials in Indonesian coal mines demonstrated 500+ hours of continuous operation without wear-part replacement, with productivity increases of 45% over diesel-powered alternatives.
Frequently Asked Questions (FAQ)
FAQ: What excavator specifications are required to operate this hydraulic dredge pump?

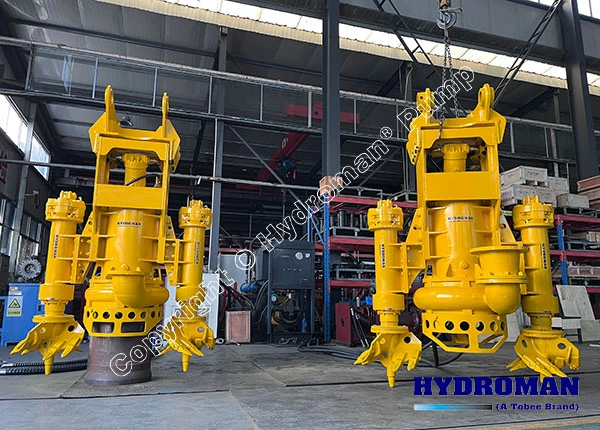

The Heavy Duty 110kW 12 Inch Dredging Pump requires an excavator with hydraulic flow capacity of 250–400 L/min at operating pressures between 20–32 MPa. Compatible excavator classes include 20-ton to 45-ton machines from all major manufacturers (Caterpillar, Komatsu, Hitachi, Volvo, Liebherr, SANY). The pump attaches directly to the excavator arm using the standard bucket pin configuration—no modifications required. For excavators below 20 tons, a separate diesel hydraulic power pack can be supplied.
FAQ: What is the maximum pumping distance and depth capability?
The pump delivers effective discharge distances up to 800 meters horizontally under optimal conditions, depending on pipeline diameter and elevation changes. Maximum submersion depth is rated at 120 meters—limited by hose integrity and hydraulic line length rather than pump performance. For depths beyond 80 meters, reinforced hydraulic hoses and a properly sized power unit are recommended.
FAQ: Can the pump handle compacted clay, hard-packed soil, or material containing large debris?
Standard agitator configuration handles loose sand, silt, and soft sediment effectively. For compacted clay, hard-packed soil, or material containing roots and fibrous debris, optional hydraulic cutter heads are available. These side-mounted cutter blades break up consolidated material before it reaches the agitator zone, enabling efficient pumping of materials previously requiring mechanical excavation. Maximum particle passage size is approximately 100mm (4 inches) depending on material characteristics.
Why Choose Hydroman® for Your Dredging Project?
With over 20 years of specialization in submersible dredging pump technology, Hydroman® has delivered solutions to more than 60 countries across mining, construction, and environmental sectors. Each pump is ISO and CE certified, backed by comprehensive technical documentation and global support. The 300THY110-6P represents the culmination of field-tested engineering—designed not for laboratory conditions but for the real-world abrasion, impact, and continuous-duty demands of professional dredging operations.
The Hydroman® 300THY110-6P Hydraulic Excavator Driven Canal Dredging Submersible Pump is ready for deployment—contact us today to verify excavator compatibility, receive technical specifications, and request a project-specific quotation.
Request a Quote: Submit your excavator model, hydraulic flow specifications, material type, and required pumping distance. Our engineering team will confirm compatibility and provide performance curves tailored to your project parameters.
