10 Inch Slurry Pumps Description
When your project demands Hydraulic Submersible Slurry Pumps for 10 Inch Discharge, the Hydroman® 250THY132-6P delivers proven reliability. These Vertical Hydraulic Slurry Pumps for Underwater Mining Operations are built to handle extreme depths and abrasive loads. As 132kW Hydraulic Submerged Pumps for Heavy Slurry Handling, they convert excavator hydraulic power into aggressive pumping action. They also serve as Industrial Hydraulic Slurry Pumps for Dredging Applications and Heavy Duty Submersible Slurry Pumps for Abrasive Materials – all in one rugged unit. No electric motors to fail. No cooling issues. Just raw hydraulic force moving high-density solids hour after hour.

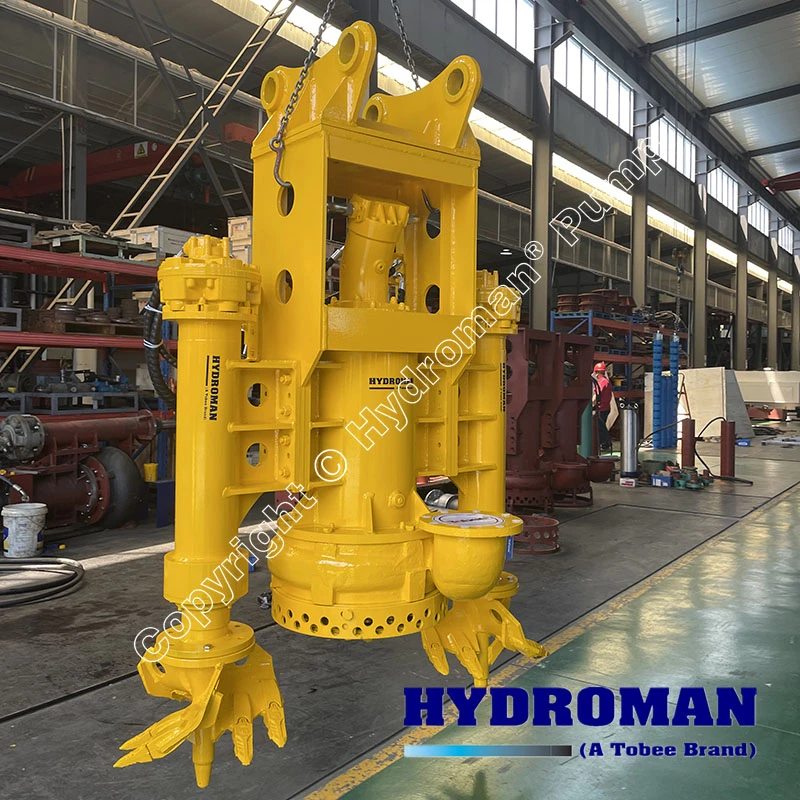

Design Features: 132kW Hydraulic Submerged Pumps for Heavy Slurry Handling
The Hydroman® 250THY132-6P is engineered for continuous immersion in abrasive slurries. Here are four core design features that set it apart:
High-Volute Wear-Resistant Iron Housing
The pump body uses hardened high-chrome alloy iron with a Brinell hardness exceeding 450 HB. This resists erosion from sharp sand, gravel, and mining tailings. Critical flow paths receive an extra 15mm sacrificial liner – easily replaceable in the field.
Hydraulic Motor Direct Drive (No Gearbox)
A low-speed, high-torque hydraulic motor couples directly to the impeller shaft. No intermediate gearbox means fewer failure points. The motor accepts variable oil flow from 160 to 280 L/min at pressures up to 350 bar, allowing precise speed control from 300 to 800 rpm.
Double Mechanical Seal with Oil Bath Chamber
Two opposing silicon carbide faces protect the hydraulic motor from slurry ingress. An oil-filled chamber between seals provides lubrication and dissipates heat. A external water flush port is optional for extreme grit conditions.
Open, Non-Clogging Impeller Design
The three-vane, open-channel impeller passes spherical solids up to 65mm (2.5 inches) without clogging. Vanes are hard-faced with tungsten carbide inserts. This design maintains efficiency even when pumping slurry with 40-60% solids by weight.
These features make the 132kW Hydraulic Submerged Pumps for Heavy Slurry Handling a true workhorse in submerged excavation and dredging projects.
Heavy Duty Submersible Slurry Pumps Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 250THY132-6P | 250 | 700 | 30 | 132 | 70 | 250 | 27 | 300 |

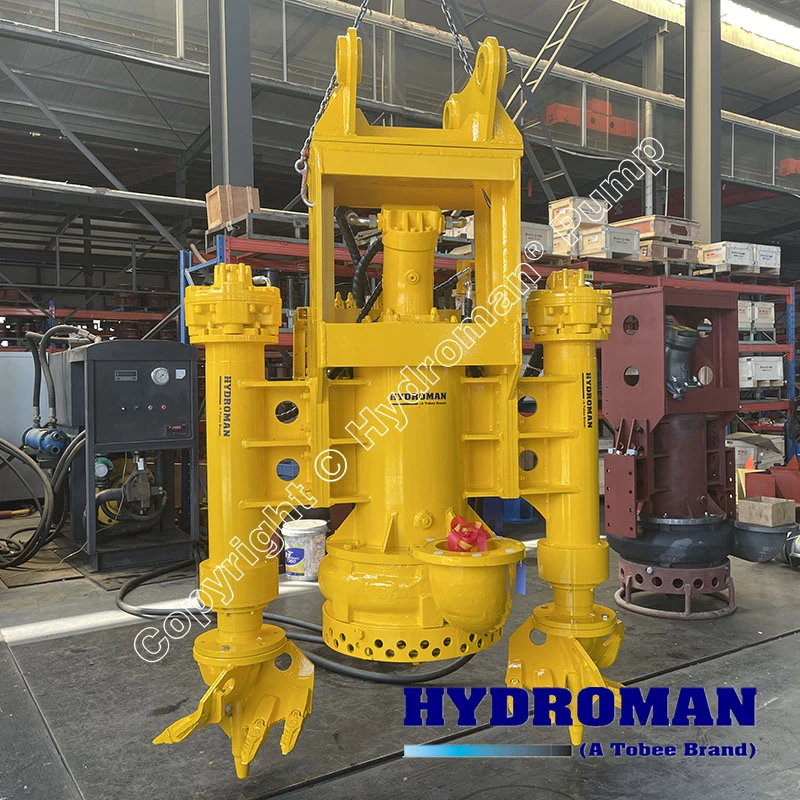

Vertical Hydraulic Slurry Pumps for Underwater Mining Operations
In underwater mining, you face settling ponds, tailings dams, and flooded pits where conventional pumps fail. The Hydroman® 250THY132-6P operates fully submerged – up to 50 meters depth with optional cable length. Its vertical orientation allows direct placement into a slurry sump without priming.
Typical mining tasks include:
Reclaiming valuable minerals from tailings storage facilities.
Pumping dense magnetite or hematite slurries from underground sumps.
Transferring coal slurry and rock fines from wash plants to settling ponds.
Because it’s Hydraulic Driven Slurry Pumps for High Density Solids, you simply connect to an existing excavator’s auxiliary circuit (20-35 ton class) or a standalone hydraulic power pack. No electrical explosion-proofing needed. No risk of motor burn-out from overload. Just consistent, high-torque pumping that matches the density of the material – the harder the load, the harder the pump works.

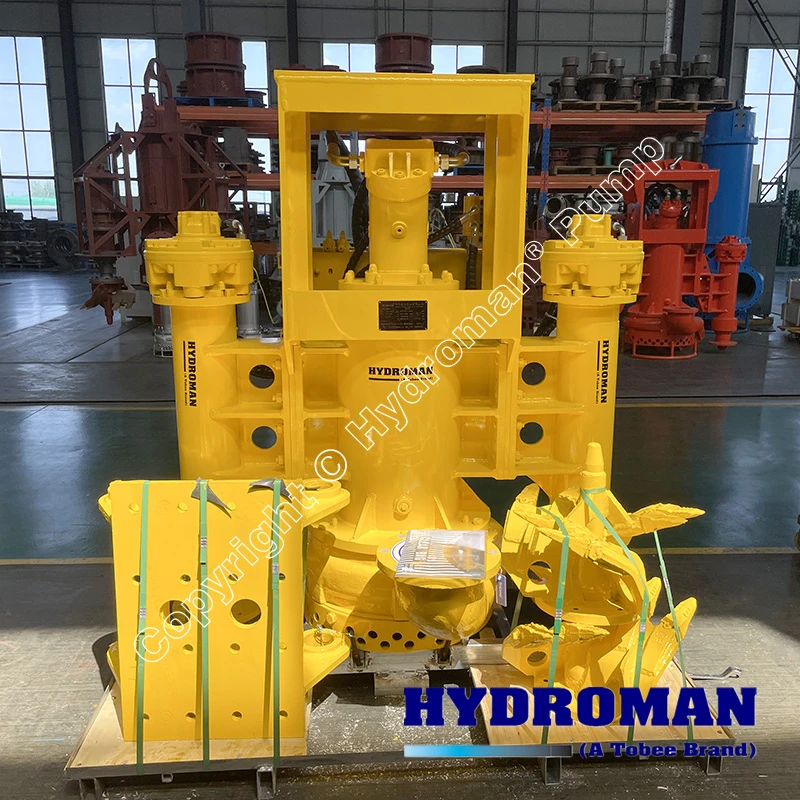

Industrial Hydraulic Slurry Pumps for Dredging Applications
Dredging contractors choose the Hydroman® 250THY132-6P for Industrial Hydraulic Slurry Pumps for Dredging Applications because it turns an excavator into a versatile dredge. Mount it on a long-reach boom, submerge the pump into a canal, harbor, or settling lagoon, and start moving material.
Two standout dredging use cases:
Harbor Maintenance Dredging: Removes compacted silt, fine sand, and light gravel from berthing pockets. The 250mm (10-inch) discharge line moves up to 800 m³/hour of slurry at 15% solids, or 250 m³/hour of heavy sand.
Sand and Gravel Extraction: Works directly in riverbeds or flooded pits. The pump’s hydraulic drive allows variable speed – slow for dewatering, fast for aggressive sand mining. A cutter head attachment (optional) loosens compacted deposits before suction.
Unlike electric submersible pumps, this unit runs cool even when partially buried in sludge. The hydraulic oil circulates back to the excavator’s cooler, so no thermal shutdown in tropical climates or deep excavations.

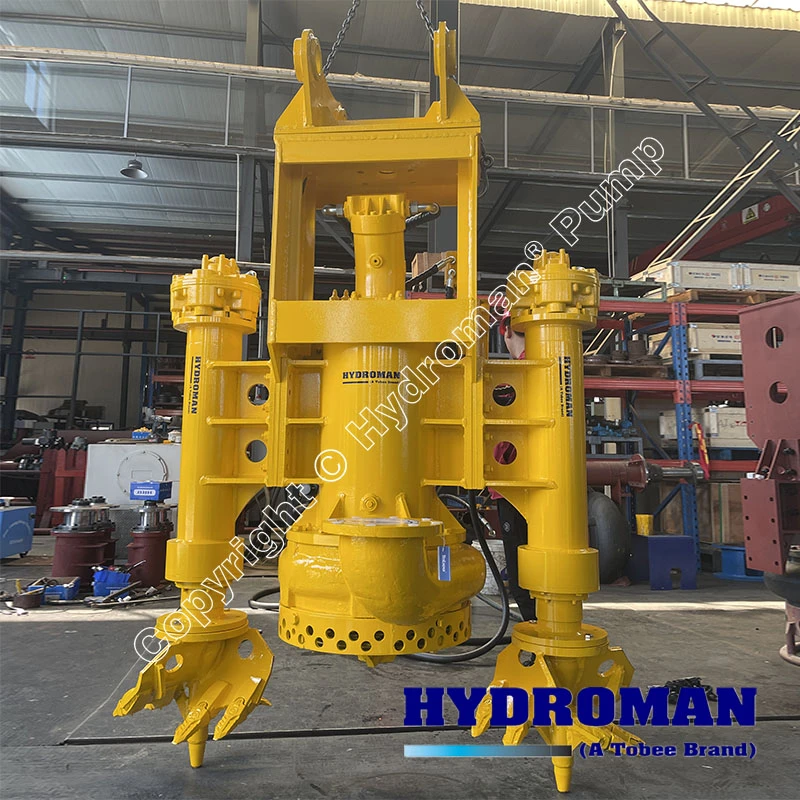

FAQ: Common Questions About Heavy Duty Submersible Slurry Pumps for Abrasive Materials
Q1: What particle size and density can the Hydroman® 250THY132-6P handle?
A: It passes solids up to 65mm (2.5 inches) in diameter. For density, it pumps slurries with up to 60% solids by weight (e.g., 2.4 specific gravity sand). Maximum recommended mixture density is 2,000 kg/m³. Always check with our engineers for extreme cases like iron ore tailings (3.2 SG) – we can adjust impeller trim and speed.
Q2: Can I run this pump with my existing excavator?
A: Yes, if your excavator provides 160–280 L/min hydraulic flow at 280–350 bar. Typical matches: 20–35 metric ton excavators (e.g., CAT 320–336, Komatsu PC200–350, Hitachi ZX210–350). We supply hydraulic hose kits with flat-face couplings. For smaller or larger machines, optional flow dividers or pressure compensators are available. No excavator? Use our standalone diesel-hydraulic power pack (300 HP, 450 L/min capacity).
Q3: How do I maintain the Heavy Duty Submersible Slurry Pumps for Abrasive Materials in the field?
A: Daily: Check hydraulic oil cleanliness (ISO 18/15/13 minimum) and inspect suction screen. Every 200 hours: Grease the water flush seal fitting (if installed). Every 500 hours: Replace the external wear plate – a 20-minute job with common hand tools. Every 1,500 hours: Replace the mechanical seals. The impeller typically lasts 2,000–3,000 hours in silica sand; longer in softer materials. All wear parts are stocked and shipped worldwide within 48 hours.

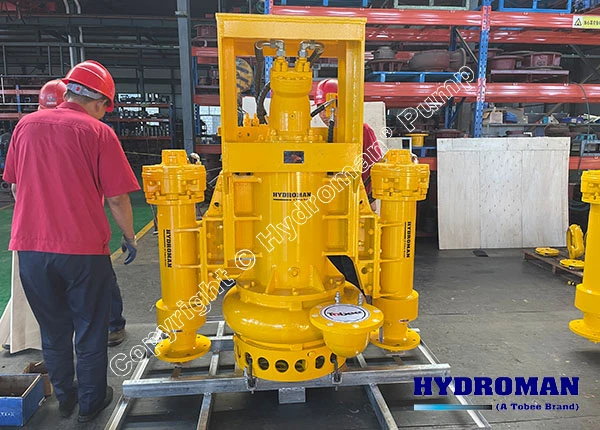

Why Hydraulic Driven Slurry Pumps for High Density Solids Outperform Electric Units
Electric submersible slurry pumps have limits: motor cooling depends on clean water, cables get damaged, and variable frequency drives are costly. Hydraulic Driven Slurry Pumps for High Density Solids like the Hydroman® 250THY132-6P offer clear advantages:
Stall protection: If the impeller jams on a rock, the hydraulic motor stalls harmlessly – no burnout. Reverse flow momentarily to clear it.
Deep submersion: No electric cable length limits. Use 100+ meters of hydraulic hoses with no voltage drop.
Explosion-proof by nature: No sparks, ideal for methane-prone mining or refinery sludge ponds.
Compact power density: 132kW hydraulic input equals 150kW electric motor output, but the hydraulic pump weighs 40% less.
For contractors who already own excavators, the ROI is immediate. One machine – two functions: dig and pump.
Hydroman® 250THY132-6P Hydraulic Submersible Slurry Pumps feature 10 inch (250mm) discharge and 132kW power, designed for vertical underwater use. Ideal for heavy slurry handling in dredging and mining. Contact us now!

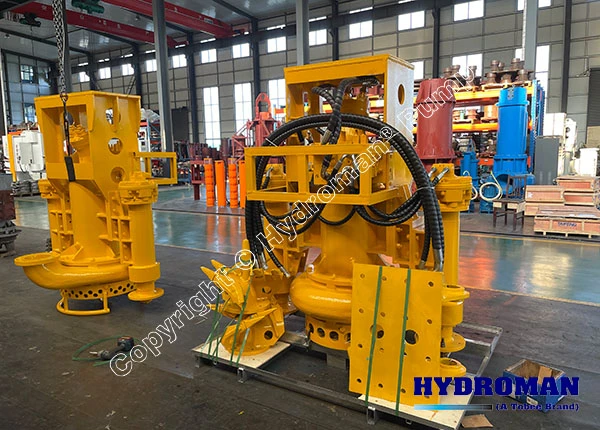

Ready to stop fighting slurry with underpowered pumps? Email our engineering team your project parameters: material density, particle size, pumping distance, and available hydraulic source. We’ll reply with a performance curve, hose sizing guide, and a quote within 24 hours. 250mm Discharge Slurry Pumps for Submerged Excavation Work are in stock – lead time 5–7 days for standard units, 2 weeks for cutter head versions. Call or visit our web to speak with a hydraulic slurry specialist. Don’t let abrasive sludge shut you down – put Hydroman® power under the surface.
