Slurry Pump Description

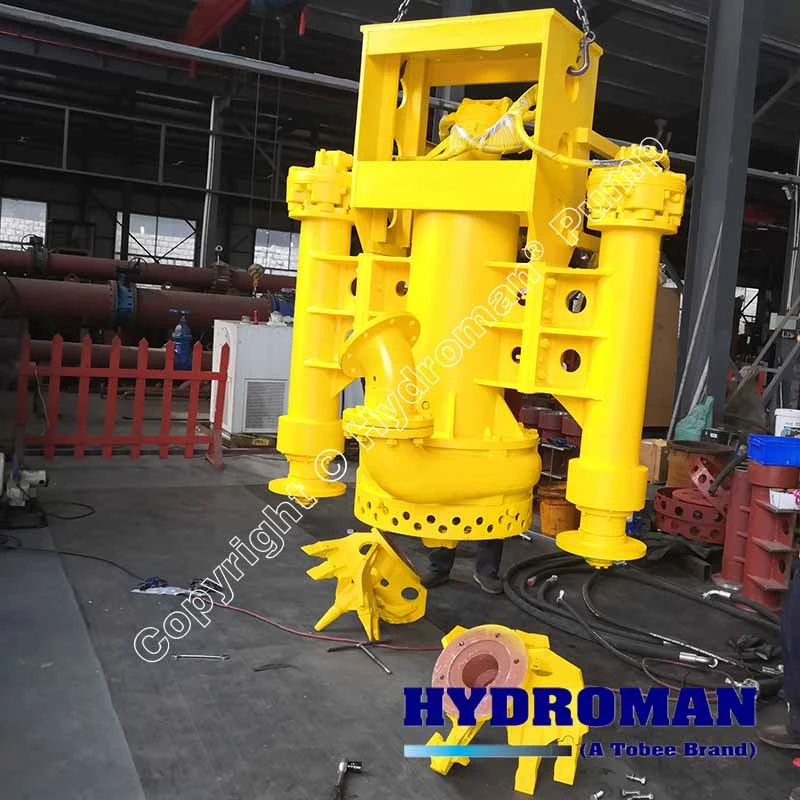

When dredging contractors search for high-performance dewatering solutions, the Hydroman® 200THY37-6P emerges as the industry's most trusted Hydroman 200THY Hydraulic Driven Dredge Pump. This 200THY37-6P Excavator Hydraulic Slurry Pump transforms any compatible excavator into a powerful dredging machine. As a dedicated 8 Inch Hydraulic Submersible Pump for Sediment, it excels at removing compacted sludge from the deepest excavation sites. Engineered as a Vertical Hydraulic Pump for Sand Sludge Removal, this 37kW Hydraulic Dredging Pump for Heavy Duty applications delivers unmatched reliability in the harshest underwater environments.
The Hydroman 200THY Hydraulic Driven Dredge Pump represents a paradigm shift in underwater material handling. Unlike conventional electric pumps that struggle with abrasive slurries, this hydraulic-driven unit operates directly from your excavator's hydraulic system or a standalone power pack, eliminating the need for external electricity. The result is a Submersible Hydraulic Pump for Mud and Gravel that works anywhere, anytime, regardless of power availability.
6 Design Features That Set This 200THY37-6P Excavator Hydraulic Slurry Pump Apart
The 200THY37-6P Excavator Hydraulic Slurry Pump incorporates engineering innovations specifically developed for abrasive, high-wear applications. Each feature addresses a real-world challenge faced by dredging operators daily.
High-Chrome Alloy Flow Passage Components – The pump casing, impeller, guard plate, and mixing impeller are cast from high-chromium white iron, delivering exceptional resistance to abrasive wear from sand, gravel, and mineral slurries. This metallurgical choice dramatically extends service intervals between spare part replacements.
Integrated High-Efficiency Agitator – A bottom-mounted agitator impeller (also high-chrome) breaks up settled solids before they enter the suction inlet. The excavating action creates turbulent flow that lifts compacted sediment, generating a continuous, highly concentrated slurry stream that can reach up to 70% solids by weight.
Low Rotation Speed Design – By operating at reduced rotational speeds compared to electric pumps, the Hydraulic Pump for Excavator Dredging Operations minimizes internal wear on impellers and wear plates. Lower RPM also reduces cavitation risk and energy consumption while extending component lifespan.
Unique Lip Seal System with Deflector – A front deflector prevents fine abrasive particles from penetrating the sealing zone. Teflon layers provide resistance to both high and low pH environments, ensuring seal integrity even when handling acidic mine tailings or caustic industrial sludge.
Double Mechanical Seal Arrangement – Two independent mechanical seals work in tandem to protect the hydraulic motor from water ingress. This redundant sealing system eliminates frequent seal replacement and keeps the pump operational during extended submersion periods.
Variable RPM Hydraulic Motor – The hydraulic drive allows stepless speed regulation, giving operators precise control over flow rate and suction power. Unlike electric motors, the hydraulic system provides automatic overload protection with no risk of motor burnout.
Hydroman 8 Inch Hydraulic Driven Submersible Pump Parameters
| Hydraulic Pump Specification | Hydraulic Motor Specification | |||||||
| Model | Outlet (mm) | Capacity (m³/h) | Head (m) | Power (KW) | Solids handling (mm) | Displacement (ml/r) | Pressure (Mpa) | Oil capacity (L/min) |
| 200THY37-6P | 200 | 300 | 20 | 37 | 60 | 107 | 21 | 107 |
| 200THY37-6P | 200 | 400 | 15 | 37 | 60 | 107 | 21 | 107 |
River, Harbor, and Canal Dredging

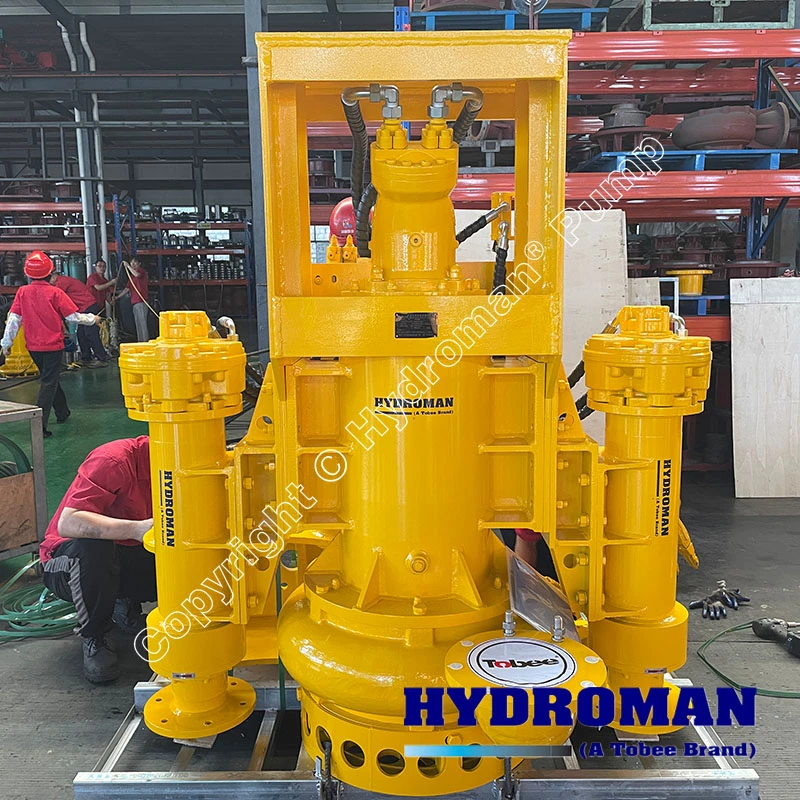

When waterways become choked with accumulated sediment, conventional excavation becomes impossible. The 8 Inch Hydraulic Submersible Pump for Sediment mounts directly onto an excavator boom, replacing the bucket, and submerges into water depths where no dry-mounted pump can operate. The agitator stirs hardened silt deposits into a pumpable slurry, which is then discharged through floating pipelines to designated disposal areas.
Harbor authorities and river management agencies rely on this capability for routine maintenance dredging, preventing navigation hazards before they develop. The 200THY37-6P handles everything from fine silt to coarse gravel, making it the go-to tool for port authorities and marine contractors worldwide.
Mining Tailings and Slag Handling

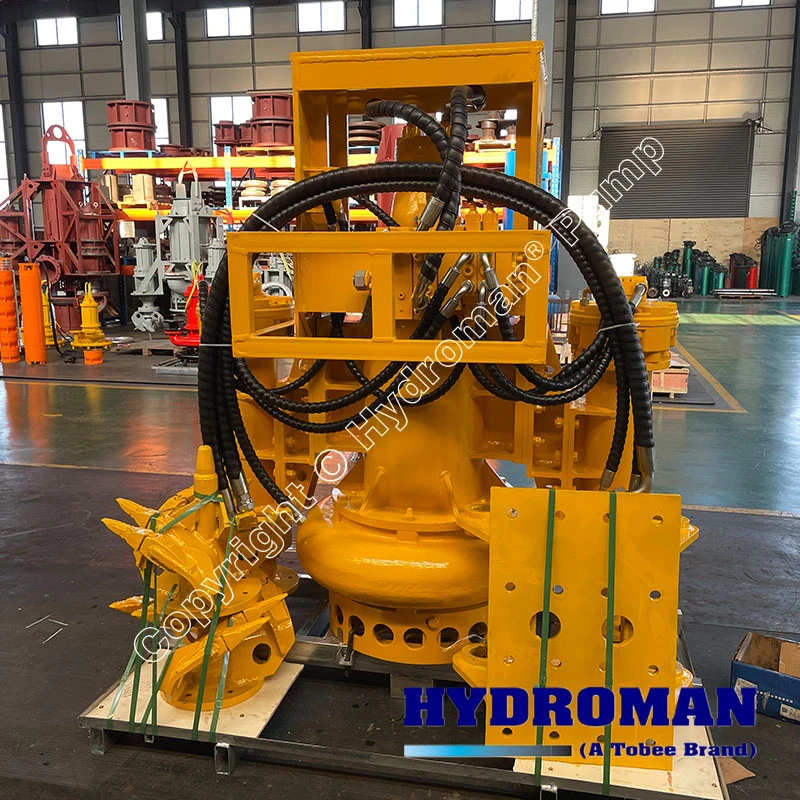

Mine tailings ponds and smelter slag pits present uniquely challenging pumping conditions. The 37kW Hydraulic Dredging Pump for Heavy Duty applications thrives in these environments where abrasive particles and acidic or caustic pH levels destroy conventional pumps within weeks. The pump submerges directly into tailings slurry, agitating settled solids and transferring them to reprocessing plants or disposal sites.
Power plant fly ash handling, steel mill scale removal, and aluminum refinery red mud transport are all standard applications for this pump. Because it draws power from an excavator's hydraulic system, no electrical infrastructure is required near hazardous tailings ponds, eliminating spark risks in potentially explosive environments.
Frequently Asked Questions About the 200THY37-6P Excavator Hydraulic Slurry Pump
A: Absolutely. While the Hydroman 200THY Hydraulic Driven Dredge Pump is commonly used as an excavator attachment, it can also be powered by a standalone hydraulic power pack. This makes it suitable for barge-mounted dredging operations, crane-suspended installations, or any application where an excavator is unavailable or impractical. The pump simply requires a hydraulic supply with appropriate flow and pressure ratings to operate at peak efficiency.

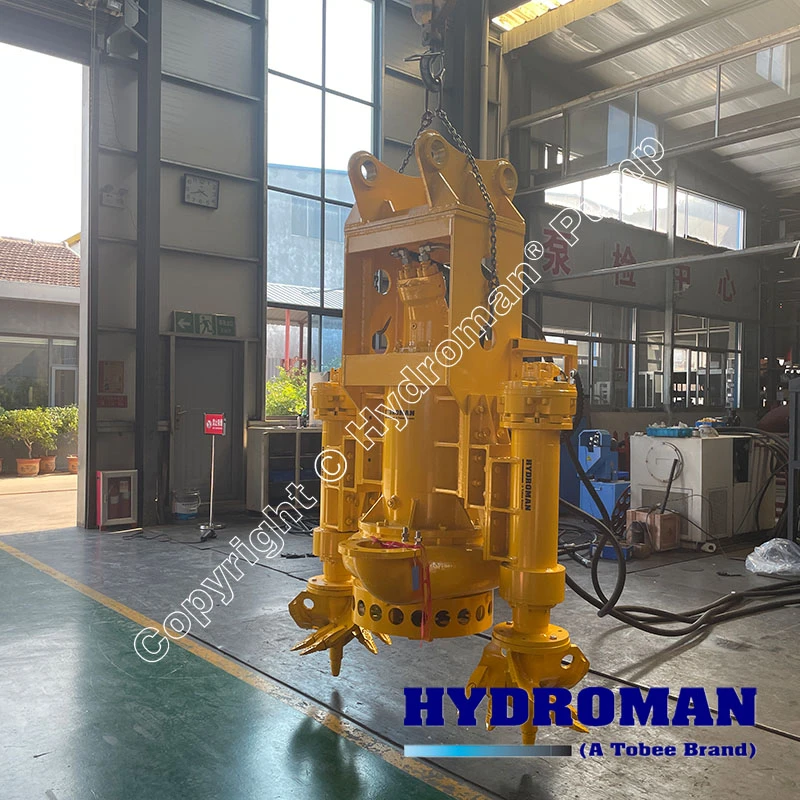

A: The Vertical Hydraulic Pump for Sand Sludge Removal has no practical depth limitation beyond the length of your hydraulic hoses and lifting equipment. Because the hydraulic motor is fully sealed and pressure-compensated, the pump can operate at significant underwater depths where electric pumps would fail due to cable limitations and motor seal failures. Users have successfully deployed this pump in reservoir intake towers, deep mining sumps, and offshore applications at depths exceeding 50 meters.

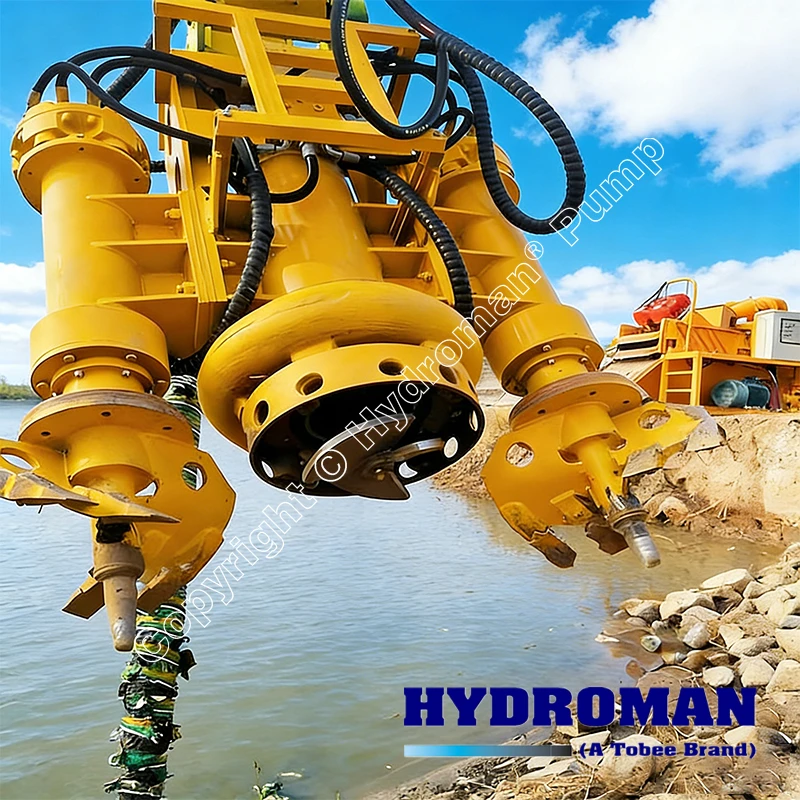

A: The Submersible Hydraulic Pump for Mud and Gravel features a high-chrome agitator that performs two critical functions. First, it breaks up compacted sediment layers that have settled and hardened underwater. Second, it creates localized turbulence that keeps solids suspended in the water column, preventing them from settling back down before entering the pump suction. This agitation action enables the pump to achieve solids concentrations of up to 70% by weight—far exceeding what a standard centrifugal pump could handle without clogging.
Ready to Transform Your Excavator into a Dredging Powerhouse?

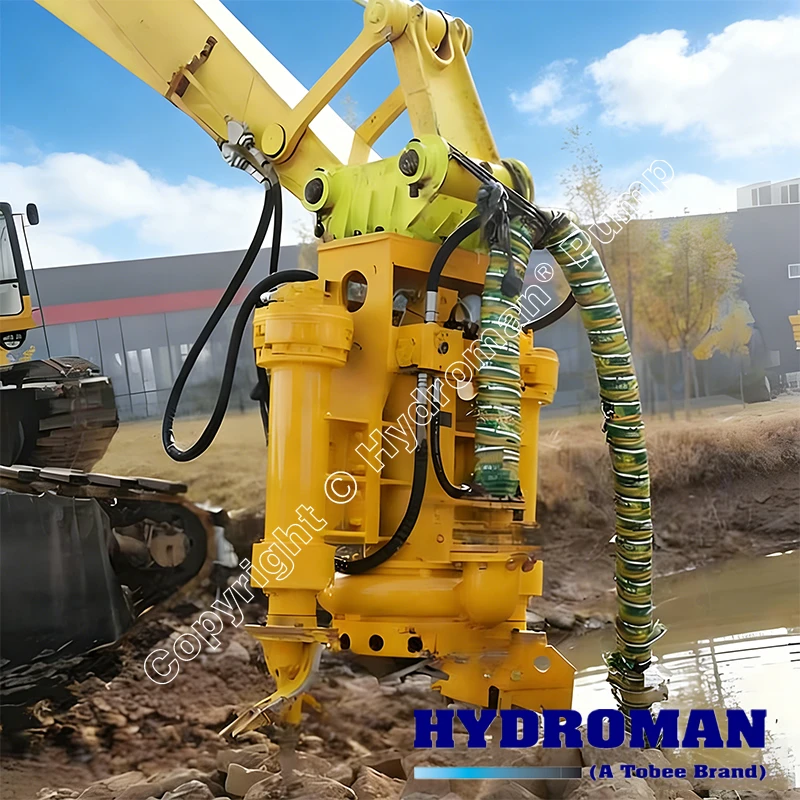

The Hydroman® 200THY37-6P Hydraulic Driven Pump delivers powerful 8 Inch Hydraulic Submersible Pump performance that no conventional pump can match. This 37kW vertical Excavator Hydraulic Pump is ideally suited for removing sludge, sand, and gravel from the deepest underwater worksites. Whether you operate a Hydraulic Pump for Excavator Dredging Operations in river maintenance, mining, or environmental remediation, the 200THY37-6P delivers the durability and efficiency your projects demand.
Contact us now to discuss your specific dredging requirements and request a quote for the Hydroman® 200THY37-6P—the Vertical Hydraulic Pump for Sand Sludge Removal that industry professionals trust worldwide.
